Uni-T UT311A Vibration Tester
202.00 €
208.10 €
You save 6.10 €
incl. VAT
In supplier warehouse · 10+ pcs.Delivery Time: 4–10 business days
Delivery options to:

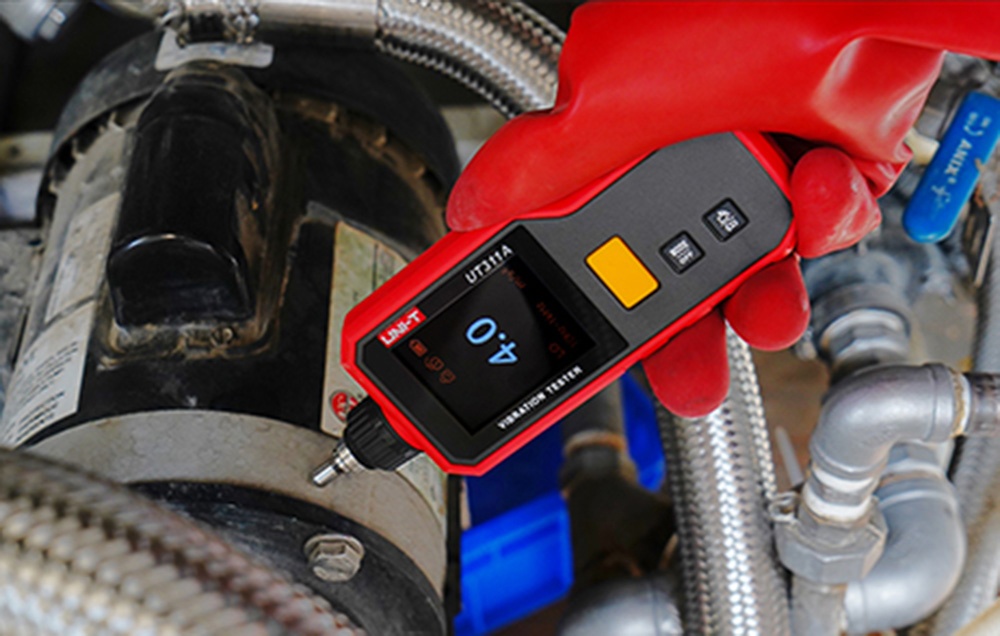

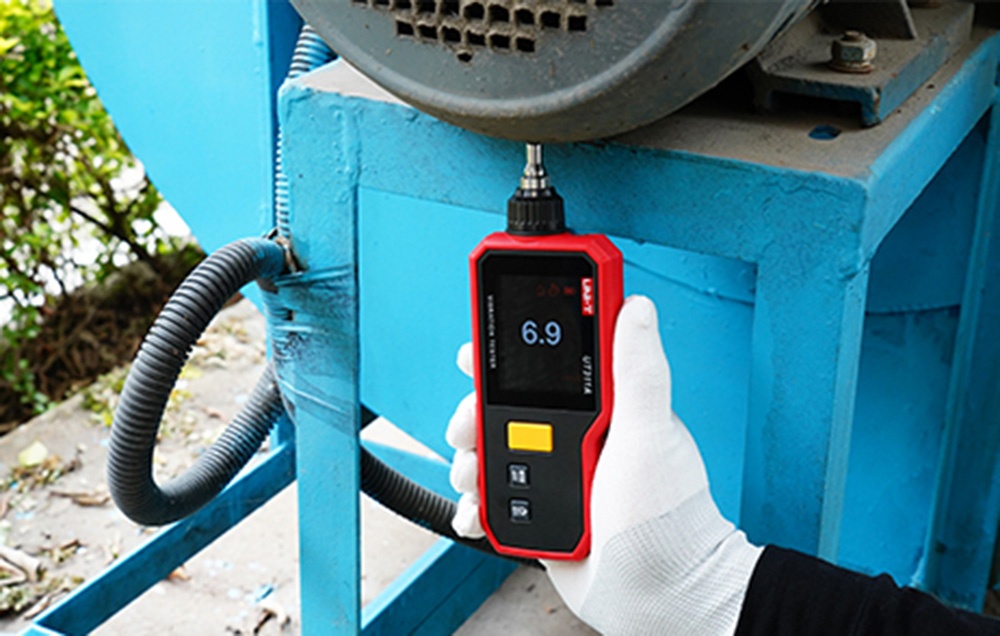

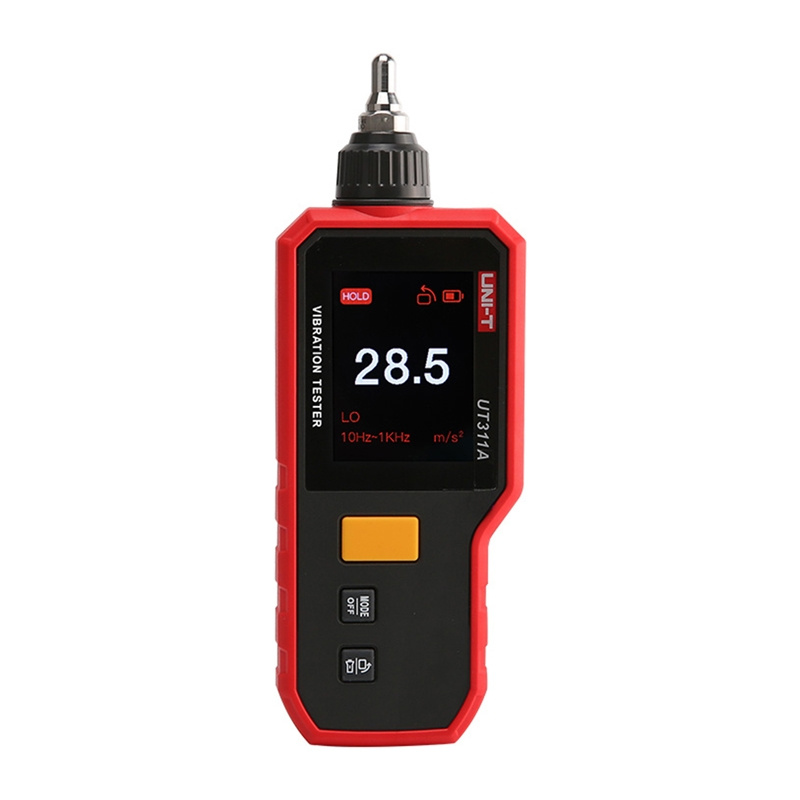

Choose countryThe Uni-T UT311A Vibration Tester is a compact machine condition monitoring device designed to measure vibration acceleration, velocity, and displacement with real-time readings on a 2.4" TFT display.
Key Features
- Three measurement modes: acceleration (PEAK), velocity (RMS), and displacement (P-P)
- Two frequency modes for acceleration: LO (10 Hz–1 kHz) and HI (1 kHz–15 kHz)
- Auto-rotating 2.4" TFT LCD screen with backlight
- Data Hold function and built-in flashlight
- 1350 mAh rechargeable Li-ion battery providing up to approximately 12 hours of use
| Manufacturer | Uni-T |
|---|---|
| Model | UT311A |
| Acceleration measurement | 0.1–199.9 m/s² |
| Velocity measurement | 0.1–199.9 mm/s |
| Displacement measurement | 0.001–1.999 mm |
| Acceleration frequency range | LO 10 Hz–1 kHz / HI 1 kHz–15 kHz |
| Velocity frequency range | 10 Hz–1.5 kHz |
| Displacement frequency range | 10 Hz–1 kHz |
| Resolution | 0.1 m/s² / 0.1 mm/s / 0.001 mm |
| Acceleration and velocity accuracy | ±(5%+2 digits) |
| Displacement accuracy | ±(10%+2 digits) |
| Display | 2.4" TFT LCD, auto-rotation, backlight |
| Functions | Data Hold, flashlight, battery indicator, auto power off after 5 min |
| Power supply | 1350 mAh Li-Ion battery, 3.7 V |
| Charging | USB-C, DC 5 V |
| Operating time | approx. 12 h |
| Operating conditions | 0°C–40°C, ≤80% RH (non-condensing) |
| Dimensions | 180 × 28 × 64 mm (with short probe) |
| Weight | 191 g (with short probe) |
| EAN | 6935750531136 |
|---|
What probes are included in the package?
The package includes both a long measurement probe and a short measurement probe.
How long does the battery last and how is it charged?
The 1350 mAh battery provides up to approximately 12 hours of operating time and recharges via USB-C in about 3 hours.
