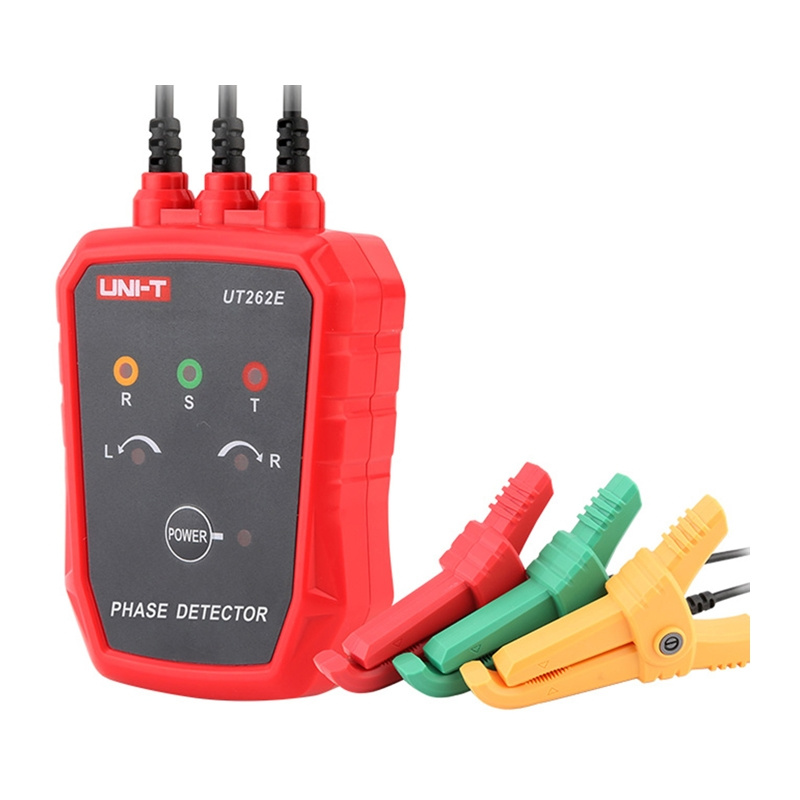

Uni-T UT262E Non-Contact Phase Sequence Detector
Price: 93.60 €
| Products ID: | 176309 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750526255 |
Delivery options to:
Choose countryThe Uni-T UT262E is a clamp-on non-contact phase sequence detector designed for testing three-phase electrical systems without touching exposed conductors.
Key Features
- Voltage measurement range from 70 to 1000 V AC
- Identifies phase presence, phase sequence, phase loss, and wire breaks
- Audible buzzer and visual LED signaling
- Supports cable diameters from 2 to 40 mm
- Safety rating CAT III 1000V and CAT IV 600V
- IP52 protection rating and automatic power-off after 5 minutes
| Manufacturer | Uni-T |
|---|---|
| Model | UT262E |
| Measurement method | Non-contact (inductive clamps) |
| Voltage range | 70~1000V AC |
| Operating frequency | 45~66 Hz |
| Cable diameter | Ø2~40 mm |
| Cable length | 0.6 m |
| Signaling | LED + buzzer (65~70 dB) |
| Auto-off | After approx. 5 minutes |
| Operating time | Over 20 hours |
| Safety class | CAT III 1000V / CAT IV 600V |
| Protection rating | IP52 |
| Power supply | 2 × AA 1.5V |
| Dimensions | 88 × 30 × 66 mm |
| Weight | 237.7 g (with batteries) |
| Certifications | CE, UKCA |
What cable diameter does the clamp support?
The clamp accommodates cable diameters from 2 mm to 40 mm.
What is included in the package?
The package includes the phase sequence detector, 2 AA batteries, a carrying case, user manual, warranty card, and inspection certificate.
