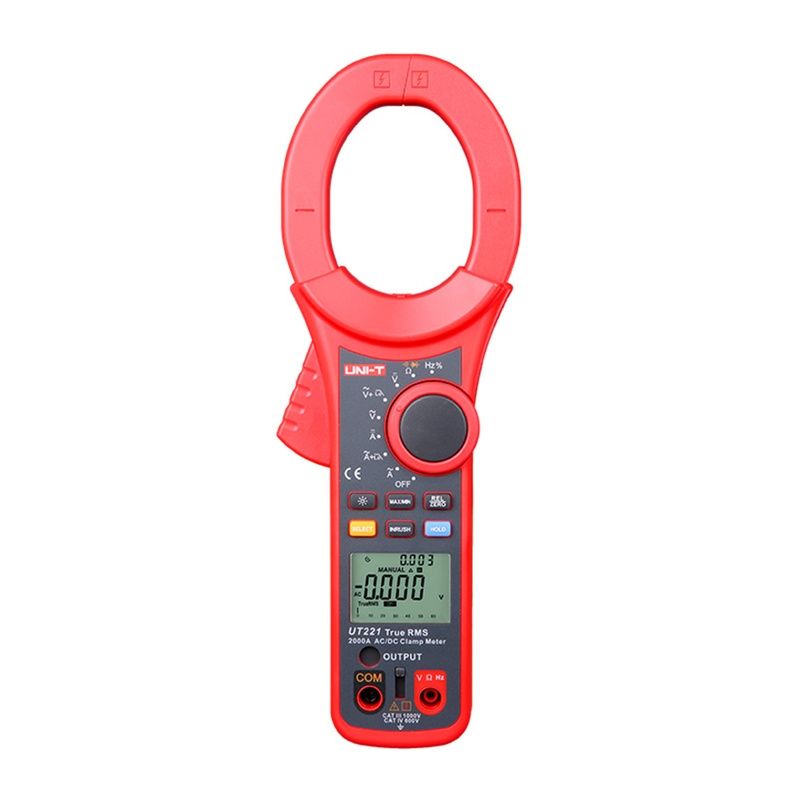

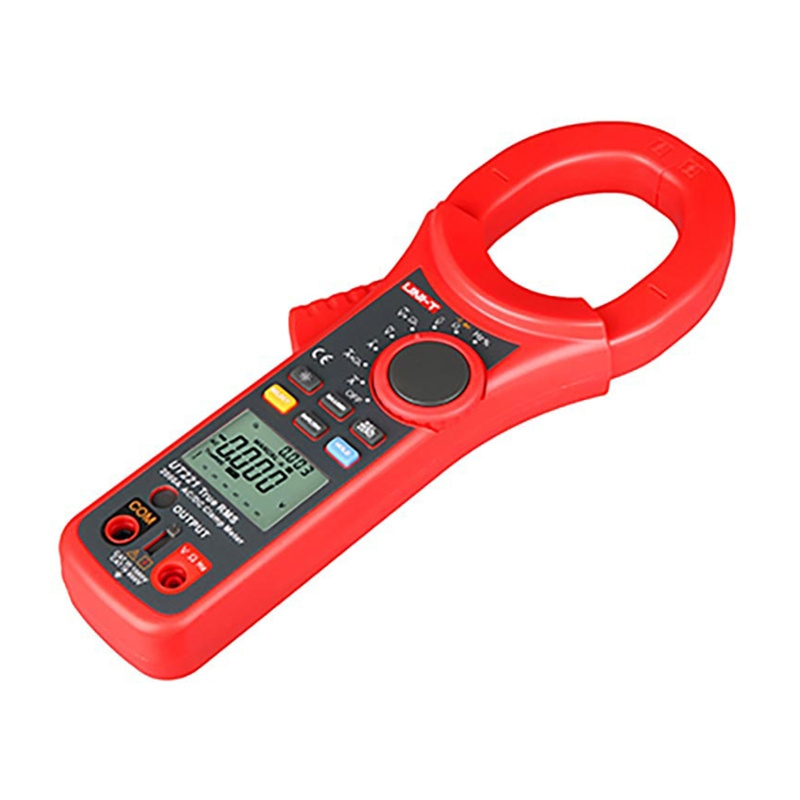

Uni-T UT221 True RMS Digital Clamp Meter
Price: 98.51 €
| Products ID: | 176348 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750502211 |
Delivery options to:
Choose countryThe Uni-T UT221 is a True RMS digital clamp meter designed for measuring high AC and DC currents up to 2000 A, as well as voltage, resistance, and frequency in demanding electrical and industrial installations.
Key Features
- AC and DC current measurement up to 2000 A
- Large 63 mm jaw opening
- True RMS for AC voltage and current measurements
- Measures AC voltage up to 750 V and DC voltage up to 1000 V
- Resistance measurement up to 66 MΩ and frequency up to 20 MHz
- 6000-count display with a 66-segment analog bar graph
- Inrush current measurement, low-pass filter, and diode test
| Manufacturer | Uni-T |
|---|---|
| Model | UT221 |
| Product type | True RMS digital clamp meter |
| AC current range | 2000 A ±(2.5% + 5) |
| DC current range | 2000 A ±(2.5% + 5) |
| AC voltage range | 750 V ±(1.2% + 5) |
| DC voltage range | 1000 V ±(0.8% + 1) |
| Resistance range | 66 MΩ ±(1% + 2) |
| Frequency range | 20 MHz ±(0.1% + 3) |
| Duty cycle range | 10% – 90% |
| Display count | 6000 |
| Jaw opening | 63 mm |
| Power supply | 9V battery (6F22) |
| Display dimensions | 43 × 30 mm |
| Dimensions | 298 × 107 × 47 mm |
| Weight | 726 g |
| Certifications | CE, UKCA, cETLus |
What is the maximum current measurement range?
The Uni-T UT221 measures both AC and DC current up to 2000 A.
What is the jaw opening size?
The clamp jaw opening size is 63 mm.
What items are included in the package?
The package includes the clamp meter, one pair of test leads, an output cable, a 9V battery (6F22), a carrying case, and a user manual.
