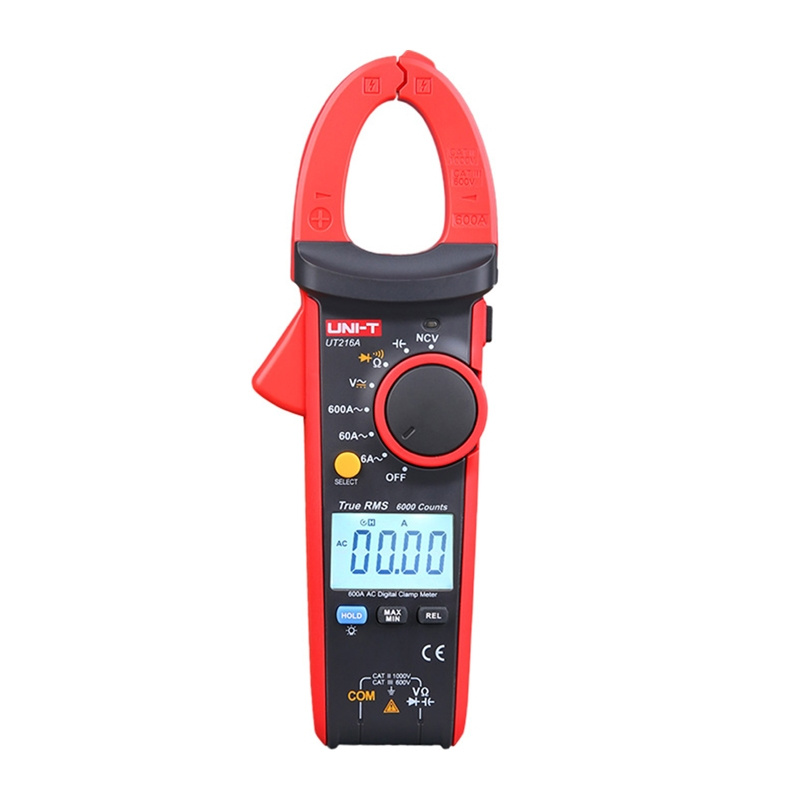

Uni-T UT216A Digital Clamp Meter True RMS 600A
Price: 62.80 €
| Products ID: | 176939 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750512166 |
Delivery options to:
Choose countryThe Uni-T UT216A is a digital clamp meter designed for electrical installations and systems operating at high frequencies, enabling rapid diagnostics without disconnecting the circuit.
Key Features
- Measures AC current up to 600 A and AC voltage up to 750 V
- DC voltage measurement up to 1000 V and resistance up to 60 MΩ
- True RMS support for precise alternating signal measurements
- Non-contact voltage detection (NCV) and Data Hold functionality
- 30 mm jaw opening, built-in flashlight, and backlit display
| Manufacturer | Uni-T |
|---|---|
| Model | UT216A |
| Product type | True RMS digital clamp meter |
| AC current range | 600 A ±(2.5% + 5) |
| AC current frequency response | 50 / 60 Hz |
| AC voltage range | 750 V ±(1.2% + 5) |
| AC voltage frequency response | 40 Hz – 400 Hz |
| DC voltage range | 1000 V ±(0.8% + 1) |
| Resistance measurement range | 60 MΩ ±(1% + 2) |
| Capacitance measurement range | 60 mF ±(4% + 5) |
| Maximum display reading | 6000 |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, MAX/MIN, LCD backlight, flashlight, auto-range, auto-off, low battery indicator |
| Jaw opening | 30 mm |
| Power supply | 3 × 1.5 V (R03) |
| Display dimensions | 38 × 24 mm |
| Dimensions | 220 × 75 × 40 mm |
| Weight | 280 g |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
What is included with the Uni-T UT216A clamp meter?

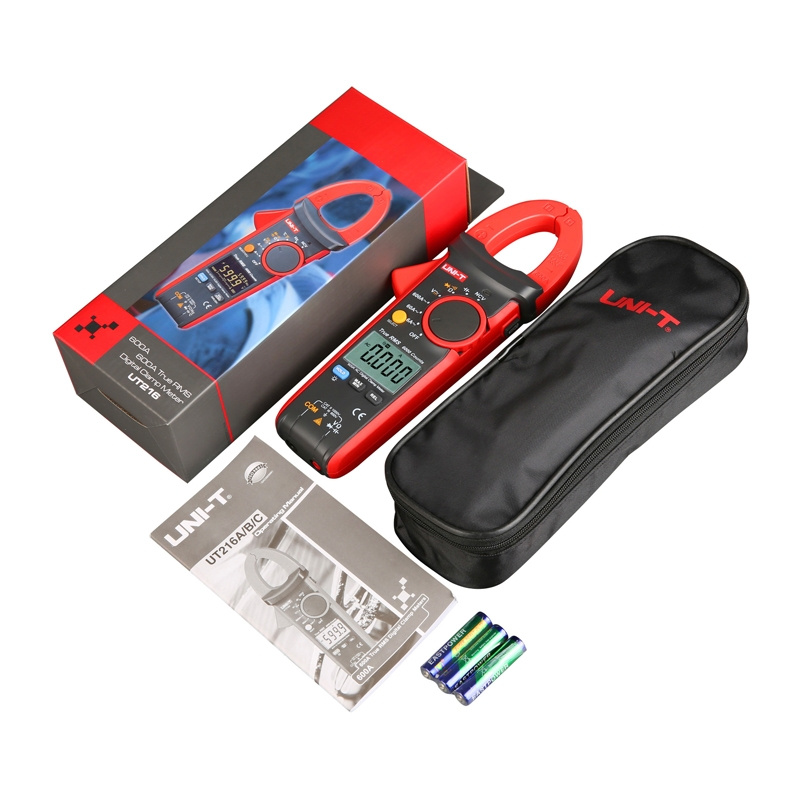

The package includes the clamp meter, 1 pair of test leads, 3 AAA batteries, a carrying case, and a user manual.
What is the jaw opening size of this meter?
The jaw opening measures 30 mm.
