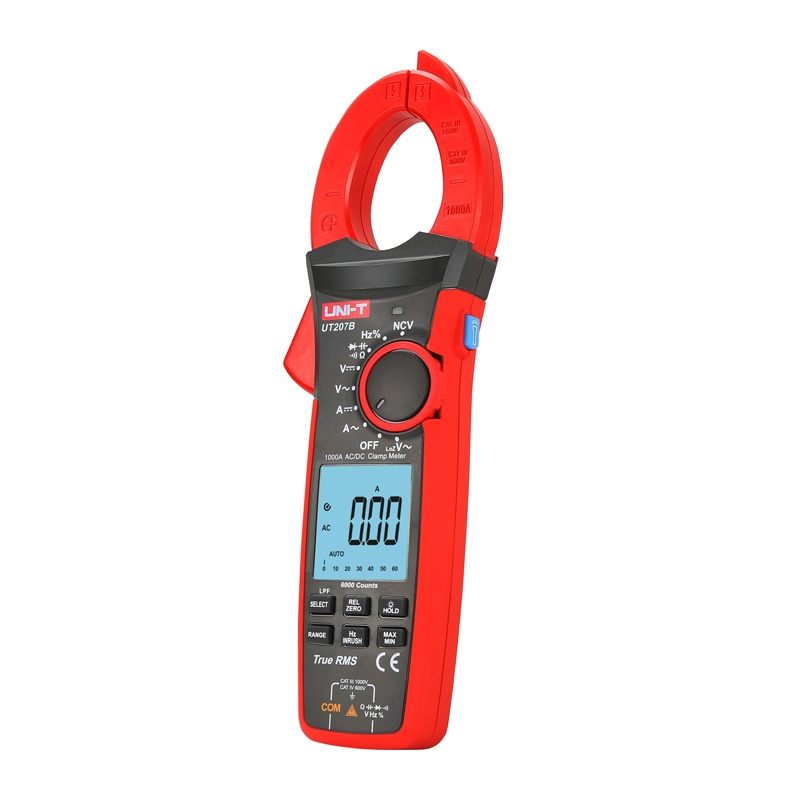

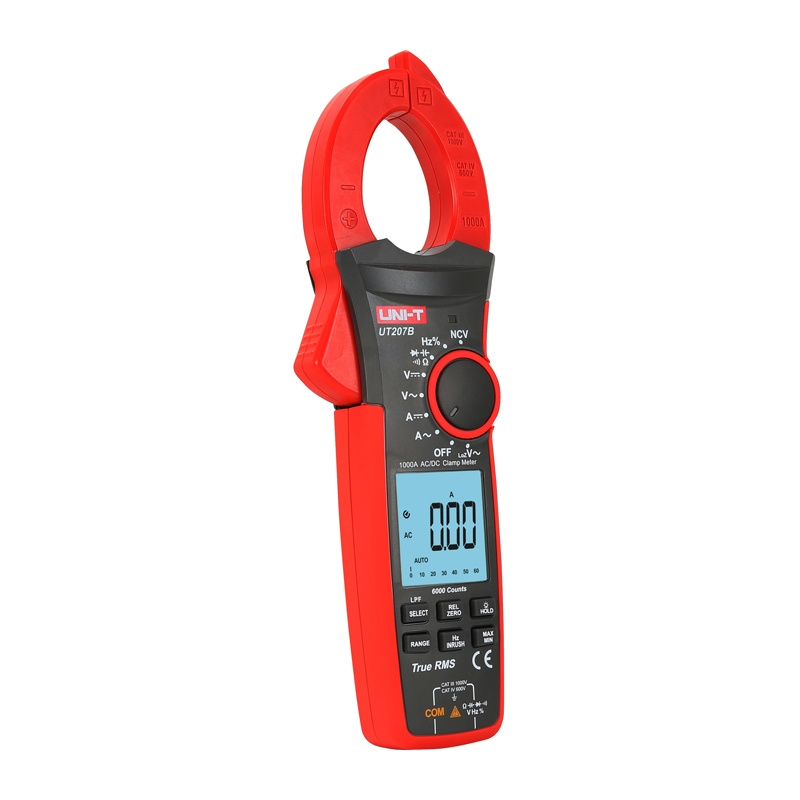

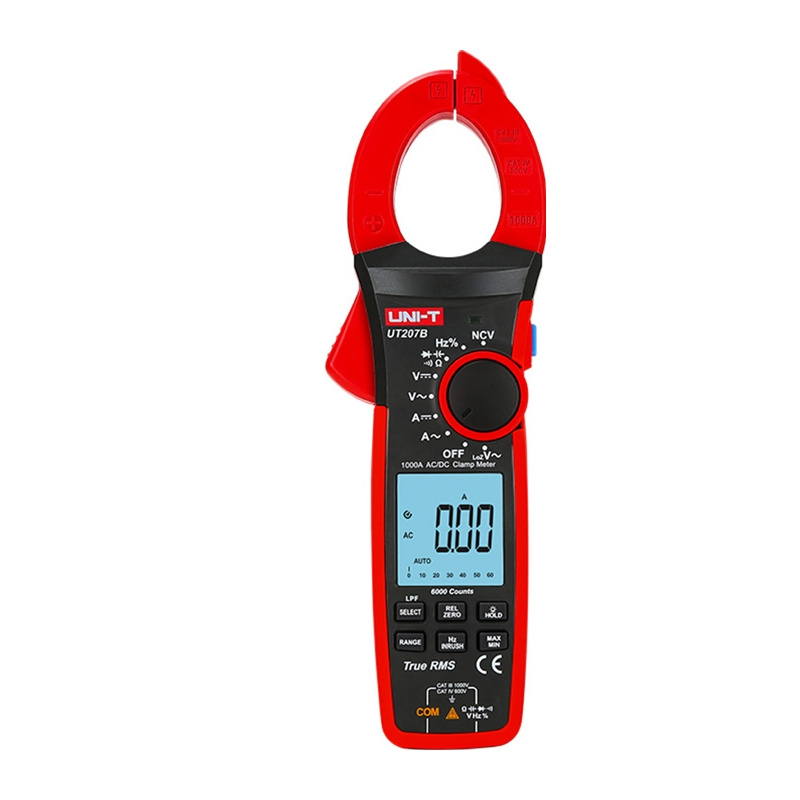

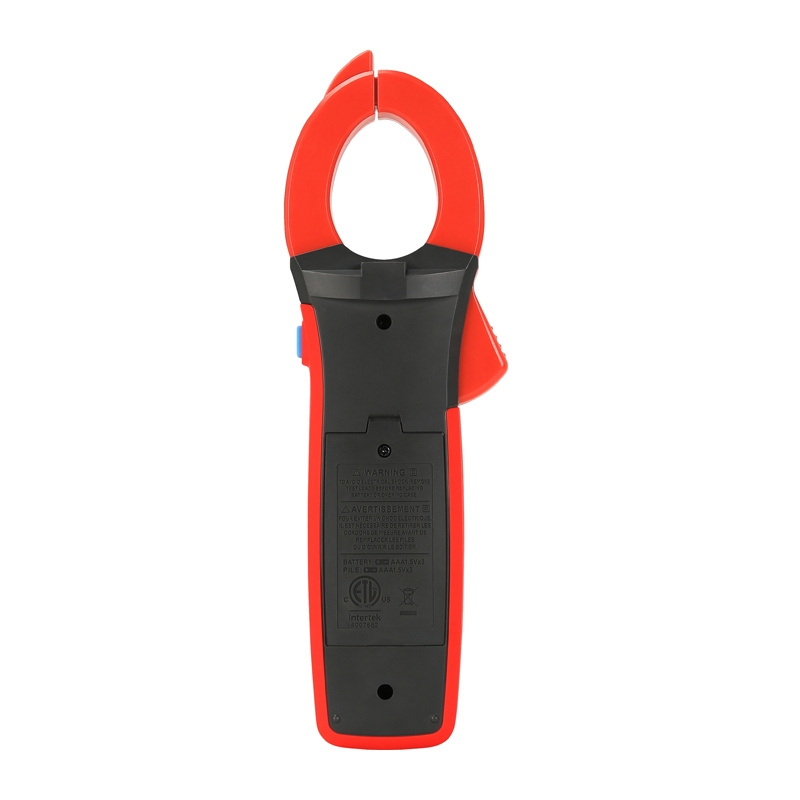

Uni-T UT207B Digital Clamp Meter
Price: 89.70 €
| Products ID: | 176300 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750562079 |
Delivery options to:
Choose countryThe Uni-T UT207B digital clamp meter is a versatile measuring tool designed for electrical installations and equipment diagnostics without opening the circuit.
Key Features
- AC and DC current measurement up to 1000A
- AC and DC voltage measurement up to 1000V
- True RMS measurement for accurate readings
- Inrush current, NCV, Zero mode, LPF, and LoZ functions
- 42 mm jaw opening for easy cable access
| Manufacturer | Uni-T |
|---|---|
| Model | UT207B |
| Type | True RMS clamp meter |
| AC current | 1000A ±(2%+5) |
| DC current | 1000A ±(2%+5) |
| Inrush current | 1000A ±(10%+10) |
| AC voltage | 1000V ±(1.2%+3) |
| DC voltage | 1000V ±(0.5%+5) |
| Resistance | 60MΩ ±(1%+2) |
| Capacitance | 60mF ±(4%+5) |
| Frequency | 10Hz ~ 1MHz ±(0.1%+3) |
| Maximum reading | 6000 |
| Jaw opening | 42 mm |
| Power supply | 3x 1.5V battery (R03) |
| Display size | 43 x 45 mm |
| Dimensions | 272 x 81 x 43.5 mm |
| Weight | 420 g |
| Safety rating | CAT III 1000V / CAT IV 600V |
What is the jaw opening capacity of the UT207B?
The jaw opening capacity of the Uni-T UT207B is 42 mm.
What items are included in the package?
The package includes the clamp meter, 3 batteries, test leads, and a user manual.
