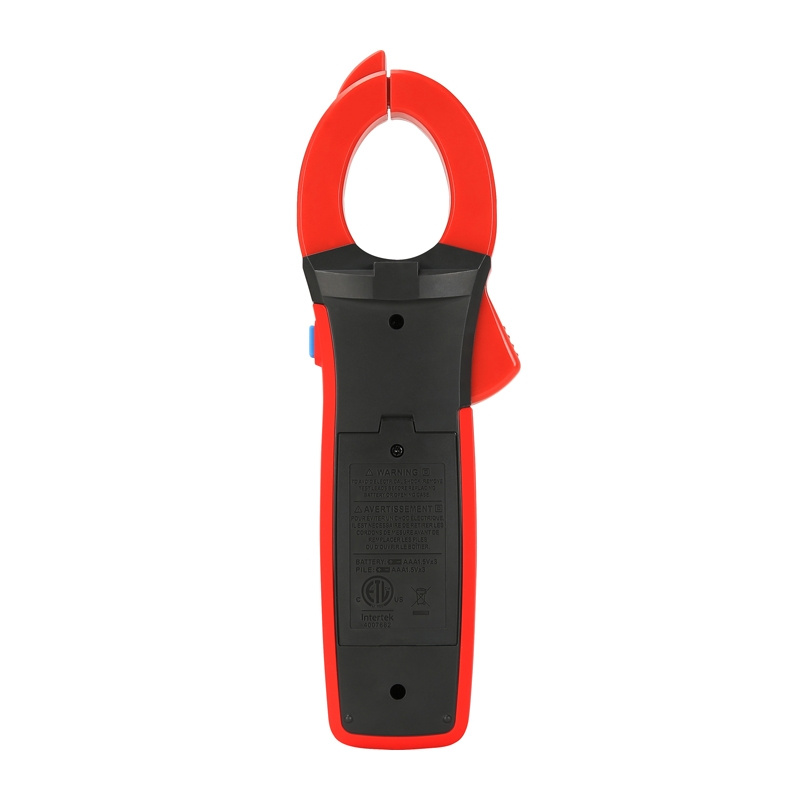

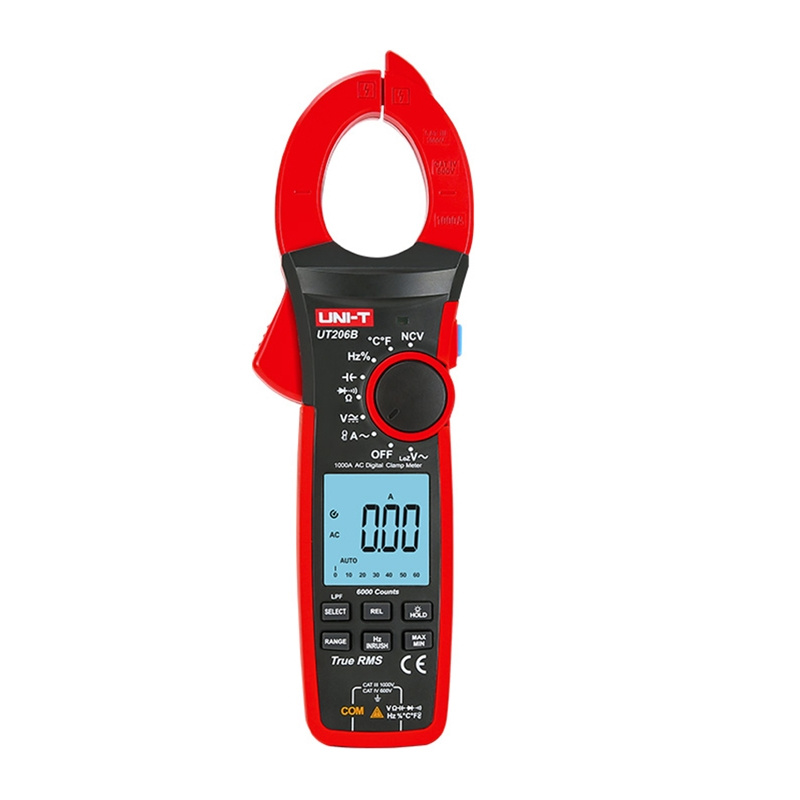

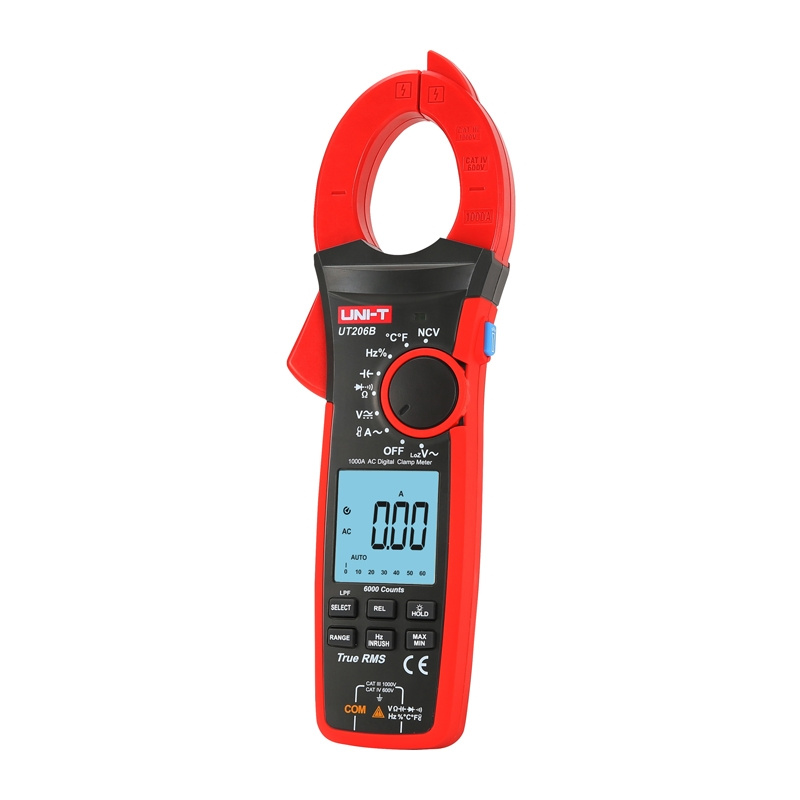

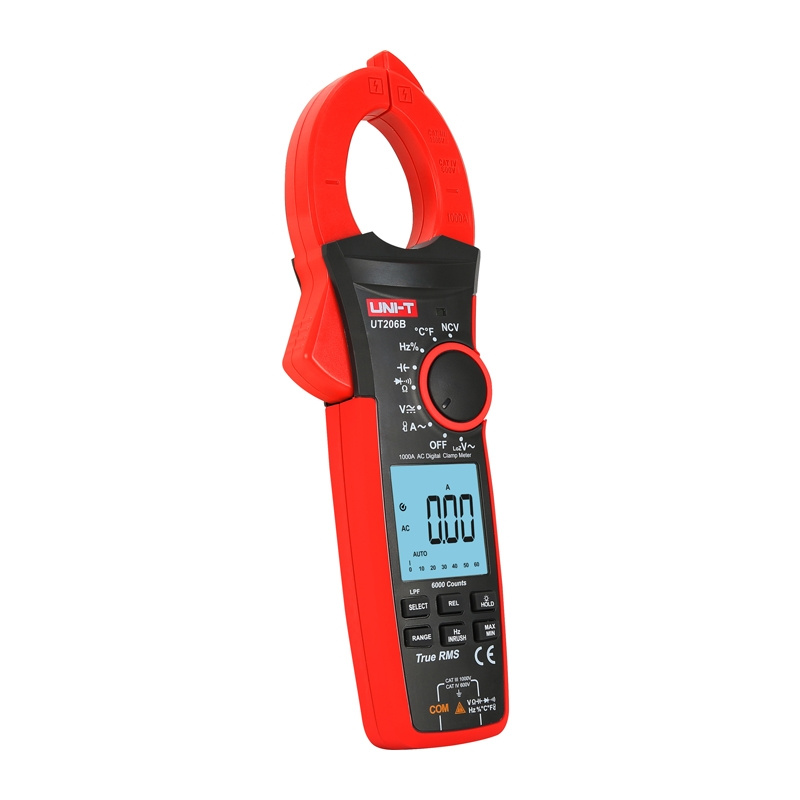

Uni-T UT206B Digital Clamp Meter True RMS 1000A
Price: 75.90 €
| Products ID: | 176936 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750520635 |
Delivery options to:

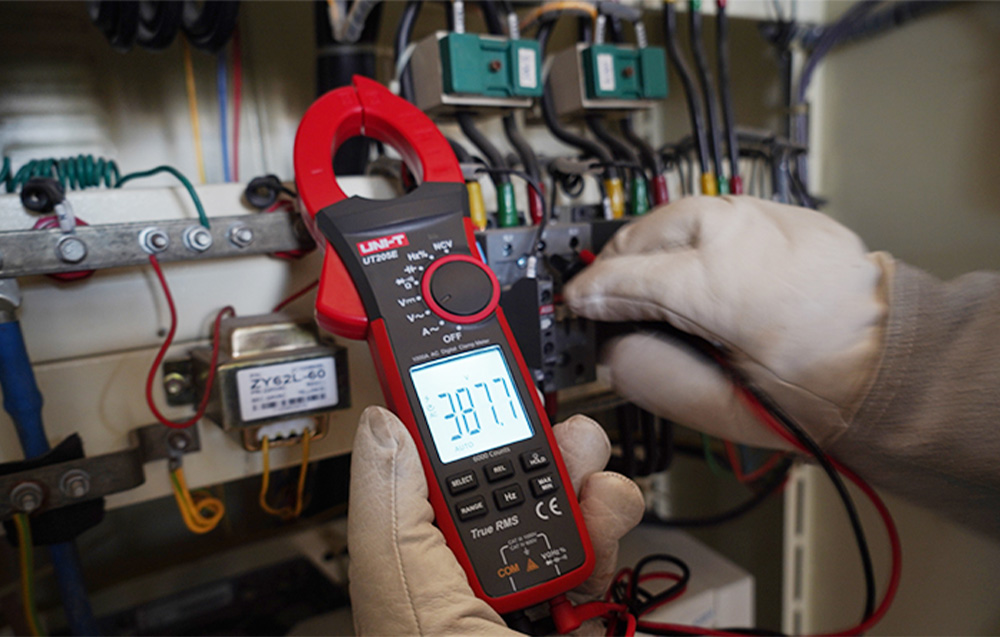

Choose countryThe Uni-T UT206B digital clamp meter is designed for electrical installation testing and equipment diagnostics without opening the circuit.
Key Features
- AC current measurement up to 1000A and AC/DC voltage up to 1000V
- True RMS, NCV, LoZ, and LPF modes for accurate readings
- Inrush current, frequency, capacitance, and temperature measurements
- 42 mm jaw opening and large display with a bar graph
| Manufacturer | Uni-T |
|---|---|
| Model | UT206B |
| Type | True RMS Clamp Meter |
| AC Current | 1000A ±(2%+5) |
| Inrush Current | 1000A ±(10%+10) |
| AC Voltage | 1000V ±(1.2%+3) |
| DC voltage | 1000V ±(0.5%+5) |
| LPF ACV | 1000V ±(2%+5) |
| LoZ ACV | 1000V ±(2%+5) |
| AC voltage range | 40Hz ~ 400Hz |
| Resistance | 60MΩ ±(1%+2) |
| Capacitance | 60mF ±(4%+5) |
| Temperature | -40°C ~ 1000°C ±(1%+2) |
| Frequency | 10Hz ~ 1MHz ±(0.1%+3) |
| Duty cycle | 10% ~ 90% ±(2.6%+7) |
| Maximum reading | 6000 |
| Functions | True RMS, NCV, LPF, LoZ, inrush current measurement, bargraph, Flex probe capability |
| Jaw opening | 42 mm |
| Power supply | 3x 1.5V battery (R03) |
| Display | 43 x 45 mm |
| Dimensions | 272 x 81 x 43.5 mm |
| Weight | 465 g |
| Safety | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
What is included in the package?
The package includes the Uni-T UT206B clamp meter, 3 batteries, test leads, a temperature probe, and a user manual.
What is the maximum jaw opening of the meter?
The clamp jaw opening is 42 mm.
