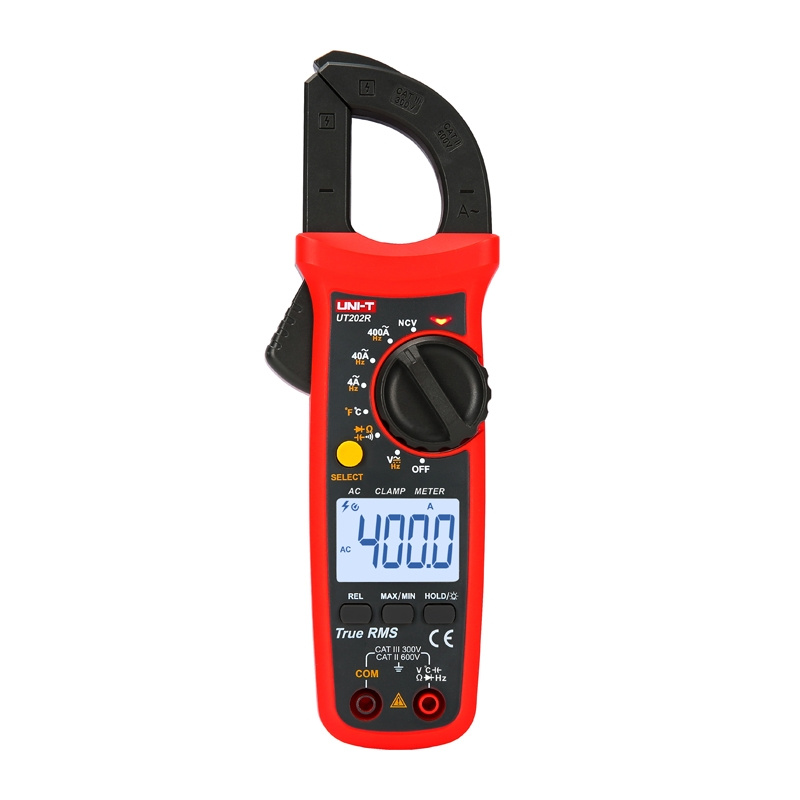

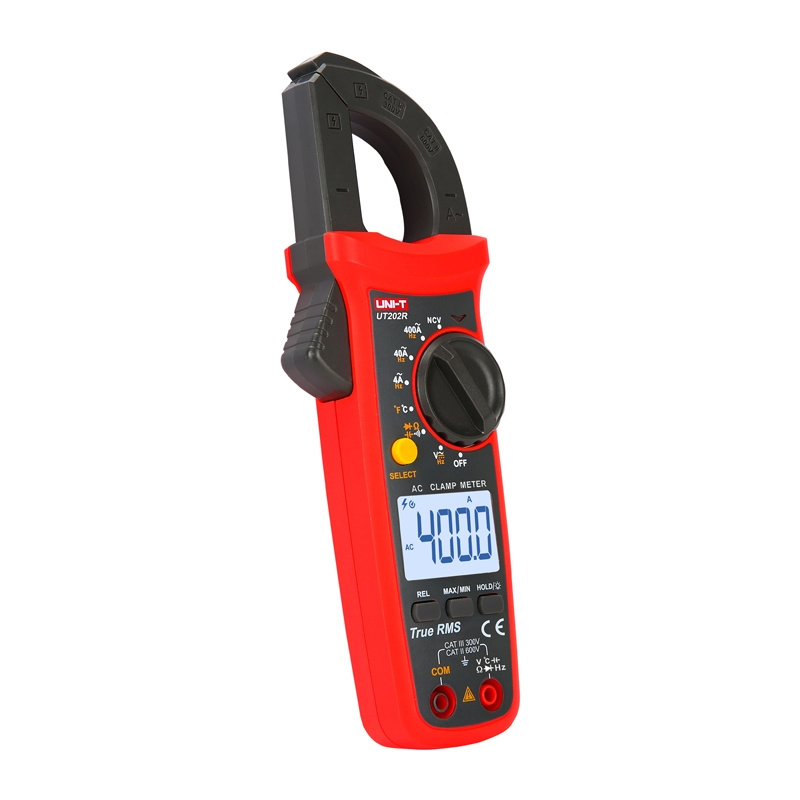

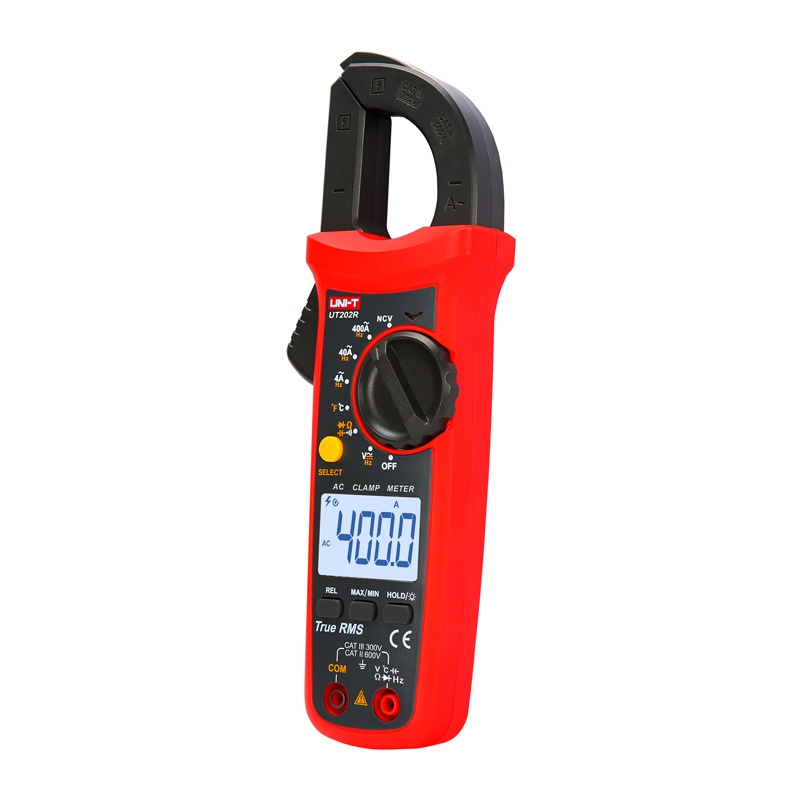

Uni-T UT202R Digital Clamp Meter
Price: 32.00 €
| Products ID: | 176262 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750520291 |
Delivery options to:
Choose countryThe Uni-T UT202R is a universal digital clamp meter designed for electrical installations inspection, basic circuit diagnostics, and non-invasive AC current measurement.
Key Features
- Measures AC current up to 400 A and AC/DC voltage up to 600 V
- True RMS for accurate measurements on alternating signals
- Capacitance, resistance, and temperature measurement
- Non-contact voltage detection (NCV), diode test, and continuity test
- Backlit LCD screen with a maximum reading of 4000
- 28 mm jaw opening for convenient cable gripping
| Manufacturer | Uni-T |
|---|---|
| Model | UT202R |
| Type | Clamp meter |
| AC Current | 0.04~400A ±(2%+10) |
| AC Frequency | 50Hz~100Hz ±(1%+5) |
| AC Voltage | 600V ±(0.8%+5) |
| AC Voltage Frequency | 10Hz~10kHz ±(1%+5) |
| DC Voltage | 600V ±(0.5%+2) |
| Resistance | 40MΩ |
| Capacitance | 4mF ±(4%+5) |
| Temperature | -40°C~1000°C ±(1.5%+5) |
| Maximum reading | 4000 |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (R03) |
| Safety rating | CAT II 600V / CAT III 300V |
| Dimensions | 215 x 63 x 36 mm |
| Certifications | CE, UKCA, cETLus |
What is included in the package?
The package includes the clamp meter, 2 batteries, test leads, a thermocouple, and a user manual.
What is the jaw opening size?
The jaw opening measures 28 mm.
What is the maximum AC current it can measure?
The device can measure AC current up to 400 A.
