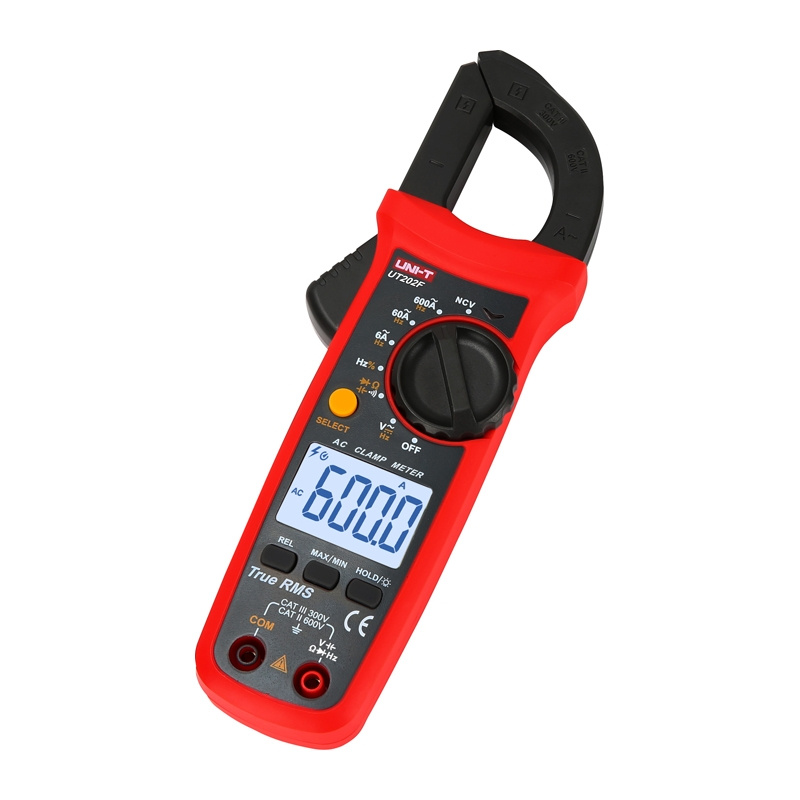

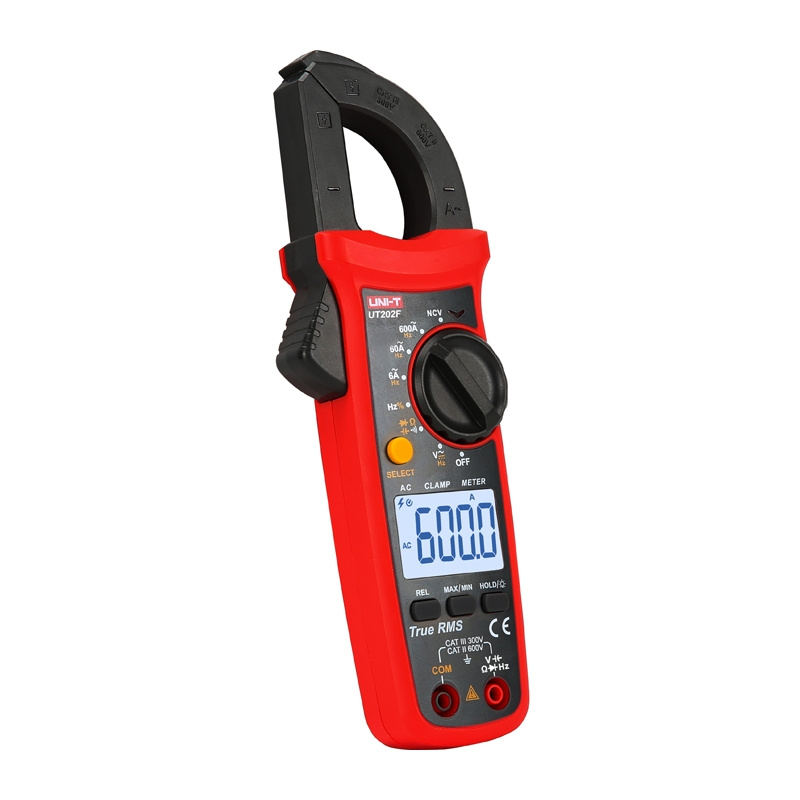

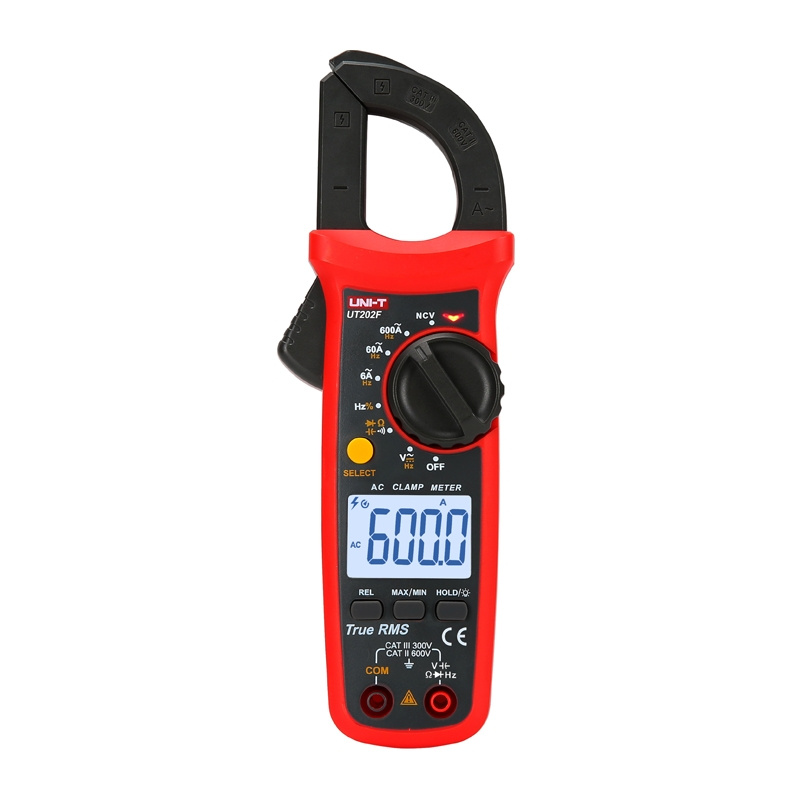

Uni-T UT202F Digital Clamp Meter
Price: 32.60 €
| Products ID: | 176263 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750502020 |
Delivery options to:
Choose countryThe Uni-T UT202F is a universal digital clamp meter designed for everyday electrical measurements, installation inspections, and circuit diagnostics without opening the circuit.
Key Features
- AC current measurement up to 600 A and AC/DC voltage measurement up to 600 V
- True RMS, LPF filter, and NCV non-contact voltage detection
- Measures resistance up to 60 MΩ, capacitance up to 60 mF, and frequency up to 10 MHz
- Backlit LCD display with a 6000 maximum count
- 28 mm jaw opening for quick and convenient cable clamping
- Safety rated for CAT II 600V and CAT III 300V environments
| Manufacturer | Uni-T |
|---|---|
| Model | UT202F |
| Type | Clamp meter |
| AC Current | 0.06~600A ±(2%+10) |
| AC Voltage | 600V ±(0.8%+5) |
| DC Voltage | 600V ±(0.5%+2) |
| Resistance | 60MΩ ±(0.8%+2) |
| Capacitance | 60mF ±(4%+5) |
| Frequency | 10Hz~10MHz ±(1%+5) |
| Maximum Count | 6000 |
| Jaw Opening | 28 mm |
| Functions | True RMS, NCV, LPF filter, low ACV measurement 600mV, LCD backlight |
| Safety Rating | CAT II 600V / CAT III 300V |
| Power Supply | 2x 1.5V battery (R03) |
| Dimensions | 215 x 63 x 36 mm |
| Certifications | CE, UKCA, cETLus |
| Package Contents | Clamp meter, Batteries x2, Test leads, User manual |
What is the jaw opening size of this clamp meter?
The Uni-T UT202F has a jaw opening of 28 mm.
What items are included in the package?
The package includes the clamp meter, 2 batteries, test leads, and a user manual.
What battery type does this meter require?
The meter is powered by two 1.5V R03 batteries.
