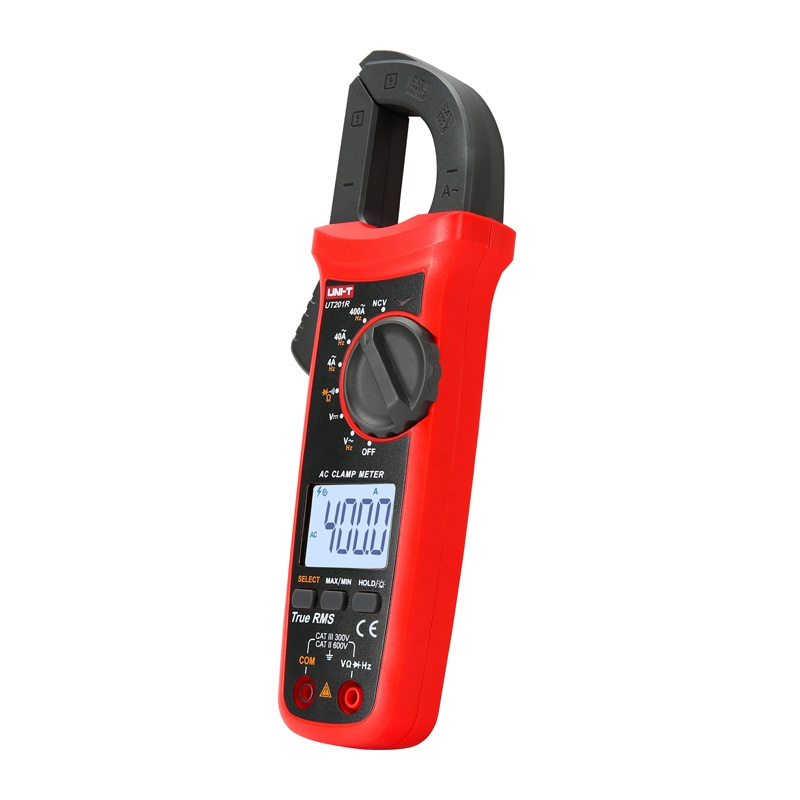

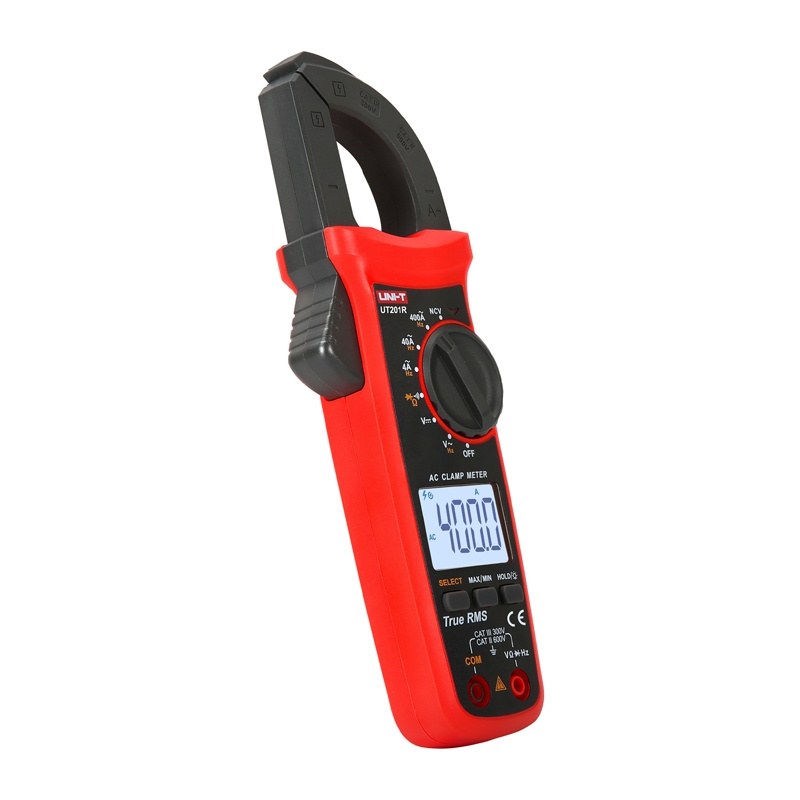

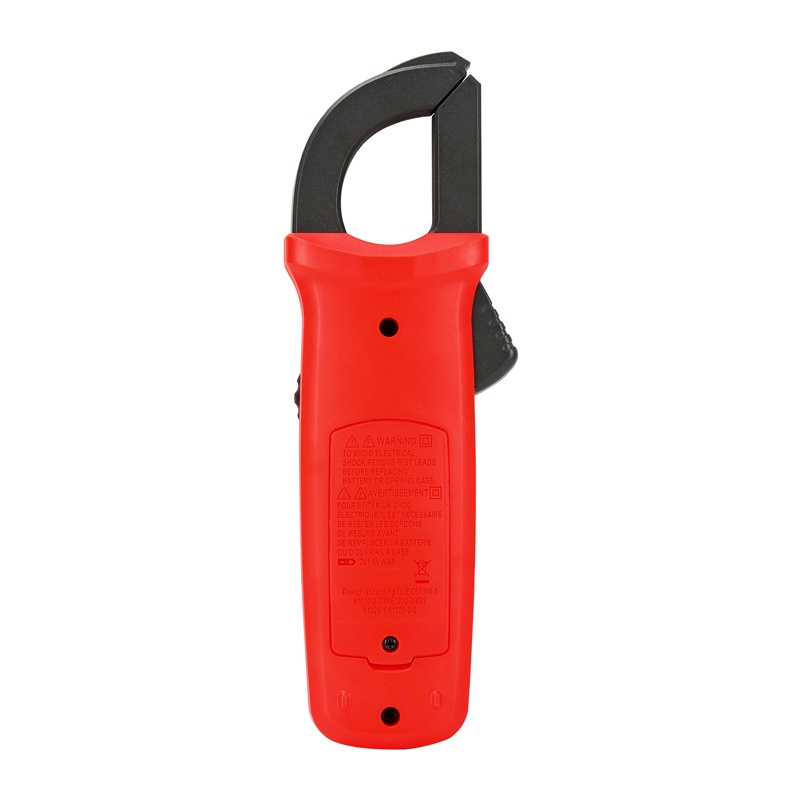

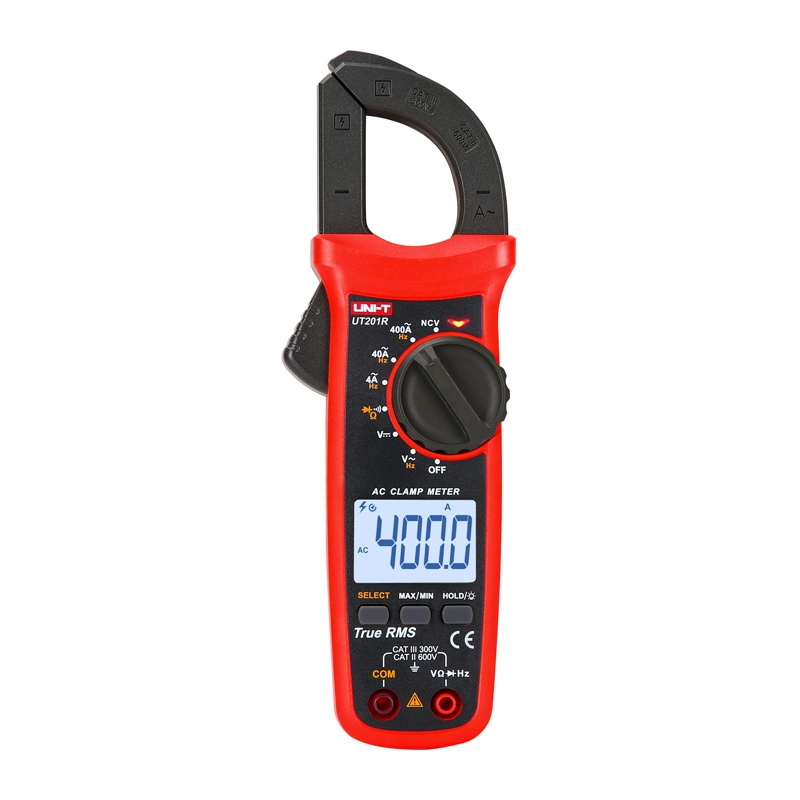

Uni-T UT201R Digital Clamp Meter
Price: 29.70 €
| Products ID: | 176261 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750520185 |
Delivery options to:
Choose countryThe Uni-T UT201R is a digital clamp meter designed for everyday electrical measurements, allowing AC current measurements without opening the circuit.
Key Features
- AC current measurement up to 400 A and AC/DC voltage measurement up to 600 V
- True RMS measurement for alternating signals
- NCV function, diode test, and continuity test
- Data Hold, Max/Min modes, and auto power off
- Backlit LCD screen with a maximum reading of 4000
- 28 mm jaw opening for wire gripping
| Manufacturer | Uni-T |
|---|---|
| Model | UT201R |
| Type | Clamp meter |
| AC Current | 0.04~400A ±(2%+10) |
| AC Frequency | 50Hz~100Hz ±(1%+5) |
| AC Voltage | 600V ±(0.8%+5) |
| AC Voltage Frequency | 10Hz~10kHz ±(1%+5) |
| DC Voltage | 600V ±(0.5%+2) |
| Resistance | 40MΩ |
| Maximum reading | 4000 |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (R03) |
| Safety category | CAT II 600V / CAT III 300V |
| Dimensions | 215 x 63 x 36 mm |
| Certifications | CE, UKCA, cETLus |
What is included in the package?
The package includes the clamp meter, 2 batteries, test leads, and a user manual.
What is the jaw opening size?
The jaw opening size of the meter is 28 mm.
What safety ratings does this clamp meter have?
The device complies with CAT II 600V and CAT III 300V safety categories.
