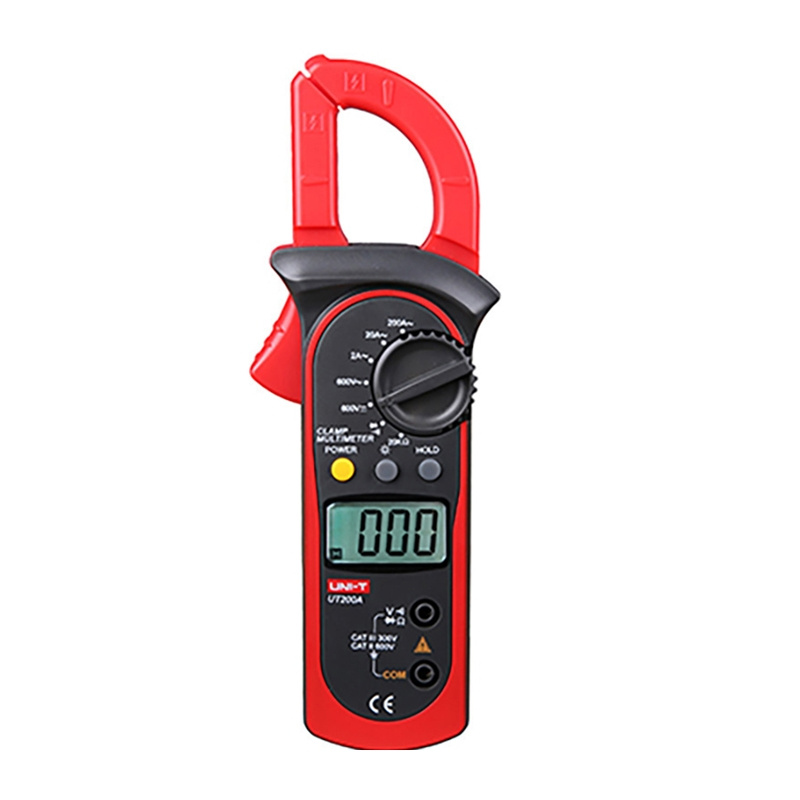

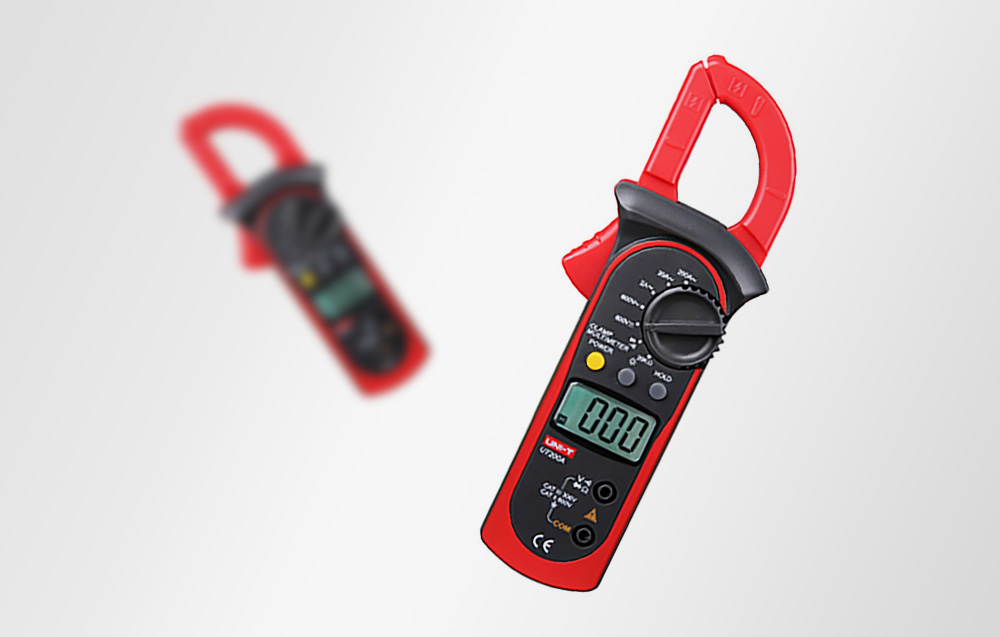

Uni-T UT200A Digital Clamp Meter, 200A, 600V
Price: 22.90 €
| Products ID: | 176823 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750520086 |
Delivery options to:
Choose countryThe Uni-T UT200A is a digital clamp meter designed for electrical installation and maintenance work, allowing current measurements without opening the circuit.
Key Features
- AC current measurement up to 200 A and AC/DC voltage up to 600 V
- Resistance measurement, diode testing, and continuity buzzer
- Manual range selection and Data Hold function
- Backlit display and low battery indicator
- 28 mm jaw opening with CAT III 600V safety standard compliance
| Manufacturer | Uni-T |
|---|---|
| Model | UT200A |
| Type | Clamp meter |
| AC current | 2A / 20A / 200A ±(1.5%+5) |
| AC voltage | 600V ±(1.5%+5) |
| DC voltage | 600V ±(1%+3) |
| Resistance | 20kΩ ±(1%+2) |
| Maximum reading | 2000 |
| Range selection | Manual |
| Functions | Diode test, continuity test, Data Hold, LCD backlight, low battery indicator |
| Jaw opening | 28 mm |
| Display | 35.6 x 18 mm |
| Power supply | 9V battery (6F22) |
| Device dimensions | 208 x 76 x 30 mm |
| Net weight | 260 g |
| Color | Red and gray |
| Safety | CAT III 600V |
What is included in the package?
The package includes the clamp meter, one battery, test leads, a carrying case, and a user manual.
What is the maximum jaw opening of the meter?
The jaw opening is 28 mm.
