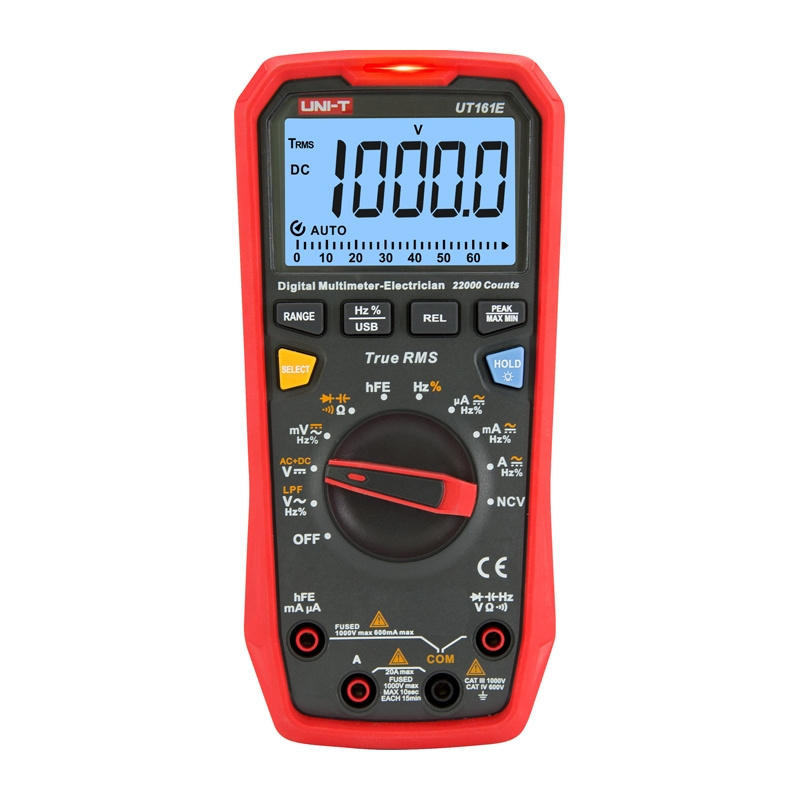

Uni-T UT161E True RMS Digital Multimeter
Price: 122.71 €
| Products ID: | 176397 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750516171 |
Delivery options to:
Choose countryThe Uni-T UT161E is a True RMS digital multimeter designed to measure voltages up to 1000 V and currents up to 20 A with extended measurement ranges.
Key Features
- 22,000-count high-resolution display with backlight and bar graph
- True RMS measurement and LPF filter for complex signals
- USB interface for data transmission and PC analysis
- Max/Min, Peak Hold, Relative Mode, and Data Hold functions
- Broad measurement capabilities for resistance, capacitance, and frequency
| Manufacturer | Uni-T |
|---|---|
| Model | UT161E |
| DC voltage range | 1000 V ±(0.05% + 5) |
| AC voltage range | 1000 V ±(0.8% + 10) |
| DC current range | 20 A ±(0.5% + 10) |
| AC current range | 20 A ±(0.8% + 10) |
| Resistance measurement range | 220 MΩ ±(0.5% + 10) |
| Capacitance measurement range | 220 mF ±(3.0% + 5) |
| Frequency range | 220 MHz ±(0.01% + 5) |
| Duty cycle range | 0.1% – 99.9% ±(2.0% + 5) |
| Maximum display count | 22000 |
| AC bandwidth | 40 Hz – 10 kHz |
| Measurement category | CAT III 1000V / CAT IV 600V |
| Power supply | 4 × 1.5 V AAA batteries |
| Dimensions | 190 × 90 × 50 mm |
| Weight | 350 g |
| Certifications | CE, UKCA, cETLus |
What is included with the Uni-T UT161E multimeter?
The package includes the digital multimeter, one pair of test leads, a USB cable, a multifunction adapter, 4 AAA batteries, and a user manual.
What are the maximum voltage and current limits?
The multimeter can measure AC and DC voltages up to 1000 V and currents up to 20 A.
Does the multimeter support PC connectivity?
Yes, it features USB communication to store and analyze measurement data on a computer.
