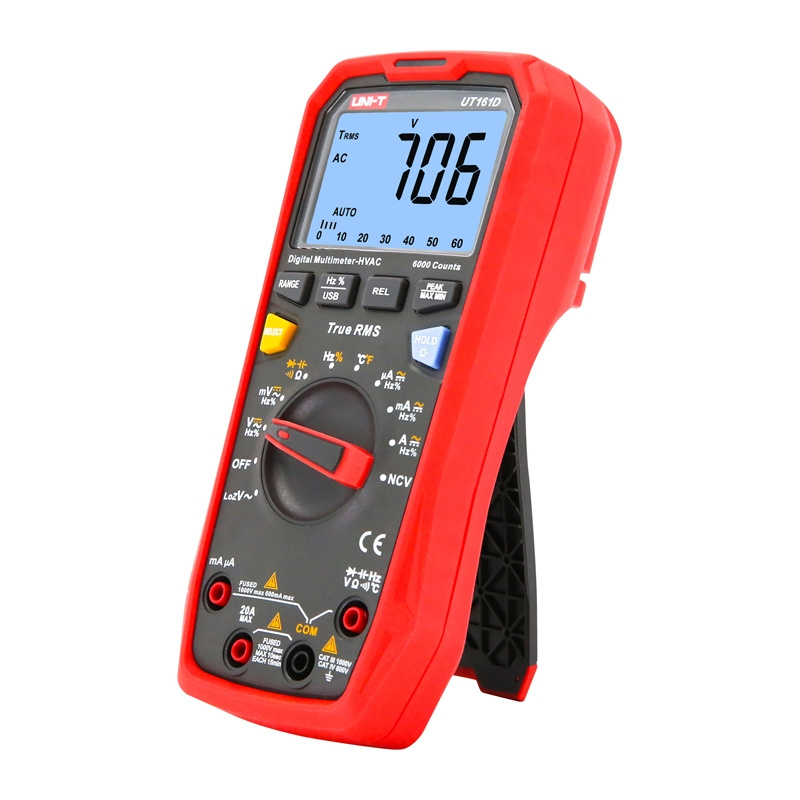

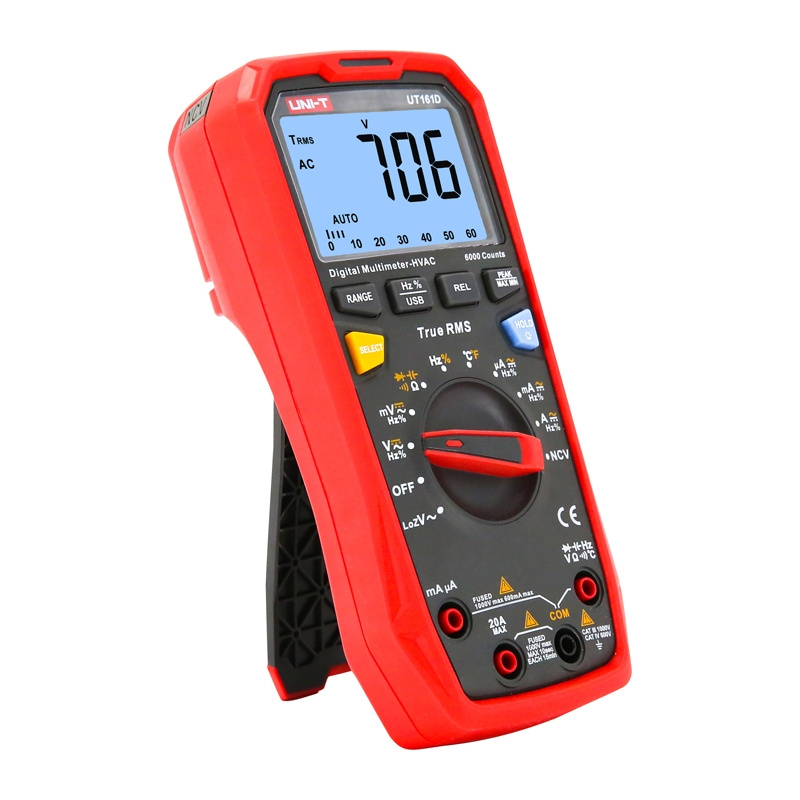

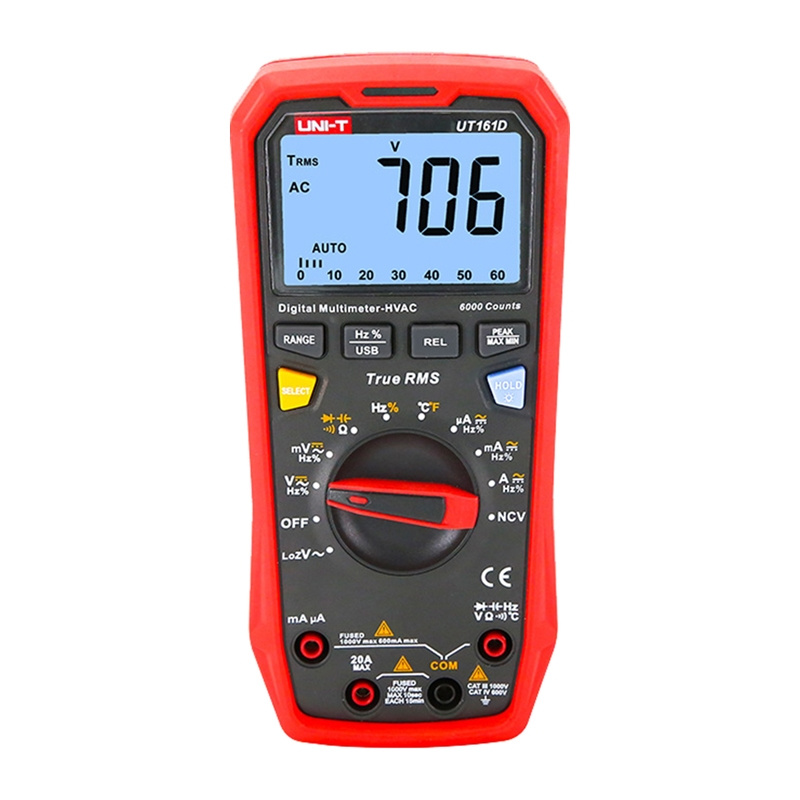

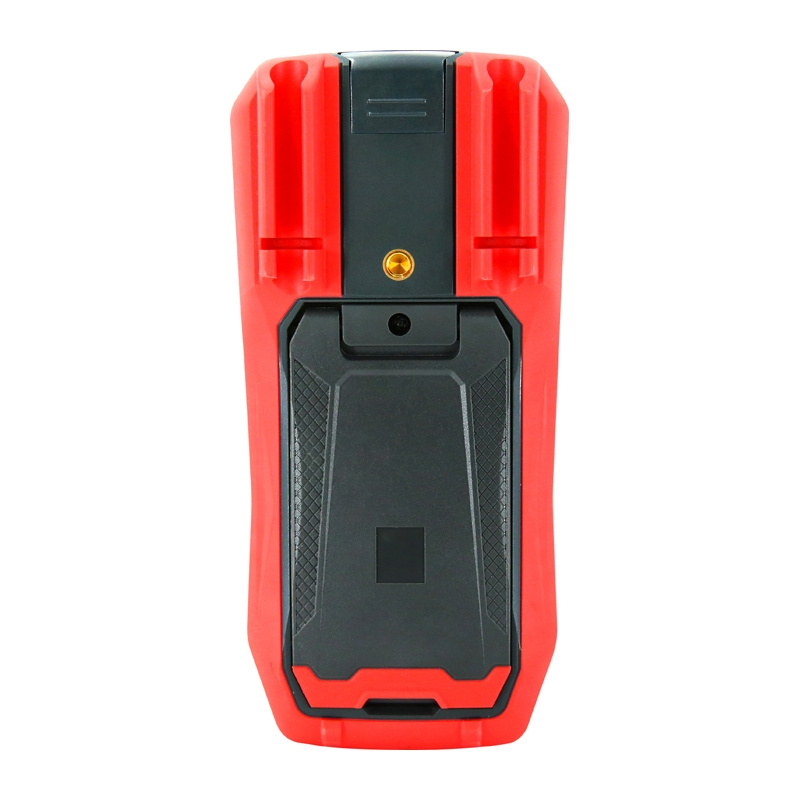

Uni-T UT161D True RMS Digital Multimeter
Price: 76.80 €
| Products ID: | 176933 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750516164 |
Delivery options to:
Choose countryThe Uni-T UT161D is a digital multimeter with True RMS functionality, designed for electrical installation measurements and electronic device diagnostics. It measures AC/DC voltage up to 1000 V, current up to 10 A, and temperature for workshop and service tasks.
Key Features
- AC/DC voltage measurement up to 1000 V with True RMS
- Non-contact voltage detection (NCV) and LoZ function
- Backlit display with analog bar graph and 6000-count resolution
- USB interface for measurement data transfer and logging
- Max/Min, Peak Hold, relative mode, and Data Hold functions
| Manufacturer | Uni-T |
|---|---|
| Model | UT161D |
| Product type | True RMS digital multimeter |
| DC voltage range | 1000 V ±(0.5% + 3) |
| AC voltage range | 1000 V ±(1.0% + 3) |
| DC current range | 10 A ±(1.0% + 2) |
| AC current range | 10 A ±(1.2% + 5) |
| Resistance measurement range | 60 MΩ ±(1.0% + 2) |
| Capacitance measurement range | 60 mF ±(3.0% + 5) |
| Frequency range | 10 MHz ±(0.1% + 4) |
| Duty cycle range | 0.1% – 99.9% ±(2.0% + 5) |
| Temperature measurement range | -40...1000°C ±(1.0% + 3) |
| Maximum display reading | 6000 |
| AC bandwidth | 40 Hz – 1 kHz |
| Functions | True RMS, NCV, LoZ, diode test, continuity test, Data Hold, Relative mode, Max/Min, Peak Hold, backlight, bar graph, USB communication |
| Measurement category | CAT III 1000V / CAT IV 600V |
| Power supply | 4 × 1.5 V AAA batteries |
| Dimensions | 190 × 90 × 50 mm |
| Weight | 350 g |
| Certifications | CE, UKCA, cETLus |
What is included with the Uni-T UT161D multimeter?
The package contains the digital multimeter, 1 pair of test leads, a USB cable, a thermocouple, 4 AAA batteries, and a user manual.
What is the maximum voltage measurable by this device?
The multimeter measures both DC and AC voltage up to 1000 V.
What batteries does the multimeter use?
It is powered by 4 AAA 1.5 V batteries, which are included in the package.
