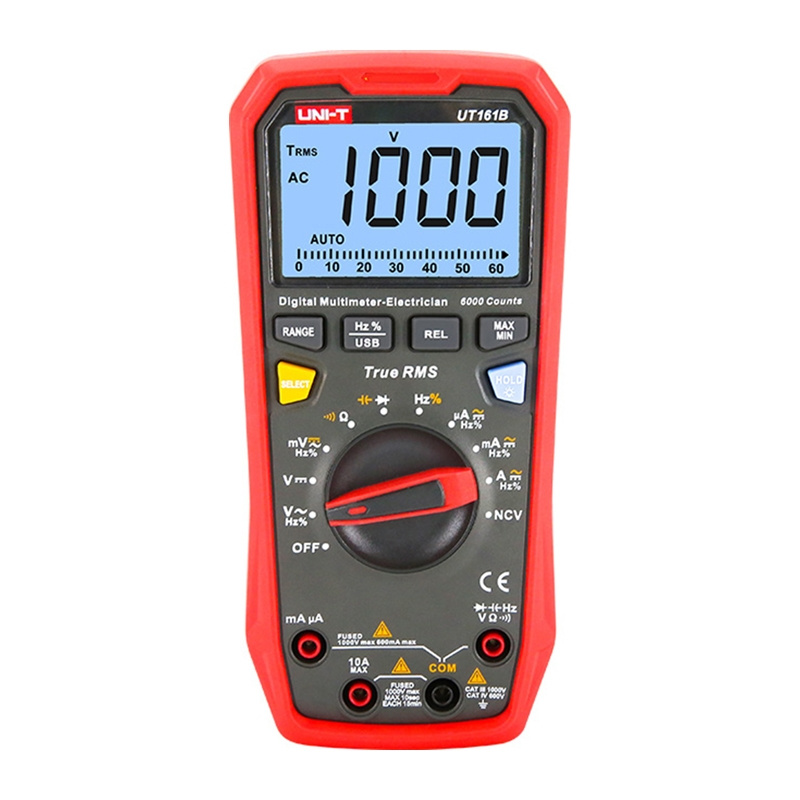

Uni-T UT161B True RMS Digital Multimeter
Price: 69.90 €
| Products ID: | 176932 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750516157 |
Delivery options to:
Choose countryThe Uni-T UT161B is a True RMS digital multimeter designed for precise measurement of electrical and electronic parameters with a 6000-count display.
Key Features
- True RMS AC and DC voltage measurement up to 1000 V
- Current measurement up to 10 A and resistance up to 60 MΩ
- Capacitance, frequency, and duty cycle testing
- NCV non-contact voltage detection, diode test, and continuity buzzer
- Data Hold, Relative mode, Max/Min recording, backlight, and analog bar graph
- USB connection for data communication
| Manufacturer | Uni-T |
|---|---|
| Model | UT161B |
| Type | True RMS digital multimeter |
| DC voltage | 1000V ±(0.5%+3) |
| AC Voltage | 1000V ±(1.0%+3) |
| DC Current | 10A ±(1.0%+2) |
| AC Current | 10A ±(1.2%+5) |
| Resistance | 60MΩ ±(1.0%+2) |
| Capacitance | 60mF ±(3.0%+5) |
| Frequency | 10 MHz ±(0.1%+4) |
| Duty cycle | 0.1% ~ 99.9% ±(2.0%+5) |
| Maximum reading | 6000 |
| AC bandwidth | 40 Hz ~ 500 Hz |
| Functions | True RMS, NCV, diode test, continuity test, Data Hold, Relative mode, Max/Min, backlight, bar graph, USB communication |
| Power supply | 4x 1.5V AAA batteries |
| Dimensions | 190 × 90 × 50 mm |
| Weight | 350 g |
| Safety | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
What is included in the package?
The package includes the digital multimeter, 4 AAA batteries, test leads, a USB cable, and a user manual.
What safety rating does the multimeter have?
The device complies with CAT III 1000V and CAT IV 600V safety standards.
