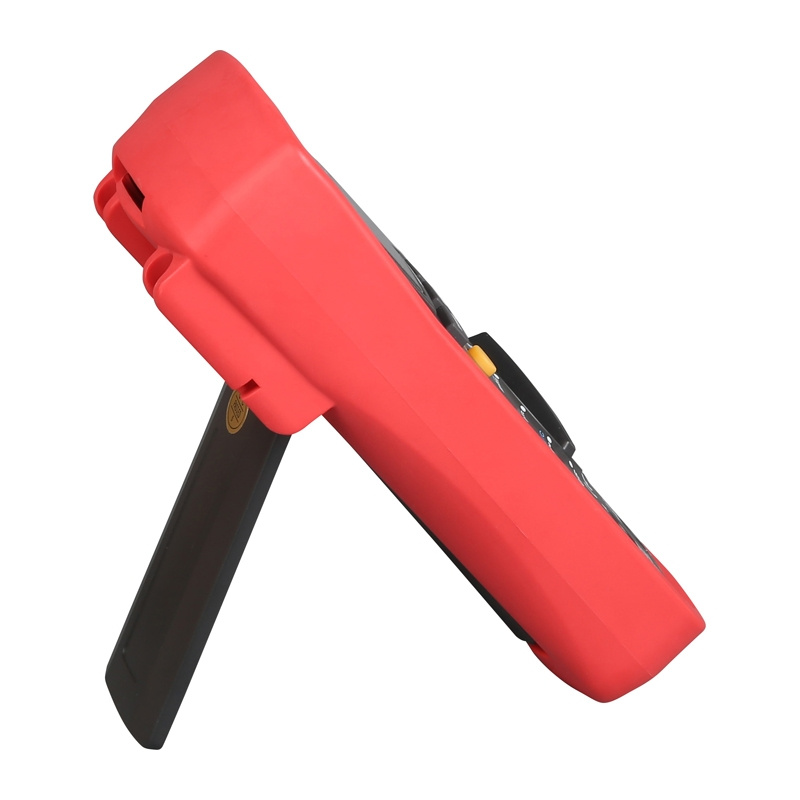

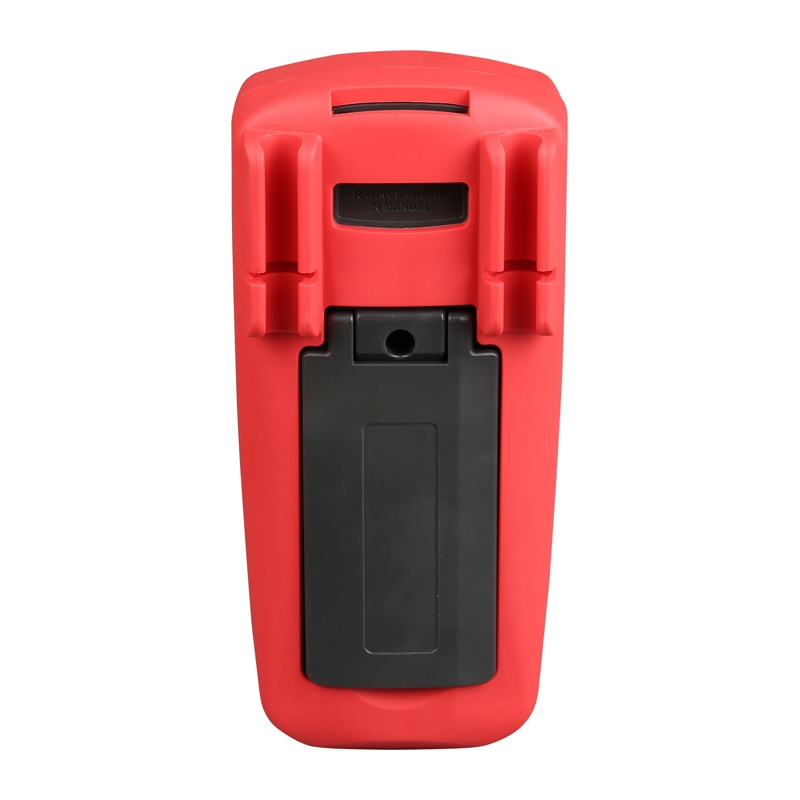

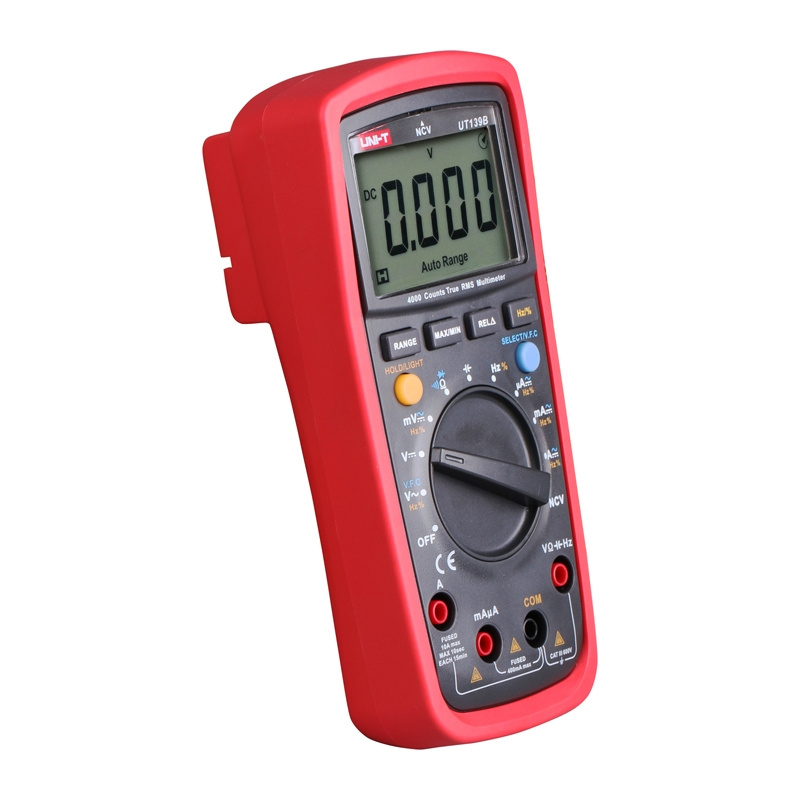

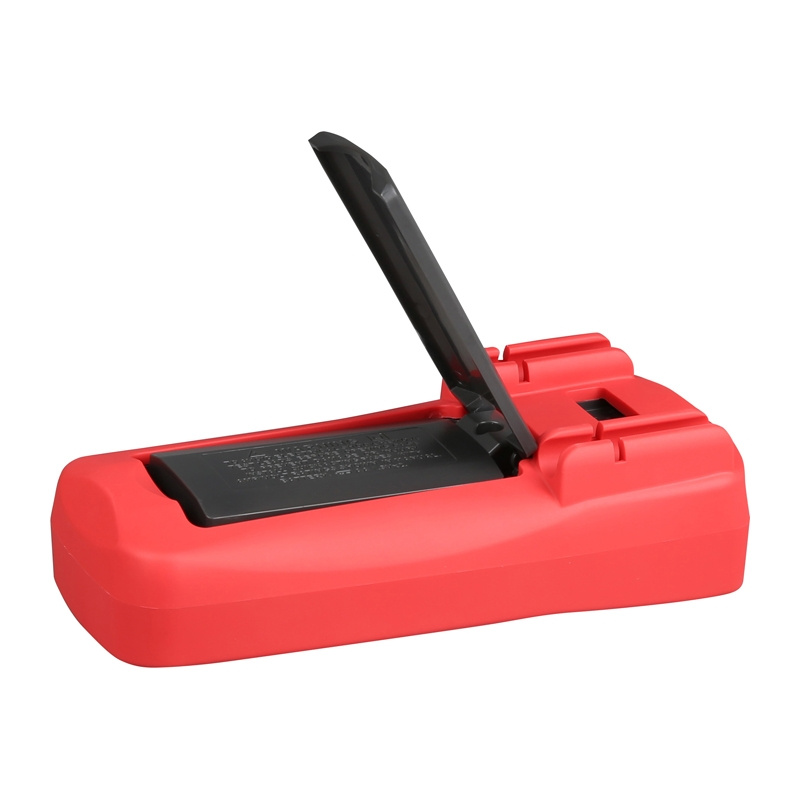

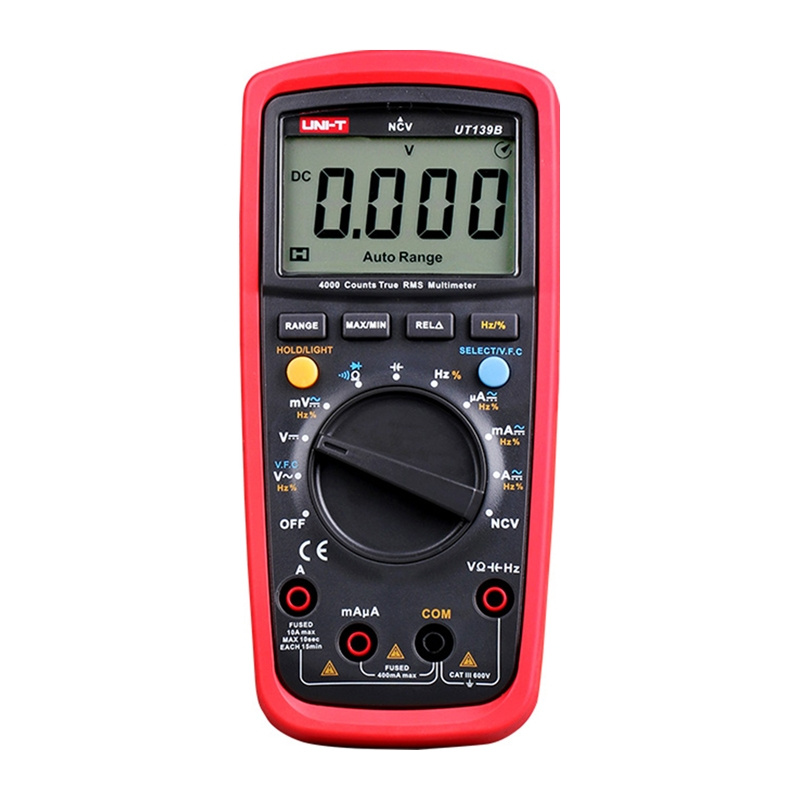

Uni-T UT139B True RMS Digital Multimeter
Price: 48.60 €
| Products ID: | 176884 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750521397 |
Delivery options to:
Choose countryThe Uni-T UT139B is a True RMS digital multimeter designed for everyday electrical measurements, featuring CAT III 600V safety category and a 4000-count backlit display with a 31-segment analog bar graph.
Key Features
- Measures AC/DC voltage up to 600 V and AC/DC current up to 10 A
- Resistance, capacitance, frequency, and duty cycle measurement
- NCV non-contact voltage detection and V.F.C. function
- Diode test, continuity buzzer, Data Hold, Relative mode, and Max/Min recording
- Automatic and manual measurement range selection
| Manufacturer | Uni-T |
|---|---|
| Model | UT139B |
| Product type | True RMS digital multimeter |
| DC voltage range | 40 mV / 400 mV / 4 V / 40 V / 400 V / 600 V ±(0.5% + 2) |
| AC voltage range | 40 mV / 400 mV / 4 V / 40 V / 400 V / 600 V ±(0.8% + 3) |
| DC current range | 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A ±(1.0% + 2) |
| AC current range | 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A ±(1.2% + 3) |
| Resistance measurement range | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ ±(1.0% + 2) |
| Capacitance measurement range | 9.999 nF – 99.99 mF ±(4.0% + 5) |
| Frequency range | 10 Hz – 10 MHz ±(0.1% + 4) |
| Maximum display reading | 4000 |
| AC frequency range | 45 Hz – 400 Hz |
| Range selection | Automatic and manual |
| Functions | True RMS, NCV, diode test, continuity buzzer, duty cycle, Data Hold, Relative mode, Max/Min, LCD backlight, V.F.C. |
| Measurement category | CAT III 600 V |
| Power supply | 2 × 1.5 V AA batteries |
| Weight | 354 g |
| Dimensions | 175 × 81 × 48.5 mm |
| Display dimensions | 58 × 36 mm |
| Certifications | CE, UKCA, cETLus |
What is included in the package with the Uni-T UT139B?
The package includes the digital multimeter, 2 AA batteries, and 1 pair of test leads.
What measurement category does this multimeter support?
The Uni-T UT139B operates in the CAT III 600 V measurement category.
