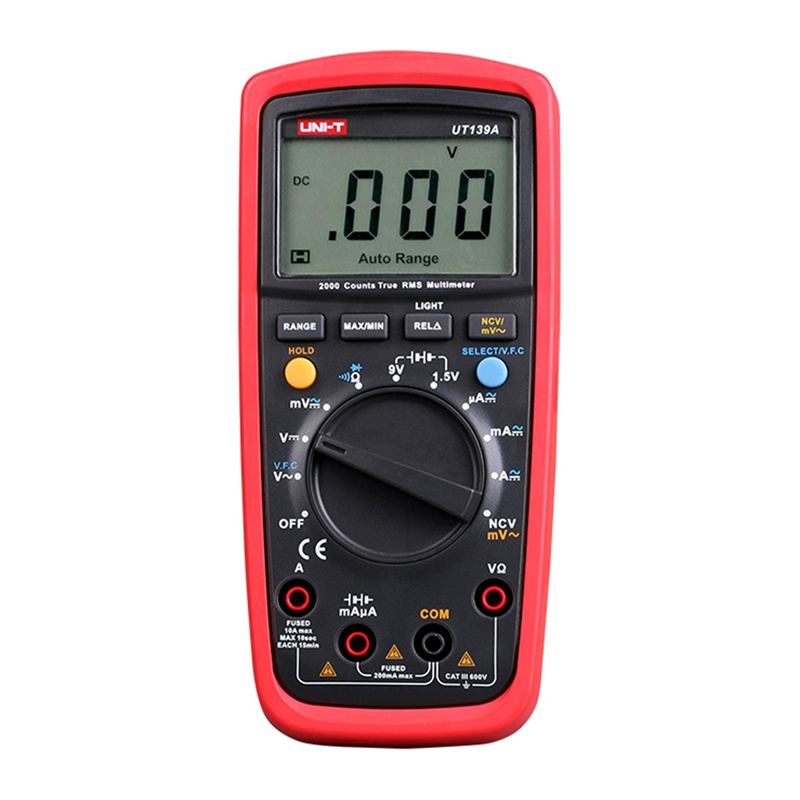

Uni-T UT139A True RMS Digital Multimeter CAT III 600V

Uni-T UT139A True RMS Digital Multimeter CAT III 600V — image 3

Uni-T UT139A True RMS Digital Multimeter CAT III 600V — image 4

Price: 45.20 €

Products ID:	177421
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750511398

Delivery options to:

Choose country

Uni-T UT139A True RMS Digital Multimeter CAT III 600V

The Uni-T UT139A is a True RMS digital multimeter designed for everyday electrical measurements, featuring a CAT III 600V safety category and an NCV function for quick inspection.

Key Features

Measures AC/DC voltage up to 600 V and AC/DC current up to 10 A
V.F.C. low-pass filter and True RMS for accurate measurements
Resistance, capacitance, frequency measurement, and 1.5 V / 9 V battery testing
Automatic and manual range selection
Backlit display with 2000 counts and a 31-segment analog bar graph
Diode test, continuity buzzer, duty cycle, Relative mode, and Data Hold

Manufacturer	Uni-T
Model	UT139A
Product type	True RMS digital multimeter
DC voltage range	20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(0.5% + 2)
AC voltage range	20 mV / 200 mV / 2 V / 20 V / 200 V / 600 V ±(1.0% + 3)
DC current range	200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.0% + 2)
AC current range	200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2% + 3)
Resistance measurement range	200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ ±(1.0% + 2)
Capacitance measurement range	9.999 nF – 99.99 mF ±(4.0% + 5)
Frequency range	10 Hz – 10 MHz ±(0.1% + 4)
Battery test range	1.5 V / 9 V ±(1.0% + 2)
Maximum display reading	2000
AC frequency range	45 Hz – 400 Hz
Range selection	Automatic and manual
Functions	True RMS, NCV, diode test, continuity buzzer, duty cycle, Data Hold, Relative mode, LCD backlight, V.F.C.
Measurement category	CAT III 600 V
Power supply	2 × 1.5 V AA batteries
Weight	354 g
Dimensions	175 × 81 × 48.5 mm
Display dimensions	58 × 36 mm
Certifications	CE, UKCA, cETLus
