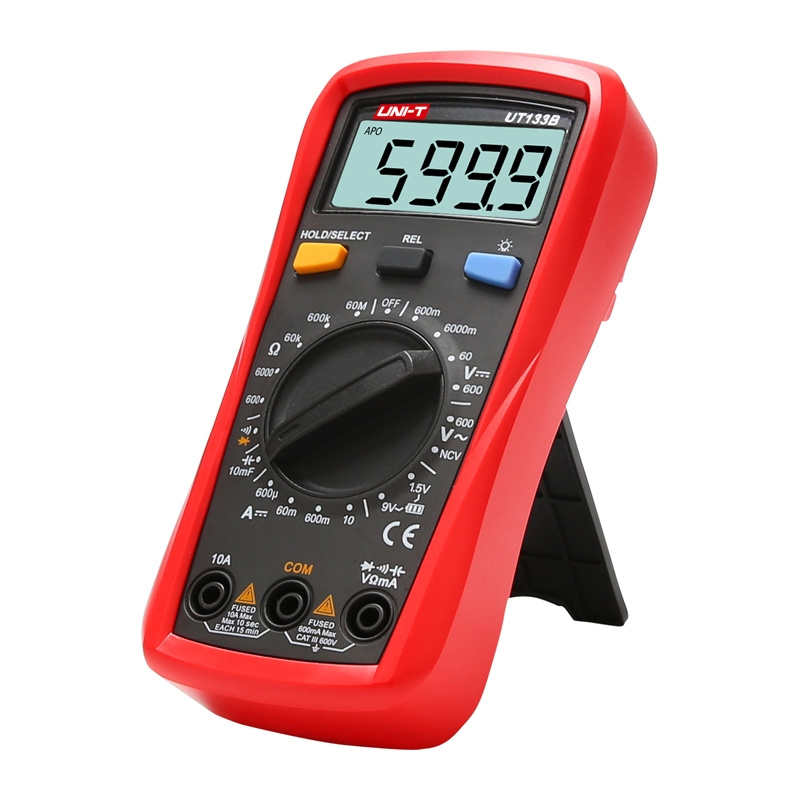

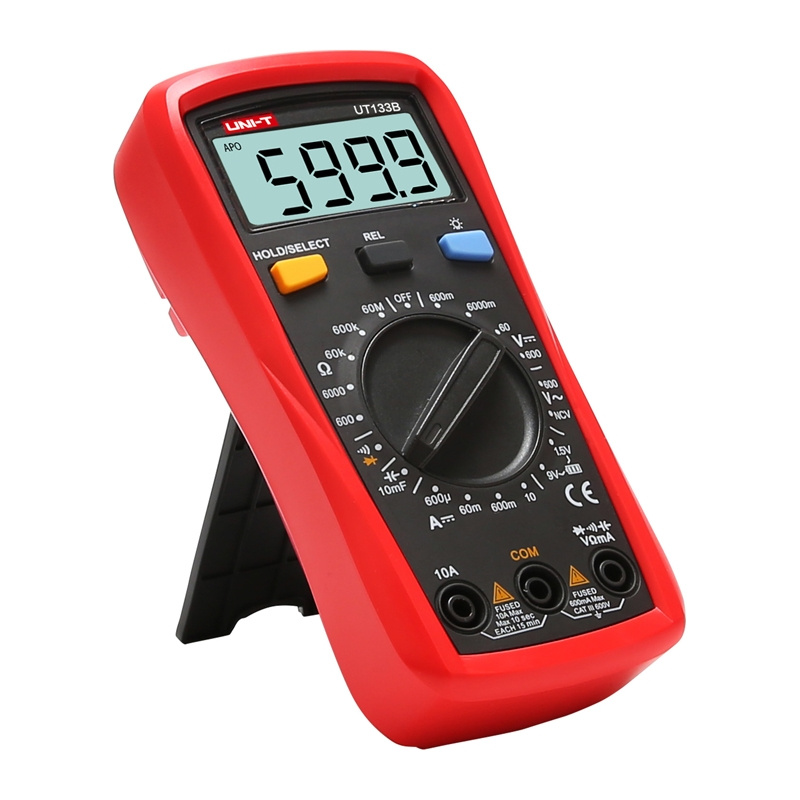

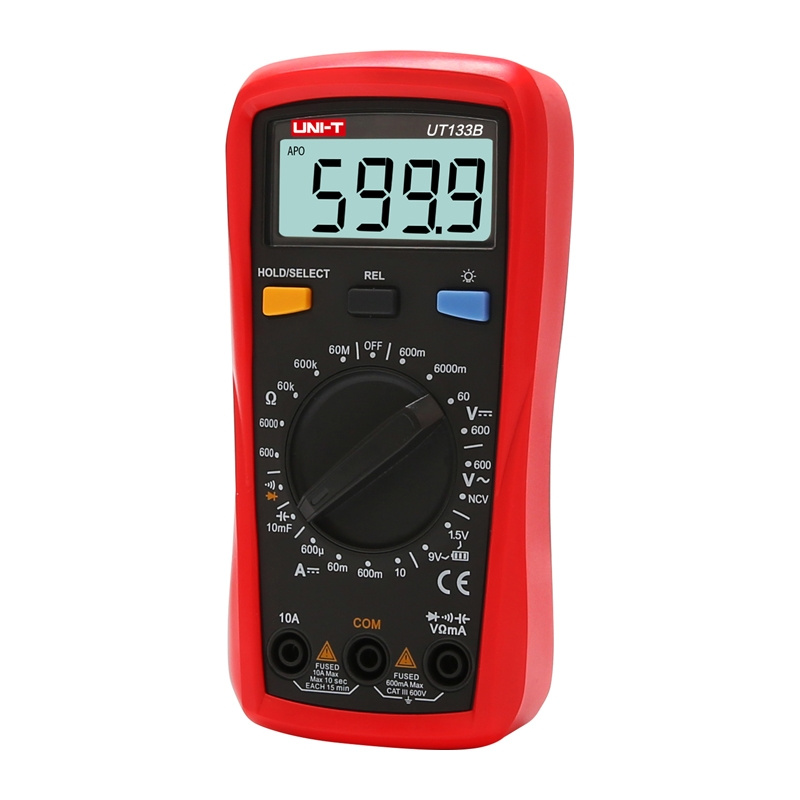

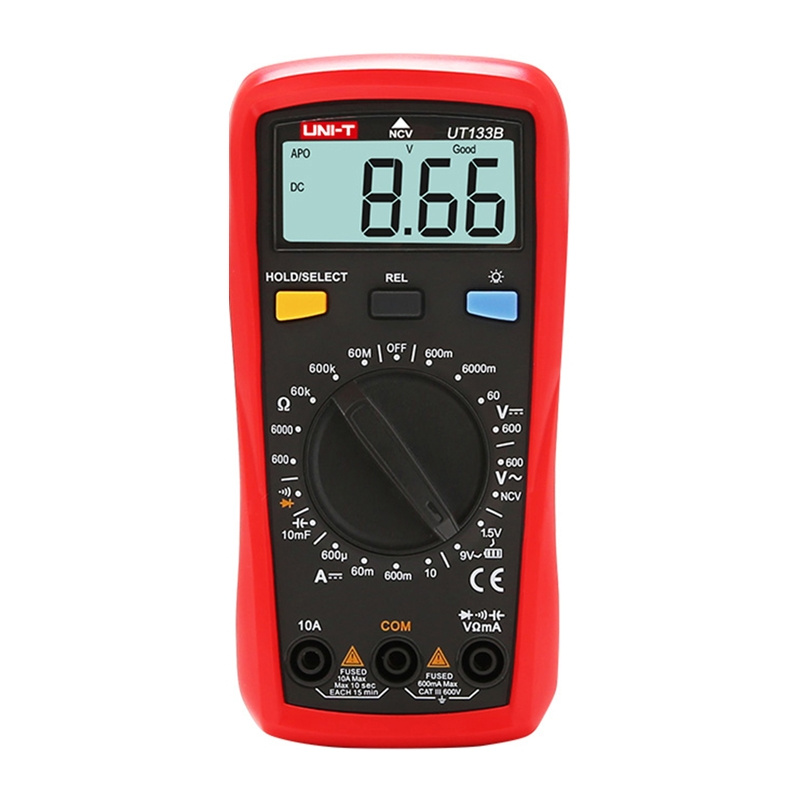

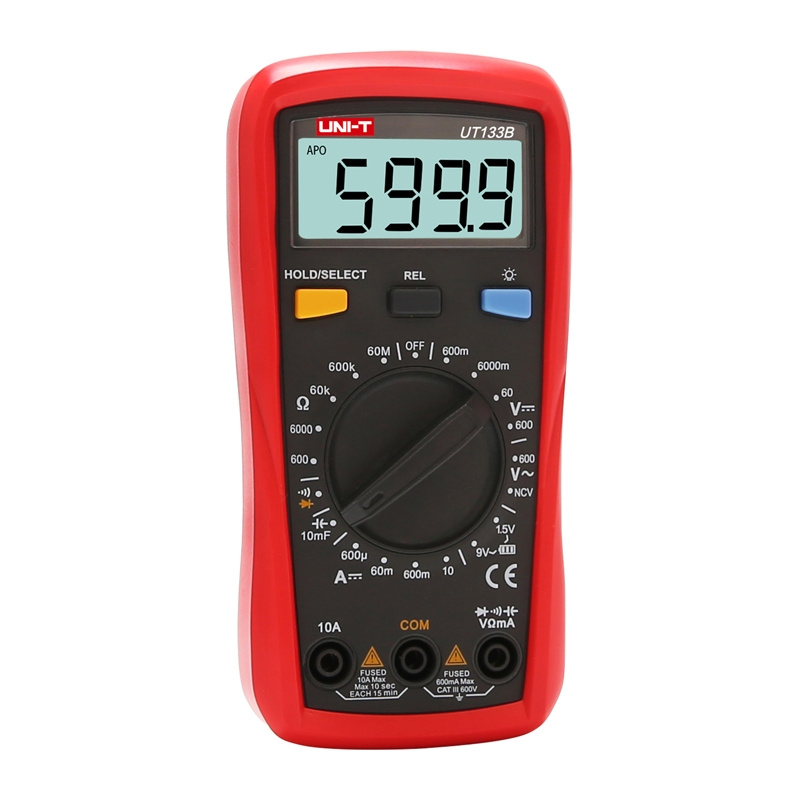

Uni-T UT133B Handheld Digital Multimeter
Price: 25.20 €
| Products ID: | 176110 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750513323 |
Delivery options to:
Choose countryThe Uni-T UT133B is a compact handheld digital multimeter designed for routine electrical installations and basic diagnostic tasks. It enables measurements of AC/DC voltage up to 600 V, DC current up to 10 A, resistance up to 60 MΩ, and capacitance up to 9.999 mF.
Key Features
- Measures AC/DC voltage up to 600 V and DC current up to 10 A
- Measures resistance up to 60 MΩ and capacitance up to 9.999 mF
- Dedicated battery test function for 1.5 V and 9 V cells
- Diode test, continuity buzzer, and NCV non-contact voltage detection
- Backlit LCD display and Data Hold functionality
- Drop resistance up to 2 meters and CAT II 600V safety rating
| Manufacturer | Uni-T |
|---|---|
| Model | UT133B |
| Product type | Digital multimeter |
| DC voltage range | 600 mV / 6000 mV / 60 V / 600 V ±(0.5% + 3) |
| AC voltage range | 600 V ±(1.2% + 3) |
| DC current range | 600 µA / 60 mA / 600 mA / 10 A ±(1.0% + 3) |
| Resistance measurement range | 600 Ω / 6000 Ω / 60 kΩ / 600 kΩ / 60 MΩ ±(0.8% + 2) |
| Capacitance measurement range | 9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 99.99 µF / 999.9 µF / 9.999 mF ±(4.0% + 5) |
| Battery test range | 1.5 V / 9 V ±(1.0% + 2) |
| Maximum display count | 6000 |
| Range selection | Manual |
| Functions | Diode test, continuity buzzer, NCV, Data Hold, LCD backlight, auto power off, overvoltage/overcurrent alarm, high voltage warning |
| Measurement category | CAT II 600V |
| Drop resistance | 2 m |
| Power supply | 2 × 1.5 V (R03) |
| Dimensions | 155 × 76.5 × 49 mm |
| Display dimensions | 56.8 × 36.1 mm |
| Weight | 255 g |
| Included in package | Handheld digital multimeter, test leads, user manual |
Can this multimeter test batteries?
Yes, it includes a dedicated battery testing function for 1.5 V and 9 V batteries.
What is included in the package?
The package contains the UT133B digital multimeter, test leads, and a user manual.
