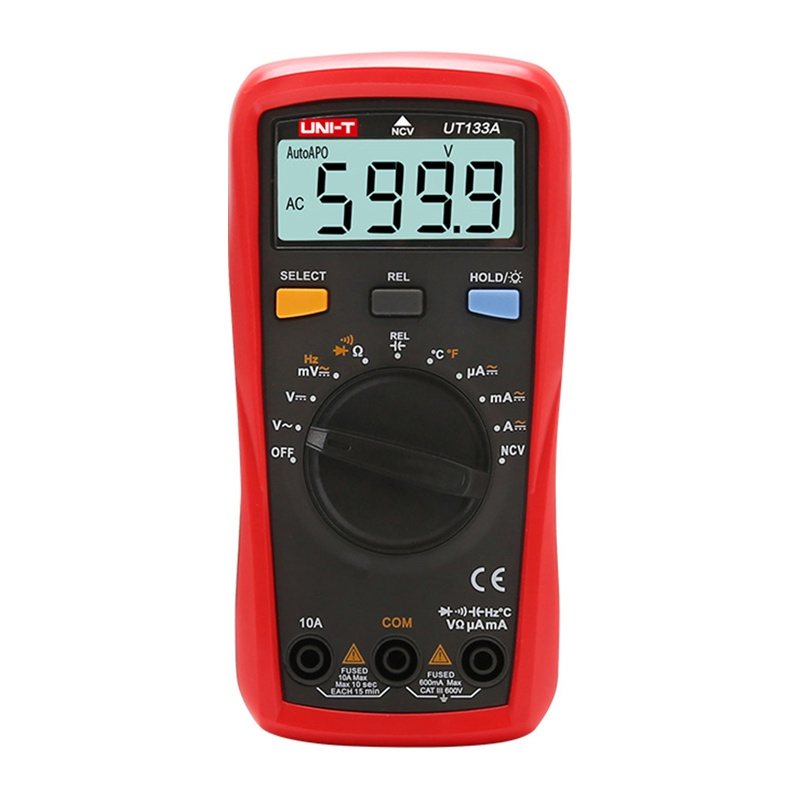

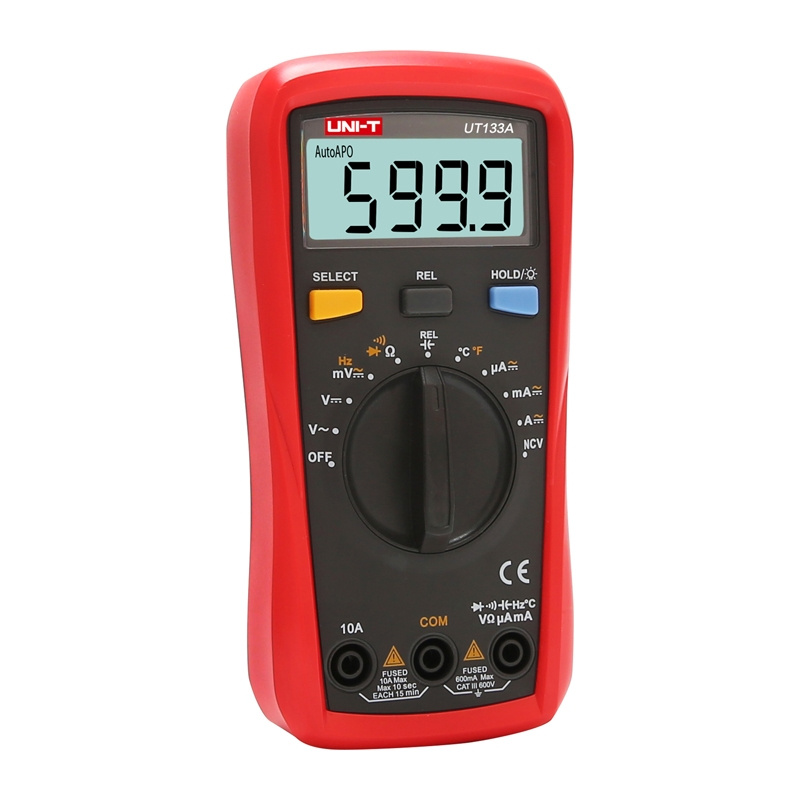

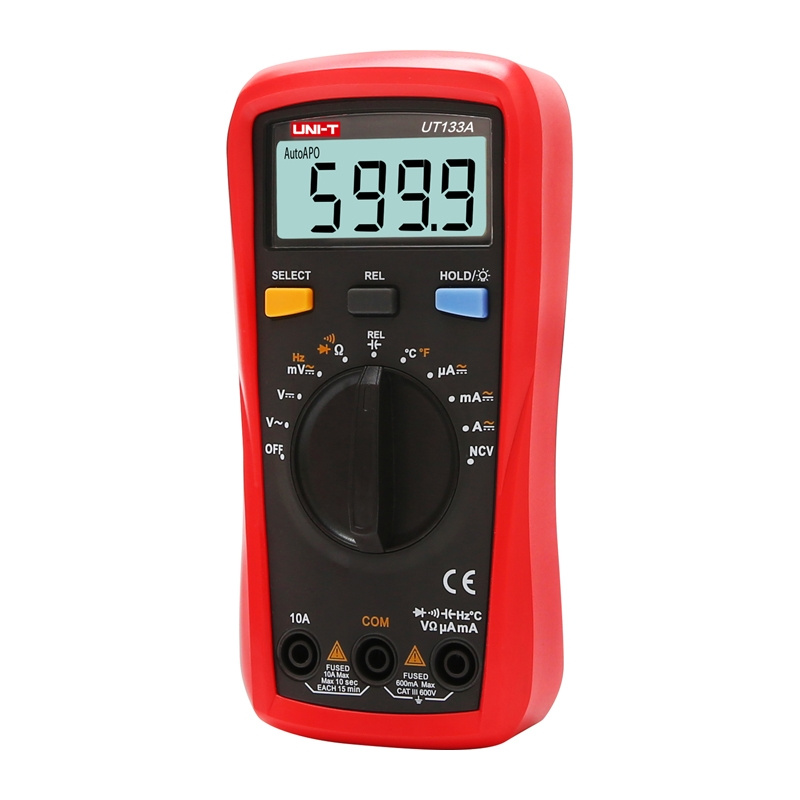

Uni-T UT133A Handheld Digital Multimeter
Price: 27.10 €
| Products ID: | 176611 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750513316 |
Delivery options to:
Choose countryThe Uni-T UT133A is a compact handheld digital multimeter designed for electrical and maintenance tasks, featuring automatic range selection and an intelligent ADC circuit.
Key Features
- Measures AC/DC voltage up to 600 V and AC/DC current up to 10 A
- Measures resistance, capacitance, frequency, and temperature from -40°C to 1000°C
- Includes NCV function, diode test, continuity buzzer, and Data Hold
- Backlit LCD screen with a maximum reading of 6000 counts
- Drop resistant up to 2 meters and rated for CAT II 600V safety
| Manufacturer | Uni-T |
|---|---|
| Model | UT133A |
| Product type | Digital multimeter |
| DC voltage range | 600 mV / 6000 mV / 20 V / 200 V / 250 V ±(0.5% + 3) |
| AC voltage range | 600 V ±(0.7% + 3) |
| DC current range | 600 µA / 60 mA / 600 mA / 10 A ±(1.0% + 3) |
| AC current range | 10 A ±(1.2% + 3) |
| Resistance range | 600 Ω / 6000 Ω / 60 kΩ / 600 kΩ / 60 MΩ ±(0.8% + 2) |
| Capacitance range | 9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 999.9 µF / 9.999 mF ±(4.0% + 5) |
| Frequency range | 10.00 Hz – 1.000 MHz ±(0.1% + 4) |
| Temperature range (°C) | -40...1000°C ±(1.0% + 4) |
| Temperature range (°F) | -40...1832°F ±(1.5% + 5) |
| Display count | 6000 |
| Range selection | Automatic |
| Measurement category | CAT II 600V |
| Drop resistance | 2 m |
| Power supply | 2 × 1.5 V (R03) |
| Dimensions | 155 × 76.5 × 49 mm |
| Display dimensions | 56.8 × 36.1 mm |
| Weight | 255 g |
What is included in the package with the Uni-T UT133A?
The package includes the handheld digital multimeter, test leads, a thermocouple, and a user manual.
What type of batteries does the multimeter use?
The multimeter operates on two 1.5 V (R03) batteries.
