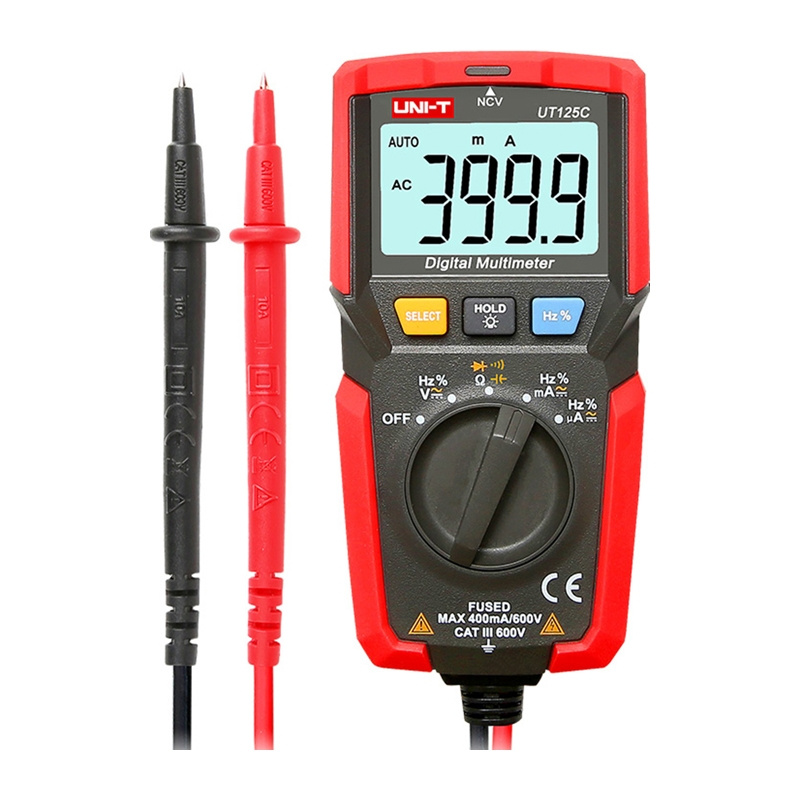

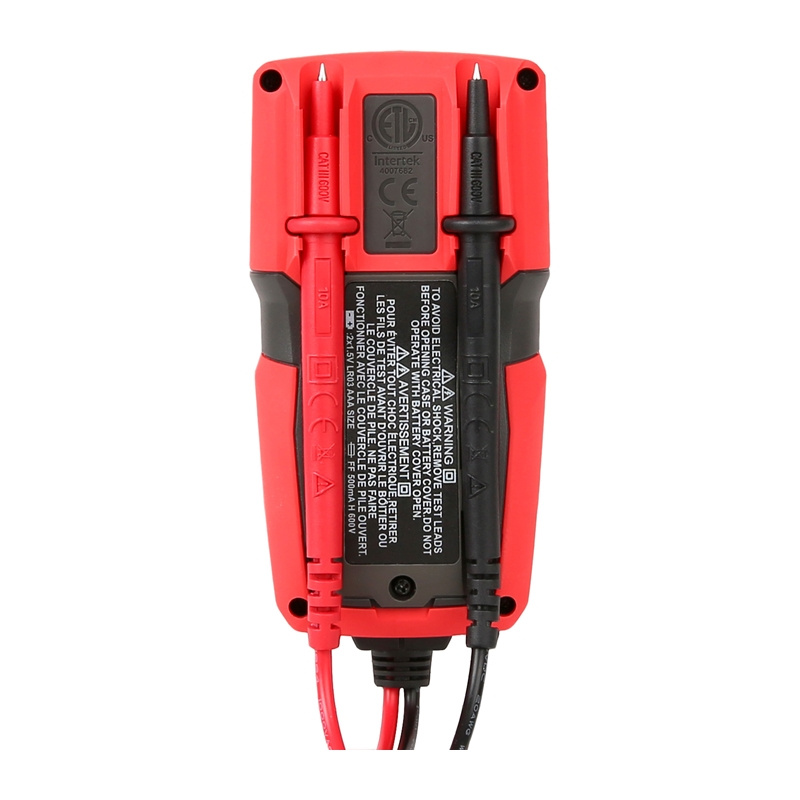

Uni-T UT125C Pocket Digital Multimeter, Red and Gray
26.40 €
Products ID: 176108
In supplier warehouse
Available to order: 9 pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe Uni-T UT125C is a pocket-sized digital multimeter with an ergonomic design and a 4000-count display, designed for everyday diagnostic tasks and electronics repair.
Key Features
- Measures AC/DC voltage up to 600 V and AC/DC current up to 400 mA
- Resistance, capacitance, frequency, and duty cycle measurements
- Diode and continuity testing capabilities
- Non-contact voltage detection (NCV) function
- Data Hold, low battery indicator, and auto power off
- 1-meter drop resistance and CAT III 600V measurement category
| Manufacturer | Uni-T |
|---|---|
| Model | UT125C |
| DC voltage range | 600 V ±(0.5% + 5) |
| AC voltage range | 600 V ±(1.2% + 5) |
| DC current range | 400 mA ±(1.8% + 5) |
| AC current range | 400 mA ±(2% + 8) |
| Resistance measurement range | 40 MΩ ±(1% + 5) |
| Capacitance measurement range | 100 µF ±(4% + 10) |
| Frequency range | 10 Hz – 60 kHz ±(0.1% + 5) |
| Duty cycle | 20% – 80% |
| Functions | NCV, diode test, continuity test, low battery indicator, Data Hold, auto power off |
| Maximum display reading | 4000 |
| Operating temperature | 0...50°C |
| Measurement category | CAT III 600V |
| Drop resistance | 1 m |
| Power supply | 2 × 1.5 V (R03) |
| Display dimensions | 38 × 23 mm |
| Weight | 180 g |
| Dimensions | 112 × 58 × 35 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
| EAN | 6935750512531 |
|---|
What is included in the package?
The package includes the digital multimeter, 2 AAA batteries, and a user manual.
What are the maximum voltage and current limits?
The multimeter measures AC/DC voltage up to 600 V and AC/DC current up to 400 mA.
What type of batteries does the device use?
The multimeter is powered by two 1.5 V AAA (R03) batteries.
