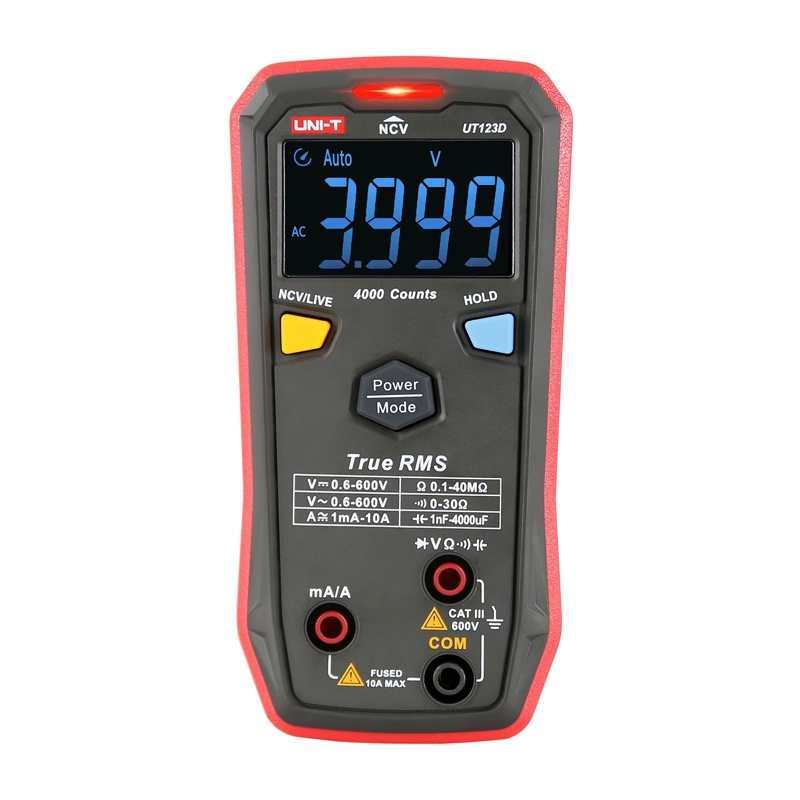

UNI-T UT123D Smart Digital Multimeter
Price: 27.30 €
| Products ID: | 175336 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750511251 |
Delivery options to:
Choose countryThe UNI-T UT123D is a compact smart digital multimeter designed for everyday measurements, DIY projects, and low-light environments.
Key Features
- Automatic detection of AC/DC voltage, resistance, diodes, and continuity
- Manual mode button for capacitance measurement
- True RMS measurement for accurate readings on non-sinusoidal signals
- NCV/Live non-contact voltage detection with acoustic-optical signaling
- Clear EBTN display and Data Hold function for convenient reading
- Automatic power-off function to conserve battery life
| Manufacturer | UNI-T |
|---|---|
| Model | UT123D |
| Display | 44 mm × 26 mm |
| Dimensions | 130 mm × 65 mm × 28 mm |
| Weight | 130 g |
| Power supply | 2 × 1.5 V battery (R03) |
| DC voltage | 600 V ±(0.5%+3) |
| AC voltage | 600 V ±(0.8%+3) |
| DC current | 10 A ±(1%+3) |
| AC current | 10 A ±(1.2%+3) |
| Resistance | 40 MΩ ±(0.8%+2) |
| Capacitance | 4000 µF ±(4%+5) |
| Certifications | CE, UKCA |
What power source does this multimeter require?
The device operates on two 1.5 V R03 batteries.
Does the device support non-contact voltage detection?
Yes, it features NCV/Live technology for detecting voltage without touching wires.
What are the dimensions and weight of the multimeter?
The multimeter measures 130 mm × 65 mm × 28 mm and weighs 130 g.
