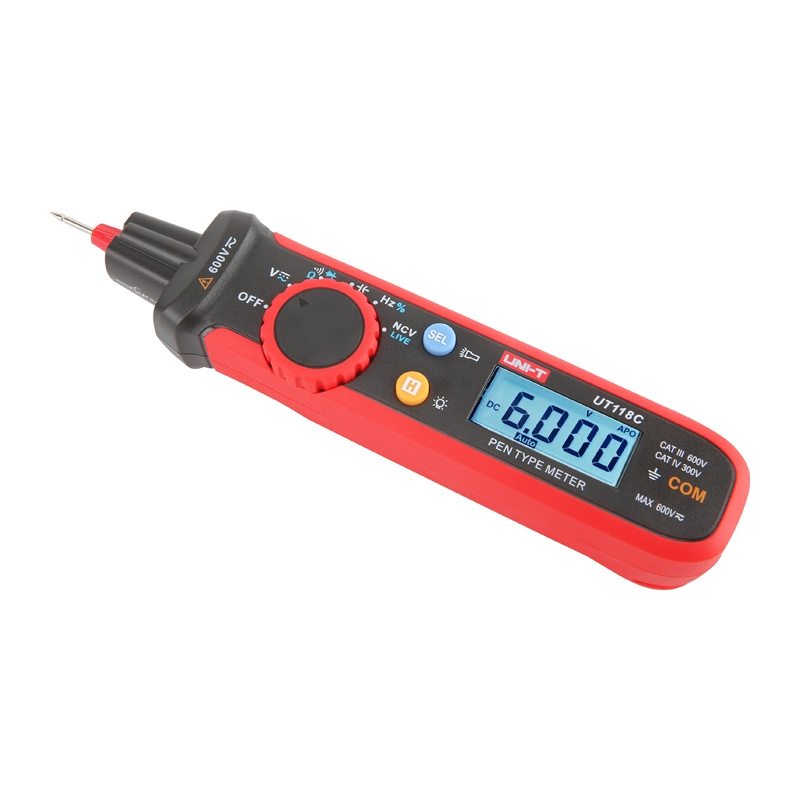

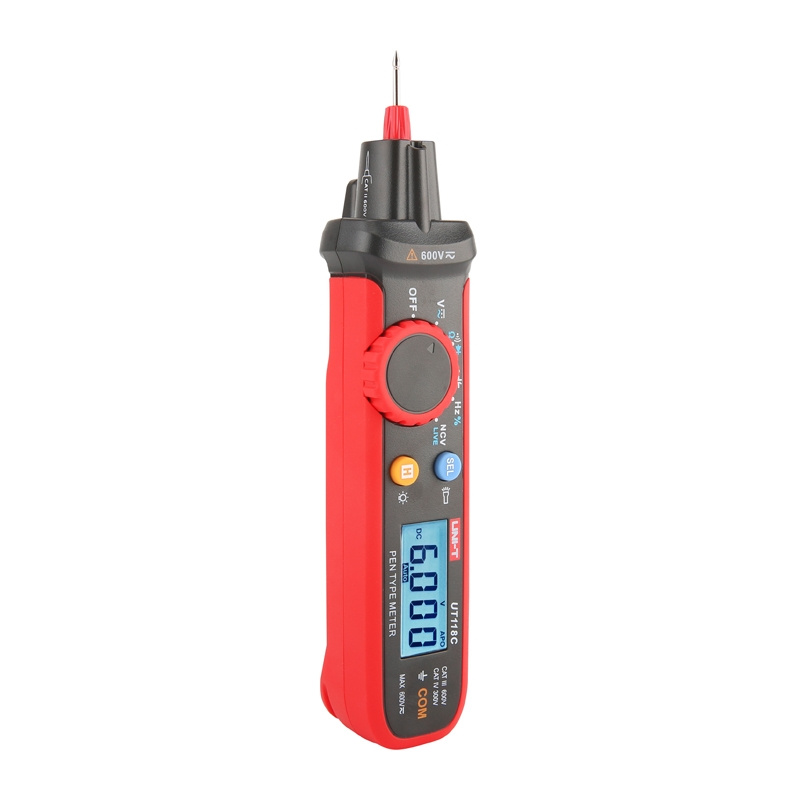

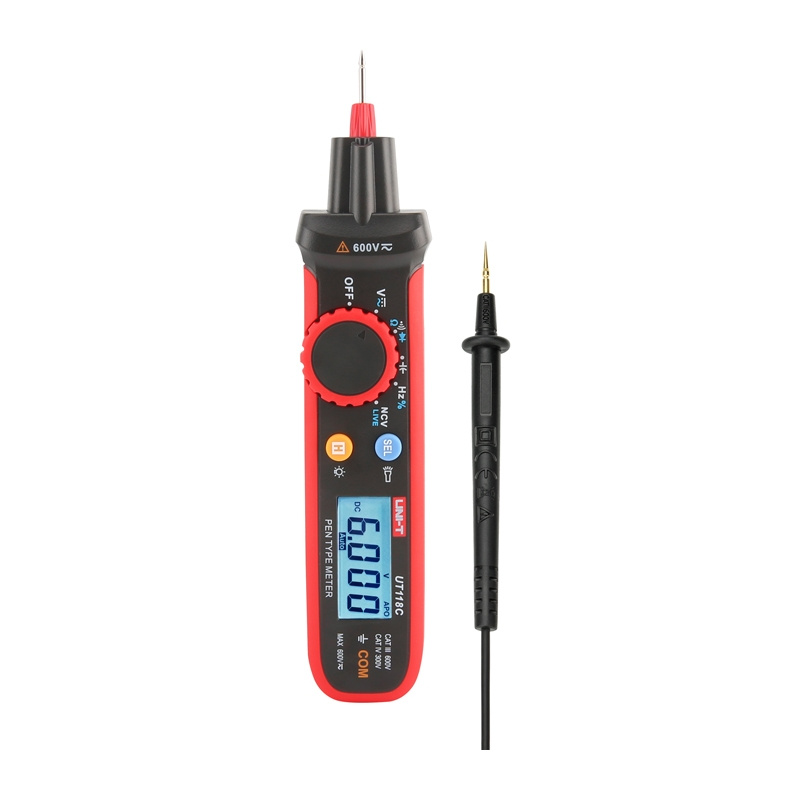

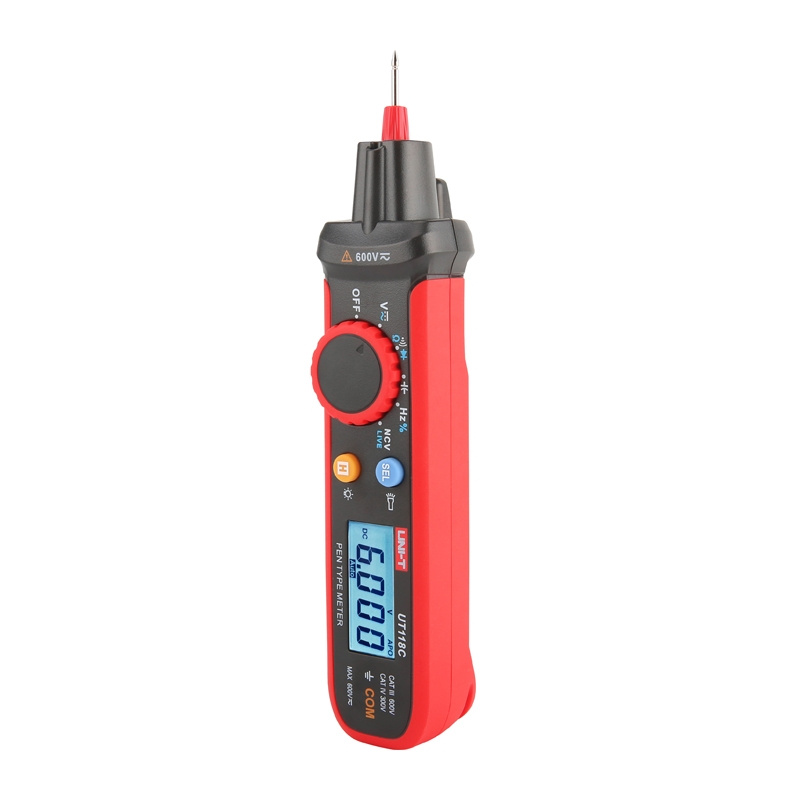

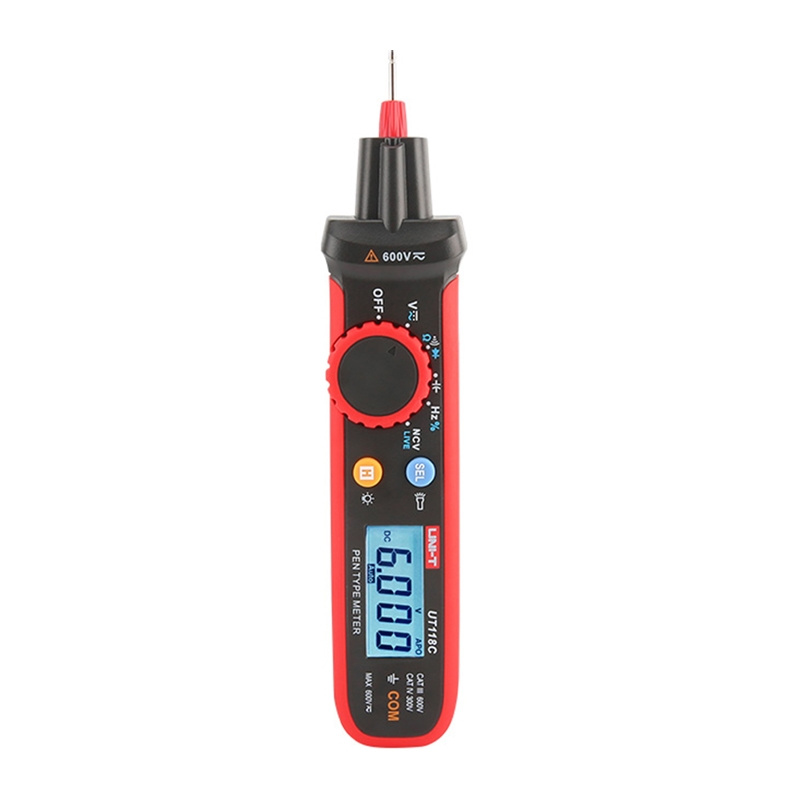

Uni-T UT118C Pen-Style Digital Multimeter True RMS 600V
Price: 38.01 €
| Products ID: | 176850 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750511831 |
Delivery options to:
Choose countryThe Uni-T UT118C is a compact pen-style digital multimeter with True RMS measurement capabilities, engineered for AC/DC voltage, resistance, capacitance, and frequency testing.
Key Features
- Measures AC/DC voltage up to 600 V, resistance up to 60 MΩ, and capacitance up to 60 mF
- 6000-count backlit HTN LCD display with automatic range switching
- Non-contact voltage detection (NCV) and LIVE phase wire testing
- Gold-plated test probes with two-step length adjustment and built-in flashlight
- Complies with CAT III 600V and CAT IV 300V safety standards
| Manufacturer | Uni-T |
|---|---|
| Model | UT118C |
| Product type | Pen-style digital multimeter |
| DC voltage range | 6.000 V / 60.00 V / 600.0 V ±(1% + 3) |
| AC voltage range | 6.000 V / 60.00 V / 600.0 V ±(1% + 4) |
| Resistance measurement range | 600.0 Ω / 6.000 kΩ / 60.00 kΩ / 600.0 kΩ ±(1% + 3), 6.000 MΩ ±(1.5% + 5), 60.00 MΩ ±(2.5% + 5) |
| Capacitance measurement range | 600.0 nF / 6.000 µF / 60.00 µF / 600.0 µF ±(3.5% + 8), 6.000 mF ±(5.0% + 9), 60.00 mF ±(10.0% + 9) |
| Frequency range | 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz ±(0.01% + 5) |
| Maximum display reading | 6000 |
| Functions | Automatic range switching, automatic LED, continuity, and resistance detection, NCV, LIVE test, LED and continuity test, flashlight, duty cycle measurement, dual-color indicator, True RMS, screen backlight, HTN LCD display |
| Duty cycle range | 0.1% – 99.9% |
| Display dimensions | 36 × 15 mm |
| Probe length adjustment | Two-step |
| Measurement category | CAT III 600V / CAT IV 300V |
| Power supply | 1 × 1.5 V AAA battery |
| Dimensions | 182.5 × 38.0 × 38.5 mm |
| Color | Gray and red |
| Certifications | CE, cETLus, RoHS |
What is included in the package?
The package includes the Uni-T UT118C digital multimeter, 1 AAA battery, and a user manual.
What type of power source does this device require?
The multimeter is powered by a single 1.5 V AAA battery.
