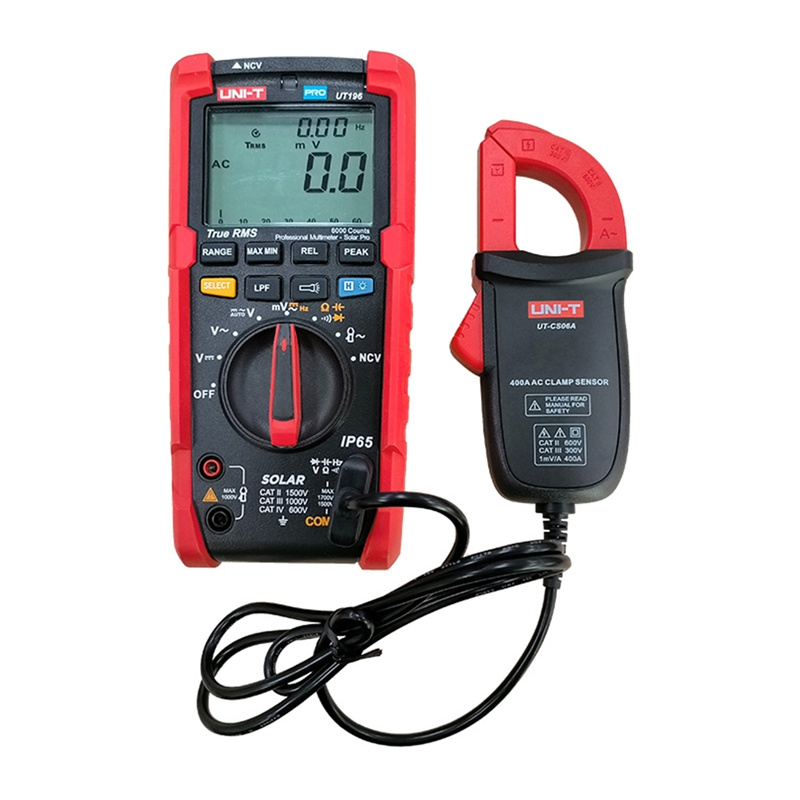

Uni-T UT-CS06A Flex AC Clamp-On Current Sensor, 400A
Price: 20.30 €
| Products ID: | 176827 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750506059 |
Delivery options to:
Choose countryThe Uni-T UT-CS06A is a compact Flex AC clamp-on current sensor designed to measure AC current up to 400 A without interrupting the circuit.
Key Features
- Measures AC current in the range of 1 to 400 A AC
- 28 mm clamp diameter for quick and easy conductor access
- 1 mV/A output ratio for clear interpretation by compatible meters
- Passive design requiring no batteries
- Includes a 1.1 m measuring cable
| Manufacturer | Uni-T |
|---|---|
| Model | UT-CS06A |
| Type | Flex AC clamp sensor |
| Current range | 1–400 A AC |
| Accuracy | ±2.5% ±0.5 A (50–60 Hz) / ±2.8% ±0.5 A (60–400 Hz) |
| Frequency range | 50–400 Hz |
| Jaw diameter | 28 mm |
| Output ratio | 1 mV/A |
| Cable length | 1.1 m |
| True RMS | Depends on the multimeter |
| Response time | Depends on the multimeter used |
| Measurement accuracy | Depends on the multimeter used |
| Waveform display | Can be adapted to an oscilloscope |
| Power supply | No batteries required |
| Safety class | CAT III 300V / CAT II 600V |
| Drop resistance | 1 m |
| Dimensions | 158 × 65 × 33 mm |
| Certifications | CE, UKCA |
What is included with the Uni-T UT-CS06A?
The package includes the UT-CS06A clamp sensor, a measuring cable, and a user manual.
Does this sensor require batteries?
No, the sensor operates without the need for batteries.
What measuring devices can be used with this clamp sensor?
It is designed to work with multimeters and data loggers, and can also be adapted to an oscilloscope.
