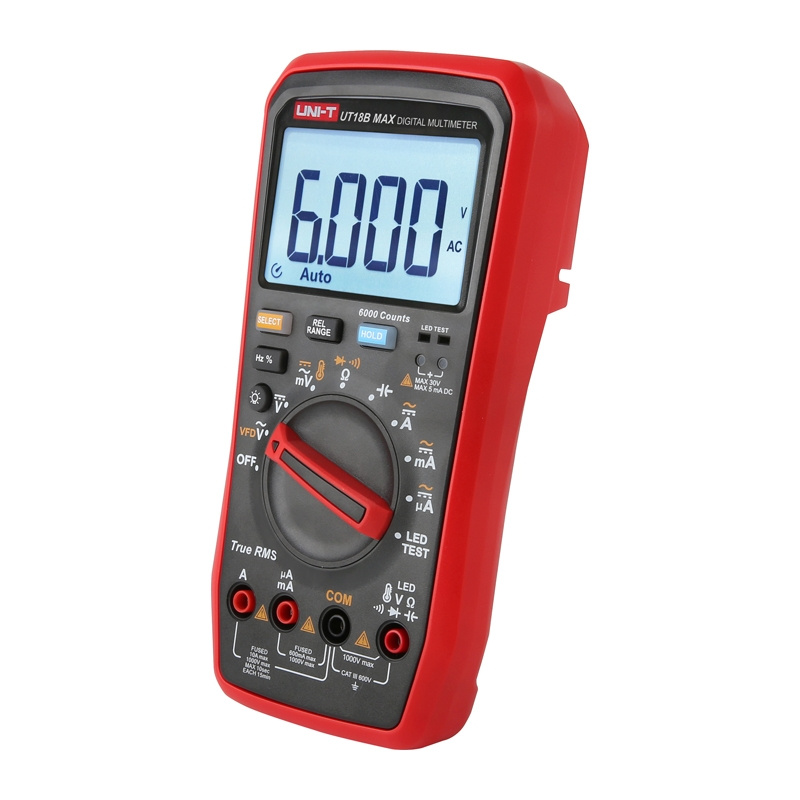

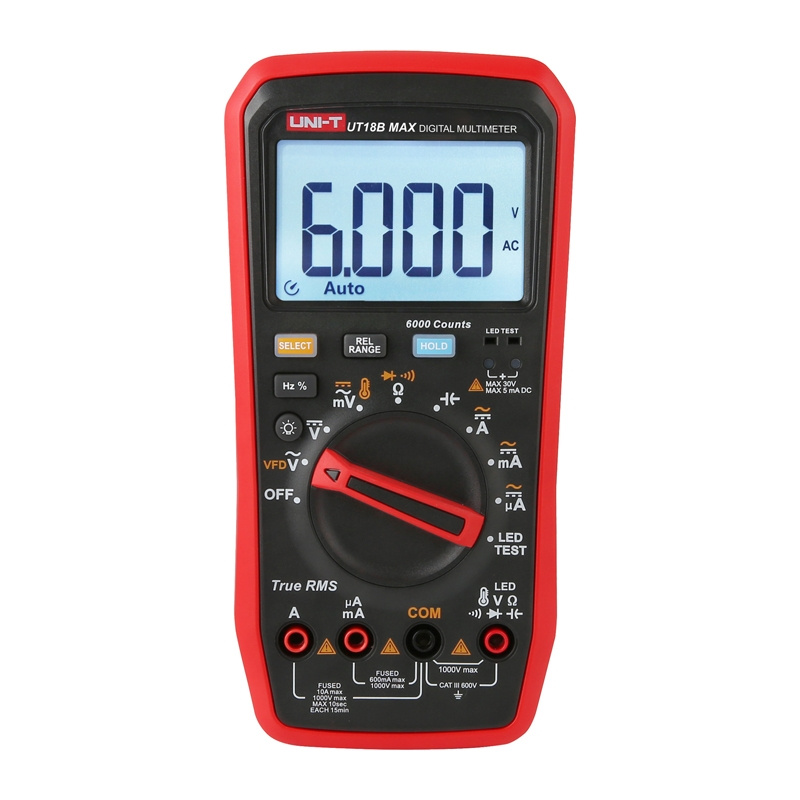

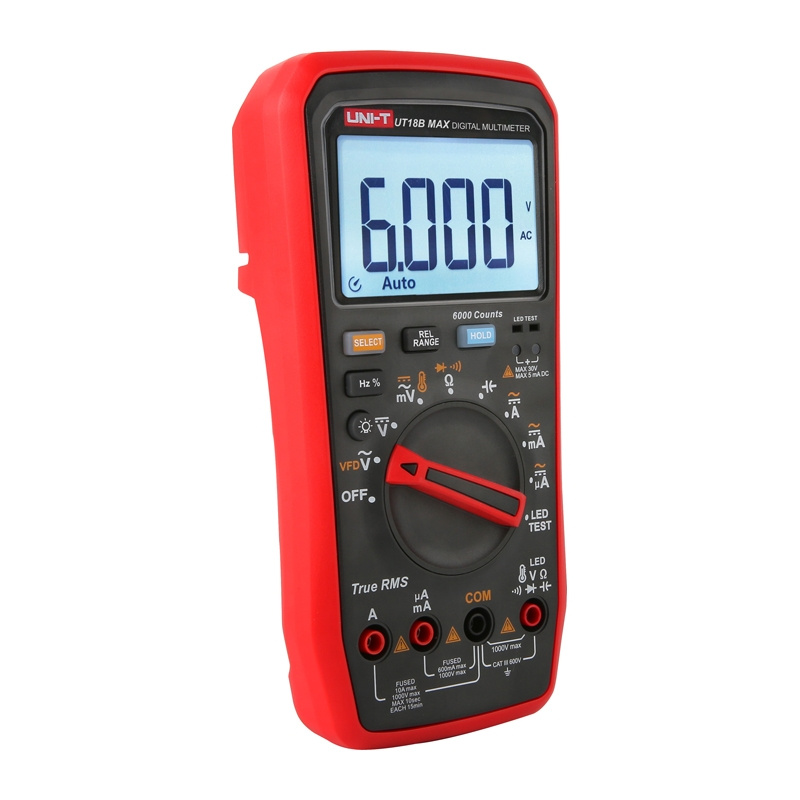

Uni-T True RMS UT18B MAX Digital Multimeter

Uni-T True RMS UT18B MAX Digital Multimeter — image 3

Uni-T True RMS UT18B MAX Digital Multimeter — image 4

Price: 94.70 €

Products ID:	176299
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750518090

Delivery options to:

Choose country

Uni-T True RMS UT18B MAX Digital Multimeter

The Uni-T UT18B MAX is a True RMS digital multimeter featuring a dedicated LED diode test function, designed for measuring DC and AC voltage, current, resistance, capacitance, frequency, and temperature.

Key Features

Measures DC/AC voltage up to 1000 V and DC/AC current up to 10 A
Temperature measurement range from -55°C to 500°C with included Type K thermocouple
6000-count display with adjustable backlight
Misconnection alarm and CAT III 600V overvoltage protection
Automatic and manual range selection, Data Hold, and relative mode

Manufacturer	Uni-T
Model	UT18B MAX
Type	True RMS digital multimeter
DC Voltage	600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4%+3)
AC Voltage	600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5%+5)
VFD	600.0 V ±(8%)
AC Current	600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
DC Current	600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3)
Resistance	600.0Ω to 60.00MΩ ±(0.5%+2)
Capacitance	6.000nF to 6000µF ±(2.0%+5)
Frequency	10Hz ~ 10MHz ±(0.1%+3)
Duty Cycle	1% ~ 99.9% ±(1.0%+4)
Temperature	-55°C to 500°C ±2°C / ±4°F
Display	6000
LED Diode Test	Yes
Data Hold	Yes
Voltage Category	CAT III 600V
Power Supply	2x 1.5V AA batteries
Dimensions	182 mm × 91 mm × 45 mm
Weight	455 g
Color	Red and gray

What is included in the package?

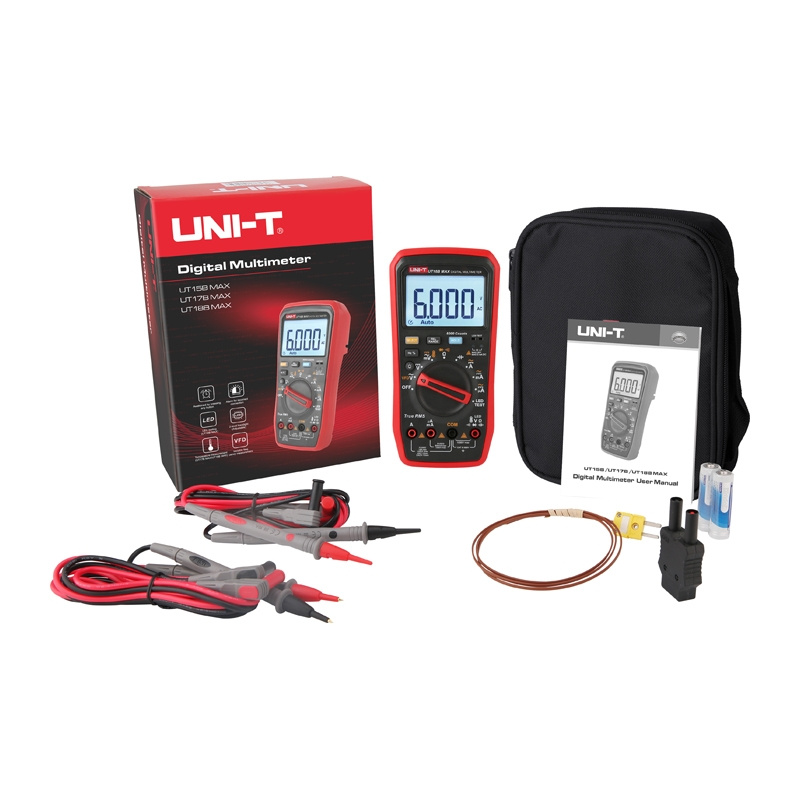

The package includes the digital multimeter, user manual, 2 standard gold-plated test leads, 2 test leads with fine tips, 2 batteries, and 1 Type K thermocouple.

Does this multimeter measure temperature?

Yes, it measures temperature from -55°C to 500°C using the included Type K thermocouple.
