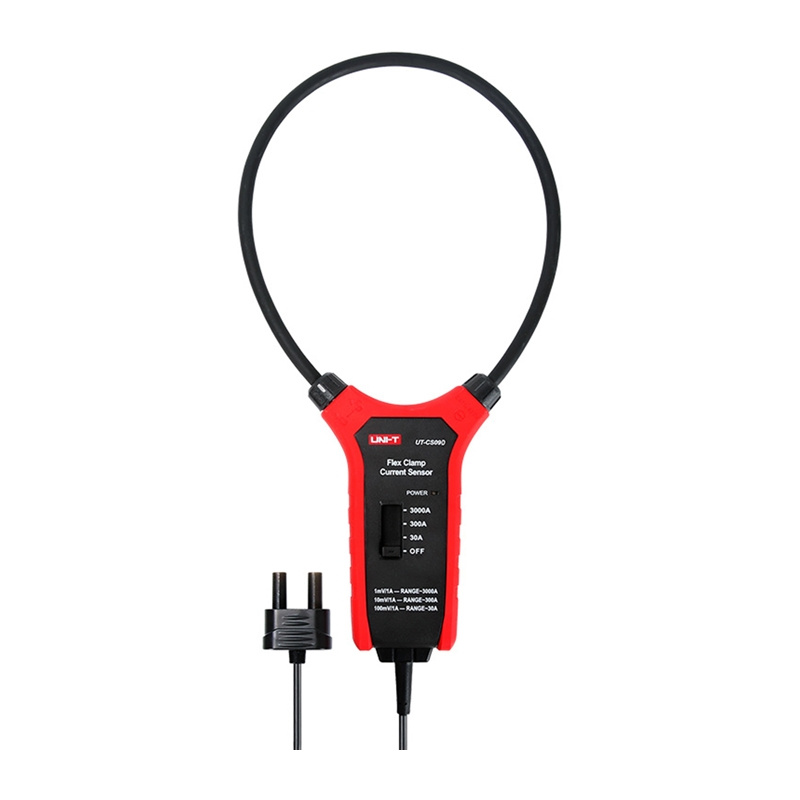

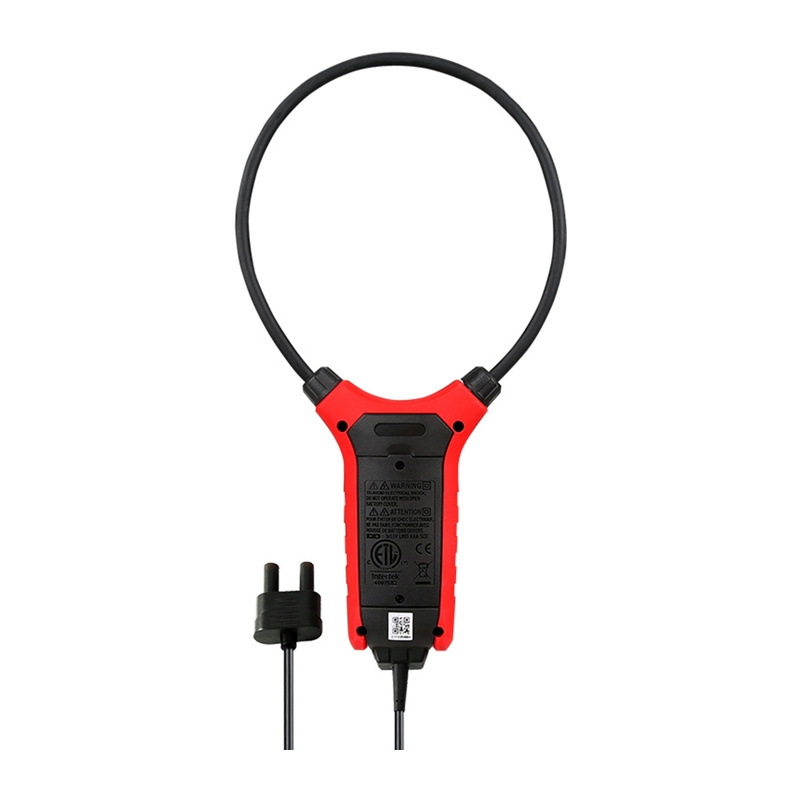

Uni-T Flex Clamp UT-CS09D Flexible Current Sensor up to 3000 A
Price: 63.40 €
| Products ID: | 176940 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750509166 |
Delivery options to:
Choose countryThe Uni-T Flex Clamp UT-CS09D is a flexible current sensor based on a Rogowski coil, designed for AC current measurements in confined spaces where traditional clamp meters cannot fit.
Key Features
- AC current measurement ranges: 30 A / 300 A / 3000 A
- 45.7 cm flexible loop for wrapping around conductors of various sizes
- Direct measurement display on compatible Uni-T meters such as UT206B and UT208B
- CAT IV 600V safety rating and 1-meter drop resistance
- Frequency response from 45 Hz to 500 Hz
| Manufacturer | Uni-T |
|---|---|
| Model | UT-CS09D |
| Product type | Flexible current sensor (Rogowski) |
| AC current range | 30 A / 300 A / 3000 A |
| Frequency response | 45 Hz – 500 Hz |
| Flex loop length | 45.7 cm |
| Measurement category | CAT IV 600V |
| Drop resistance | 1 m |
| Ambient operating temperature range | 0...50°C |
| Ambient storage temperature range | -20...60°C |
| Ambient storage humidity range | ≤80% RH |
| Power supply | 3 × 1.5 V AAA batteries |
| Dimensions | 267 × 119.4 × 34 mm |
| Weight | 260 g |
| Certifications | CE, UKCA, cETLus |

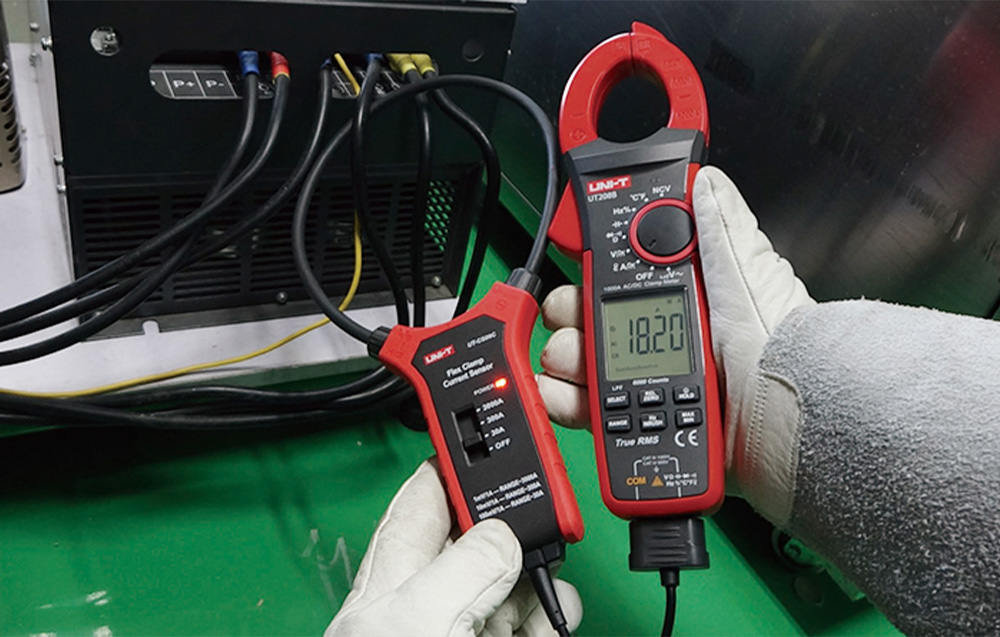

Which meters are compatible with the Uni-T UT-CS09D?
It is compatible with Uni-T meters such as the UT206B and UT208B, which display measurement readings directly on the screen.
What is included in the package?
The package includes the flexible current sensor, BNC adapter, 3 AAA batteries, and a user manual.
