SMD Component Tester Uni-T UT116A

Price: 32.20 €

Products ID:	176269
Manufactured by:	Uni-T
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6935750511602

Delivery options to:

Choose country

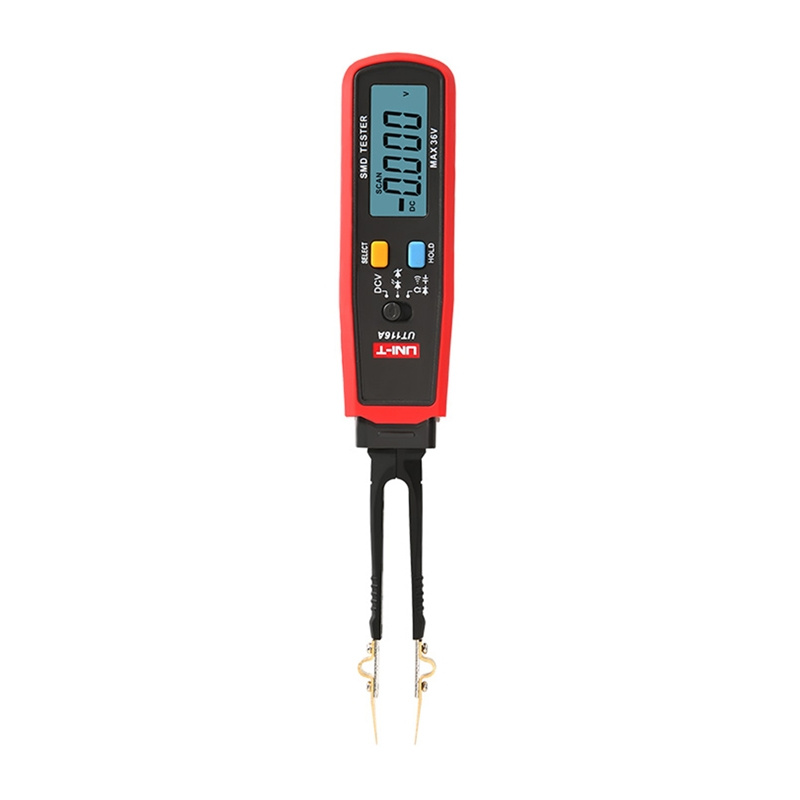

The Uni-T UT116A is a practical SMD tester designed in probe form for rapid testing of electronic components during assembly and maintenance. The device automatically recognizes resistors, capacitors, and diodes, while its 180° rotatable design provides convenient operation during measurements.

Key Features

Resistance measurement up to 30 MΩ and capacitance measurement up to 30 mF
DC voltage measurement up to 36 V
Testing for diodes, LEDs, Zener diodes, and circuit continuity
Automatic range selection
Clear 39 × 20 mm display with a 3000 count maximum reading
Auto power-off feature and lightweight construction of approx. 80 g

Manufacturer	Uni-T
Model	UT116A
Product type	SMD tester
Maximum display count	3000
Display size	39 × 20 mm
Resistance measurement range	up to 30 MΩ
Capacitance measurement range	up to 30 mF
DC voltage measurement	up to 36 V
Diode test	3 V
LED / Zener diode test	Approx. 21 V / 1 mA
Weight	approx. 80 g
Package contents	Tester, 2 AAA batteries, user manual

What is included in the package?

The package includes the Uni-T UT116A tester, 2 AAA batteries, and a user manual.

What parameters can be measured with the UT116A?

The device measures resistance up to 30 MΩ, capacitance up to 30 mF, DC voltage up to 36 V, and supports diode, LED, Zener diode, and continuity testing.
