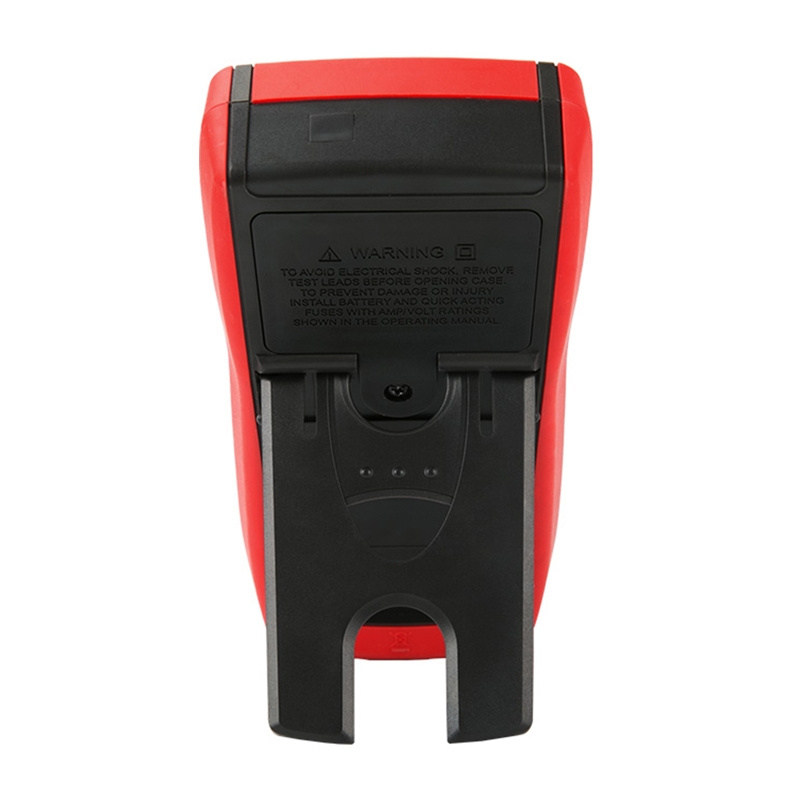

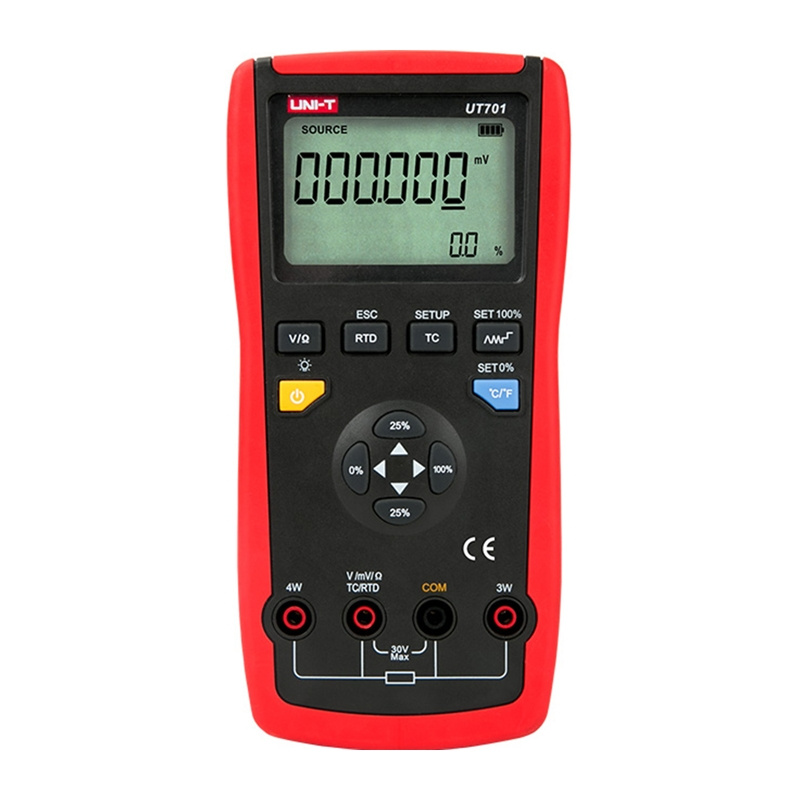

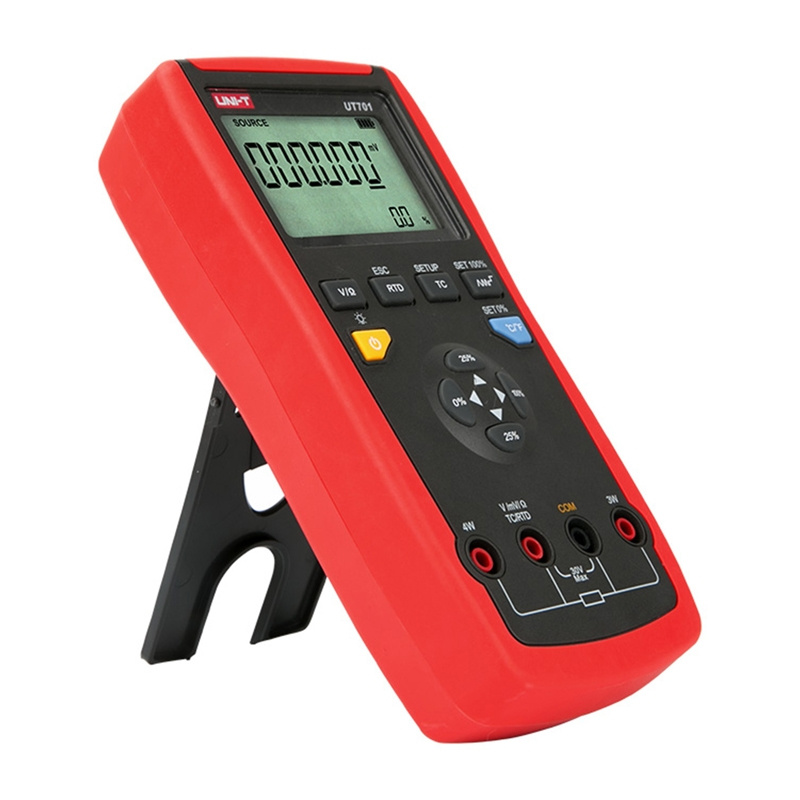

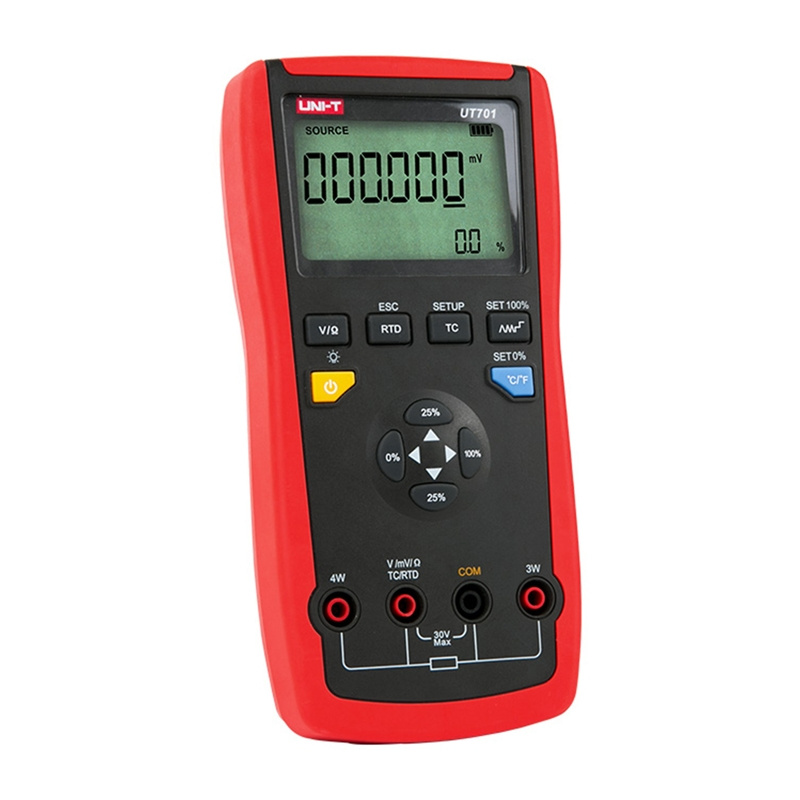

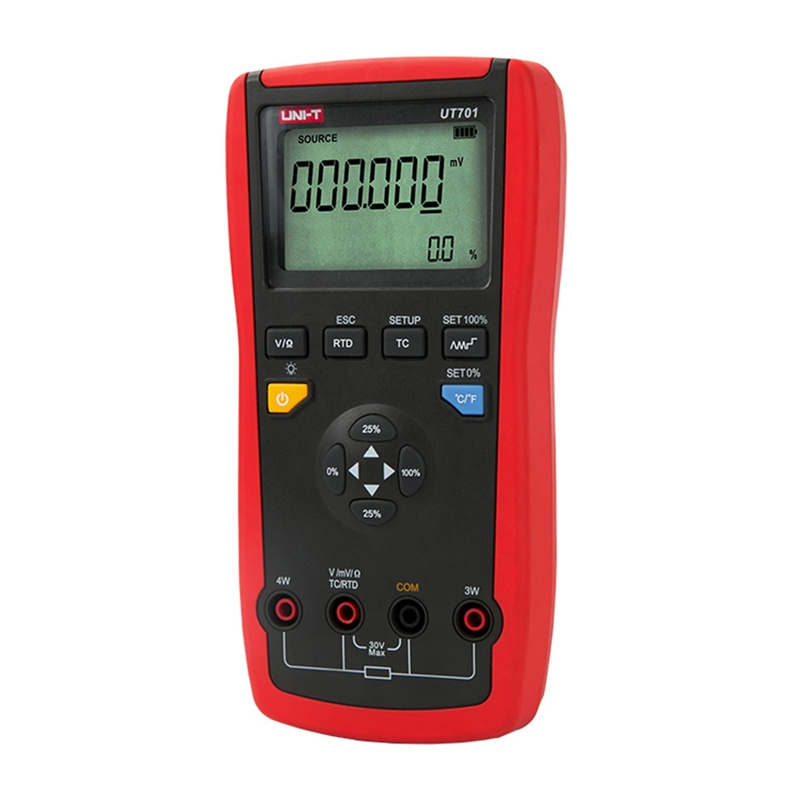

Process Temperature Calibrator Uni-T UT701
Price: 201.10 €
| Products ID: | 176724 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750570173 |
Delivery options to:
Choose countryThe Uni-T UT701 is a process calibrator designed for calibrating and testing temperature measurement devices and transducers. It outputs DC voltage, resistance, thermocouple, and RTD signals to simulate operational conditions with high accuracy of up to ±0.05%.
Key Features
- Supports 10 thermocouple types and 4 RTD sensor types
- DC voltage output range up to 1000 mV and resistance output up to 5000 Ω
- Automatic cold junction compensation for thermocouple accuracy
- Step and ramp functions for testing signal response
- Settings storage and a 6-digit backlit LCD display
| Manufacturer | Uni-T |
|---|---|
| Model | UT701 |
| Product type | Process temperature calibrator |
| Output accuracy | Up to ±0.05% |
| Display type | 6-digit backlit LCD display |
| Display dimensions | 63 × 40 mm |
| Signal source outputs | DC voltage, resistance, thermocouples, RTD |
| Supported thermocouples | J, K, T, E, R, S, B, N, WRe3-25, WRe5-26 |
| Supported RTD types | Pt10, Pt100, Cu50, Cu100 |
| DC voltage output range | Up to 1000 mV |
| Resistance output range | Up to 5000 Ω |
| Functions | Ramp, step, settings storage, cold junction compensation |
| Power supply | 9V battery (6F22) |
| Dimensions | 96 × 193 × 47 mm |
| Weight | 410 g |
| Certifications | CE, UKCA |
What items are included with the Uni-T UT701?
The package includes the Uni-T UT701 process calibrator, 1 pair of test leads, a 9V battery (6F22), a carrying case, and a user manual.
Which sensor types are supported by the calibrator?
The calibrator supports 10 thermocouple types (J, K, T, E, R, S, B, N, WRe3-25, WRe5-26) and 4 RTD sensor types (Pt10, Pt100, Cu50, Cu100).
