Mileseey TR256A Thermal Imaging Camera (-20°C to 550°C, 256 x 192 px, IP65)

Q: What is included in the package?

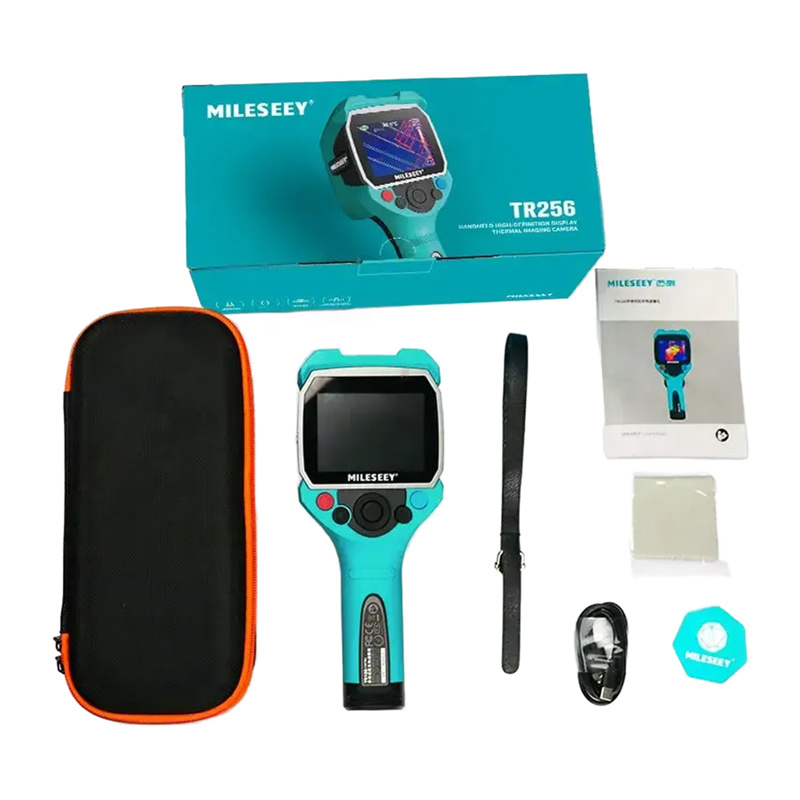

The package includes the thermal imaging camera, storage case, carrying strap, charging cable, and user manual.

Q: What is the temperature measurement range?

The device measures temperatures ranging from -20°C to 550°C.

Q: Which color palettes are supported?

It features 6 color palettes: Rainbow, White Hot, Iron, Arctic, Lava, and Medical.

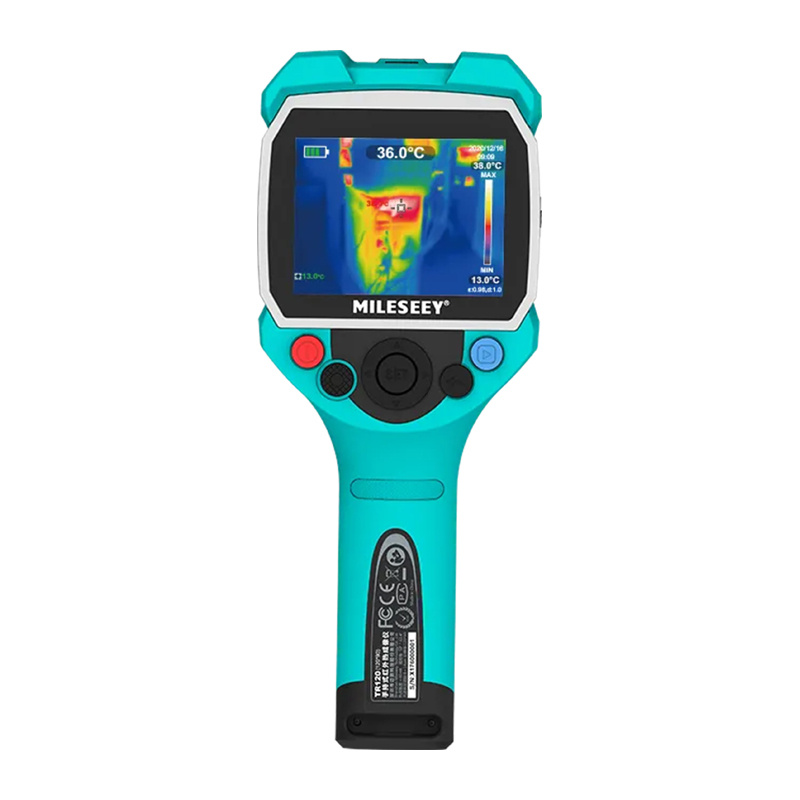

Mileseey TR256A Thermal Imaging Camera (-20°C to 550°C, 256 x 192 px, IP65) — primary image

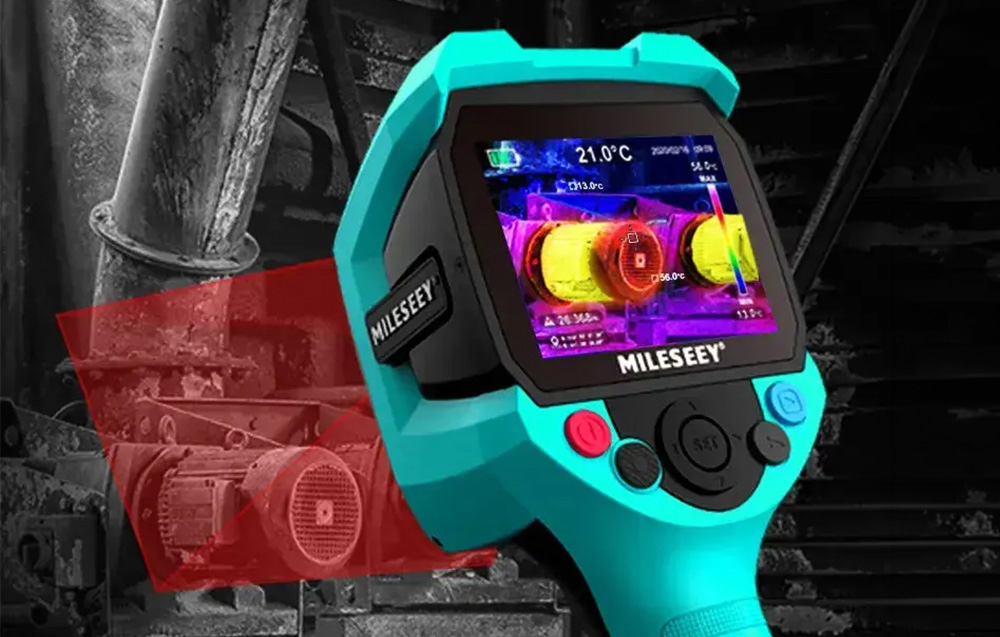

Mileseey TR256A Thermal Imaging Camera (-20°C to 550°C, 256 x 192 px, IP65) — image 2

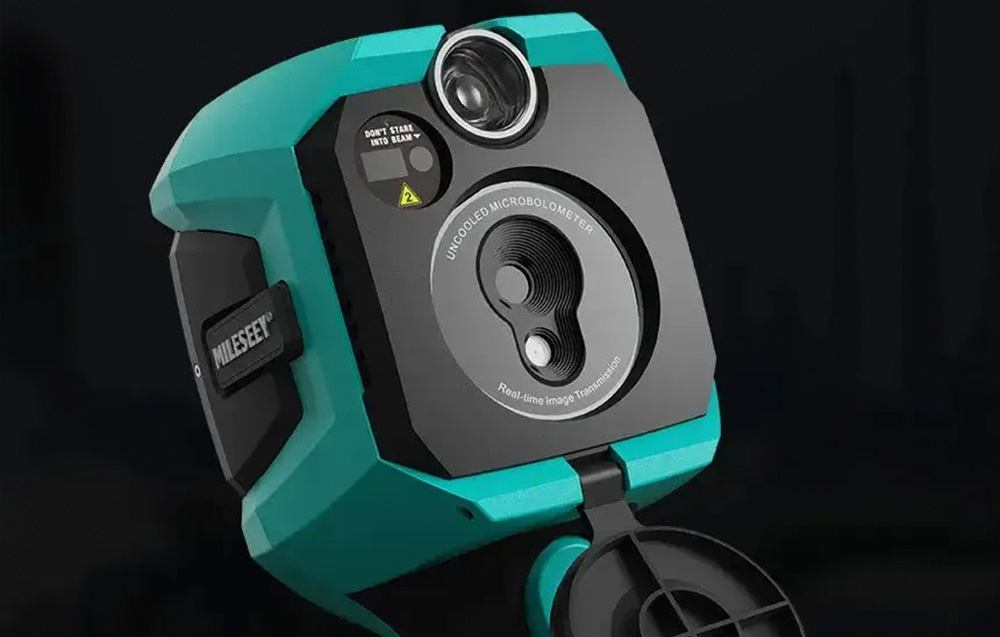

Mileseey TR256A Thermal Imaging Camera (-20°C to 550°C, 256 x 192 px, IP65) — image 3

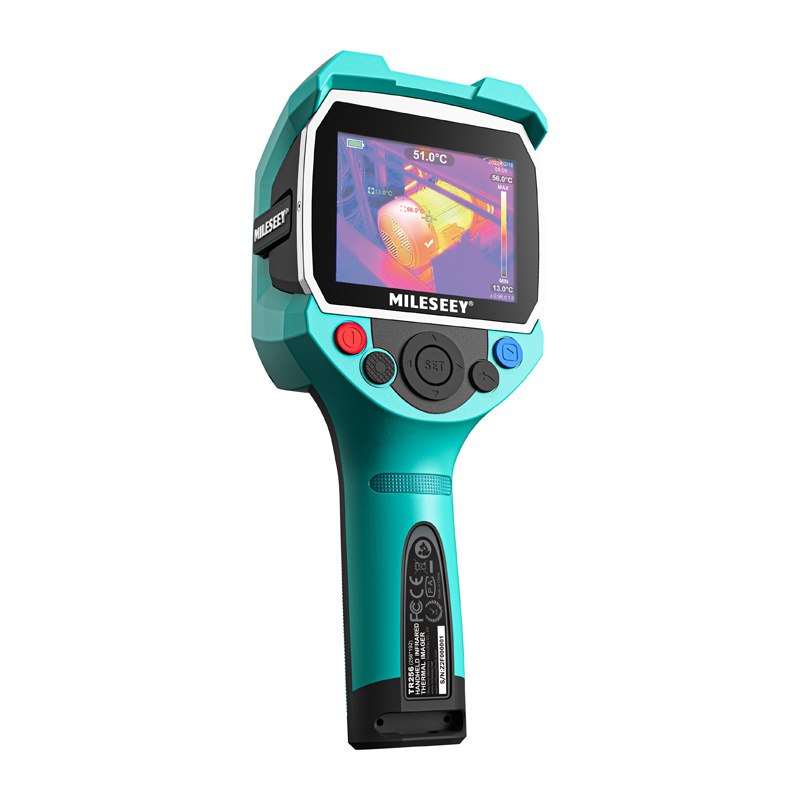

Mileseey TR256A Thermal Imaging Camera (-20°C to 550°C, 256 x 192 px, IP65) — image 4

Mileseey TR256A Thermal Imaging Camera (-20°C to 550°C, 256 x 192 px, IP65) — image 5

Price: 393.10 €

Products ID:	177024
Manufactured by:	Mileseey
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6971915322140

Delivery options to:

Choose country

Mileseey TR256A Thermal Imaging Camera (-20°C to 550°C, 256 x 192 px, IP65)

The Mileseey TR256A thermal imaging camera features a 256 × 192-pixel thermal sensor and a wide 56° × 42° field of view, making it ideal for inspecting electrical systems, HVAC equipment, and building insulation.

Key Features

Wide Temperature Range: Measures temperatures from -20°C to 550°C with automatic hot and cold spot tracking and alarm settings.
Adjustable Emissivity: Provides precise measurement adaptation across different surfaces and materials.
6 Color Palettes: Includes Rainbow, White Hot, Iron, Arctic, Lava, and Medical modes for enhanced thermal analysis.
Durable Construction: IP65-rated housing provides reliable dust and water resistance in demanding conditions.
High Capacity Battery: Powered by a 5000 mAh lithium battery for extended field operation.

Manufacturer	Mileseey
Model	TR256A
Thermal resolution	256 × 192 (49,152 pixels)
Screen resolution	640 × 480
Temperature range	from -20°C to 550°C
Field of view	56° × 42°
Accuracy	± 3°C
Refresh rate	< 20 Hz
Thermal sensitivity	≤ 50 mK
Pixel size	12 μm
Measurable distance range	0.3 m to 3 m
Color palettes	6 color palettes
Battery	5000 mAh lithium battery
Memory	External 8 GB MicroSD card
IP rating	IP65
Weight	540 g
Dimensions	238 × 95 × 85 mm
