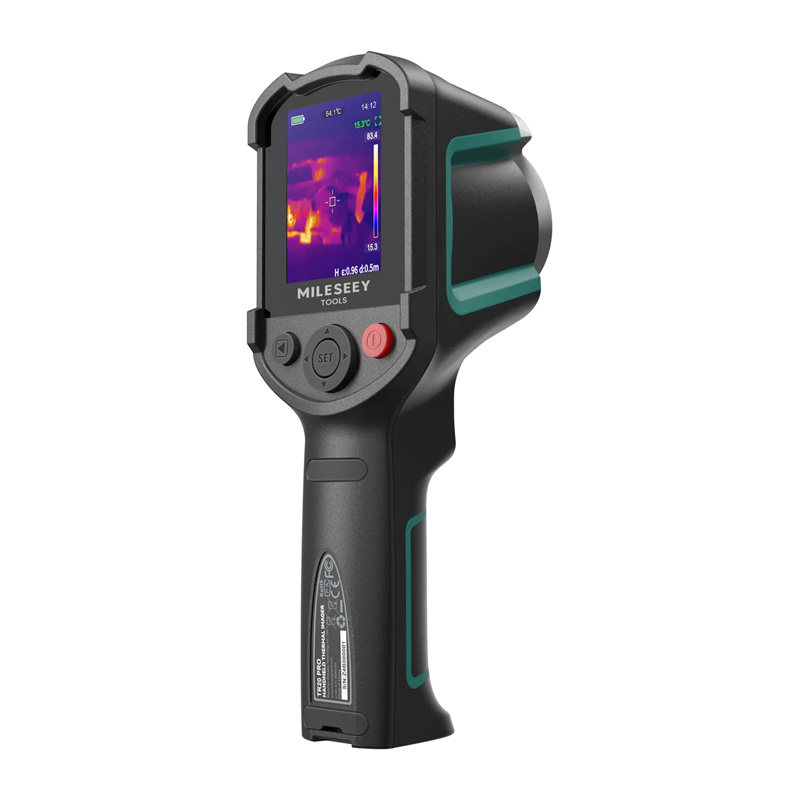

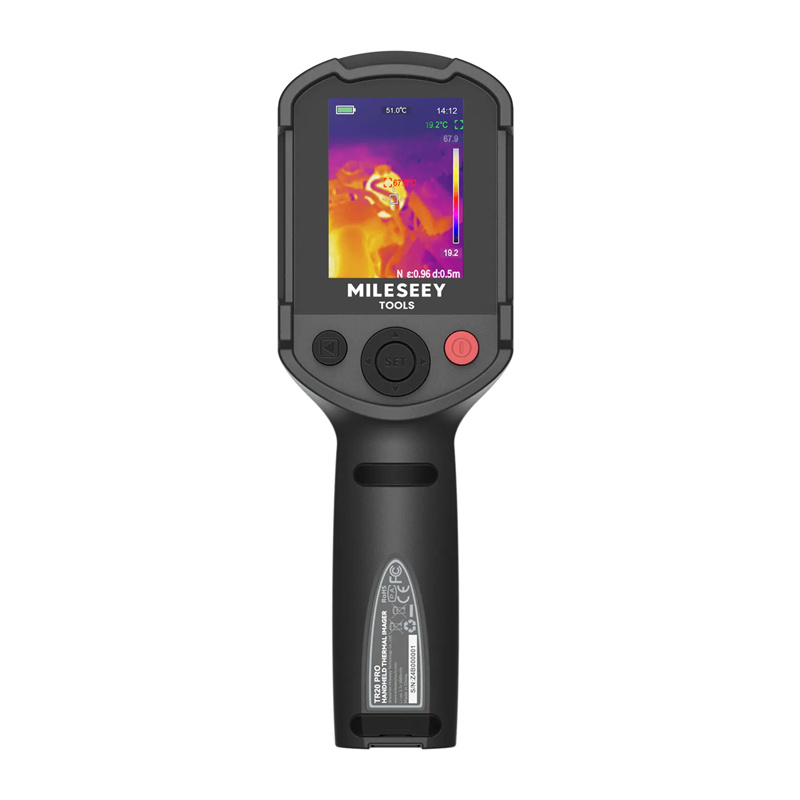

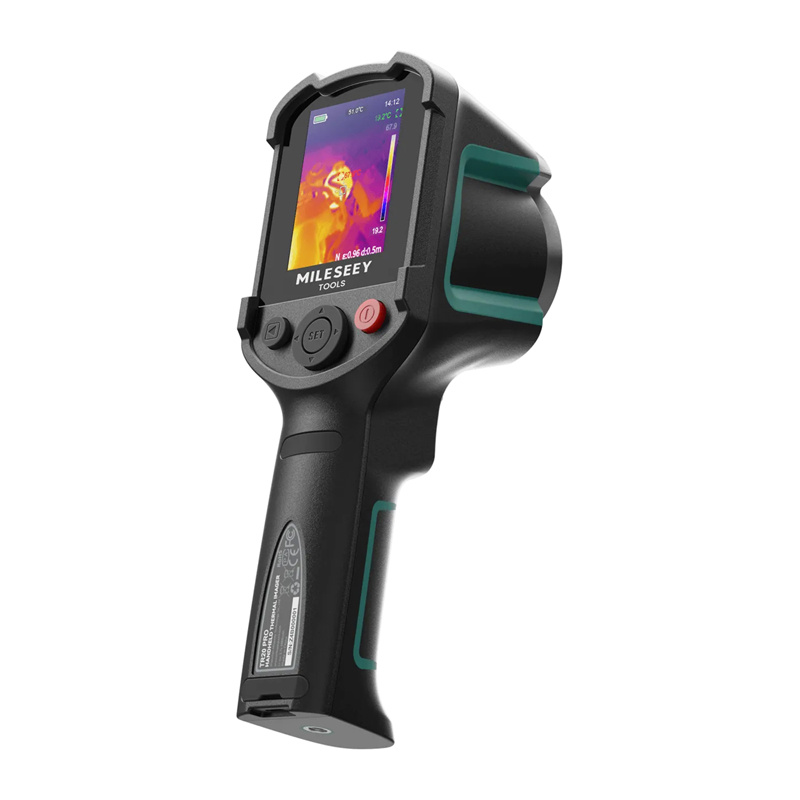

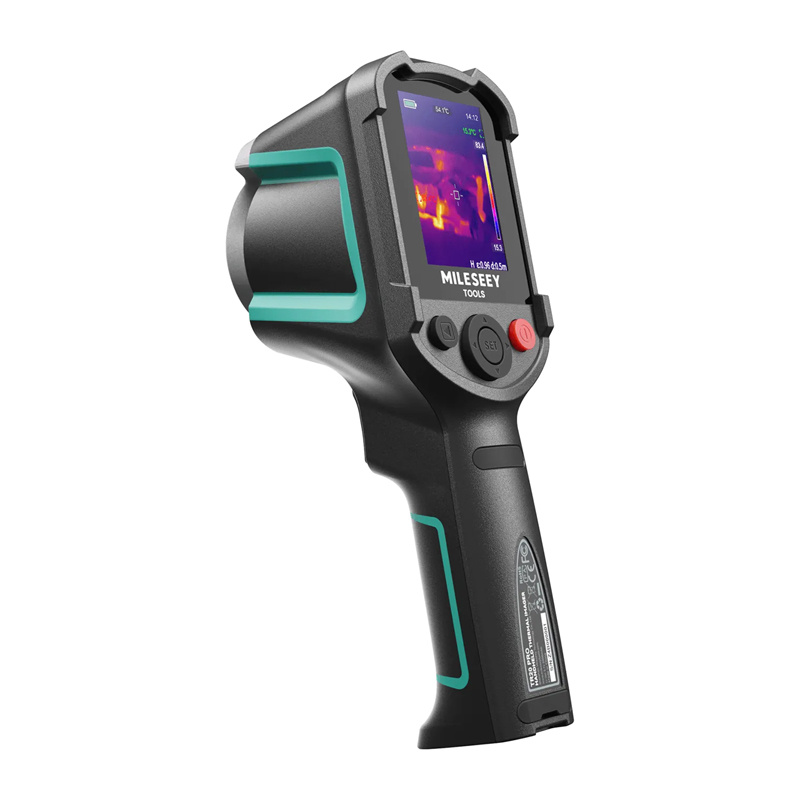

Mileseey TR20 Pro Thermal Imaging Camera, 320x240, -20°C to 550°C
Price: 319.00 €
| Products ID: | 176992 |
|---|---|
| Manufactured by: | Mileseey |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6971915320023 |
Delivery options to:

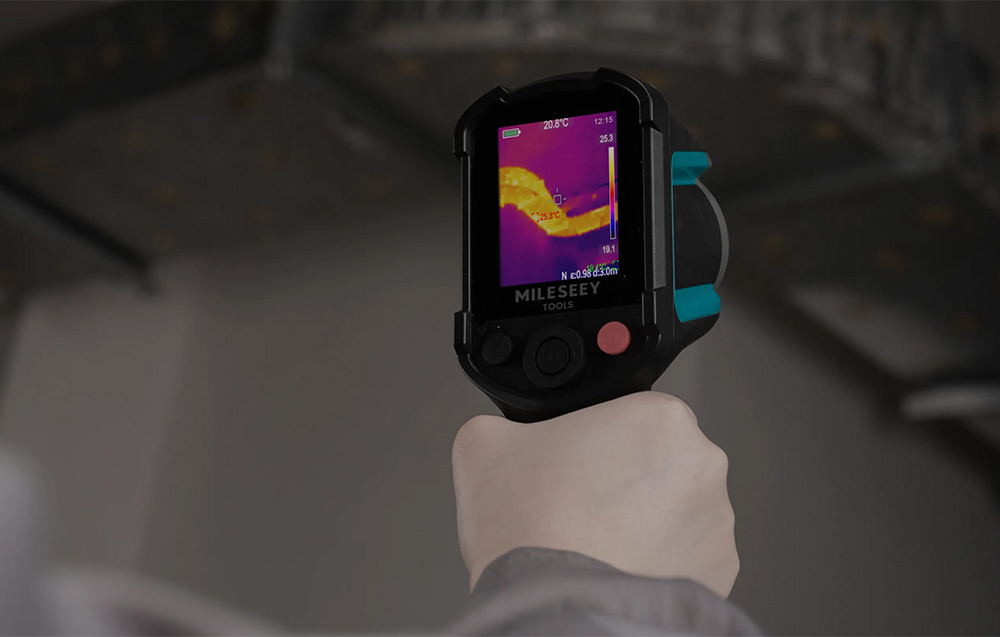

Choose countryThe Mileseey TR20 Pro is a handheld thermal imaging camera featuring a dual-camera system and 320 × 240 pixel IR resolution for precise temperature diagnostics in electrical installations, HVAC systems, and industrial equipment.
Key Features
- Infrared sensor with 320 × 240 px resolution and NETD ≤ 40 mK sensitivity
- Wide temperature measurement range from –20°C to 550°C with ±2% accuracy
- 2.8-inch color LCD display with 640 × 480 px resolution
- 5 image modes and 8 color palettes for adaptable analysis
- Built-in 8 GB memory storing over 30,000 images and 5000 mAh battery for up to 8 hours of use
- Rugged housing with IP54 protection and drop resistance up to 1 meter
| Manufacturer | Mileseey |
|---|---|
| Model | TR20 Pro |
| Infrared (IR) resolution | 320 × 240 px (76,800 pixels) |
| Thermal sensitivity (NETD) | ≤ 40 mK |
| Refresh rate | 50 Hz |
| Display | 2.8" color LCD |
| Screen resolution | 640 × 480 px (307,200 pixels) |
| Camera type | dual (thermal camera + visible light, fusion mode) |
| Field of view | 50° × 37.2° |
| Temperature measurement range | from –20°C to 550°C |
| Measurement accuracy | ±2% |
| Optimal measurement distance | 0.3 – 3 m |
| Image modes | thermal, PIP (Picture-in-Picture), fusion offset, fusion rate, digital |
| Color palettes | 8 modes |
| Built-in memory | 8 GB (over 30,000 images) |
| Interface | USB-C |
| Battery | built-in Li-Ion |
| Battery capacity | 5000 mAh |
| Operating time | up to 8 hours |
| Protection rating | IP54 |
| Drop resistance | up to 1 m |
What is the temperature measurement range of the TR20 Pro?
The camera measures temperatures ranging from –20°C to 550°C with an accuracy of ±2%.
How long does the battery last on a full charge?
The built-in 5000 mAh lithium-ion battery provides up to 8 hours of continuous operation.
How many images can be stored in the device?
The built-in 8 GB memory can store over 30,000 images.
