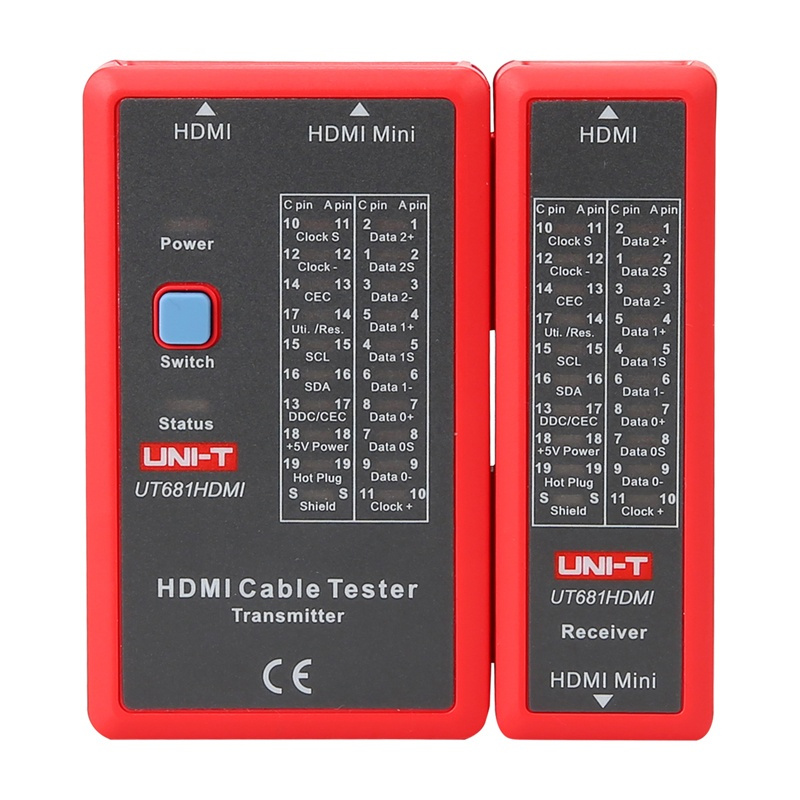

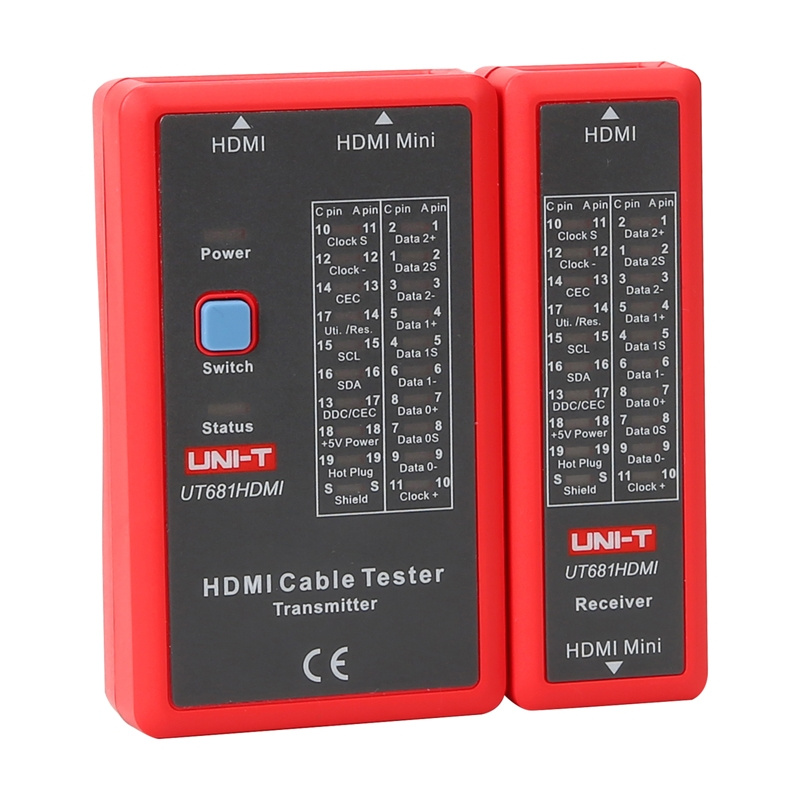

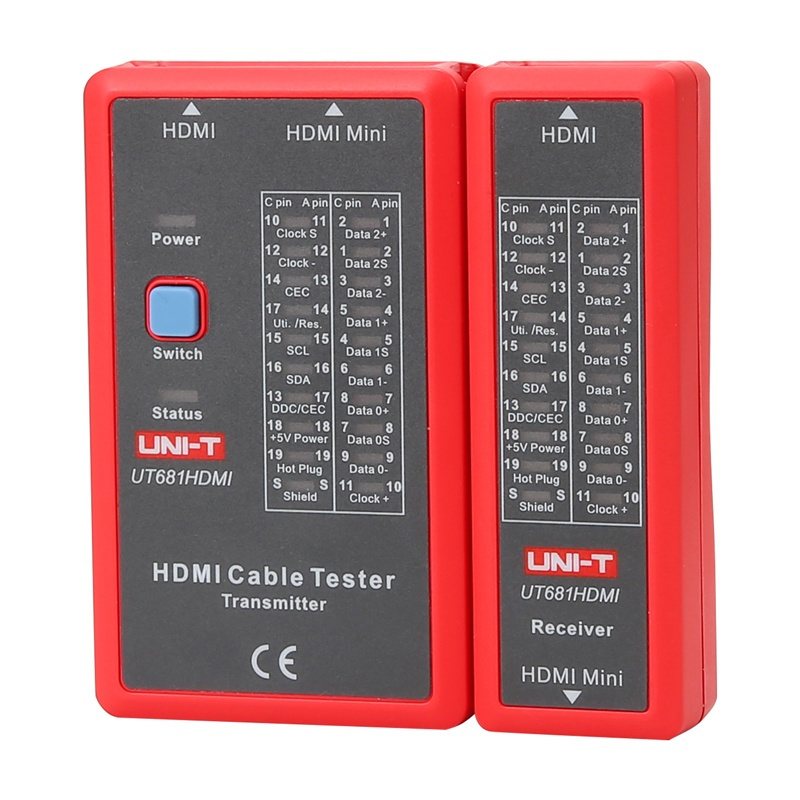

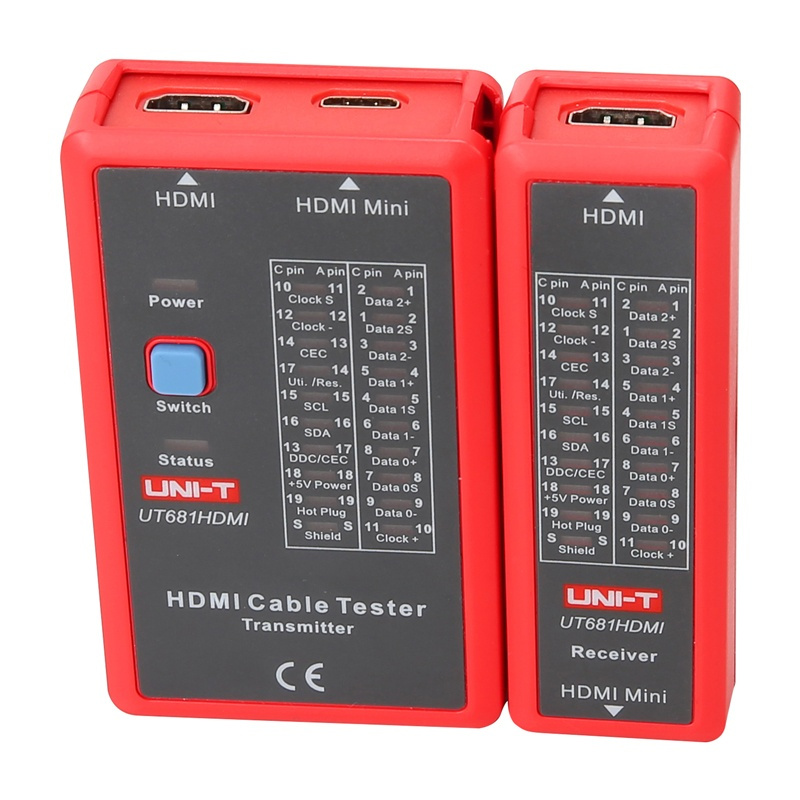

HDMI Cable Tester UNI-T UT681HDMI, Red/Grey
Price: 24.40 €
| Products ID: | 175335 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750568125 |
Delivery options to:
Choose countryThe UNI-T UT681HDMI is a compact and practical diagnostic tool designed for testing HDMI and Mini HDMI cables.
Key Features
- Supports HDMI and Mini HDMI connections
- LED system analyzes up to 19 pins and cable shielding
- Detects breaks, short circuits, and abnormal connections
- Fast, full, and scan test modes with one-button operation
- Automatic power-off after 10 minutes of inactivity and low battery indicator
- Includes transmitter, receiver, and a 9V battery
| Brand | UNI-T |
|---|---|
| Model | UT681HDMI |
| Supported connectors | HDMI, Mini HDMI |
| Test functions | Detection of break, short circuit, junction, abnormal connections |
| Test modes | fast, scan, full |
| Result display | LEDs (LED1~LED19, LED_S) |
| Cable shielding test | Yes |
| Power supply | 9V battery |
| Automatic shutdown function | After 10 minutes of inactivity |
| Low battery indicator | Below 7.2V |
| One button operation | Yes |
| Operating temperature | 0~40°C |
| Storage temperature | -10~50°C |
| Operating humidity | 20~80% RH |
| Storage Humidity | 10~90% RH |
| Maximum operating altitude | ≤2000 m |
| Safety standards | CE EN61326-1:2013, EN61326-2-2:2013 |
| Net weight | transmitter - 87 g, receiver - 51 g |
| Dimensions | Transmitter - 102 × 62 × 28 mm; receiver - 102 × 37 × 28 mm |
| Color | red-gray |
Which connector types are compatible with the UT681HDMI?
The tester supports standard HDMI and Mini HDMI connectors.
What is included in the package?
The package includes the UNI-T UT681HDMI tester (transmitter and receiver), a 9V battery, and a user manual in English.
How is the tester powered?
It is powered by a standard 9V battery, which is included in the package.
