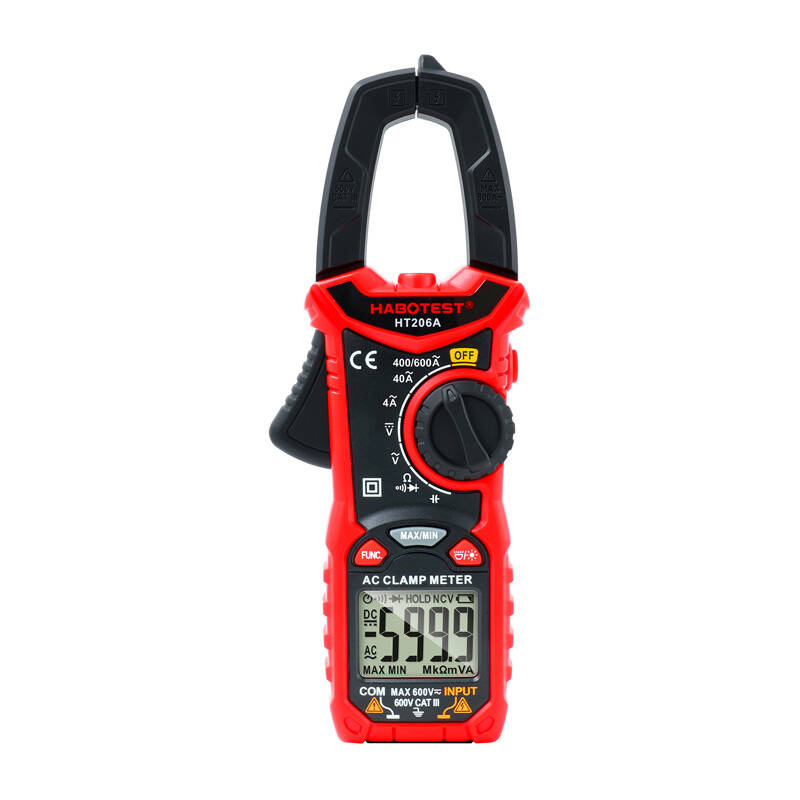

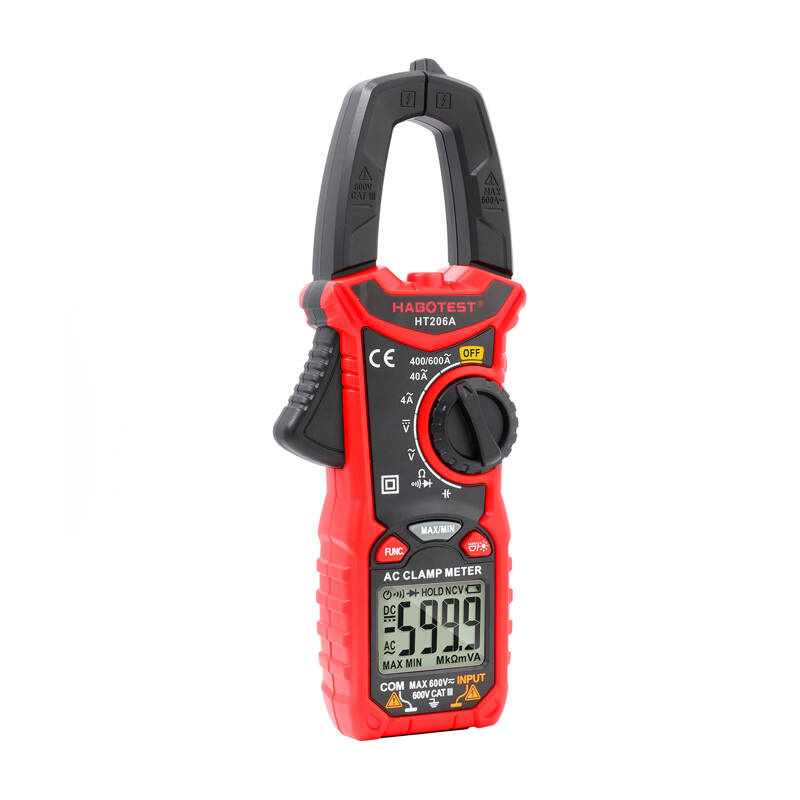

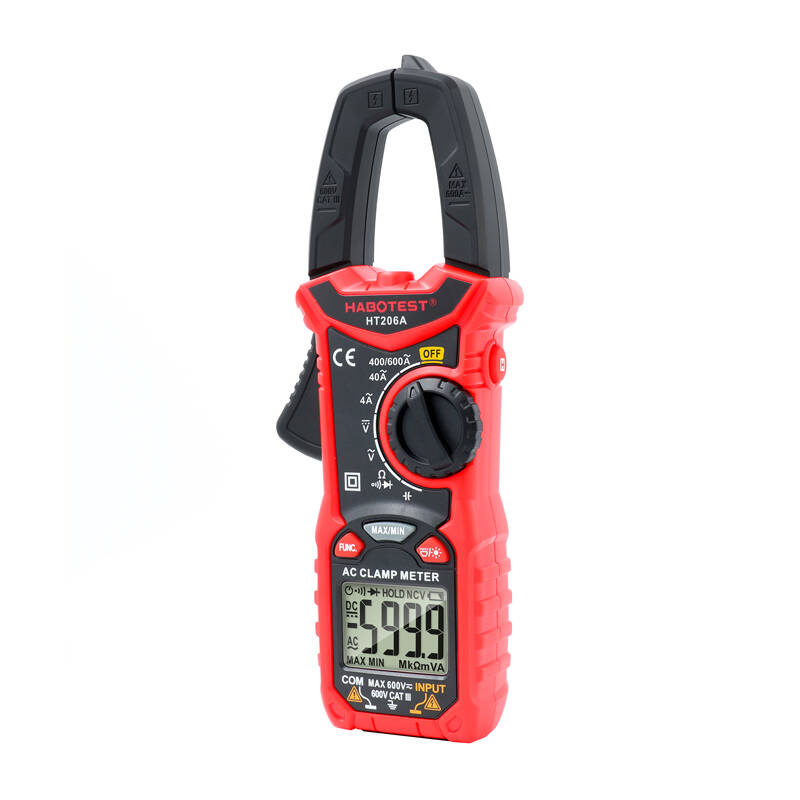

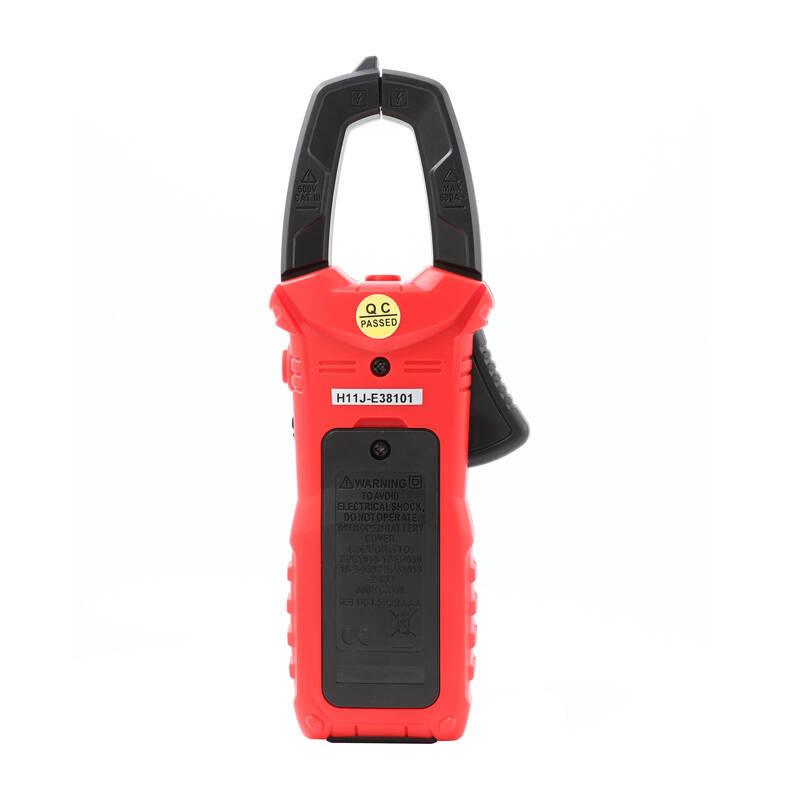

Habotest HT206A Digital Clamp Meter
Price: 22.60 €
| Products ID: | 174336 |
|---|---|
| Manufactured by: | Habotest |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907489606646 |
Delivery options to:
Choose countryThe Habotest HT206A is a versatile digital clamp meter designed for precise electrical measurements, featuring an easy-to-read two-color backlit LCD and a built-in flashlight for working in dimly lit areas.
Key Features
- Measures AC current, AC/DC voltage, resistance, and capacitance
- Jaw size up to 26mm for comfortable cable measurement
- True RMS support and continuity testing with sound and light alarm
- Backlight turns orange when measured voltage exceeds 80V or current exceeds 3A
- Data hold function, MAX/MIN recording, and auto power off
| Brand | Habotest |
|---|---|
| Model | HT206A |
| Jaw size | ∅26x44mm |
| Counts | 4000 |
| DC voltage measurement range | 400mV/4V/40V/400V/600V ±(0.5%+5) |
| AC voltage measurement range | 4V/40V/400V/600V ±(1.0%+5) |
| AC current measurement range | 4A/40A/600A ±(2.5%+8) |
| Resistance measurement range | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+5) |
| Capacitance measurement range | 4nF/40nF/400nF/4μF/40μF/400μF/4mF ±(4.0%+5) |
| True RMS | Yes |
| Diode test | Yes |
| Continuity | Yes, sound and light alarm |
| Data hold | Yes |
| Backlight | Yes |
| Flashlight | Yes |
| Auto power off | Yes |
| Power supply | 2x AAA 1.5V batteries (included) |
| Dimensions | 193x73x34mm |
| Weight | About 260g |
| Safety standard | EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V |
What is the maximum jaw opening size?
The clamp jaw dimensions are ∅26x44mm, allowing an opening of up to 26mm.
What batteries does the meter use?
The device is powered by 2x AAA 1.5V batteries, which are included in the package.
When does the display backlight change color?
The backlight turns orange when the measured voltage exceeds 80V or the measured current exceeds 3A.
