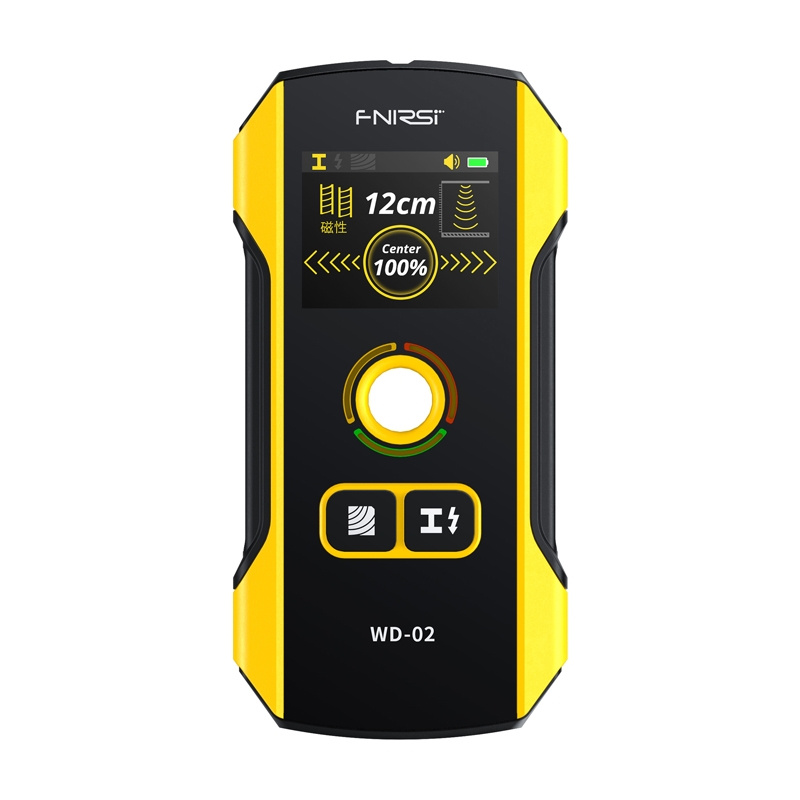

FNIRSI WD-02 Wire and Wall Detector

Price: 45.70 €

Products ID:	175244
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5907085527284

Delivery options to:

Choose country

The FNIRSI WD-02 is a versatile handheld wall scanner designed to locate hidden metals, live cables, and wooden studs behind walls, ceilings, and floors before drilling.

Key Features

Three detection modes for metal, live cables, and wood
Detection depth up to 120 mm for metals and 100 mm for non-ferrous metals
Color TFT HD display indicating target depth, center position, and material type
Tri-color LED indicators (green, yellow, red) and audible alert signals
Built-in 300 mAh rechargeable lithium battery with Type-C port
Automatic power off after 5 minutes of inactivity

Manufacturer	FNIRSI
Model	WD-02
Detection depth (metals)	up to 120 mm
Detection depth (non-ferrous metals)	up to 100 mm
Detection depth (AC cables)	up to 50 mm
Detection depth (single-wire copper)	up to 40 mm
Detection depth (wood)	20 mm (precision mode), 38 mm (depth mode)
Display	TFT HD color screen
Battery	300 mAh lithium battery
Charging interface	Type-C
Auto switch-off	After 5 minutes of inactivity
Dimensions	138 x 68 x 22 mm
Weight	122 g
Package contents	Wire detector, storage bag, Type-C cable, user manual

What materials can the FNIRSI WD-02 detect?

The device detects magnetic metals (such as steel and iron), non-magnetic metals (such as copper and aluminum), live electrical cables, and wooden parts behind drywall.

How is the detector powered?

It features a built-in 300 mAh rechargeable lithium battery that is charged via a Type-C cable.
