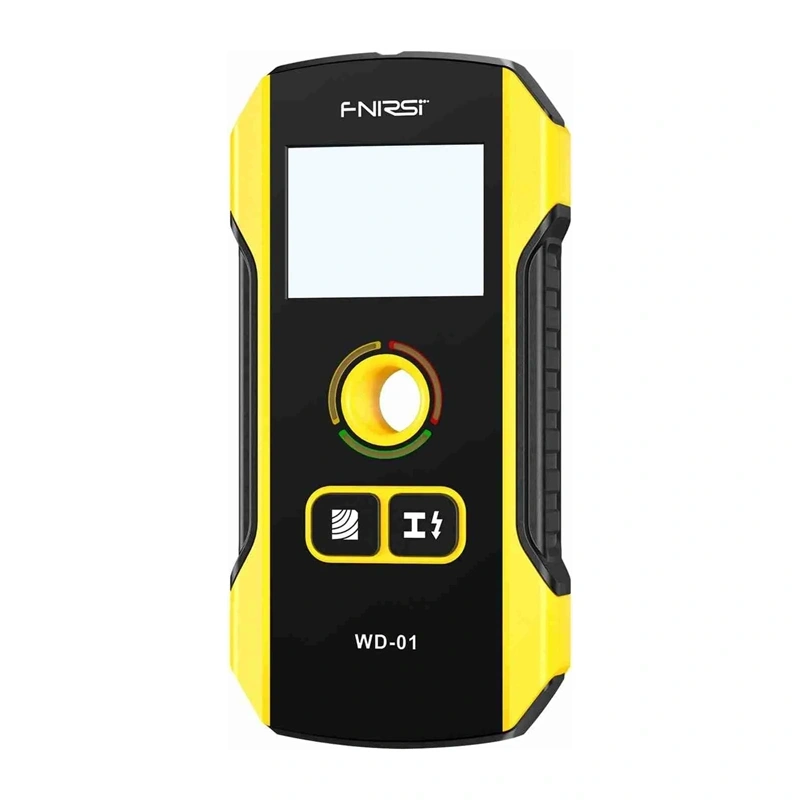

FNIRSI WD-01 Wire and Metal Wall Detector

Price: 39.60 €

Products ID:	177407
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5905156108103

Delivery options to:

Choose country

The FNIRSI WD-01 is a versatile wall detector designed to locate metal, wood, and live electrical wires hidden behind walls, floors, and drywall before drilling or cutting.

Key Features

Accurate detection of magnetic metals, non-ferrous metals, wooden studs, and live AC cables.
Maximum detection depth up to 120 mm for metal and 100 mm for copper.
Two operational modes: Exact mode and Deep mode for precise scanning.
Backlit HD display providing material type, depth indication, and positioning feedback.
Audible and light indicator system with a central positioning hole for drilling marks.
Built-in 300 mAh rechargeable lithium battery powered via USB-C port.

Manufacturer	FNIRSI
Model	WD-01
Metal detection depth	120 mm
Non-ferrous metal detection depth (e.g., copper)	100 mm
AC wire detection depth	50 mm
Single-strand copper wire detection depth	40 mm
Wood detection depth	Precision mode: 20 mm, Deep mode: 38 mm
Auto-off	After 5 minutes of inactivity
Power supply	300 mAh USB-C lithium battery
Dimensions	138 x 68 x 22 mm
Weight	122 g

What is the maximum detection depth of the FNIRSI WD-01?

The detector can locate magnetic metals up to 120 mm deep, copper and non-ferrous metals up to 100 mm, AC wires up to 50 mm, and wood up to 38 mm in Deep mode.

What items are included in the package?

The package contains the FNIRSI WD-01 wire detector, a USB-C charging cable, a storage case, and a user manual.

How is the detector powered?

The device is powered by a built-in 300 mAh rechargeable lithium battery that charges via a USB-C port.
