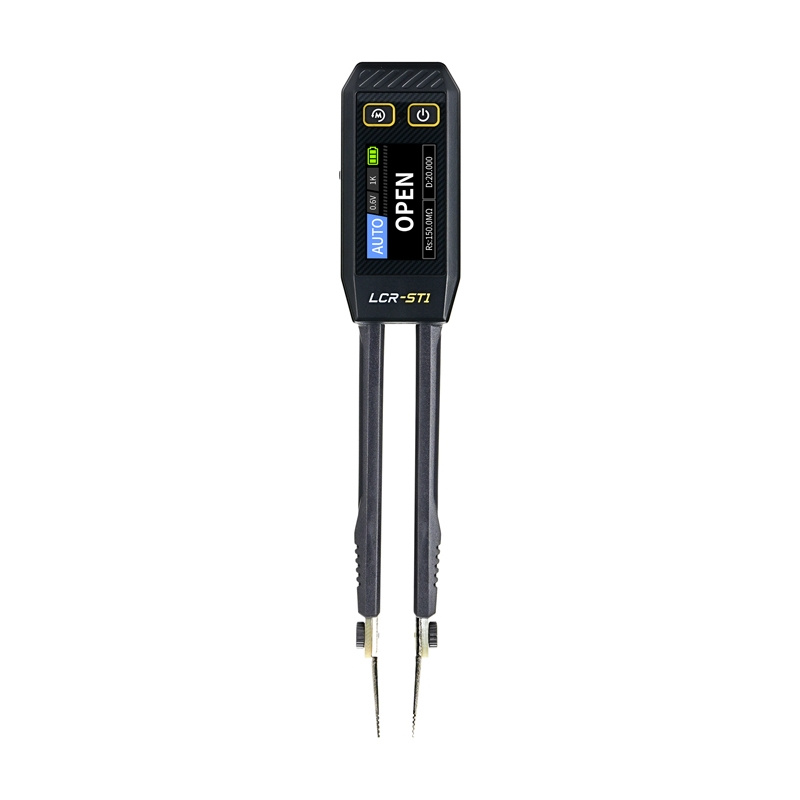

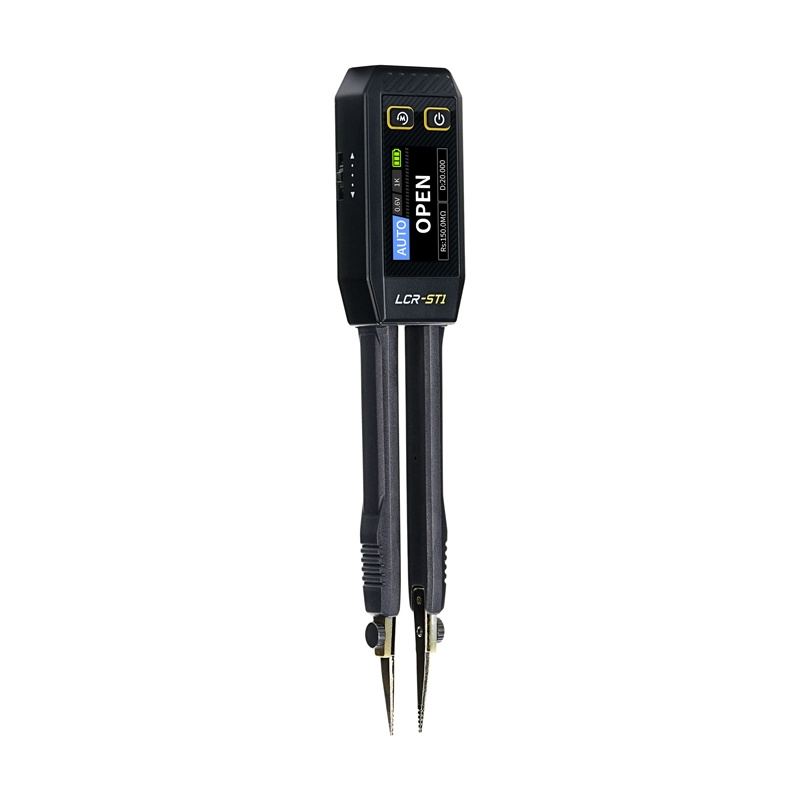

FNIRSI LCR-ST1 Mini Smart Digital Tweezer Tester

Price: 31.50 €

Products ID:	175444
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5907085526966

Delivery options to:

Choose country

FNIRSI LCR-ST1 Mini Smart Digital Tweezer Tester

The FNIRSI LCR-ST1 is a multi-function digital tweezer meter designed for testing surface-mount (SMD) electronic components.

Key Features

Measures resistance, capacitance, inductance, ESR, diode test, and circuit continuity
Supports 3 test frequencies: 100 Hz, 1 kHz, and 10 kHz
Automatic component recognition mode for quick diagnostics
1.14" HD color display showing two parameters simultaneously
Built-in 250 mAh rechargeable lithium battery with USB-C charging
Interchangeable gold-plated straight and curved tips with integrated magnet

Manufacturer	FNIRSI
Model	LCR-ST1
Display	1.14" Color screen
Charging interface	USB Type-C, 5V/1A
Power supply	250 mAh rechargeable lithium battery
Dimensions	28 × 19 × 150 mm
Weight	41 g
Capacitance measurement range	1 pF - 22 mF
Inductance measurement range	1 µH - 10 H
Resistance measurement range	10 mΩ - 10 MΩ
Test frequencies	100 Hz, 1 kHz, 10 kHz
Test levels	0.3 V, 0.6 V RMS

What is included in the package?

The package includes the FNIRSI LCR-ST1 multi-functional tweezer meter, 1 pair of curved tips, a magnetic stand, a USB charging cable, and a user manual.

Can measurements be exported to a computer?

Yes, the device supports a data storage function that allows exporting measurements to an Excel file via USB.
