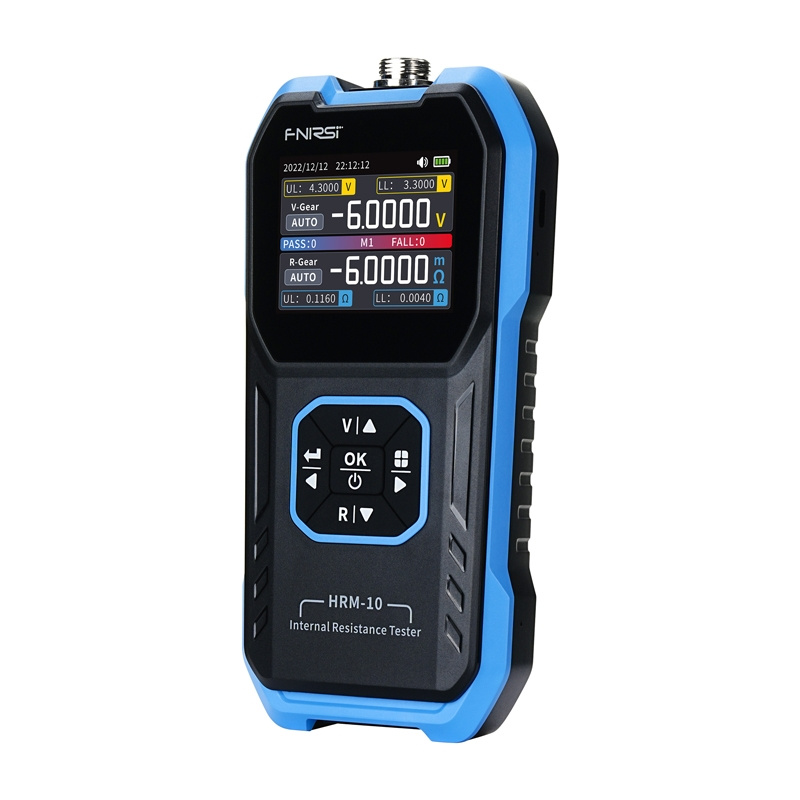

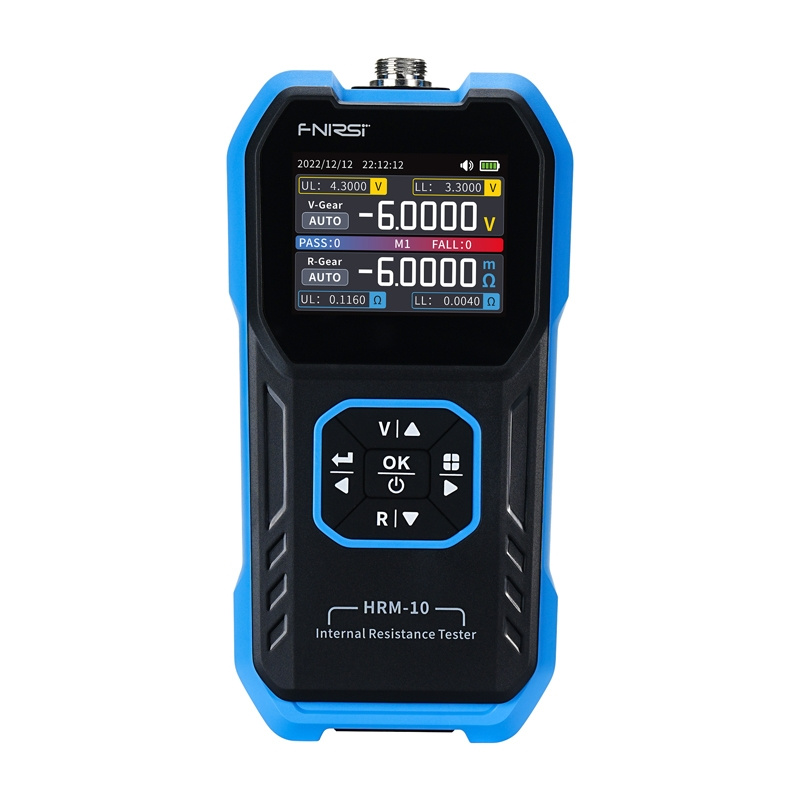

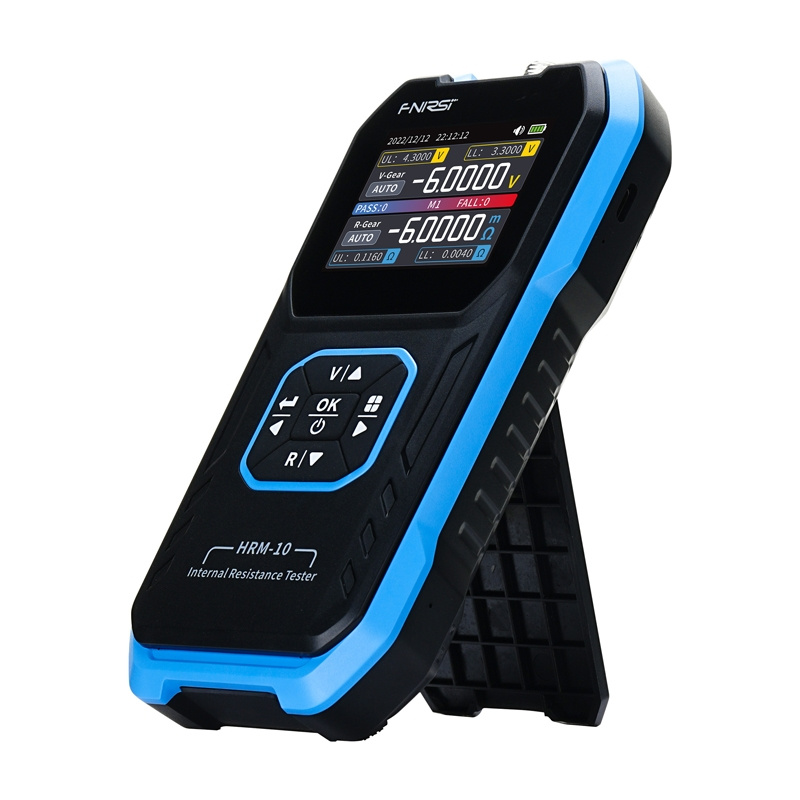

FNIRSI HRM-10 Internal Battery Resistance Meter
Price: 50.30 €
| Products ID: | 175243 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907085527147 |
Delivery options to:
Choose countryThe FNIRSI HRM-10 is a measuring device designed to analyze battery condition by measuring internal resistance and voltage. It is suitable for workshop and service applications across various cell types.
Key Features
- Four-wire measurement method to minimize contact resistance
- TFT HD color display for clear data readout
- Voltage measurement up to ±100V DC and resistance up to 200 Ω
- Sorting function with 8 sets of voltage and resistance thresholds
- Automatic measurement storage and PC data export
- Built-in 1000 mAh lithium rechargeable battery with USB-C charging
- ABS plastic housing with anti-slip silicone elements and integrated stand
| Manufacturer | Fnirsi |
|---|---|
| Model | HRM-10 |
| Voltage range | 0 - ±100V DC |
| Resistance range | 0 - 200 Ω |
| Accuracy | ± 0.5% |
| Voltage measuring ranges | AUTO, 1V, 10V, 100V |
| Resistance measuring ranges | AUTO, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω |
| Test signal frequency | AC 1kHz |
| Charging port | Type-C (5V/1A) |
| Rechargeable battery | Lithium 1000mAh |
| User calibration | Yes |
| Sorting mode | Yes |
| Measurement history | Yes |
| Data export | Yes |
| Operating temperature | -10°C to +45°C |
| Storage temperature | -20°C to +80°C |
| Package contents | Meter, USB-A to USB-C cable, measuring cable |
What battery types can be tested with the FNIRSI HRM-10?
The device supports lithium-ion (such as 18650), lithium-polymer, lead-acid, alkaline, zinc-carbon, and button cell batteries.
What items are included in the package?
The package includes the FNIRSI HRM-10 meter, a USB-A to USB-C cable, and a measuring cable.
Can measurement data be exported to a computer?
Yes, the meter can be connected to a computer to export and analyze stored measurement data.
