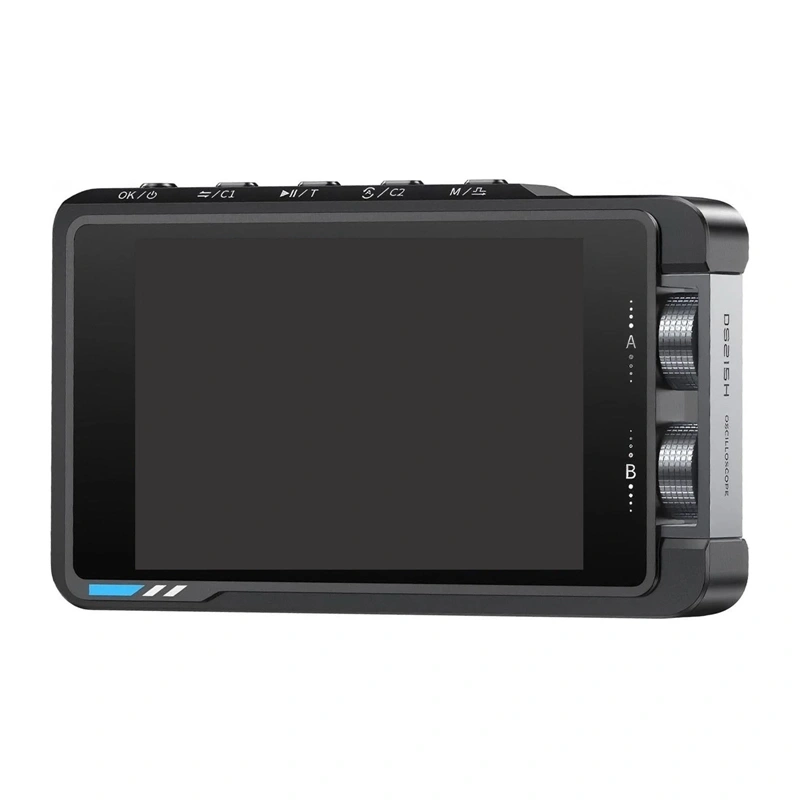

FNIRSI DS215H 50 MHz 250 MSa/s Dual-Channel Digital Oscilloscope with Signal Generator

Price: 80.30 €

Products ID:	177220
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5905156108219

Delivery options to:

Choose country

The FNIRSI DS215H is a compact dual-channel digital oscilloscope with an integrated function generator, designed for signal analysis and signal generation in circuit testing, diagnostics, and development.

Key Features

Dual-channel design with 50 MHz analog bandwidth and up to 250 MSa/s real-time sampling rate
Built-in function generator supporting 13 waveform types with a frequency range of 0 to 50 kHz
3.5-inch color IPS display with 480 × 320 resolution and adjustable brightness
Peak input voltage protection up to ±400 V
Built-in 1500 mAh battery offering up to 4 hours of continuous operation with USB-C charging

Manufacturer	FNIRSI
Model	DS215H
Display	3.5” Color IPS
Backlight	Adjustable brightness
Power	Type-C (5 V/1 A)
Battery	1500 mAh
Languages	Chinese, English, German, Portuguese, Japanese, Spanish, Korean, Russian
Product Dimensions	approx. 66 x 110 x 19.5 mm
Weight	approx. 138 g
Channel	Dual-channel
Bandwidth	50 MHz
Real-time sampling rate	250 MSa/s
Data storage	14M
Time scale range	20 ns/div – 20 s/div
Vertical sensitivity	10 mV/div – 10 V/div
Vertical resolution	8 bits
Input impedance	1 MΩ
Waveform display mode	Scroll
Measurement data	Duty cycle, Frequency, Vpp, Max., Min., Average, RMS, Current, Duty cycle, Pulse width
Probe attenuation factor	1x/10x
Input coupling	AC/DC
Trigger type	Rising/falling edge
Peak voltage	±400 V
Trigger level range	8 divisions (positive and negative)
Trigger Mode	Auto / Normal / Single
Output Waveform	Supports multiple output waveforms
Waveform Frequency	0–50 kHz
Square Wave Duty Cycle	0–100%
Waveform amplitude	0.1 V–3.0 V

What is included in the FNIRSI DS215H package?

The package includes the DS215H oscilloscope, an oscilloscope probe, a test lead with alligator clips, a USB-C cable, a BNC adapter, and a user manual.

How long does the battery last on a single charge?

The built-in 1500 mAh lithium-ion battery provides up to 4 hours of continuous operation.
