Digital Microohmmeter Uni-T UT620C+
Price: 202.20 €
| Products ID: | 176326 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750562017 |
Delivery options to:

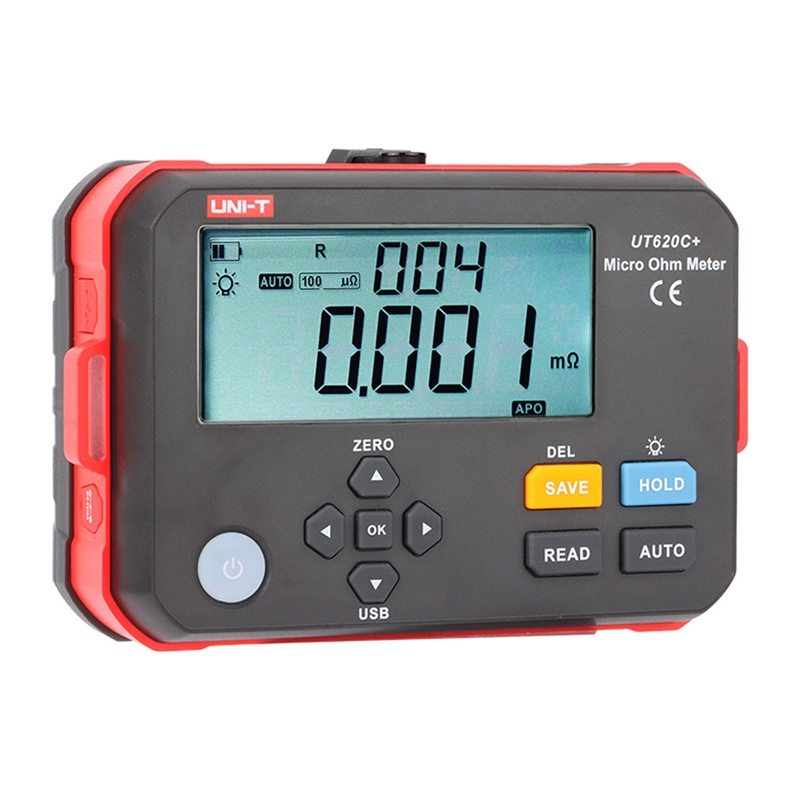

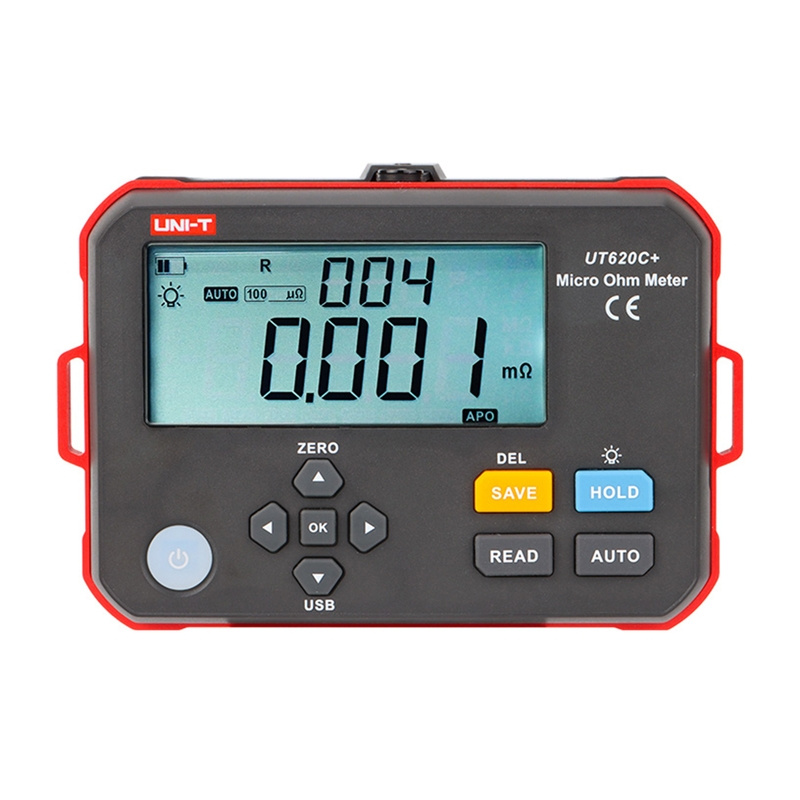

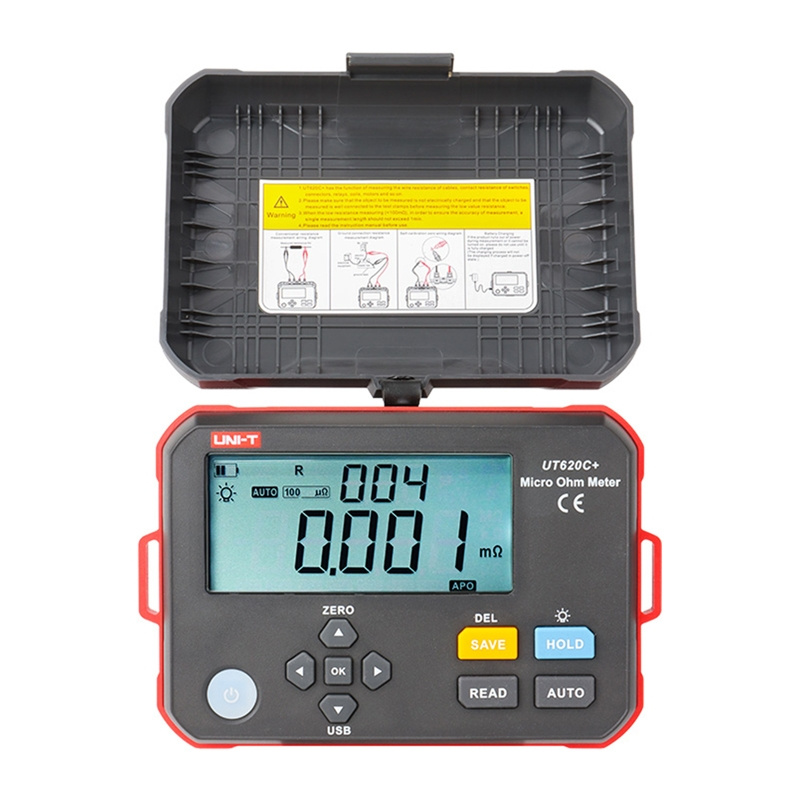

Choose countryThe Uni-T UT620C+ is a precision digital micro-ohm meter designed for measuring low resistances from 0.001 mΩ to 300.0 kΩ. Utilizing a four-wire measurement method and test current up to 1 A, it provides reliable results for technical diagnostics.
Key Features
- Resistance measurement range from 0.001 mΩ to 300.0 kΩ with resolution down to 1 μΩ
- Accuracy of ±0.1% FS and measurement rate of approximately 2 readings per second

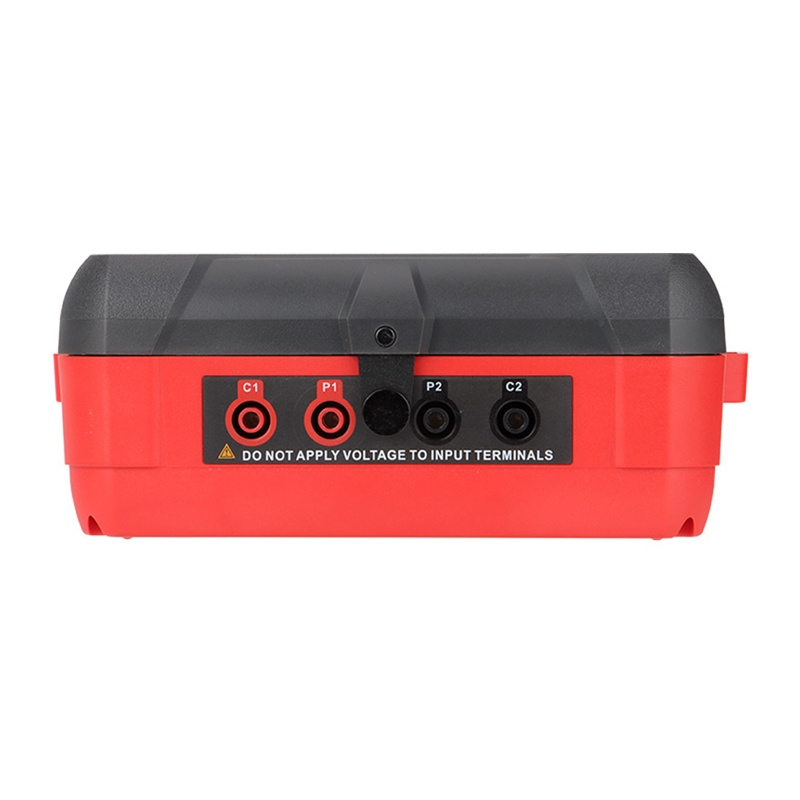

- Four-wire method minimizes test lead resistance influence
- Internal storage for up to 500 data sets
- Backlit segment LCD and USB Type-C interface
- IP54 rating and 3.7 V 3200 mAh Li-ion rechargeable battery
| Manufacturer | Uni-T |
|---|---|
| Model | UT620C+ |
| Resistance measurement range | 0.001 mΩ – 300.0 kΩ |
| Resolution | up to 1 μΩ |
| Accuracy | ±0.1% FS |
| Test current | up to 1 A |
| Measurement rate | approx. 2 measurements/s |
| Open-circuit voltage | ≤ 4.2 V |
| Memory | up to 500 data sets |
| Display | backlit segment LCD |
| Interface | USB Type-C |
| Input protection | up to 36 V AC/DC |
| Protection rating | IP54 |
| Power supply | 3.7 V / 3200 mAh Li-ion battery |
| Power consumption | ≤ 8 W |
| Dimensions | 161 × 117 × 68 mm |
| Weight | 480 g (with battery) |
What is the resistance measurement range of the UT620C+?
The device measures resistance from 0.001 mΩ up to 300.0 kΩ with resolution down to 1 μΩ.
How many measurement results can be stored in the device?
The meter can store up to 500 data sets in its internal memory.
