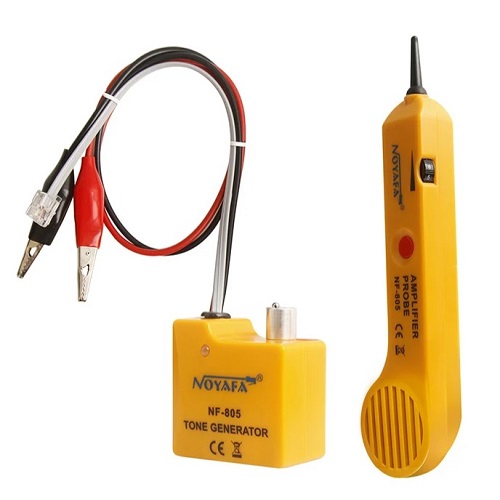

Cable Tracer and Circuit Tester with Tone Generator and Amplifier Probe
Noyafa
| Products ID: | 192311 |
|---|---|
| Manufactured by: | Noyafa |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000917181 |
Delivery options to:
Choose countryThe cable tracer and circuit tester is a diagnostic kit designed for tracing cable routes, locating specific wires within bundles, testing circuit continuity, and diagnosing telephone lines.
Operating Modes and Capabilities

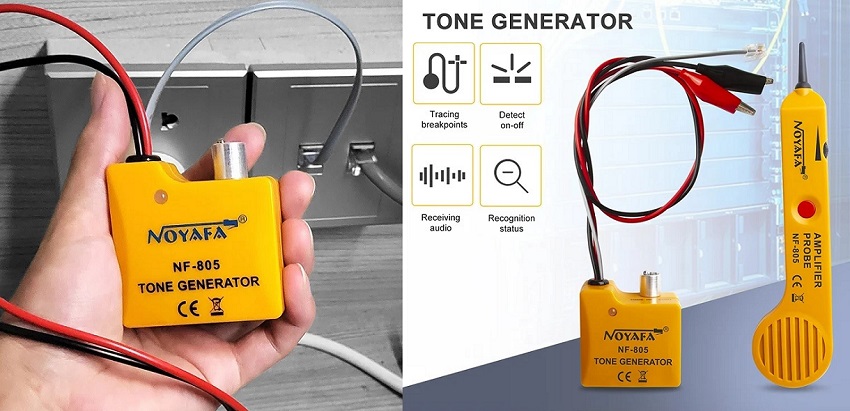

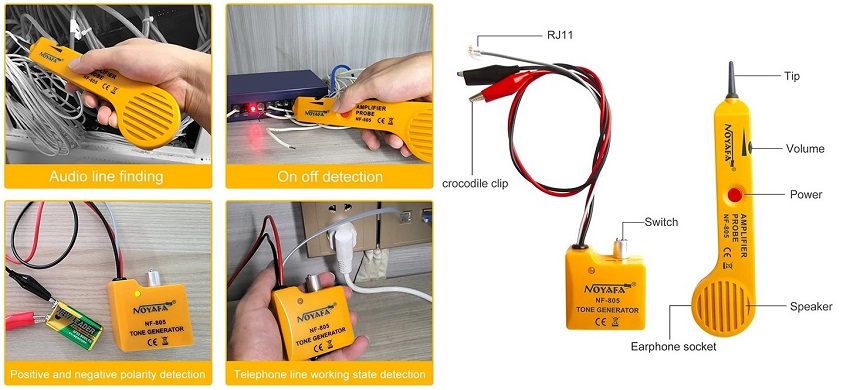

- Tone Generator and Amplifier Probe: the tone generator sends an audio signal through the target conductor, while the non-contact probe detects the signal along the route without physical wire disconnection.
- Continuity Testing (CONT Mode): checks circuit continuity with a 10 Ohm threshold, identifying short circuits, open circuits, and incorrect wire connections.
- Cable Tracing (TONE Mode): emits a selectable one-tone or two-note tone to distinguish the target line from adjacent cables across distances up to 1.5 km.
- Telephone Line Diagnostics: checks line polarity and identifies operational line conditions, including idle, ringing, and busy states.
Connectivity and Compatibility
This kit is compatible with de-energized AC wiring, telephone cables, twisted-pair cables, multi-category data cables, coaxial lines, and audio/video wires. It features 48 V DC voltage protection, a headphone jack for noisy working environments, and a low-battery indicator.
| Compatible cables | De-energized AC wires, telephone and twisted-pair (TP) wires, all categories of voice and data cables, and standard solid and stranded wires |
|---|---|
| Tone frequency | 0.6-2 kHz |
| Maximum testing distance | 1.5 km |
| Tone generator max working current | 20 mA |
| Amplifier probe max working current | 70 mA |
| Tone signal | One-tone / two-note tone |
| Function selection | TONE / OFF / CONT (Toggle switch) |
| Tone generator connector | RJ11 (6P2C), alligator clips |
| Amplifier probe connector | Earphone jack |
| Continuity test threshold | 10 Ohm |
| Maximum signal voltage | 8 Vp-p |
| Voltage protection | 48 V DC |
| Power supply | 9V DC battery, Krona (NEDA 1604 / 6F22 type) (1 pc. for Tone Generator + 1 pc. for Amplifier Probe; batteries not included) |
| Tone generator dimensions | 57x56x32 mm |
| Tone generator weight | 97 g |
| Amplifier probe dimensions | 235x55x25 mm |
| Amplifier probe weight | 116 g |
| Warranty | 24 months |
What type of batteries does the kit require?
The kit requires two 9V DC batteries (Krona / NEDA 1604 / 6F22 type): one for the Tone Generator and one for the Amplifier Probe. Batteries are sold separately.
What is the maximum cable tracing distance?
The device supports wire tracing and testing over distances of up to 1.5 km.
Can this device be used on live circuits?

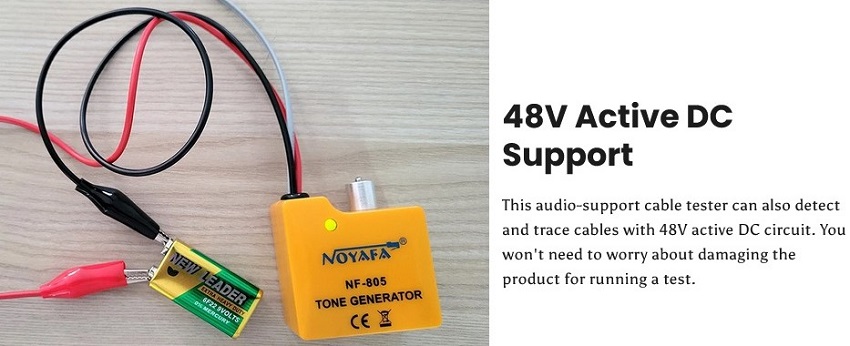

It can be used on active telecommunication lines with DC voltage up to 48 V. AC electrical wiring must be completely de-energized before tracing or testing.
