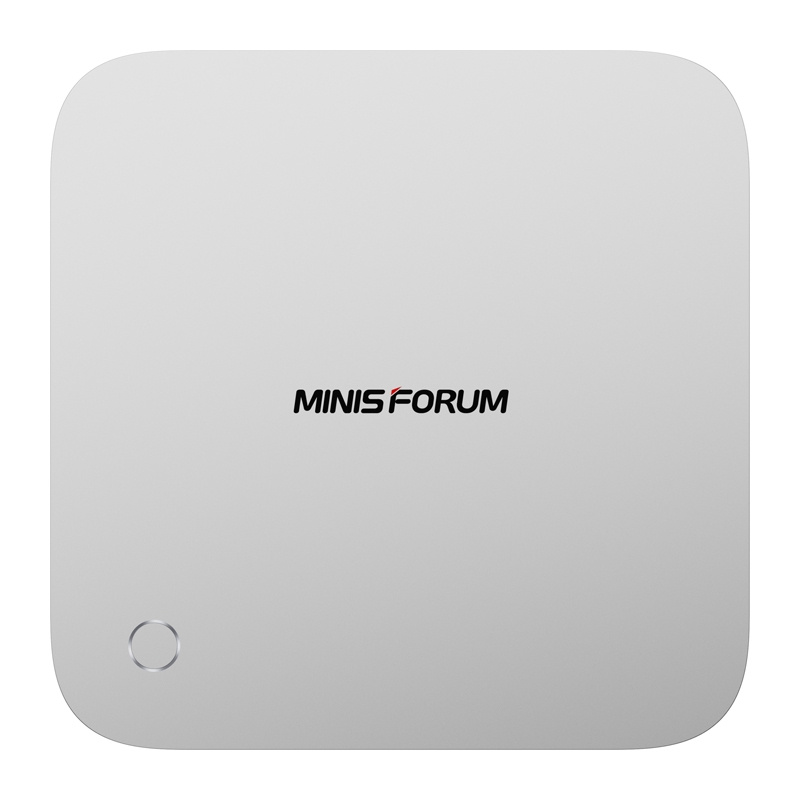

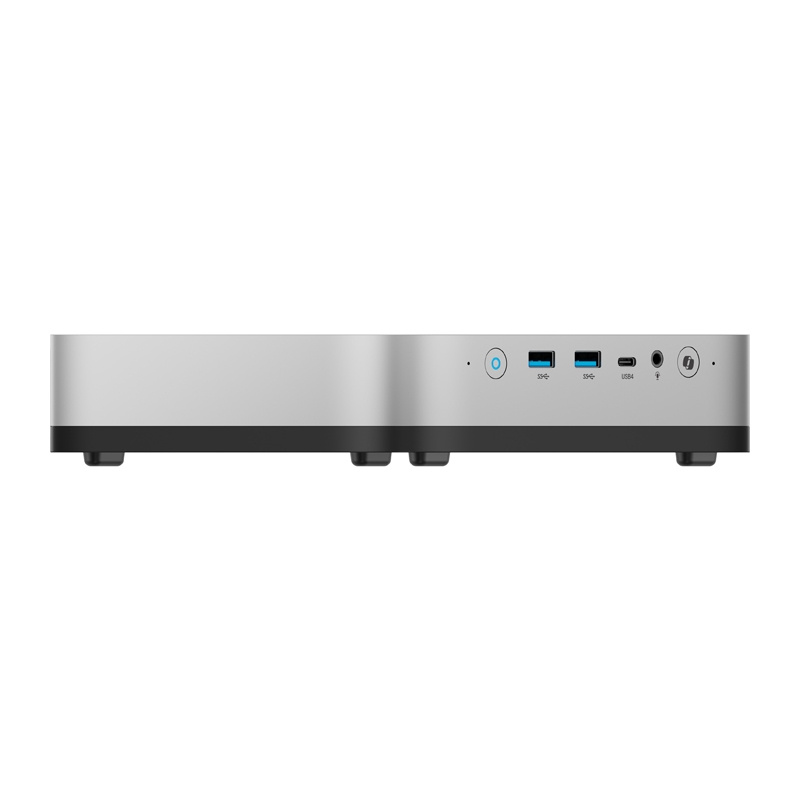

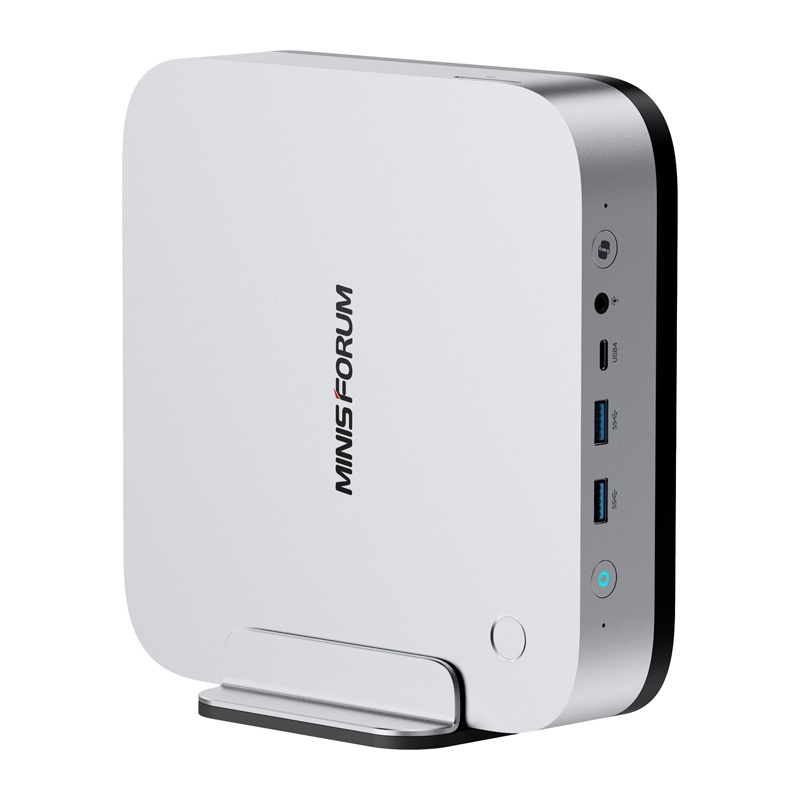

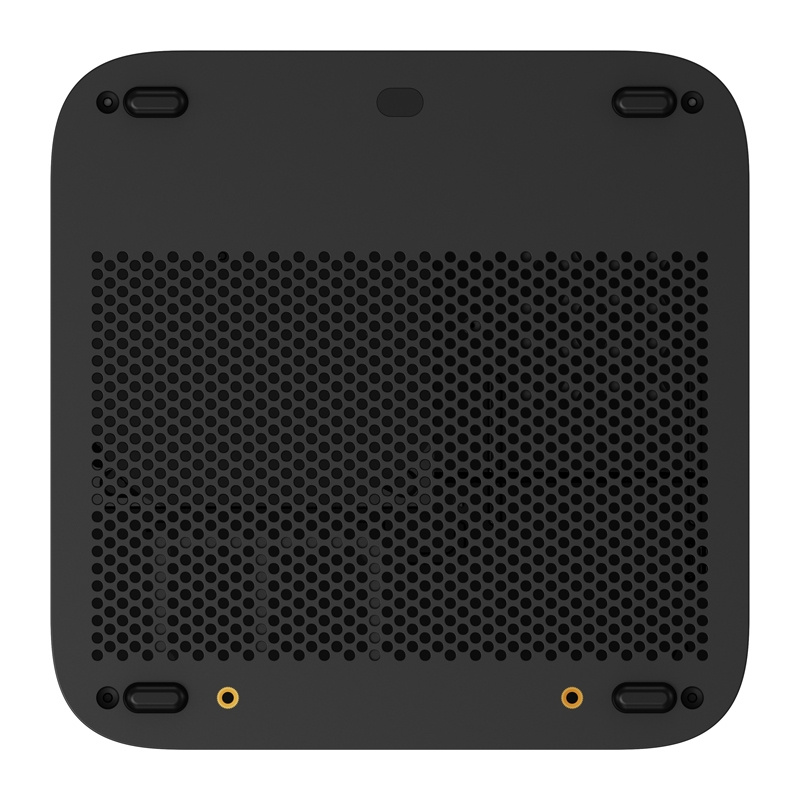

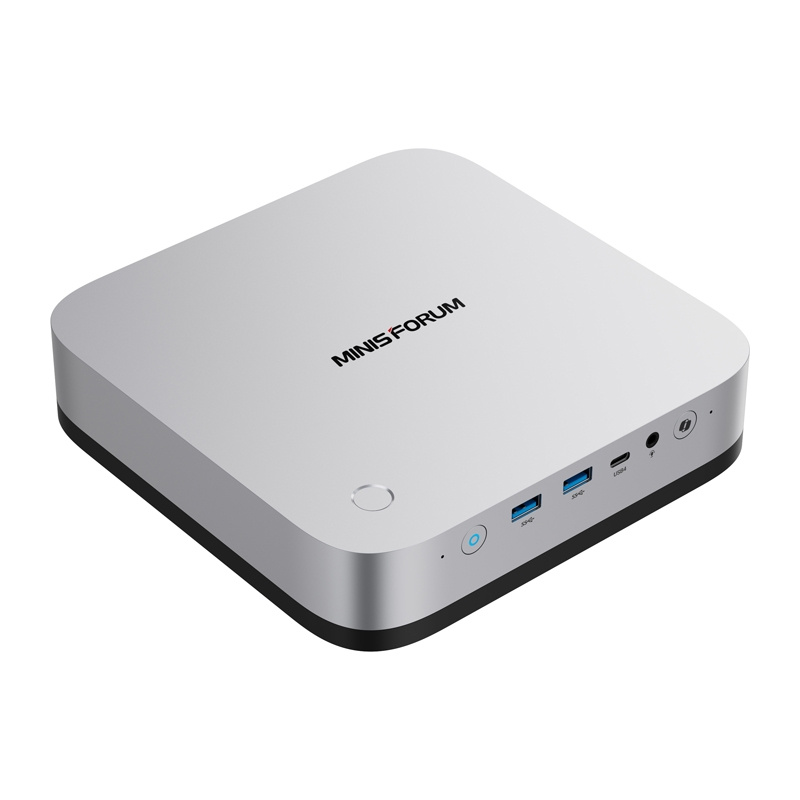

Minisforum X1 Pro-470 Ryzen AI 9 HX 470 Barebone Mini PC

Minisforum X1 Pro-470 Ryzen AI 9 HX 470 Barebone Mini PC — image 3

Minisforum X1 Pro-470 Ryzen AI 9 HX 470 Barebone Mini PC — image 4

Minisforum X1 Pro-470 Ryzen AI 9 HX 470 Barebone Mini PC — image 5

Price: 1048.20 €

Products ID:	177067
Manufactured by:	Minis Forum
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	4897118837620

Delivery options to:

Choose country

Minisforum X1 Pro-470 Ryzen AI 9 HX 470 Barebone Mini PC

The Minisforum X1 Pro-470 is a high-performance Barebone mini PC powered by the AMD Ryzen AI 9 HX 470 processor and integrated AMD Radeon 890M graphics, delivering desktop-class computing power in a compact metal chassis.

Key Features

AMD Ryzen AI 9 HX 470 processor with 12 cores, 24 threads, and up to 5.2 GHz Turbo clock
Integrated 55 TOPS AI engine and dedicated front-panel Copilot button
Supports up to 128 GB DDR5 SO-DIMM RAM at 5600 MHz
Three M.2 2280 NVMe SSD slots supporting up to 12 TB total storage
Dedicated OCuLink port for external graphics card (eGPU) connection
Simultaneous output for up to four 8K@60Hz or 4K@120Hz displays via HDMI 2.1, DisplayPort 2.0, and dual USB4 ports
Next-generation connectivity with Wi-Fi 7, Bluetooth 5.4, and dual 2.5G LAN ports
Built-in top-cover fingerprint reader, dual speakers, and noise-cancelling microphones

Manufacturer	Minisforum
Model	X1 Pro-470
Device type	Mini PC
Operating system	No OS included (supports Windows 11 Pro)
Processor	AMD Ryzen™ AI 9 HX 470
Number of cores / threads	12 cores / 24 threads
Core architecture	4 × Zen5, 8 × Zen5c
Processor clock speed	2.0 GHz to 5.2 GHz Turbo
Graphics card	AMD Radeon™ 890M
TDP	45W / 55W / 65W
NPU	55 TOPS
RAM	DDR5 SO-DIMM ×2
Maximum RAM capacity	128 GB
Memory clock speed	5600 MHz
SSD slots	3 × M.2 2280 NVMe
SSD interface	2 × PCIe 4.0 x4, 1 × PCIe 4.0 x1
Maximum drive capacity	Up to 4 TB per slot (total 12 TB)
Wireless connectivity	Wi-Fi 7, Bluetooth 5.4
Video outputs	HDMI 2.1 FRL, DisplayPort 2.0, 2 × USB4
Network ports	2 × 2.5G LAN RJ45
Additional ports	OCuLink, SD slot, 3.5 mm combo jack
USB ports	2 × USB 3.2 Gen 2 Type-A, 1 × USB 2.0 Type-A
Supported resolution	Up to 8K @ 60Hz, up to 4K @ 120Hz
Audio	2 speakers, 2 DMIC digital microphones
Power supply	19V / 7.1A (134.9W)
Dimensions	19.5 × 19.5 × 4.25 / 4.75 cm
Weight	1.5 kg

Does this Barebone mini PC include RAM and SSD storage?

No, this is a Barebone system without RAM, internal storage, or an operating system, allowing you to install up to 128 GB DDR5 RAM and up to three M.2 NVMe SSDs.

How many external displays can be connected?

You can connect up to four displays simultaneously using the HDMI 2.1 FRL port, DisplayPort 2.0, and two USB4 ports, supporting up to 8K@60Hz and 4K@120Hz.

What is the OCuLink port used for?

The OCuLink port provides a dedicated high-bandwidth connection for attaching an external desktop graphics card (eGPU).
