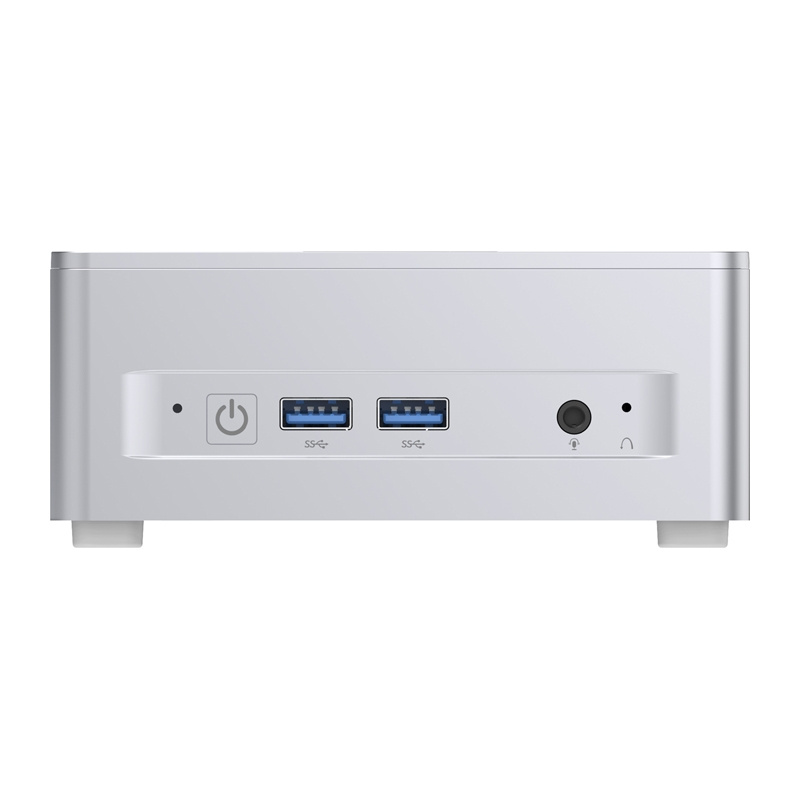

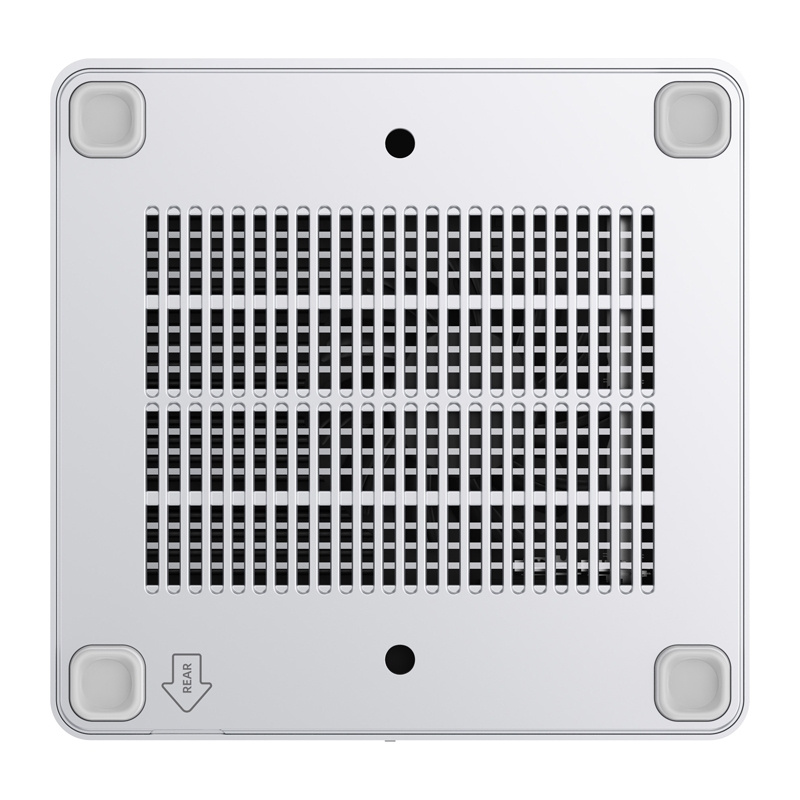

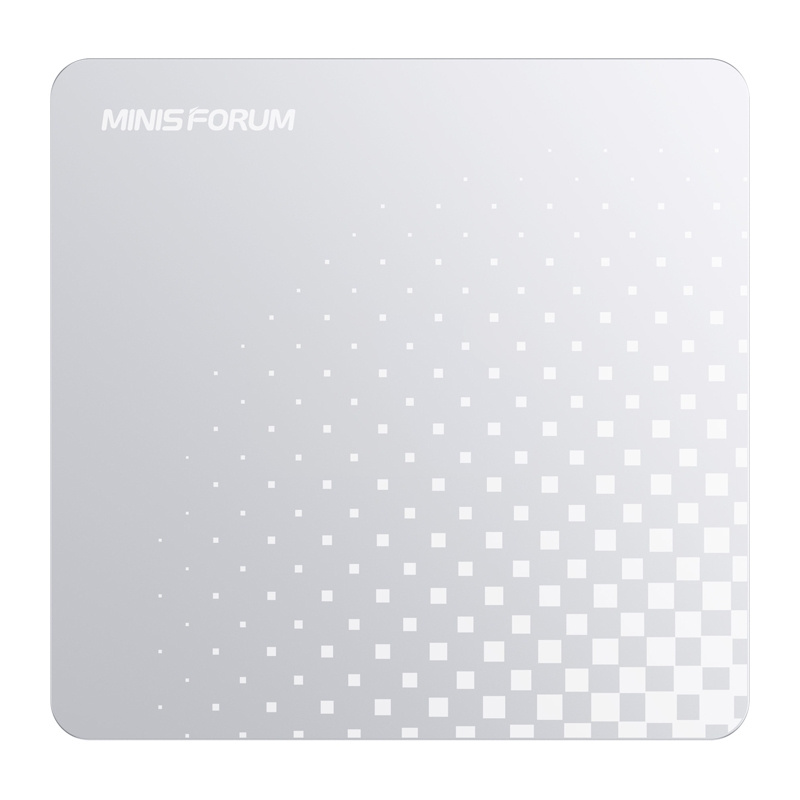

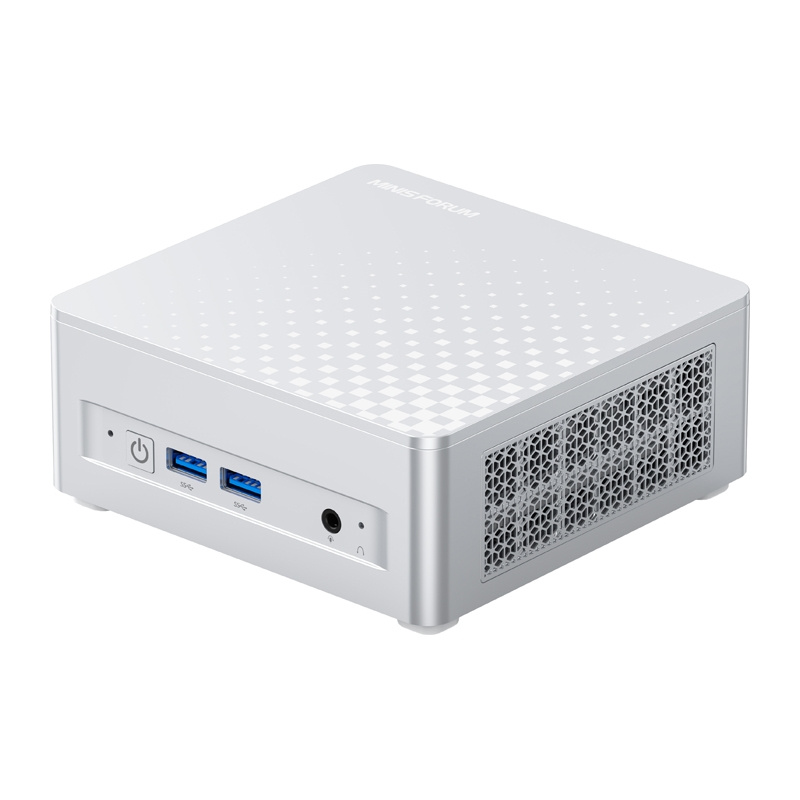

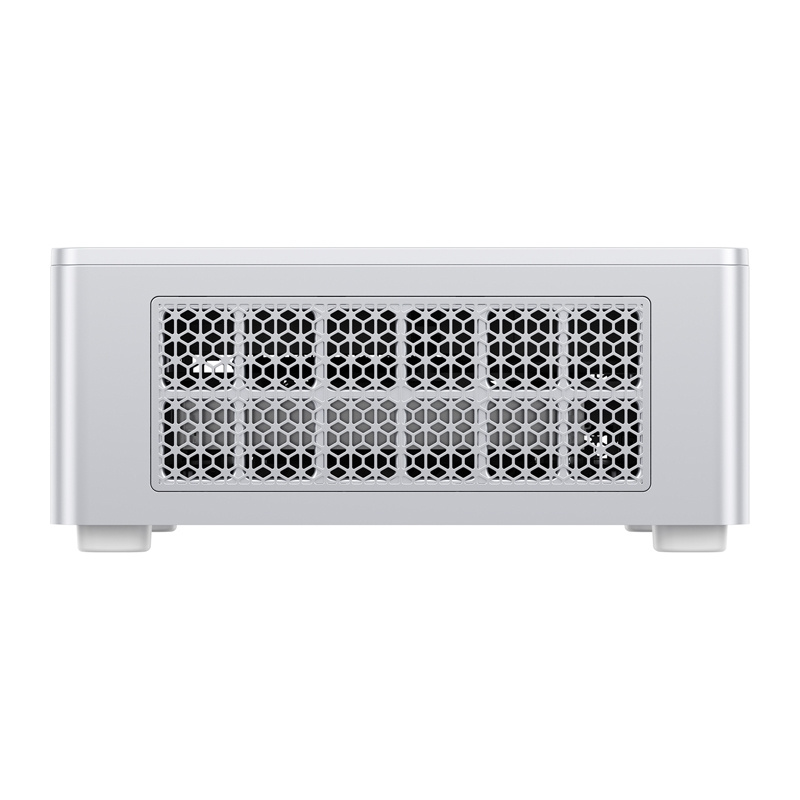

MINIS FORUM M1 Plus Intel Core i5-12600H Mini PC Barebone
Minis Forum
| Products ID: | 195980 |
|---|---|
| Manufactured by: | Minis Forum |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 4897118837002 |
Delivery options to:
Choose countryThe MINIS FORUM M1 Plus Mini PC is a compact barebone desktop system powered by an Intel Core i5-12600H processor with 12 cores and 16 threads, offering versatile performance and customization.
Configurable DDR5 Memory and Storage
As a barebone system, it does not include RAM, a drive, or an operating system, allowing you to configure the components according to your requirements. It supports dual-channel DDR5 SO-DIMM memory up to 96 GB (4800–5200 MHz) and high-speed storage via an M.2 2280 NVMe PCIe 4.0 slot. Dual-channel memory enables Intel Iris Xe Graphics, while single-channel configurations run on Intel UHD Graphics.
Extensive Connectivity and Efficient Cooling
The unit features a 40 Gbps USB4 port, HDMI 2.1, and DisplayPort 1.4, supporting up to three simultaneous displays. Networking is handled by two 2.5GbE LAN ports, Wi-Fi 6E, and Bluetooth 5.2. Active cooling dissipates heat from key components while maintaining noise levels at up to 45 dB.
| Manufacturer | MINIS FORUM |
|---|---|
| Model | M1 Plus |
| Processor | Intel Core i5-12600H (12 cores, 16 threads, up to 4.5 GHz) |
| Graphics | Intel Iris Xe (with dual-channel memory) / Intel UHD Graphics (with single-channel) |
| RAM | DDR5 SO-DIMM, dual-channel |
| Maximum RAM capacity | Up to 96 GB |
| Memory clock speed | 4800 MHz (default), up to 5200 MHz (max.) |
| Storage | 1× M.2 2280 NVMe PCIe 4.0 slot |
| Wireless connectivity | Wi-Fi 6E, Bluetooth 5.2 |
| Wired networking | 2× 2.5GbE LAN (RJ45) |
| Video ports | 1× HDMI 2.1, 1× DisplayPort 1.4, 1× USB4 (DisplayPort Alt Mode) |
| USB ports | 1× USB4 (40 Gbps, PD, Alt DP), 2× USB 3.2 Gen2 Type-A, 2× USB 2.0 |
| Audio | 1× 3.5 mm jack (combo jack) |
| Power | 19V / 6.32A (120 W) |
Does this barebone Mini PC include RAM or storage?
No, this is a barebone version, so it comes without RAM, a storage drive, or an operating system.
How many displays can be connected simultaneously?
You can connect up to three external displays at the same time using the HDMI 2.1, DisplayPort 1.4, and USB4 ports.
What is included in the package?
The box includes the MINIS FORUM M1 Plus Mini PC (barebone), a 120 W power supply, a power cable, an HDMI cable, a set of mounting screws, a mounting bracket, and a user manual.
