Minis Forum NAS N5 Air Mini PC (Ryzen 7 255, 16GB RAM, 64GB SSD)
Price: 920.60 €
| Products ID: | 177062 |
|---|---|
| Manufactured by: | Minis Forum |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4897118837217 |
Delivery options to:

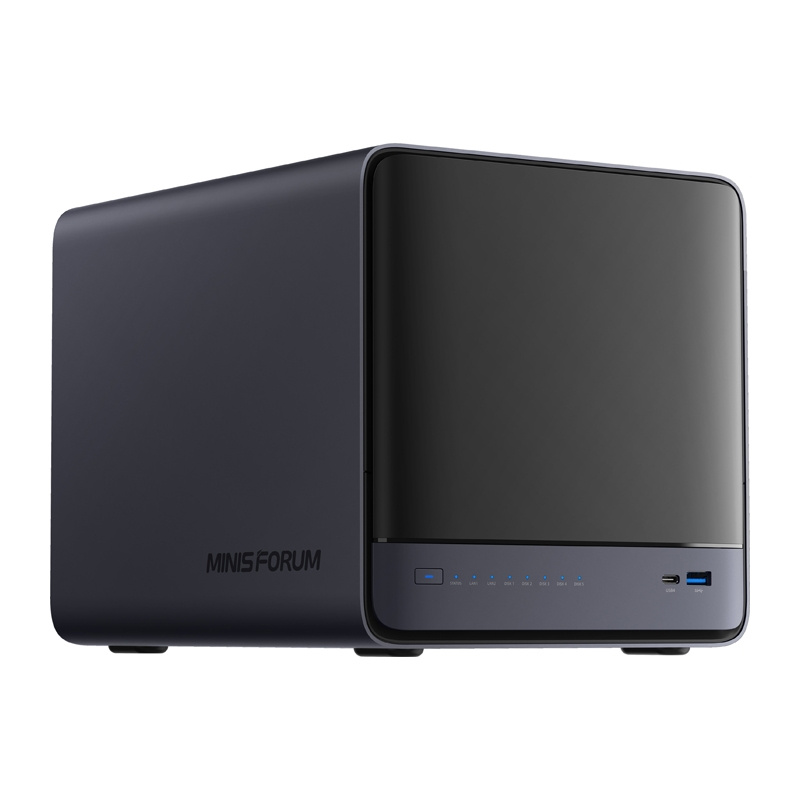

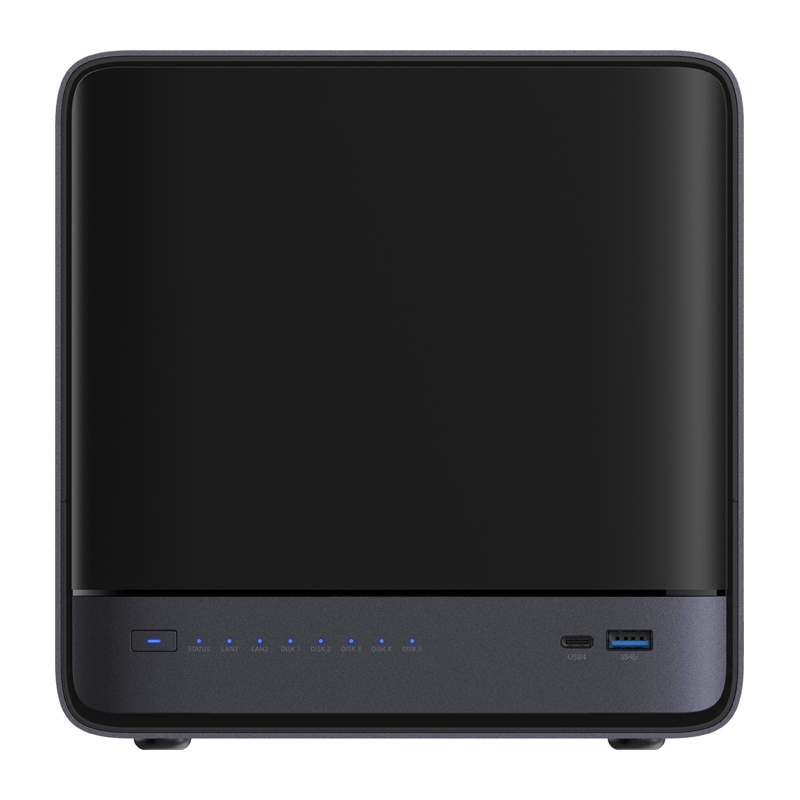

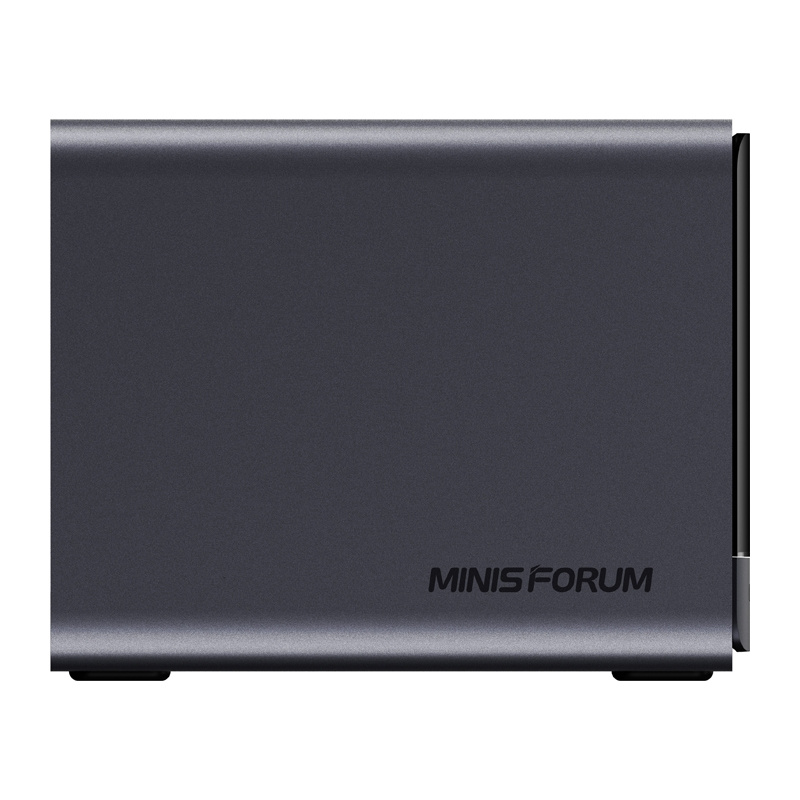

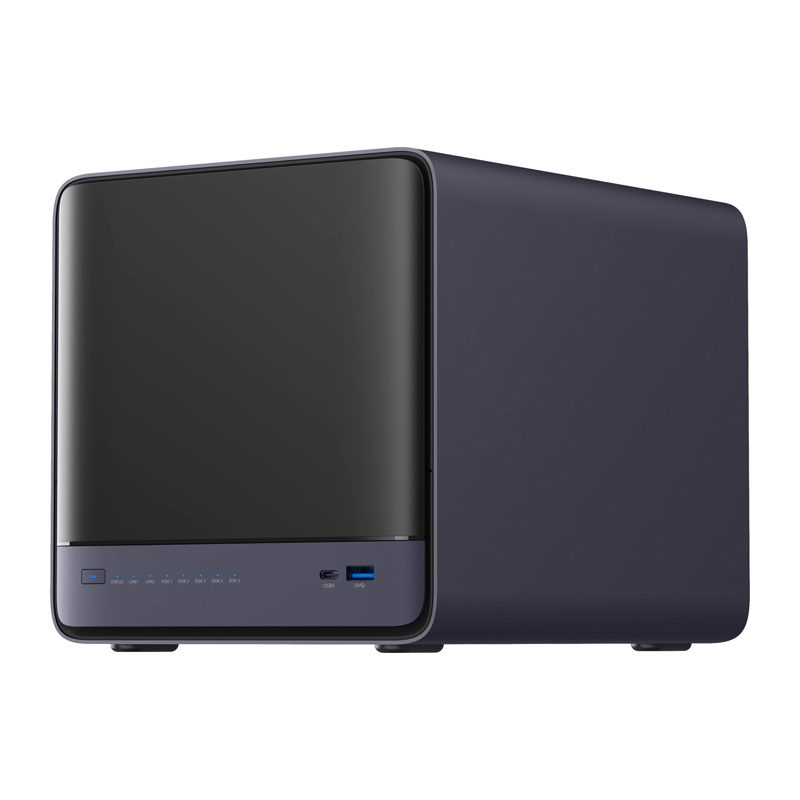

Choose countryThe MINIS FORUM NAS N5 Air is a compact mini PC and storage solution equipped with an 8-core AMD Ryzen™ 7 255 processor, 16 GB of DDR5 RAM, and 64 GB of M.2 NVMe SSD system storage.
Key Features
- Powered by AMD Ryzen™ 7 255 processor with integrated AMD Radeon™ 780M graphics
- Supports up to 5 3.5"/2.5" SATA HDDs and 3 M.2 NVMe PCIe 4.0 SSDs with RAID 0/1/5/6 support
- High-speed networking with dedicated 10GbE and 5GbE RJ45 LAN ports
- Extensive connectivity including USB4, HDMI 2.1, OCuLink, and a Native PCIe x16 expansion slot
- Reliable dual 92 mm axial fan cooling and accessible slide-out motherboard tray
| Manufacturer | MINIS FORUM |
|---|---|
| Model | N5 Air |
| Processor | AMD Ryzen™ 7 255 (8 cores / 16 threads, up to 4.9 GHz) |
| Graphics | AMD Radeon™ 780M |
| RAM | 16 GB DDR5 (expandable to 96 GB, 5600 MT/s, Non-ECC) |
| System Storage | 64 GB SSD (M.2 NVMe) |
| Drives | 5 × 3.5"/2.5" SATA HDD (up to 30 TB per drive), 3 × M.2 NVMe PCIe 4.0 SSD (up to 8 TB per drive) |
| RAID | 0 / 1 / 5 / 6 |
| Network | 1 × 10GbE LAN (RJ45), 1 × 5GbE LAN (RJ45) |

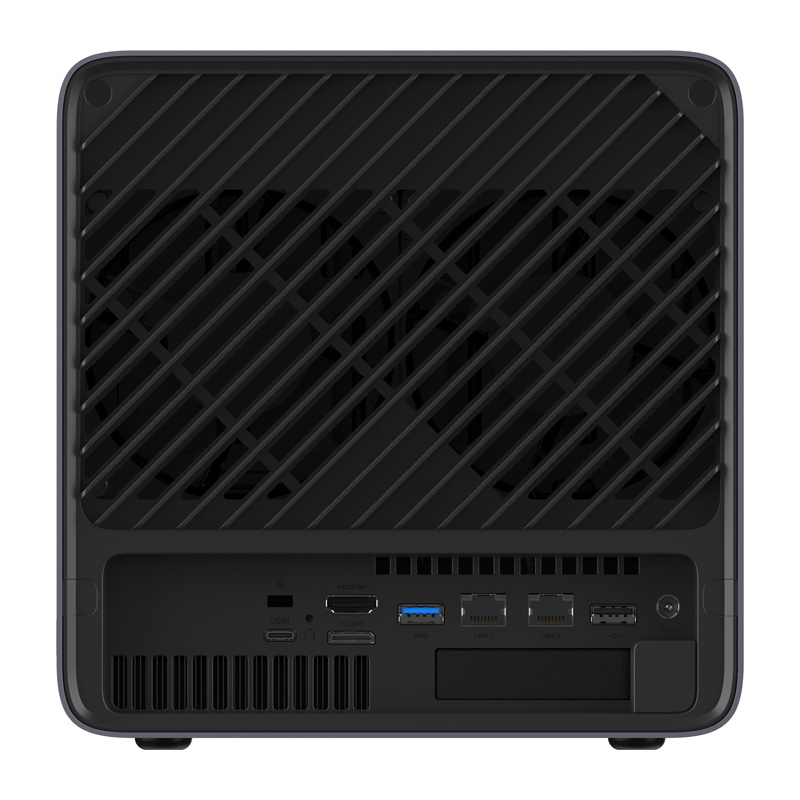

| Ports | USB4 (Alt DP 2.0) ×2, USB 3.2 Gen2 ×3, USB 2.0 ×1, HDMI 2.1 FRL ×1, OCuLink ×1 |
| Expansion | PCIe x16 Slot (PCIe 4.0 x4, Native PCIe) |
| Cooling | 2 × 92 mm axial fans |
| Power Supply | 19V / 14.73A (280W) |
| System | MiniCloud OS |
| Compatibility with other systems (not included) | Windows 11 Pro / Linux |
| Dimensions | 199 × 202 × 252 mm |
| Weight | approx. 4 kg |
What is included in the package?
The package includes the MINIS FORUM NAS N5 Air, AC power adapter, power cable, HDMI cable, Ethernet cable (LAN), a set of screws for mounting HDD drives, and a user manual.
How many storage drives can be installed?
It accommodates up to 5 SATA HDDs (3.5" or 2.5", up to 30 TB each) and up to 3 M.2 NVMe PCIe 4.0 SSDs (up to 8 TB each).
What is the maximum RAM capacity supported?
The system supports memory expansion up to 96 GB DDR5 (5600 MT/s, Non-ECC).
