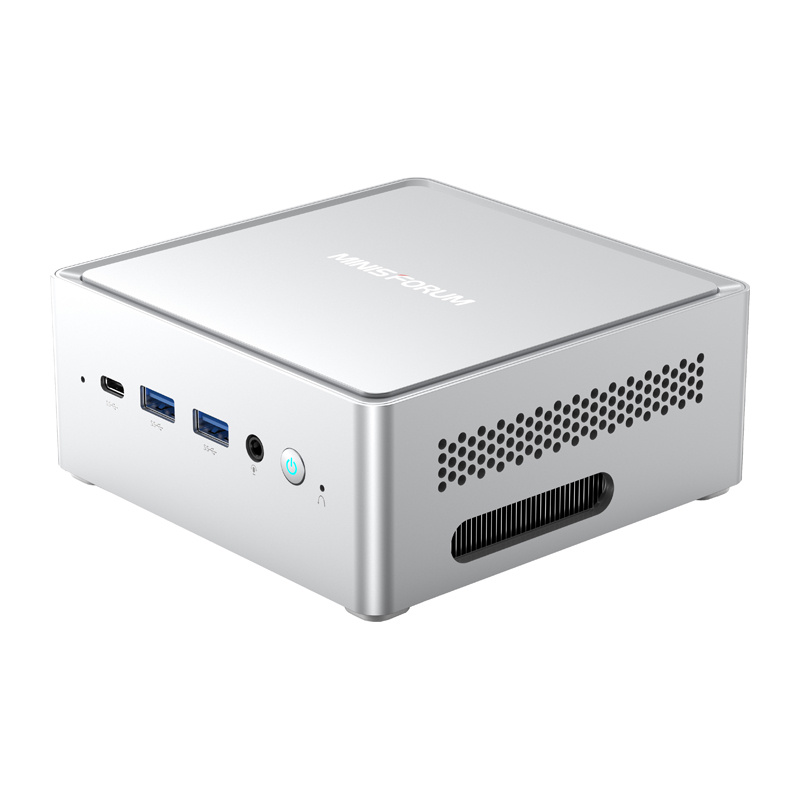

Minis Forum NAB6 Lite Intel Core i5-12600H Barebone Mini PC
Price: 416.00 €
| Products ID: | 176046 |
|---|---|
| Manufactured by: | Minis Forum |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4897118833851 |
Delivery options to:
Choose countryThe Minis Forum NAB6 Lite is a compact barebone mini PC powered by a 12-core Intel Core i5-12600H processor, allowing users to configure RAM and storage to their specific requirements.
Key Features
- Processor: Intel Core i5-12600H with 12 cores, 16 threads, and speeds up to 4.50 GHz.
- Graphics: Integrated Intel Iris Xe Graphics supporting 4K video resolution.
- Expandable Memory: Dual SODIMM DDR4 slots supporting up to 64 GB RAM.
- Storage Support: M.2 2280 PCIe 4.0 SSD slot (up to 2 TB) and a 2.5″ SATA bay.

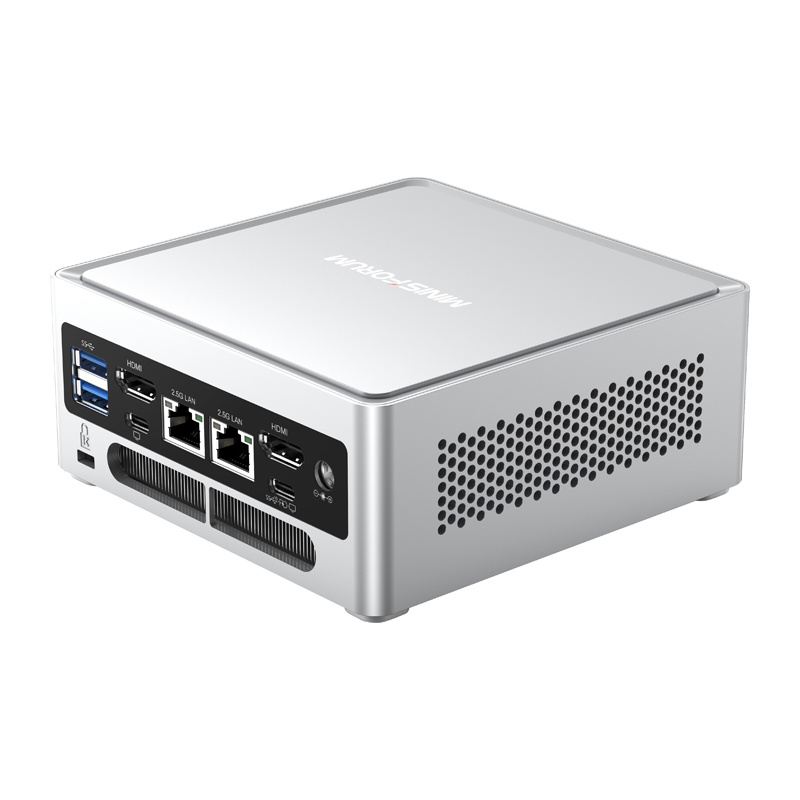

- Connectivity: Dual 2.5 Gb RJ45 Ethernet ports, dual HDMI, and multi-functional USB-C ports.
- Toolless Access: Case opens without tools for straightforward component installation.
| Manufacturer | Minis Forum |
|---|---|
| Model | NAB6 Lite |
| Processor | Intel Core i5-12600H (12 cores / 16 threads, up to 4.50 GHz, 18 MB cache) |
| Graphics | Integrated Intel Iris Xe Graphics |
| Memory Slots | 2 × SODIMM DDR4 (supports up to 64 GB, not included) |
| Storage Support | 1 × M.2 2280 PCIe 4.0 SSD (up to 2 TB, not included) |
| Drive Expansion | 1 × 2.5″ SATA 3.0 (6.0 Gbps) |
| Wireless Slot | M.2 2230 slot (Wi-Fi/Bluetooth support, not included) |
| Video Outputs | 2 × HDMI (4K @ 60 Hz), 2 × USB-C (4K @ 60 Hz) |
| Network | 2 × RJ45 2.5 Gigabit Ethernet |
| USB Ports | 4 × USB 3.2 Gen 2 Type-A, 3 × USB 3.2 Type-C |
| Audio | 1 × 3.5 mm Combo Jack, 1 × DMIC |
| Power Supply | DC 19 V |
| Operating System | No pre-installed system |
Does this mini PC include RAM and storage?
No, this is a barebone version. RAM, SSD storage, and an operating system must be purchased and installed separately.
How many displays can be connected simultaneously?
The mini PC supports up to four displays at the same time using its two HDMI ports and two display-compatible USB-C ports.
What items are included in the package?
The package includes the Mini PC, power adapter, power cable, HDMI cable, VESA mount, mounting screws, and user manual.
