Minis Forum M1 Pro-285H Mini PC Intel Core Ultra 9 285H Barebone
Price: 733.00 €
| Products ID: | 176078 |
|---|---|
| Manufactured by: | Minis Forum |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4897118834834 |
Delivery options to:
Choose countryThe Minis Forum M1 Pro-285H is a barebone mini PC powered by an Intel Core Ultra 9 285H processor with 16 cores, 16 threads, and integrated Intel Arc 140T graphics.
Key Features
- Intel Core Ultra 9 285H processor with up to 5.4 GHz clock speed
- Dual-channel DDR5 6400 MHz RAM support up to 128 GB via two SO-DIMM slots
- Two M.2 2280 NVMe PCIe 4.0 SSD slots supporting up to 4 TB of storage
- Comprehensive connectivity including 2x USB4, HDMI 2.1, DP 1.4, and an OcuLink port for eGPU
- High-speed networking with Wi-Fi 7, Bluetooth 5.4, and 2.5G RJ45 Ethernet
- Compact chassis with included VESA mounting bracket and dual-fan cooling
| Manufacturer | Minis Forum |
|---|---|
| Model | M1 Pro-285H |
| Processor | Intel Core Ultra 9 285H (16 cores, up to 5.4 GHz) |
| Graphics | Intel Arc 140T |
| Memory | Not included (supports up to 128 GB DDR5 6400 MHz, 2x SO-DIMM) |
| Storage | Not included (2x M.2 2280 NVMe PCIe 4.0 x4, up to 4 TB) |
| Wireless Connectivity | Wi-Fi 7, Bluetooth 5.4 |
| Ethernet | 2.5G LAN RJ45 |
| Video Outputs | 1x HDMI 2.1, 1x DP 1.4, 2x USB4 |

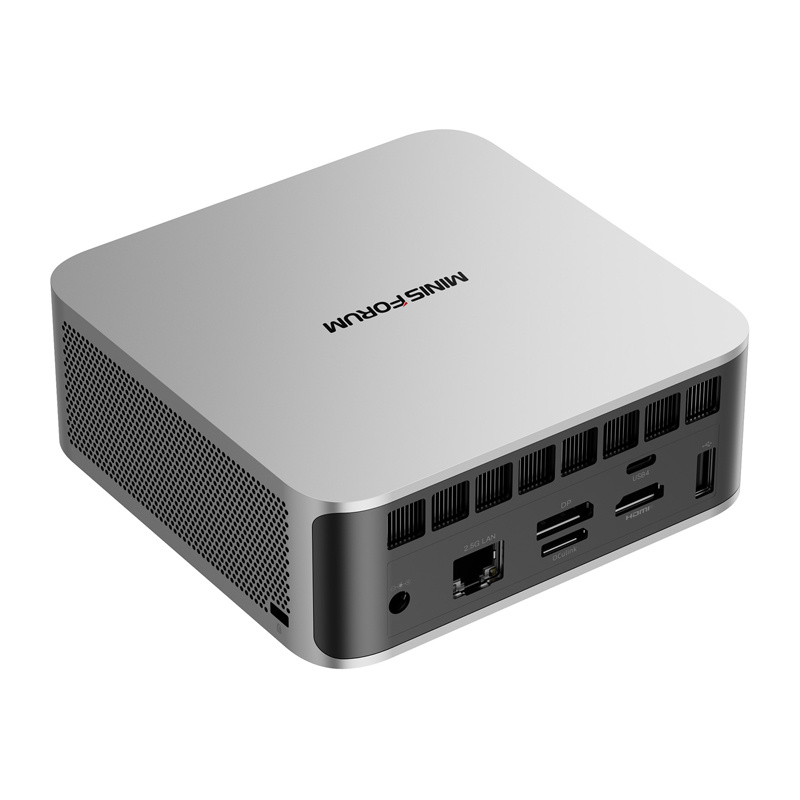

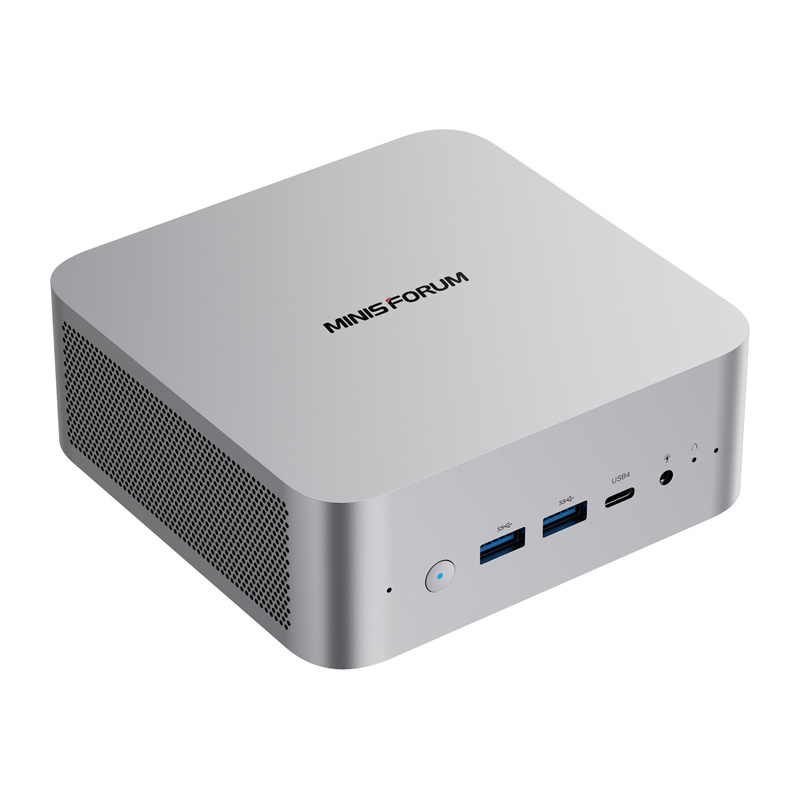

| Ports | 1x OcuLink, 2x USB4, 2x USB 3.2 Gen2 Type-A, 1x USB 2.0 Type-A, 1x 3.5 mm combo jack |
| VESA Mount | Supported (bracket included) |
| Dimensions | 128 x 126 x 52 mm |
| Weight | 0.6 kg |
| Power Supply | 19V / 6.32A (120W) |
Does this barebone system include RAM and storage?
No, this is a barebone system without pre-installed RAM or SSD storage. You can add compatible DDR5 SO-DIMM memory and M.2 NVMe SSDs according to your requirements.
How many external displays can be connected simultaneously?
The system supports up to 4 simultaneous displays using HDMI 2.1, DisplayPort 1.4, and the two USB4 ports.
What is the OcuLink port used for?
The OcuLink port allows you to connect an external graphics card (eGPU) to expand the system's graphics capabilities.
