Mini PC MINISFORUM N5 Air Ryzen 7 255 10GbE 5GbE
Price: 718.70 €
| Products ID: | 177068 |
|---|---|
| Manufactured by: | Minis Forum |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4897118837224 |
Delivery options to:

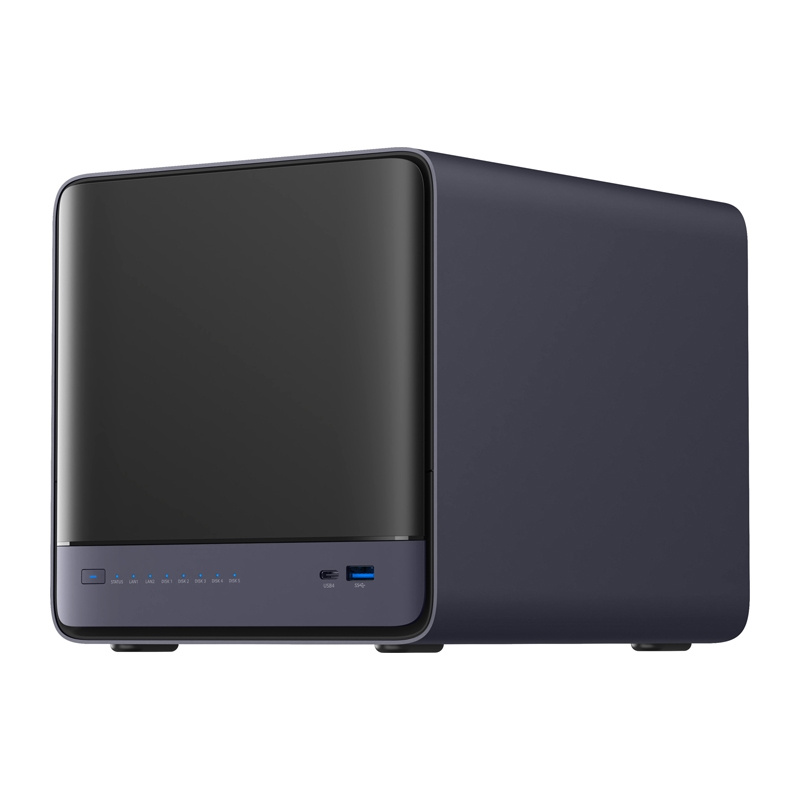

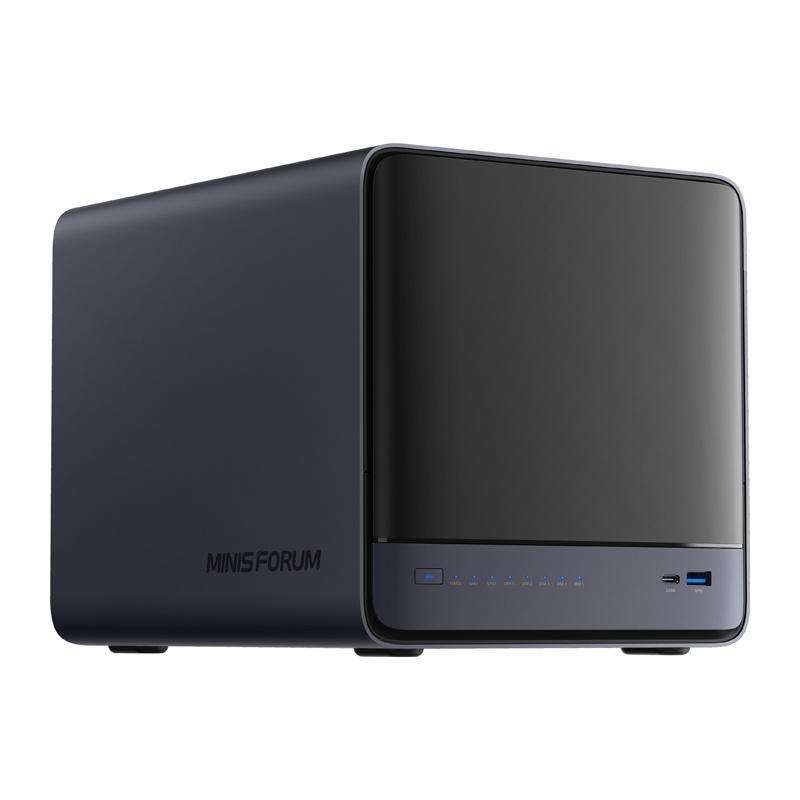

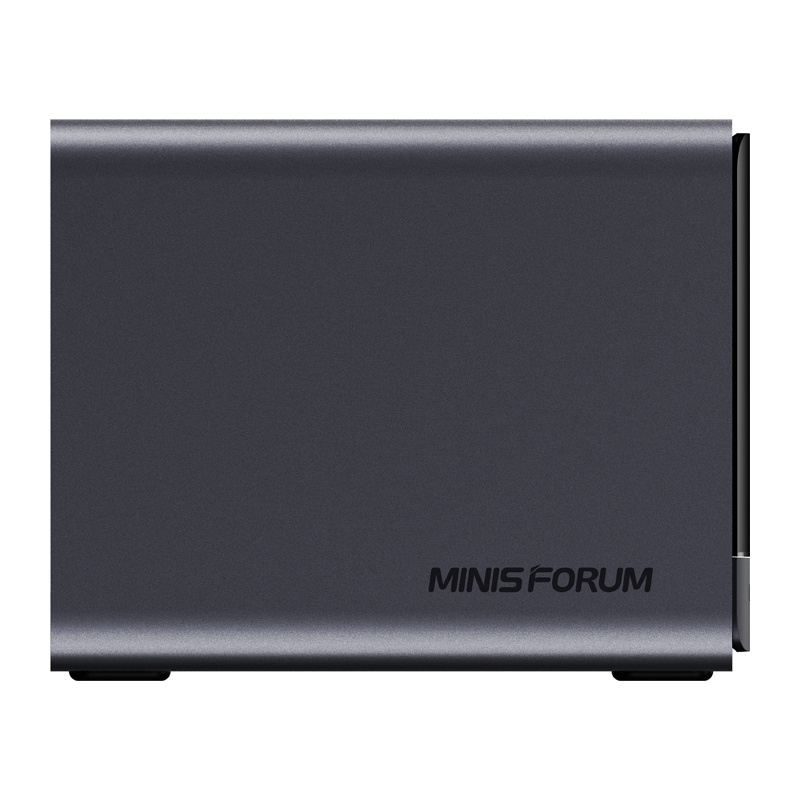

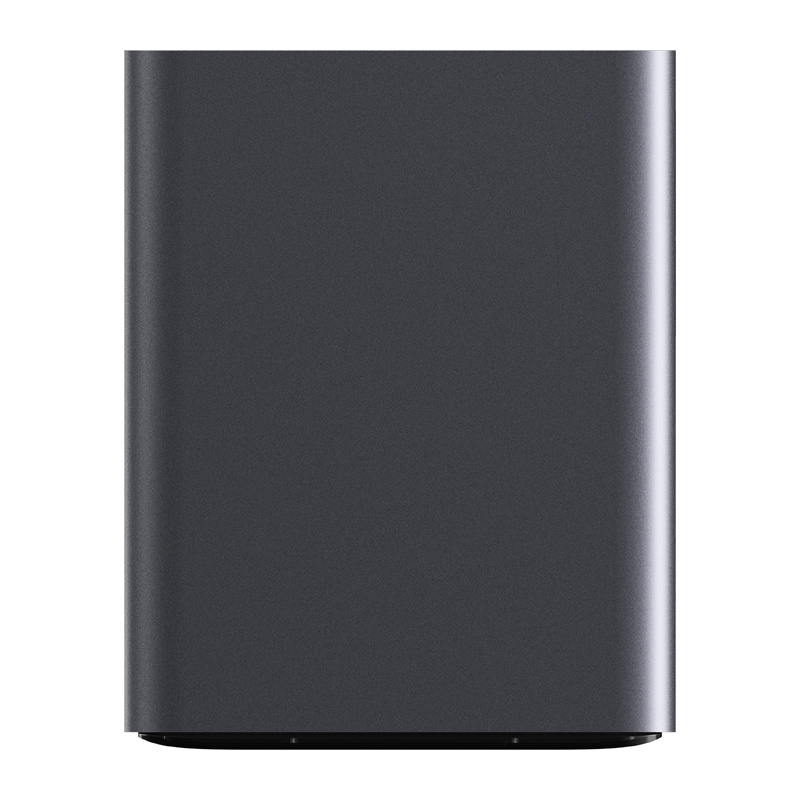

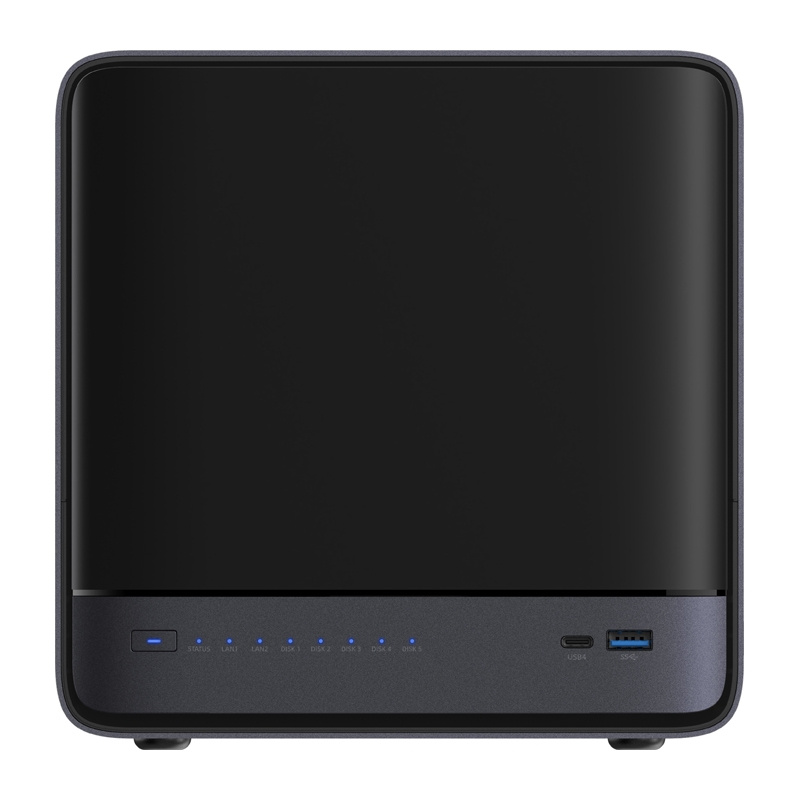

Choose countryThe MINISFORUM N5 Air is a high-performance mini PC and NAS server powered by an AMD Ryzen 7 255 processor, designed for file storage, backups, virtualization, and multimedia streaming.
Key Features
- AMD Ryzen 7 255 processor with 8 cores and 16 threads
- Five 3.5"/2.5" SATA 3.0 drive bays and three M.2 NVMe PCIe 4.0 slots
- Ultra-fast dual networking with 10GbE and 5GbE LAN ports
- Two DDR5 SO-DIMM slots supporting up to 96 GB memory
- Versatile connectivity including USB4, HDMI 2.1, and OCuLink
- MinisCloud OS with ZFS file system support and Docker containerization
| Brand | MINISFORUM |
|---|---|
| Model | N5 Air |
| Processor (CPU) | AMD Ryzen™ 7 255 (8 cores, 16 threads) |
| CPU clock speed | Base 3.8 GHz; max. Turbo 4.9 GHz |
| TDP | 45W–55W |
| Graphics card (GPU) | Integrated AMD Radeon™ 780M |
| RAM slots | 2 × SO-DIMM |
| Maximum RAM | Up to 96GB DDR5 Non-ECC |
| RAM speed | 5600MT/s |
| HDD/SATA drive bays | 5 × 3.5"/2.5" SATA 3.0 |
| Maximum HDD capacity | Up to 30TB |
| SSD/NVMe drive slots | 3 × M.2 2280/22110 NVMe PCIe 4.0 |
| Max. SSD capacity | Up to 8TB |
| Total storage capacity | Up to 174TB |
| Supported RAID modes | RAID 0, RAID 1, RAID 5, RAID 6 |
| LAN port 1 | 5GbE (RTL8126) |
| LAN port 2 | 10GbE (RTL8127 or AQC113) |
| Video connectors | HDMI 2.1 (8K@60Hz/4K@144Hz), 2 × USB4 with Alt DP 2.0 (8K@60Hz/4K@144Hz) |
| Front ports | USB4 (with DP 2.0), USB 3.2 Gen2 |
| Rear ports | USB4 (with Alt DP 2.0), HDMI 2.1 FRL × 1, OCuLink, 10GbE LAN, 5GbE LAN, USB 3.2 Gen2, USB 2.0 |
| Expansion slots (internal) | PCIe 4.0 x16 (electrically x4) |
| Operating system | MinisCloud OS, compatible with Windows 11 (not included) |
| Design | Sliding |
| CPU cooling | Dual heat pipes, PCM, 7515 mm Turbo fan, 2700 RPM |
| HDD cooling | 2 × 9025 mm axial fans, 3450 RPM |
| Noise level | 42 dB (measured at 50 cm, Balance mode) |
| Wireless connectivity | None |
| Enclosure | Plastic |
| LEDs | Status × 1, NIC × 2, HDD × 5 |
| Dimensions | 19.9 × 20.2 × 25.2 cm |
| Weight | 4 kg |
What storage configurations does the MINISFORUM N5 Air support?
It supports five 3.5" or 2.5" SATA 3.0 drives (up to 30 TB each) and three M.2 2280/22110 NVMe PCIe 4.0 SSDs (up to 8 TB each), allowing for a total storage capacity of up to 174 TB.
What is included in the package?
The package contains the Mini PC, power supply, power cable, HDMI cable, network cable, a set of screws for HDD drives, and a user manual.
