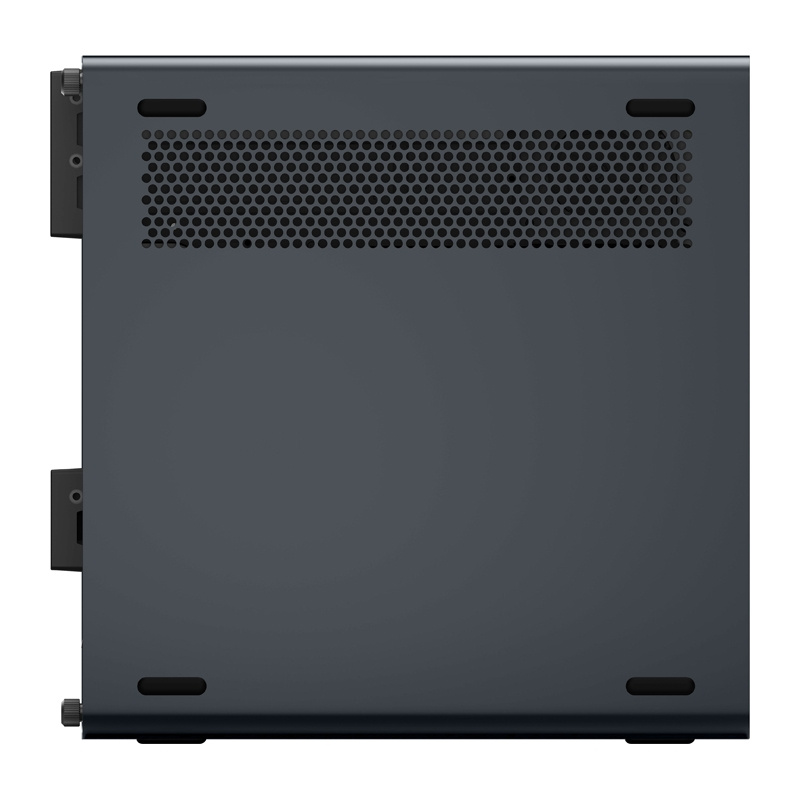

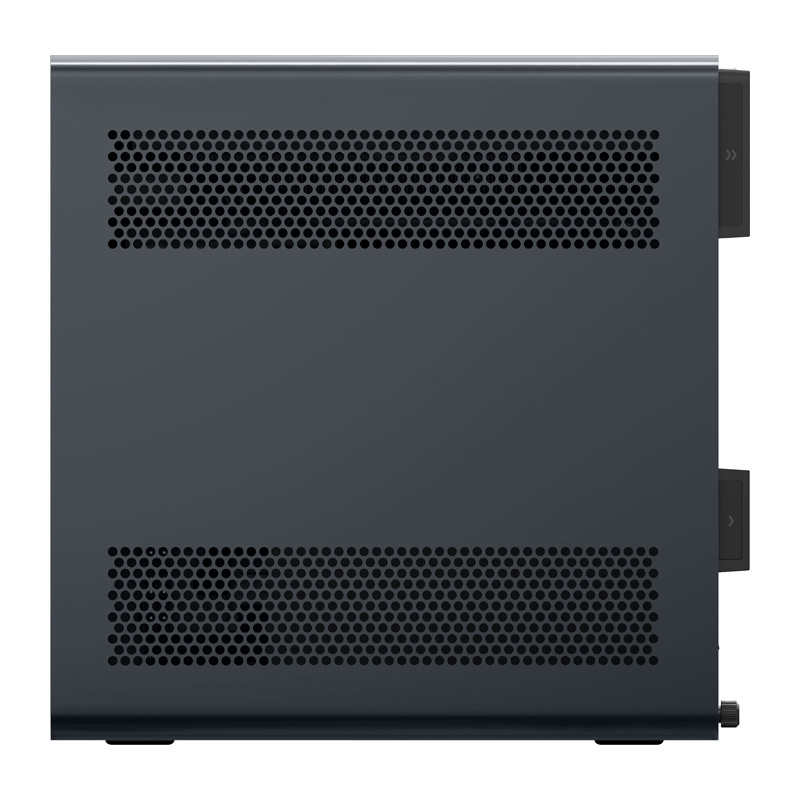

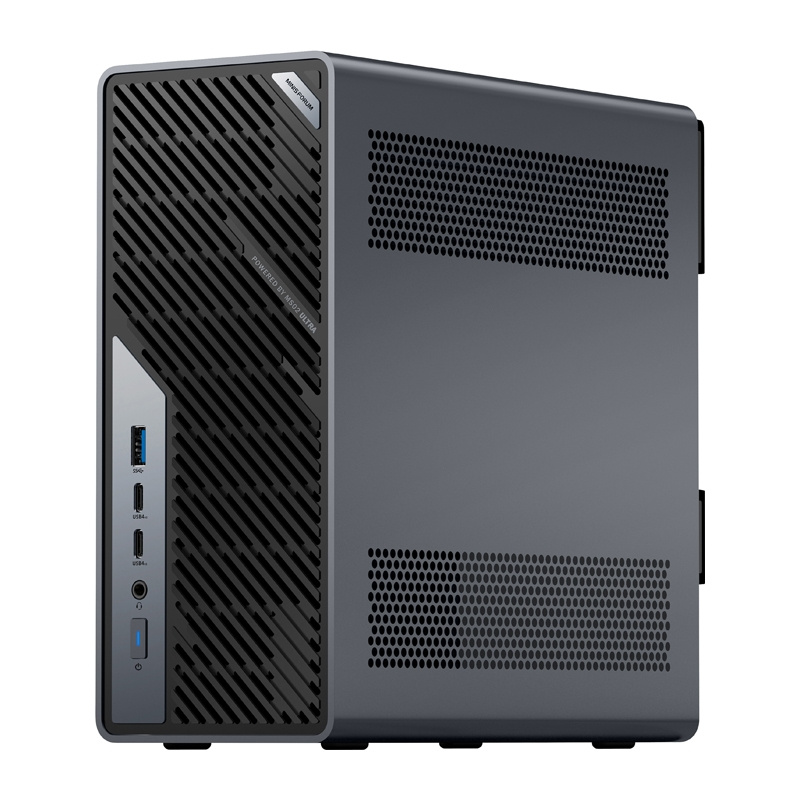

Mini PC MINISFORUM MS-02 Ultra MS-02U-235HX Intel Core Ultra 5 235HX barebone
Price: 748.30 €
| Products ID: | 177069 |
|---|---|
| Manufactured by: | Minis Forum |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4897118836968 |
Delivery options to:
Choose countryThe MINISFORUM MS-02 Ultra is a compact mini PC workstation powered by the Intel Core Ultra 5 235HX processor, designed for virtualization, data analysis, and content creation. The barebone version comes without RAM or storage, allowing full flexibility in component selection.
Key Features
- 14-core Intel Core Ultra 5 235HX processor with Turbo clock speeds up to 5.1 GHz and Intel AI Boost
- Four DDR5 SO-DIMM slots supporting up to 256 GB of memory at up to 4800 MT/s
- Two M.2 2280 PCIe 4.0 x4 NVMe slots supporting up to 16 TB total storage
- High-speed networking with 10GbE RJ45, 2.5GbE RJ45, Wi-Fi 7, and Bluetooth 5.4
- Dual USB4 V2 Type-C ports with up to 80 Gbps bandwidth and support for up to three 8K displays
- Cooling system with six heat pipes, dual fans, and an integrated 350 W 1U power supply
| Brand | MINISFORUM |
|---|---|
| Model | MS-02 Ultra 235HX |
| Product type | Mini workstation (barebone) |
| Processor | Intel Core Ultra 5 235HX |
| Number of cores | 14 (6 Performance cores + 8 Efficient cores) |
| Number of threads | 14 |
| Maximum Turbo frequency | Up to 5.1 GHz |
| Cache | 24 MB Intel Smart Cache |
| Graphics chip | Intel Graphics |
| Maximum graphics chip frequency | Up to 1.8 GHz |
| AI engine | Intel AI Boost |
| AI performance | Up to 13 TOPS |
| RAM slots | 4 × DDR5 SO-DIMM |
| Maximum RAM capacity | 256 GB |
| Maximum RAM speed | 4800 MT/s |
| SSD slots | 2 × M.2 2280 PCIe 4.0 x4 NVMe |
| Maximum SSD capacity | Up to 8 TB per slot |
| Configuration | Barebone (No RAM, No Drive) |
| Wireless connectivity | Wi-Fi 7, Bluetooth 5.4 |
| Wireless module | Intel BE200 |
| LAN port 1 | 10GbE RJ45 (Realtek RTL8127) |
| LAN port 2 | 2.5GbE RJ45 (Intel I226-V) |

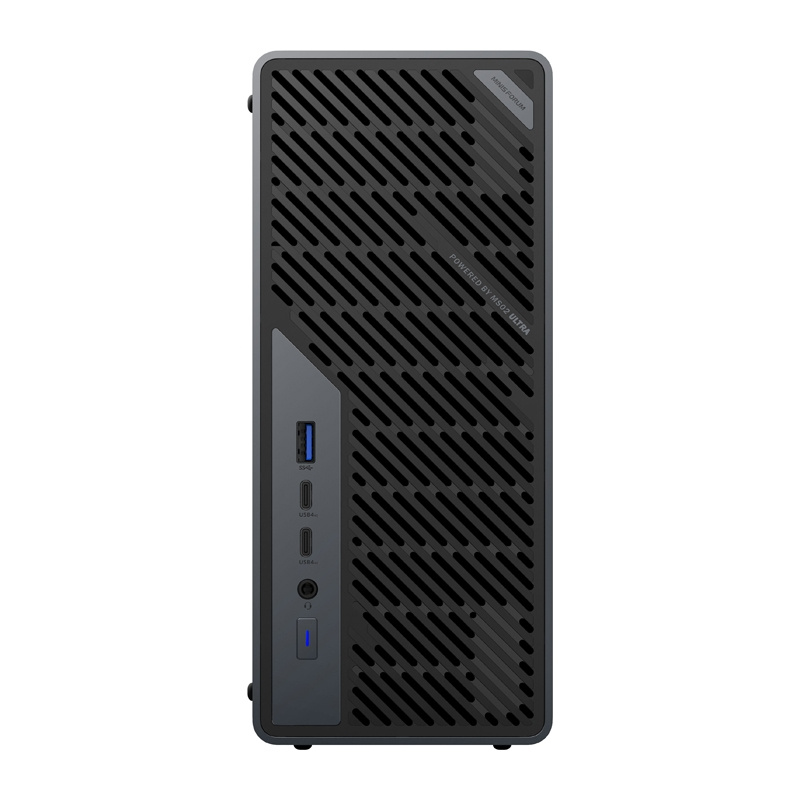

| Front ports | 2 × USB4 V2 Type-C (80 Gbps, DP 2.0 Alt Mode, PD 15 W), 1 × USB 3.2 Gen 2 Type-A, 1 × 3.5 mm audio jack |

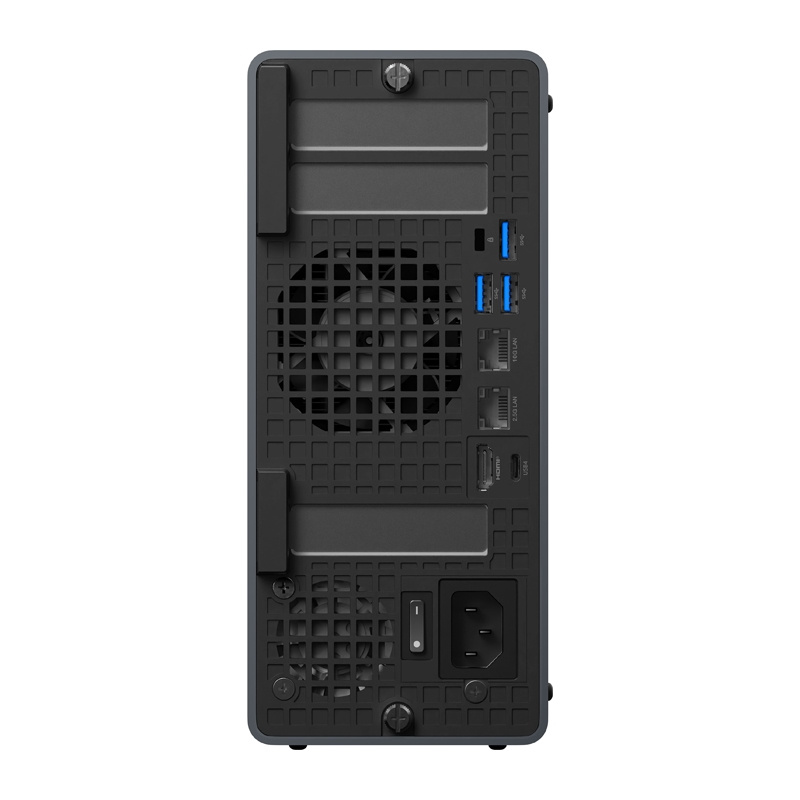

| Rear ports | 1 × USB4 Type-C, 1 × HDMI 2.1 FRL, 1 × OCuLink, 1 × 10GbE RJ45, 1 × 2.5GbE RJ45, 3 × USB 3.2 Gen 2 Type-A |
| Internal connectors | PCIe 5.0 x16 (supports bifurcation), PCIe 4.0 x16, PCIe 4.0 x4 |
| Operating system | Supports Windows 11 Pro |
| Power supply | 1U 350 W MAX, AC 100–240 V |
| Cooling system | Heat sink with six heat pipes and phase-change material (PCM) |
| Fans | 1 × 70 × 25 mm, 1 × 60 × 20 mm |
| Maximum fan speed | Up to 5000 RPM |
| Dimensions | 221.5 × 97 × 225 mm |
| Weight | 3.25 kg |
What items are included in the package?
The package includes the mini PC, power cord, HDMI cable, Mylar plate, SSD heatsink, removal clip, and user manual.
Does this barebone system include memory or an SSD?
No, the barebone configuration is shipped without RAM and without storage drives.
How much RAM does the system support?
The system features four DDR5 SO-DIMM slots and supports up to 256 GB of RAM at speeds up to 4800 MT/s.
