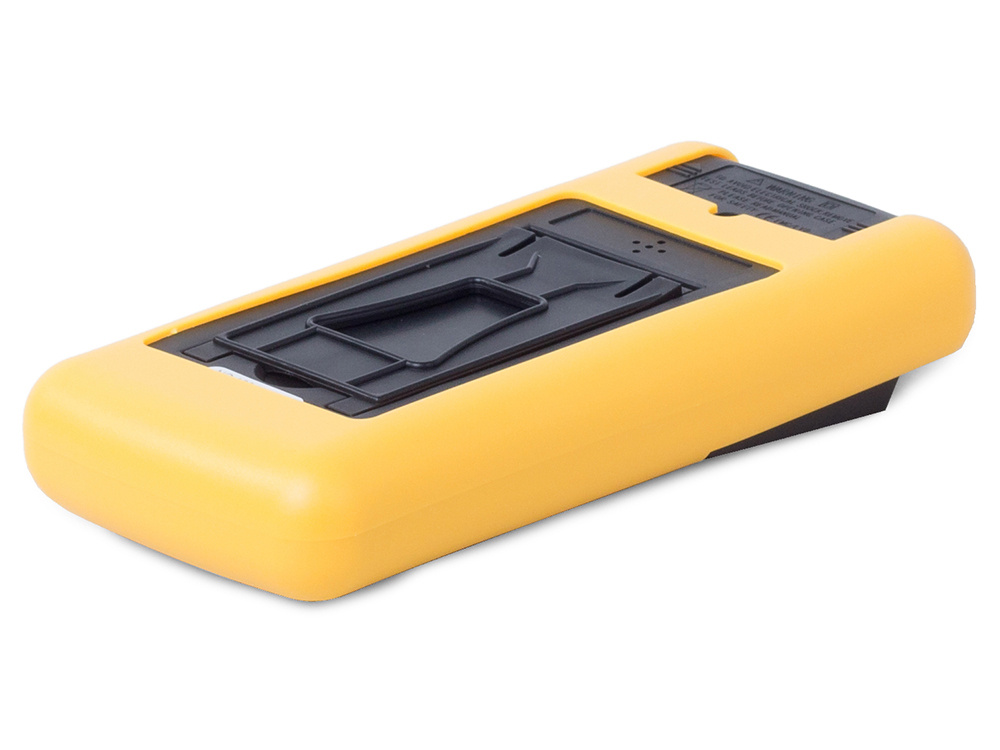

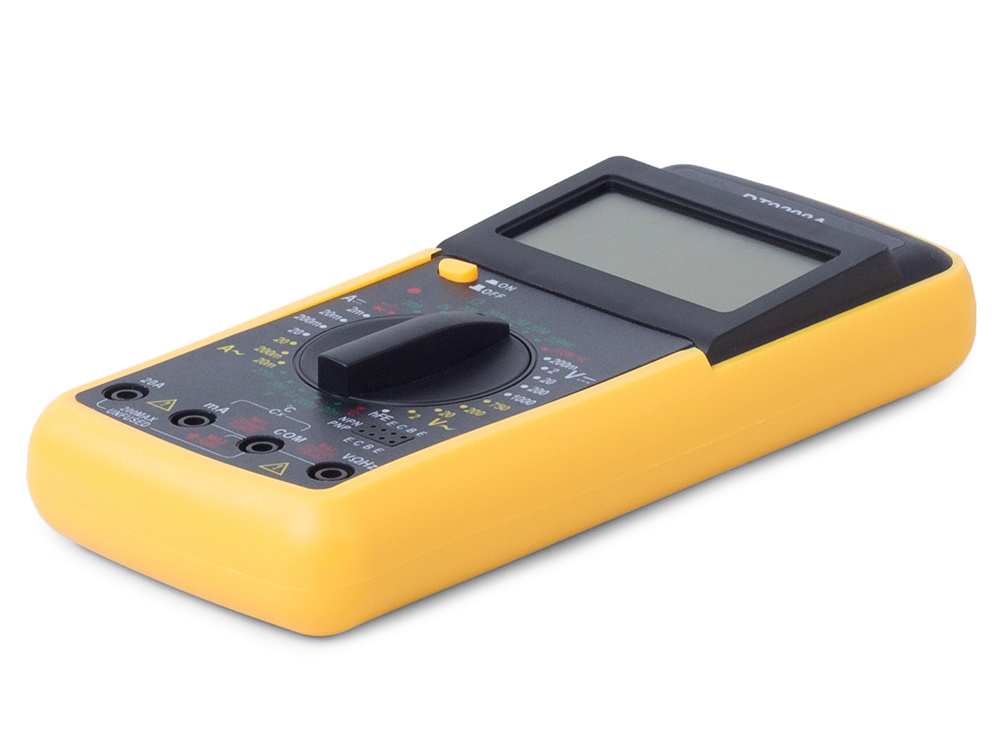

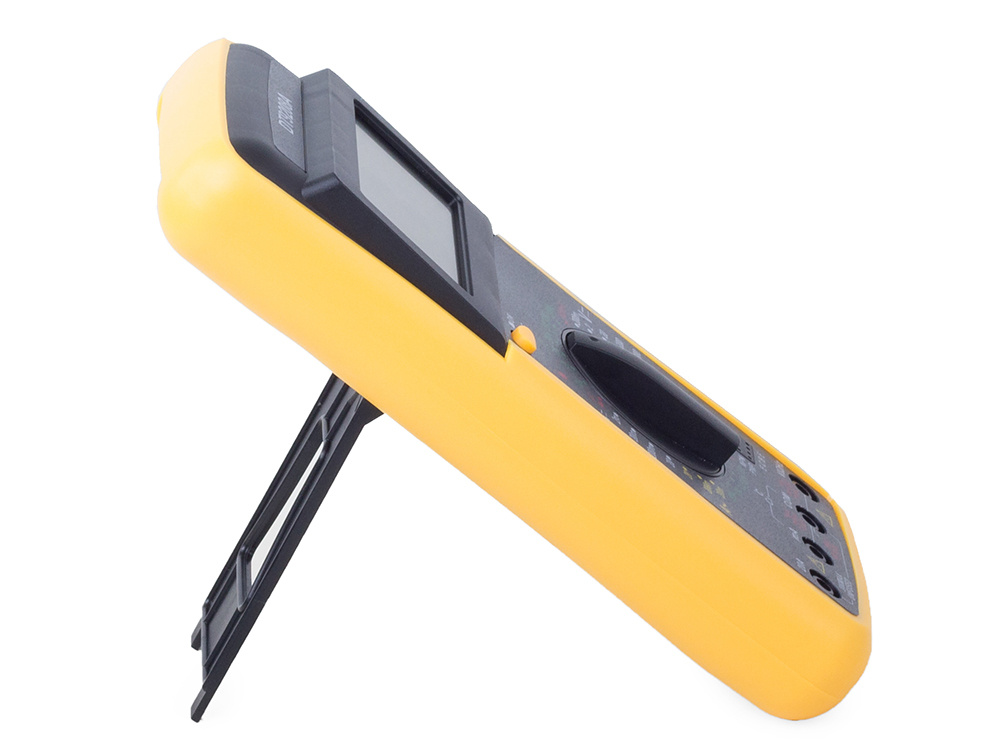

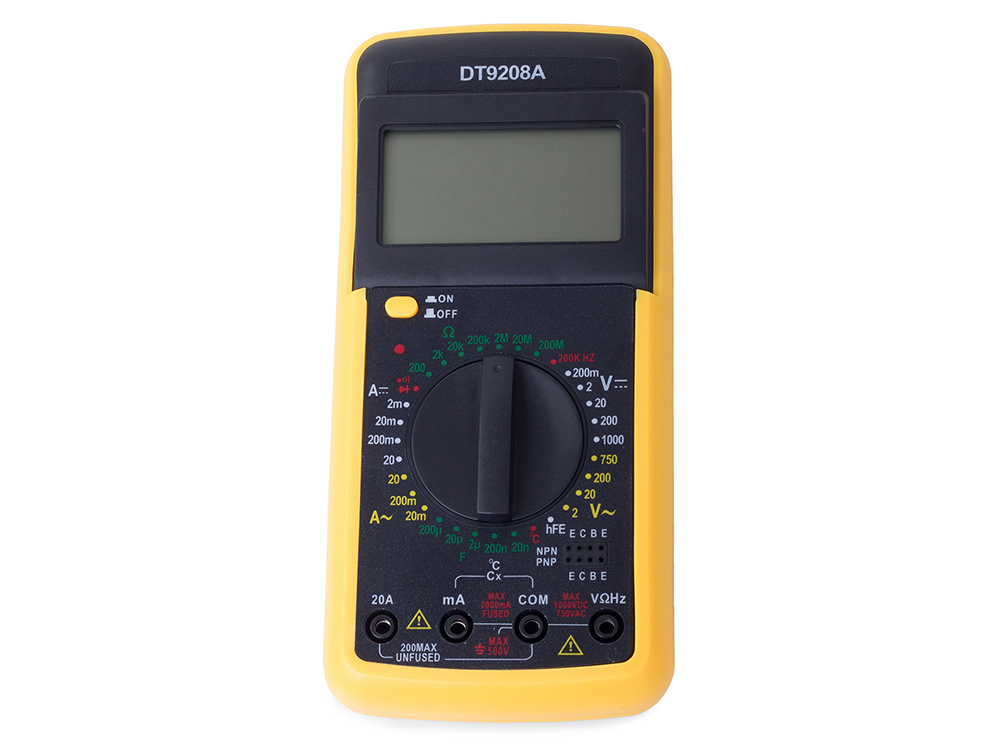

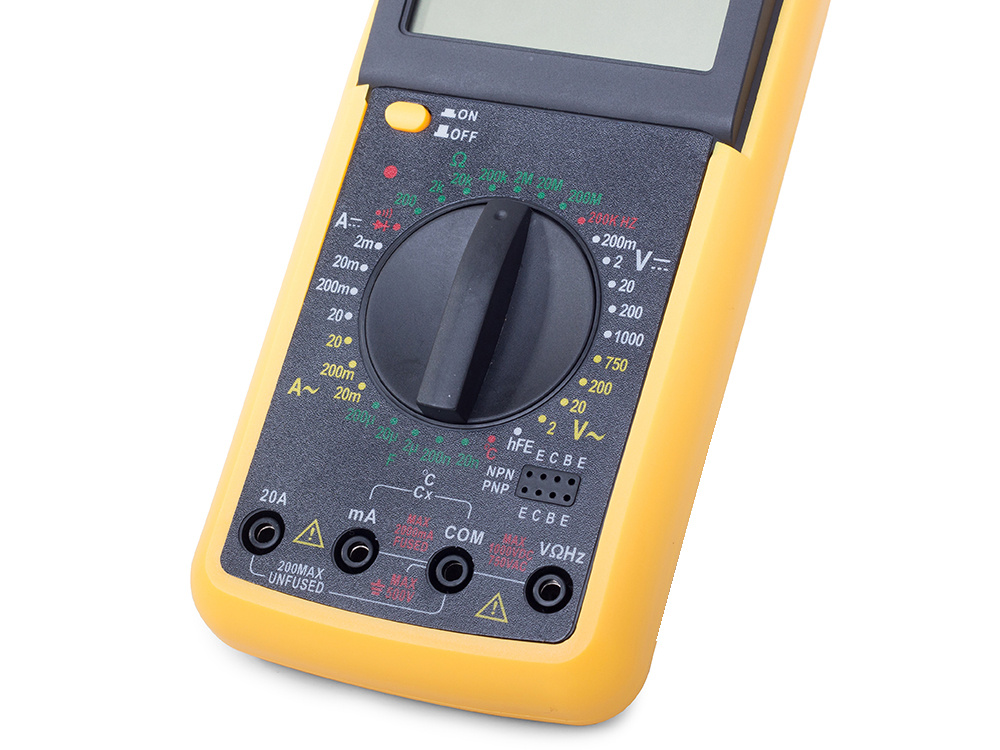

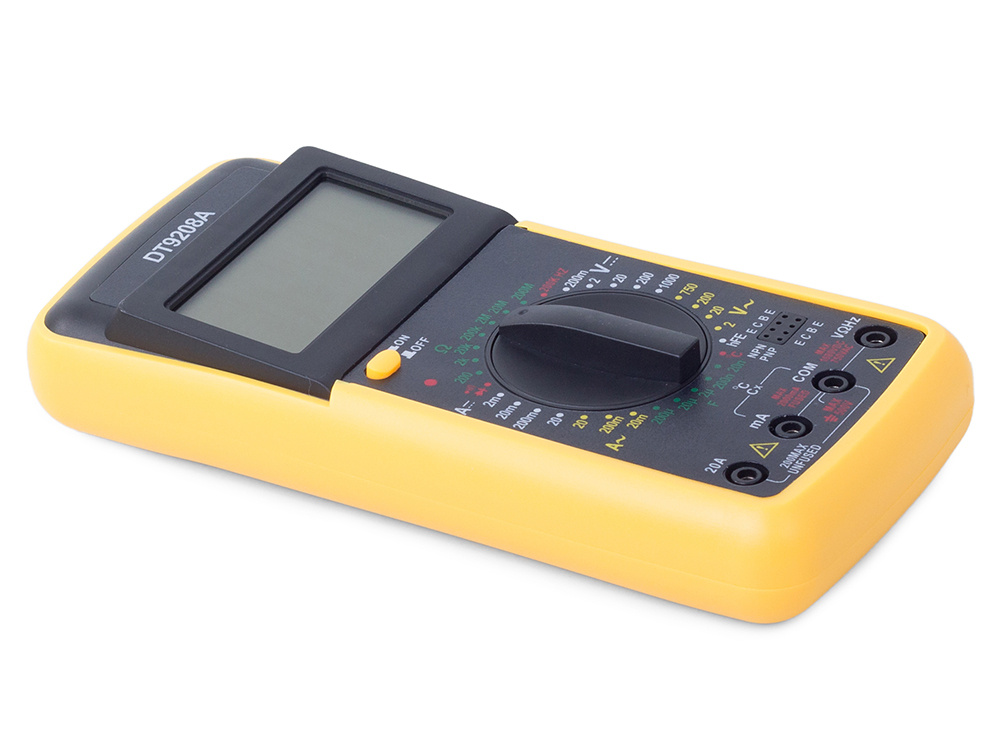

DT9208A Digital Multimeter LCD AC/DC Ammeter Resistance with Temperature
-15%
SOLDOUT!
Price: 14.20 €12.10 €
| Products ID: | 62750 |
|---|---|
| Availablity: | SOLDOUT! |
| EAN: | 5907451303986 |
Delivery options to:
Choose countrySPECIFICATIONS:
High maximum DC current and voltage measurement range (20 A/1000 V).
Useful ranges for measuring small DC currents (2 mA).
Capacitance measurement (6 ranges up to 200 µF).
Rubber cover that protects against mechanical damage and electric shock.
Designed to meet the IEC-1010 standard for electronic measuring instruments with overvoltage category CAT II/CAT III and pollution 2.
The product is CE certified.
The device allows you to perform the following types of measurements:
- AC and DC voltage measurement
- AC and DC current measurement
- Resistance measurement
- Measuring capacitance of capacitors
- HFE transistor measurement
- Diode Forward Voltage Measurement
- Checking continuity
- Temperature measurement
DCV:
200m/2/20/200/1000[V] +/-(0.5%+1)
1000V +/-(0.8%+2)
0.2mV-1000V
ACV:
200 mV +/-(1.2%+3)
2/20/200[V] +/-(0.5%+1)
750V +/-(1.2%+5)
0.2mV-750V
DCA:
2m[A] +/-(0.8%+1)
20 m[A] +/-(1%+3)
200 mA +/-(1.2%+1)
20A +/-(2%+5)
10uA-20A
ACA:
20 mA +/-(1%+3)
200 mA +/-(1.8%+3)
20A +/-(2%+5)
10uA-20A
OHM:
200Ω +/-(0.8%+3)
2k/20k/200k/2M[Ohm] +/-(0.8%+1)
20MOhm +/-(1%+2)
200MOhm +/-(5%+10)
0.2 ohm-200 megohm
CAP:
2n/20n/200n/2u/200u[F] +/-(4%+3)
1pF-200uF
TEMP:
-40°С - 400°С +/-0.75%(+/-3)
400–1000 C +/- 1.5% (+/- 5)
FREQUENCY:
200 kHz +/- 1.5% (+/- 10)
Transistor test: yes
Automatic shutdown: yes
Diode check: yes
Continuity alarm: yes
LCD display: yes
Battery: 2xAAA
Net weight: 300 g.
Display range: 1-999
Display size: 33x63 mm.
Dimensions: 91x189x32mm.
KIT CONTAINS:
Brand new digital counter.
Set of test leads.
Measuring cable.
2 AAA batteries.
