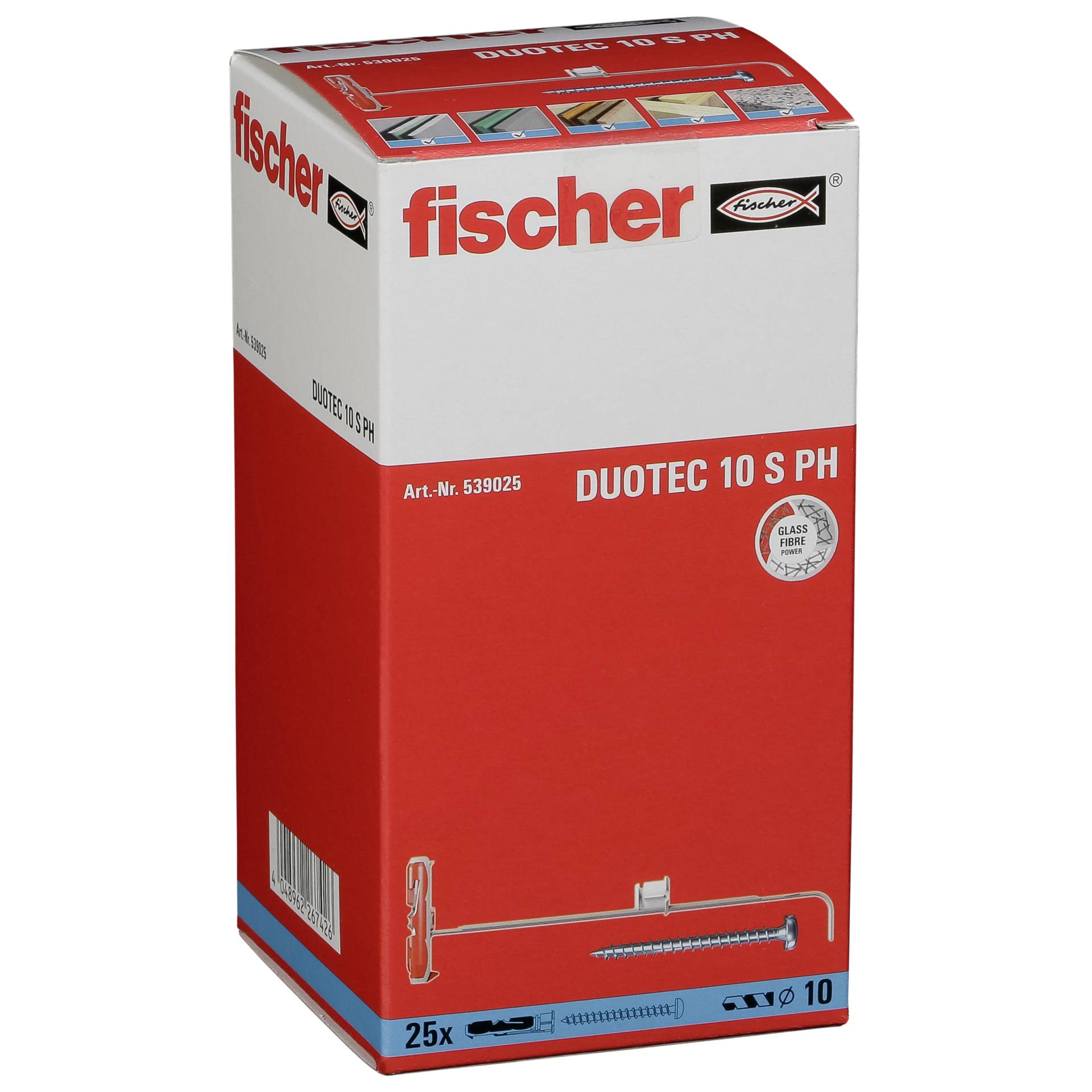

Tilting Dowels Fischer DUOTEC 10 S PH with Screws, 25 pcs
FischerSOLDOUT!
Price: 30.00 €
| Products ID: | 179822 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | SOLDOUT! |
| EAN: | 4048962267426 |
Delivery options to:
Choose country

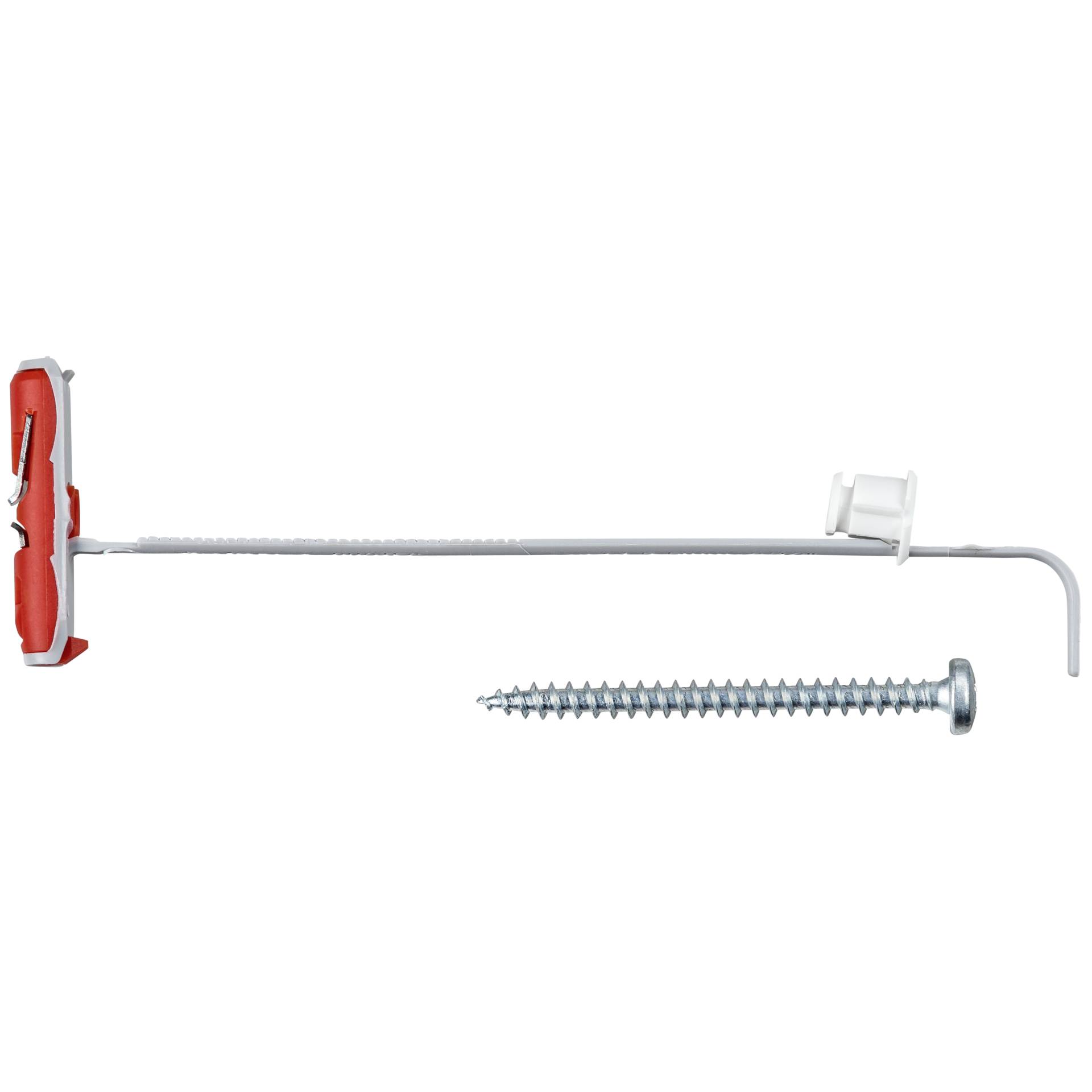

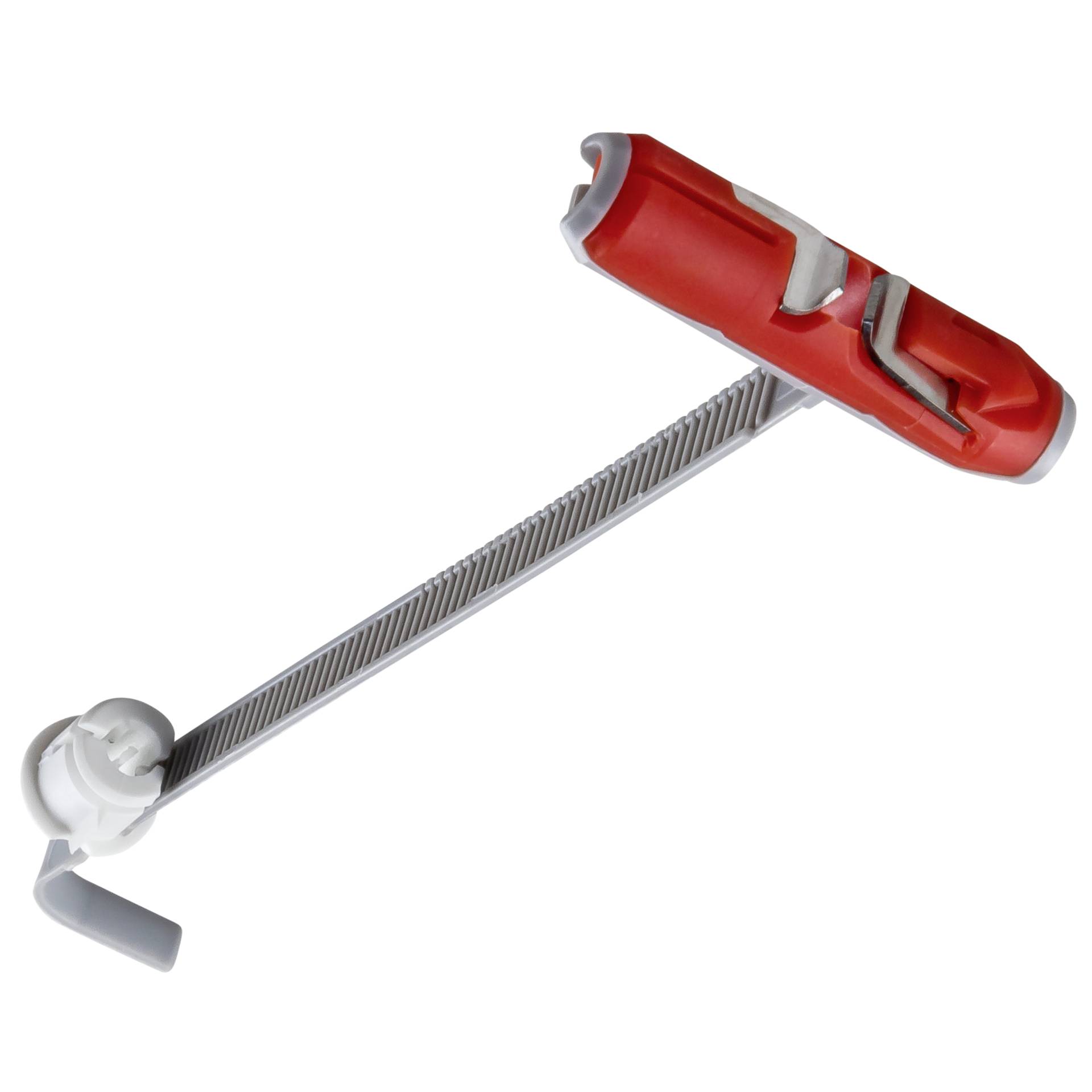

The Fischer DUOTEC 10 S PH is a 2-component nylon tilting dowel with matching panhead screws, designed for use in panel building materials such as plasterboard.
Key Features
- Two material components for increased load performance
- Includes matching panhead screws
- Drill hole reinforcing collar sleeve for higher transverse loads
- Bent handle for detecting cavity obstacles before installation
- Suitable for panel thicknesses from 12 mm to 55 mm
| Number of parts | 25 |
|---|---|
| Wall plug length | 50 mm |
| Drill hole diameter | 10 mm |
| Minimum borehole depth | 65 mm |
| Minimum plate thickness | 12 mm |
| Maximum plate thickness | 55 mm |
| Minimum cavity depth | 40 mm |
| Screw diameter | 5 mm |
| Screw length | 60 mm |
| Maximum thickness of attachment | 27 mm |
| Field of application | Plasterboard |
| Material | Plastic / Metal |
| Colour | Grey / Red |
| Size | 10 x 50 mm |
| Type | Tilt plug |
Are screws included in the package?
Yes, matching panhead screws measuring 5 mm in diameter and 60 mm in length are included.
What drill hole diameter is required for installation?
A drill hole diameter of 10 mm and a minimum borehole depth of 65 mm are required.
