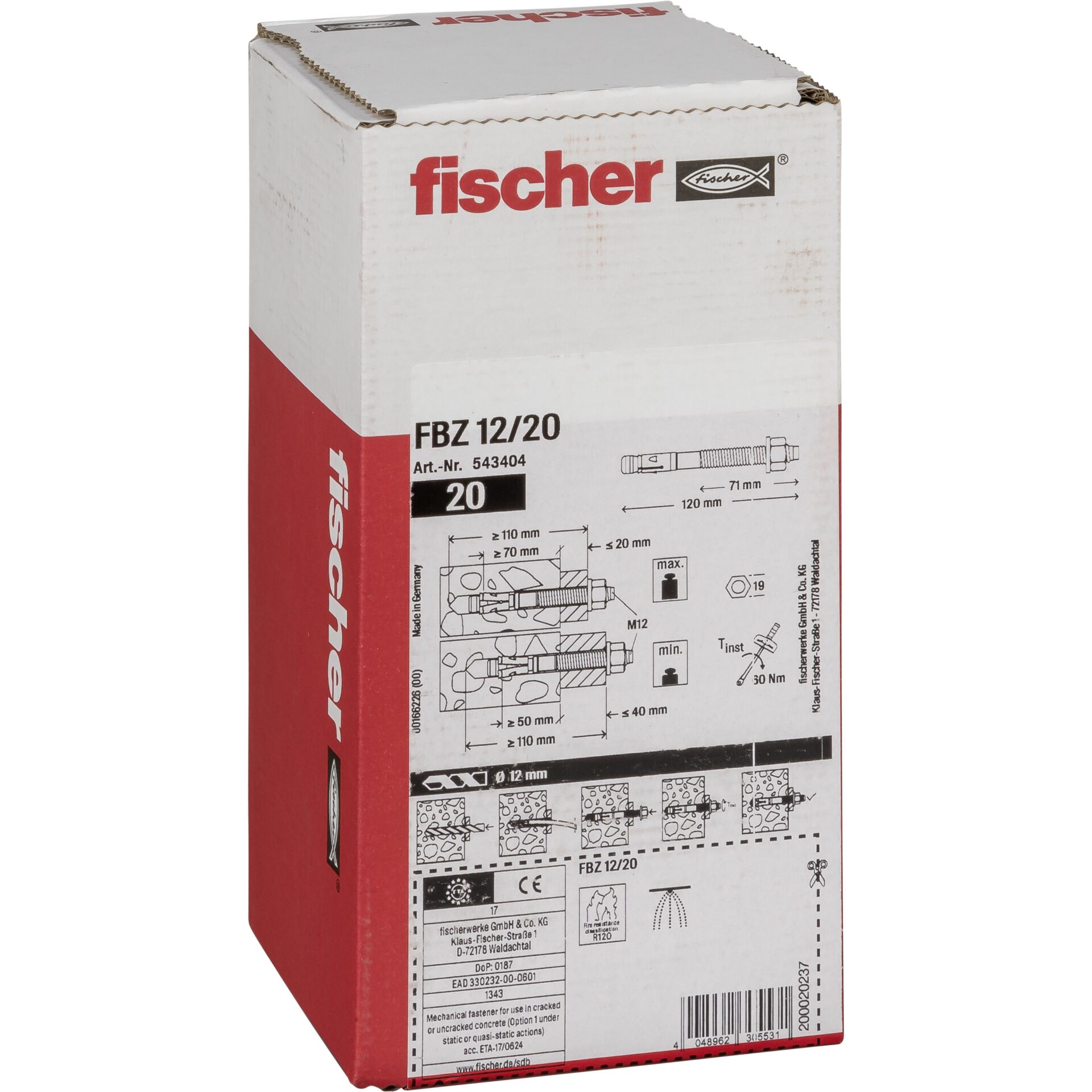

Fischer FBZ 12/20 Bolt Anchor 12x120 mm, 20 pcs.
Price: 27.20 €
| Products ID: | 179054 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962305531 |
Delivery options to:
Choose country

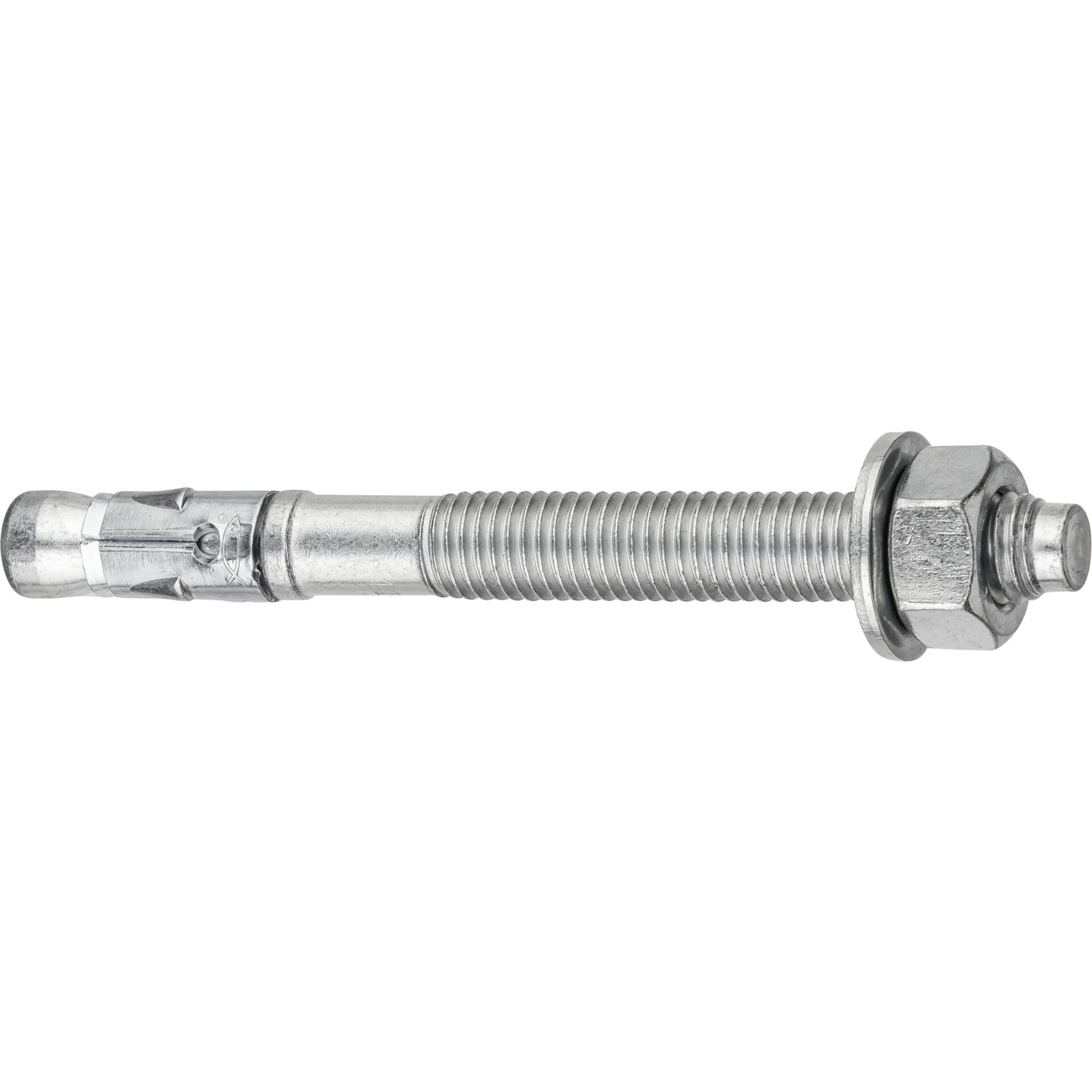

The Fischer FBZ 12/20 is a steel wedge bolt anchor designed for standard fixings in concrete, transferring acting loads securely into the base material.
Key Features
- Suitable for cracked and non-cracked concrete C20/25 to C50/60 as well as C12/15
- Designed for anchoring brackets, cable trays, and railings
- Minimum drill hole depth for push-through installation is 109 mm
- Overall length of 120 mm with M12 x 71 thread
- Supplied in a pack of 20 pieces
| Product type | Bolt Anchor |
|---|---|
| Material | Steel |
| Colour | Grey |
| Drill hole diameter | 12 mm |
| Overall length | 120 mm |
| Thread | M12 x 71 |
| Minimum borehole depth | 109 mm |
| Max. effective length | 20 / 40 mm |
| Field of application | Concrete |
| Number of parts | 20 |
Which concrete types is the Fischer FBZ 12/20 anchor suitable for?
It is suitable for cracked and non-cracked concrete grades C20/25 to C50/60, as well as concrete C12/15.
What are the required drill hole dimensions?
It requires a drill hole diameter of 12 mm and a minimum borehole depth of 109 mm for push-through mounting.
