Fischer FBZ 10/30 Bolt Anchors for Concrete, 25 pcs
Price: 26.50 €
| Products ID: | 179052 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962310832 |
Delivery options to:
Choose country

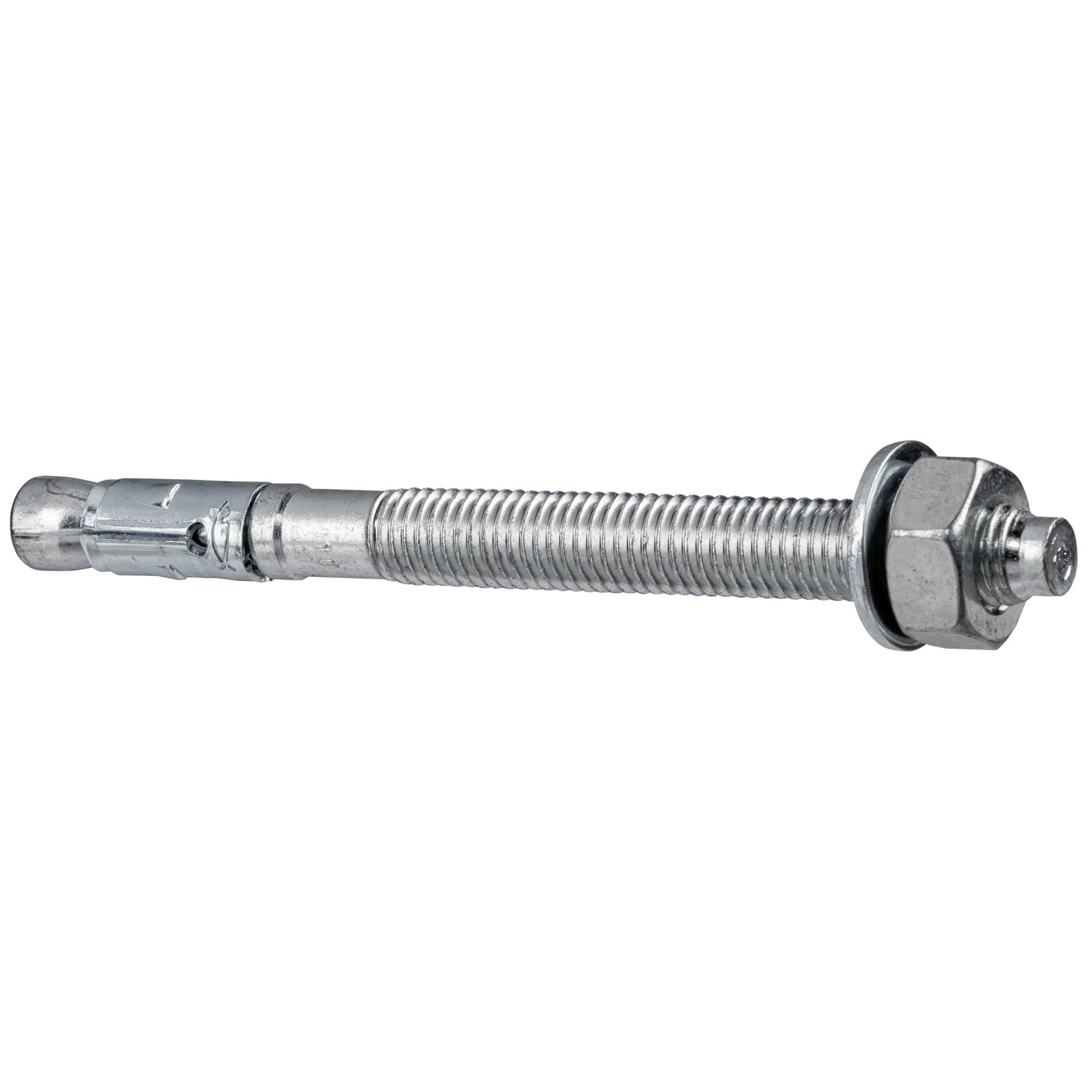

The Fischer FBZ 10/30 is a steel bolt anchor designed for safe and easy installation in cracked and non-cracked concrete.
Key Features
- Suitable for anchoring brackets, cable trays, and railings
- Flexible application with two anchoring depths
- Thread size M 10 x 73 mm and overall length of 115 mm
- Minimum drill hole depth for push-through installation is 107 mm
- Package contains 25 pieces
| Number of Parts | 25 |
|---|---|
| Drill Hole Diameter | 10 mm |
| Minimum Borehole Depth | 107 mm |
| Field of Application | Concrete |
| Overall Length | 115 mm |
| General Size (L x W x H) | 10 x 115 mm |
| Thread | M 10 x 73 mm |
| Depth of Anchoring | 40 - 60 mm |
| Max. Effective Length | 30 / 50 mm |
| Colour | Grey |
| Material | Stainless Steel |
| Type | Bolt Anchor |
What applications is the Fischer FBZ 10/30 anchor suitable for?
It is suitable for anchoring brackets, cable trays, or railings in cracked and non-cracked concrete.
What are the required drilling dimensions?
The anchor requires a 10 mm drill hole diameter and a minimum drill hole depth of 107 mm for push-through installation.
How many anchors are included in the package?
The package includes 25 bolt anchors.
