Fischer FBZ 10/20 Bolt Anchor, M10 x 105 mm, 25 pcs
Price: 23.20 €
| Products ID: | 181798 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962305517 |
Delivery options to:
Choose country

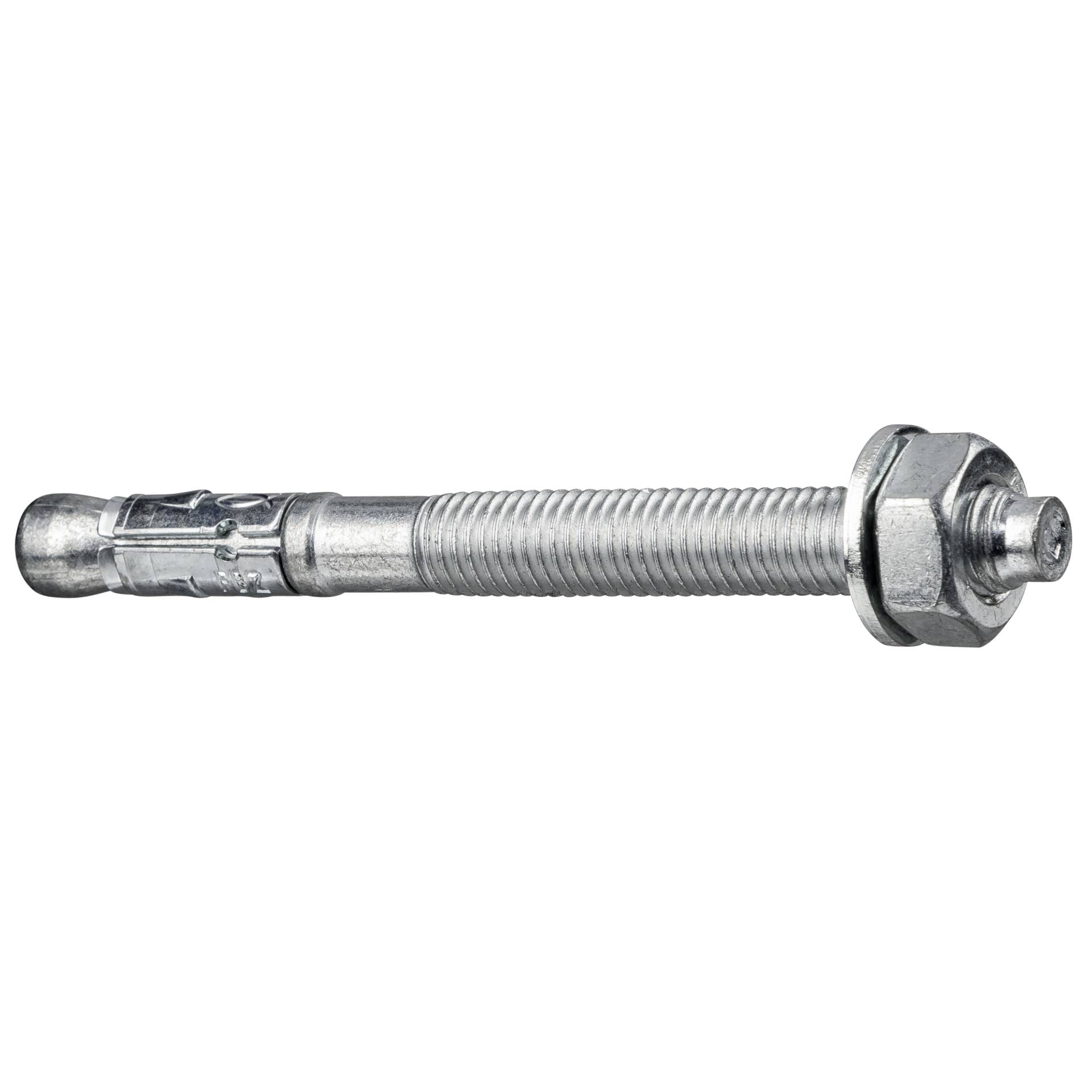

The Fischer FBZ 10/20 is a steel wedge bolt anchor designed for use in cracked and non-cracked concrete. It is suitable for securing brackets, cable trays, and railings, offering flexible application thanks to two anchoring depths.
Key Features
- Suitable for cracked and non-cracked concrete
- Two anchoring depths for flexible use
- Ideal for anchoring brackets, cable trays, and railings
- Safe and easy mounting
| Type | Bolt Anchor |
|---|---|
| Field of Application | Concrete |
| Material | Stainless Steel |
| Colour | Grey |
| Drill Hole Diameter | 10 mm |
| Overall Length | 105 mm |
| Size | 10 x 105 mm |
| Minimum Borehole Depth | 97 mm |
| Depth of Anchoring | 40 - 60 mm |
| Thread | M 10 x 63 mm |
| Max. Effective Length | 20 / 40 mm |
| Number of Parts | 25 |
What base material is the Fischer FBZ 10/20 anchor suitable for?
It is designed for use in cracked and non-cracked concrete.
How many anchors are included in the package?
The package contains 25 pieces.
What are the required drill hole dimensions?
It requires a 10 mm drill hole diameter and a minimum drill hole depth of 97 mm for push-through mounting.
