Fischer DuoHM 6x55 S TX Cavity Plugs with Screws, 25 pcs.
Price: 30.10 €
| Products ID: | 179827 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962524031 |
Delivery options to:
Choose country

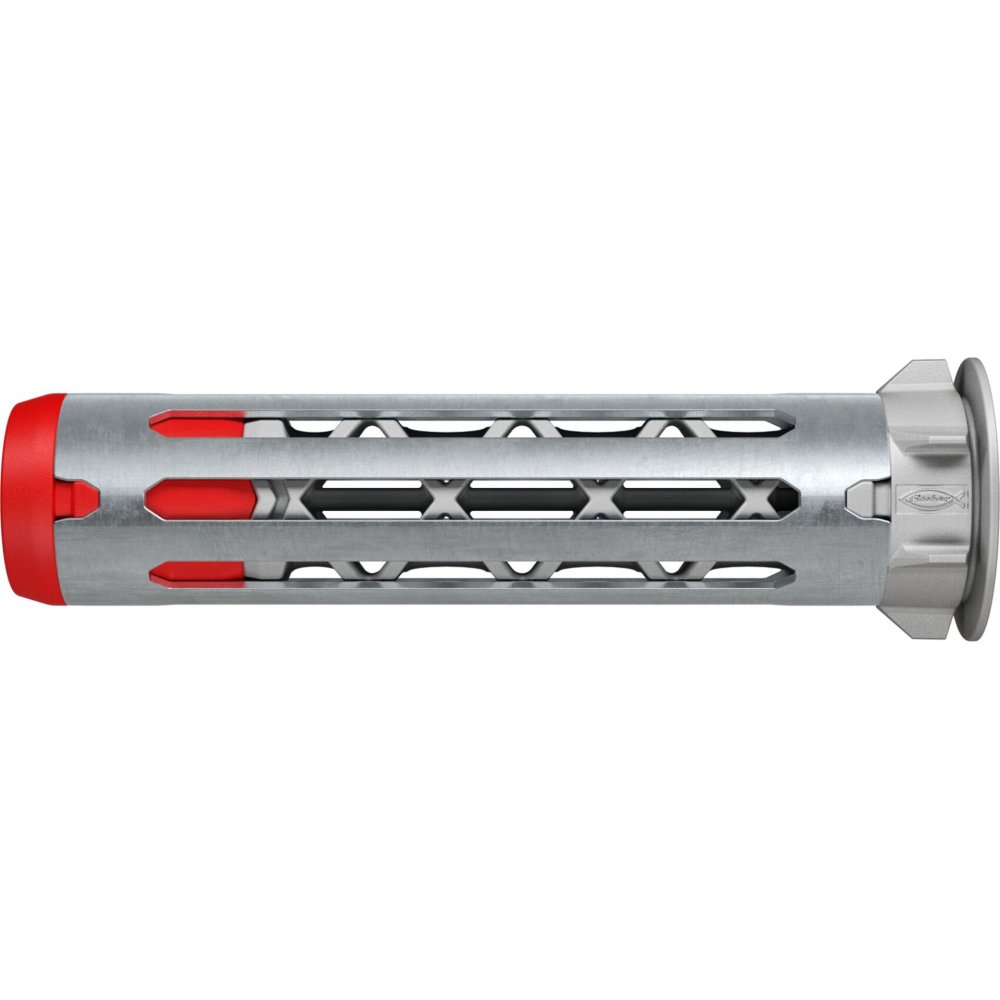

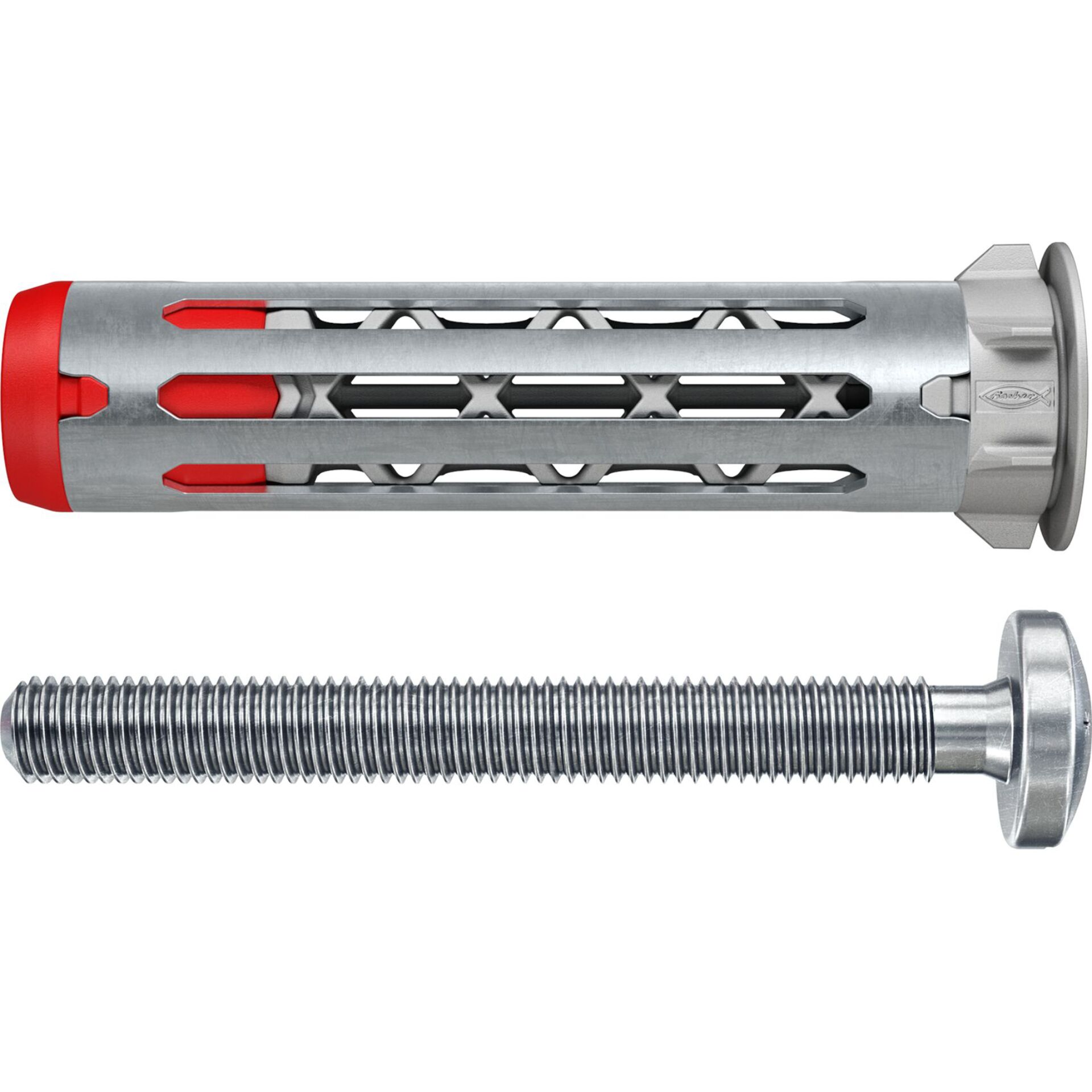

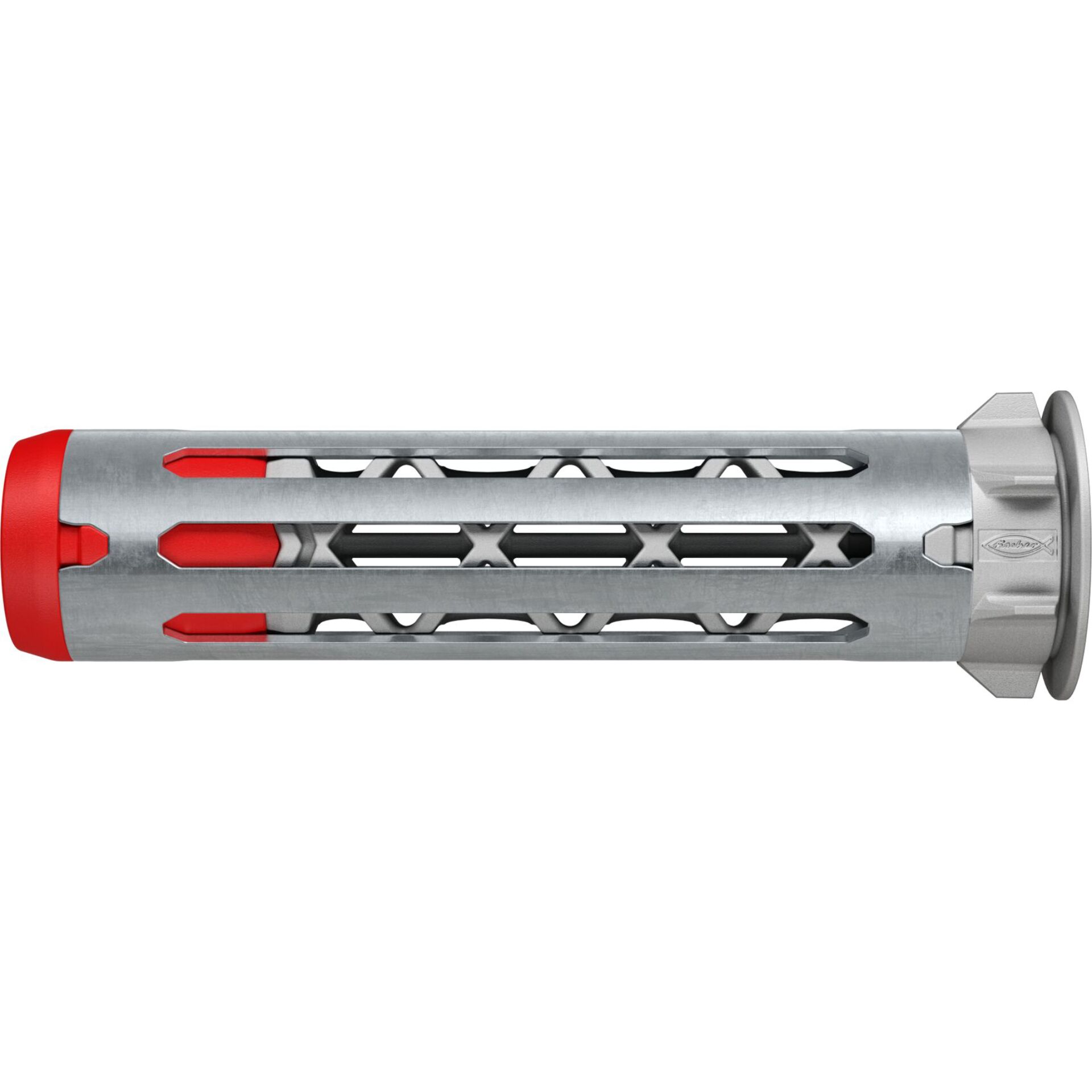

Fischer DuoHM 6x55 S TX is a set of metal cavity plugs with matching screws designed for secure fixing in board and hollow building materials.
Key Features
- Suitable for panel thicknesses from 9.5 to 30 mm

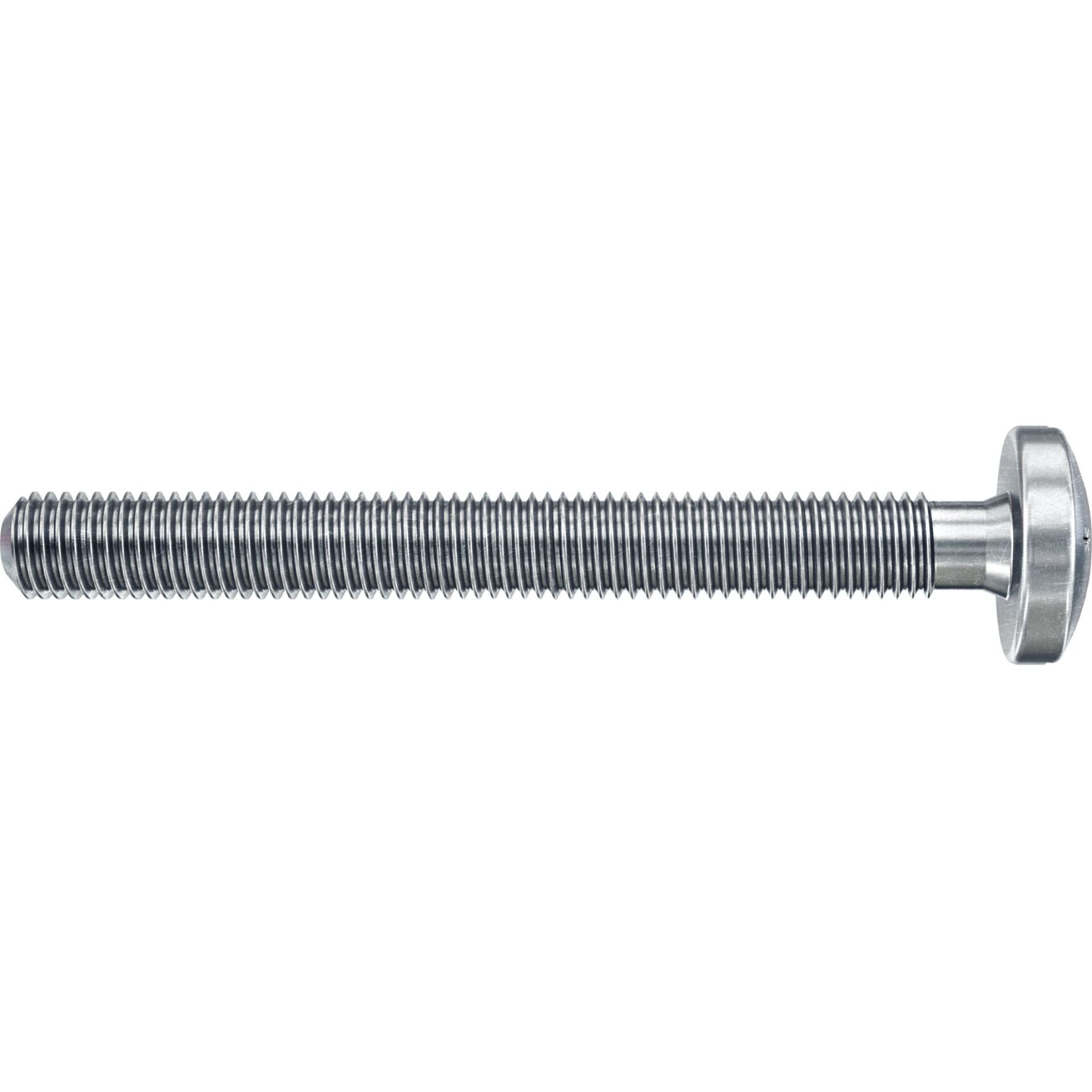

- Equipped with 6.0 x 55 mm screws and TX30 drive
- Requires a 12 mm drill hole diameter and minimum 55 mm drill depth
- Minimum cavity depth requirement of 45 mm
- Compatible with plasterboard, gypsum fiberboard, hollow ceilings, chipboard, and plywood
| Drill core diameter (d0) | 12 mm |
|---|---|
| Min. drill hole depth (h1) | 55 mm |
| Dowel length (l) | 55 mm |
| Screw dimension (ds x ls) | 6.0 x 55 mm |
| Panel thickness (dp) | 9.5 - 30 mm |
| Drive | TX30 |
| Max. thickness of the attachment part (t fix) | 10 mm |
| Min. cavity depth (a) | 45 mm |
| Quantity | 25 pcs. |
| Colour | Silver |
| Material | Metal |
| Type | Cavity Plug |
What drill size is required for Fischer DuoHM 6x55 S TX?
It requires a 12 mm drill hole diameter and a minimum hole depth of 55 mm.
Which panel thicknesses are supported?
The plugs are suitable for panel thicknesses between 9.5 and 30 mm, with a maximum attachment fixture thickness of 10 mm.
