Fischer DuoHM 5x55 S TX Cavity Plugs, 25 pcs
Price: 25.50 €
| Products ID: | 179045 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962524024 |
Delivery options to:
Choose country

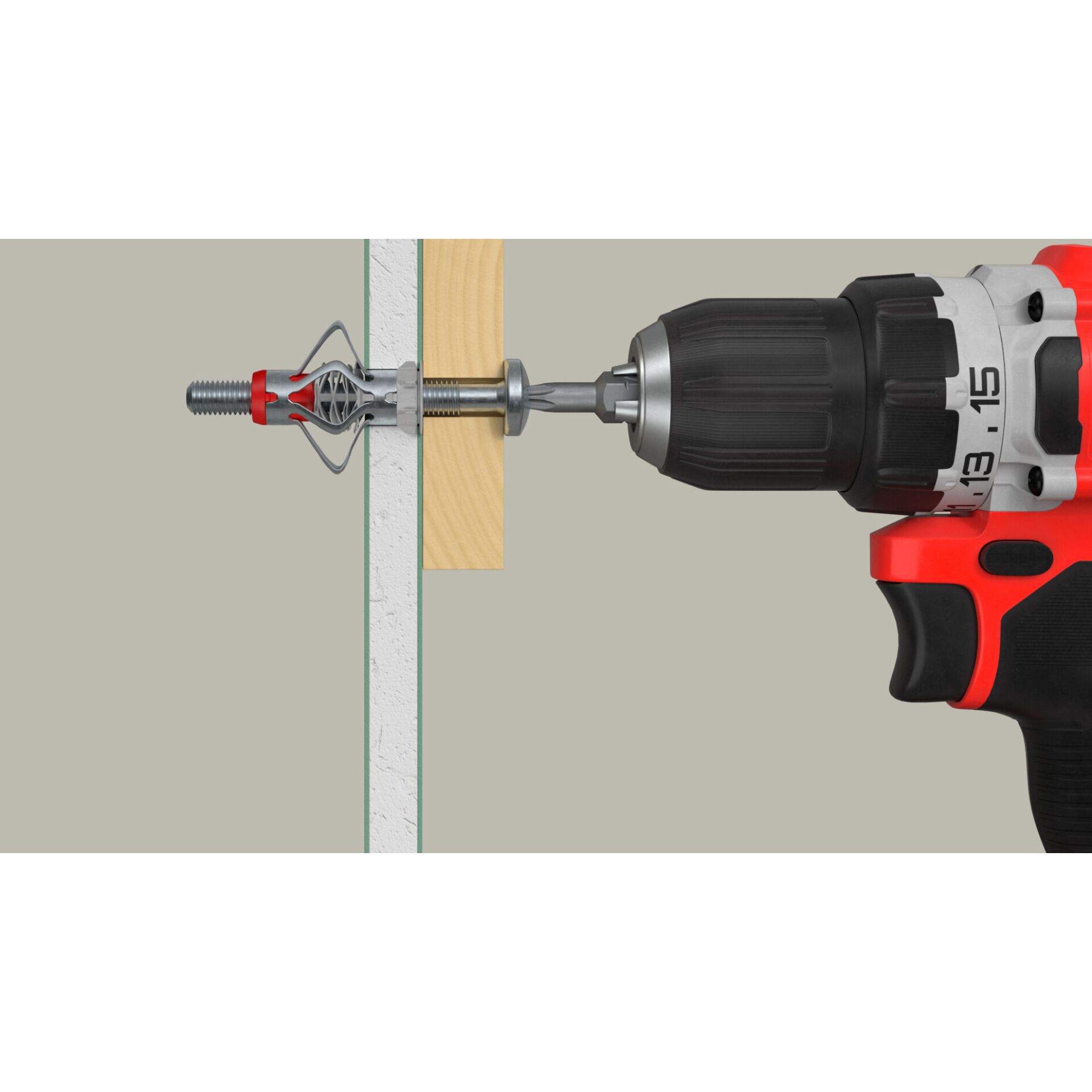

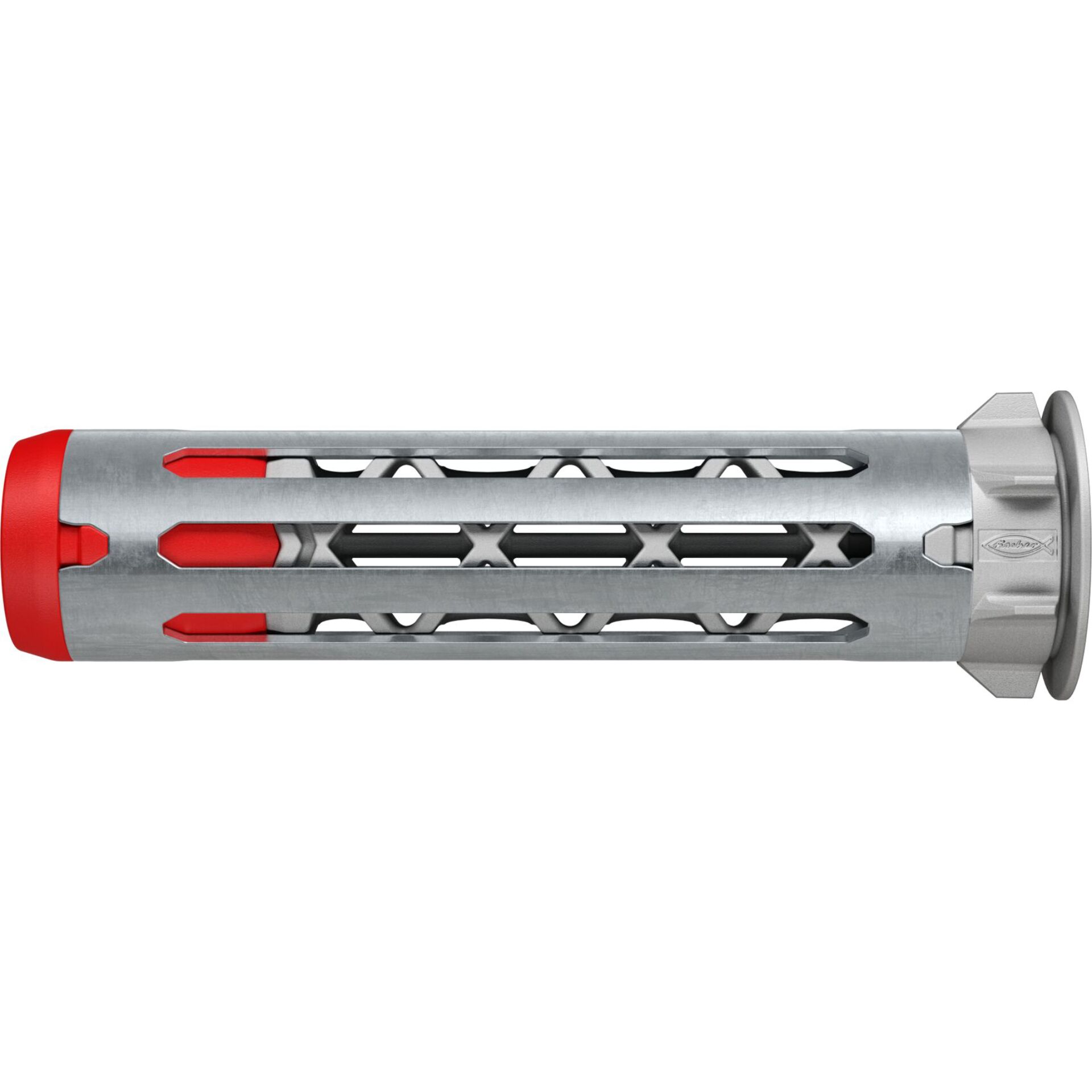

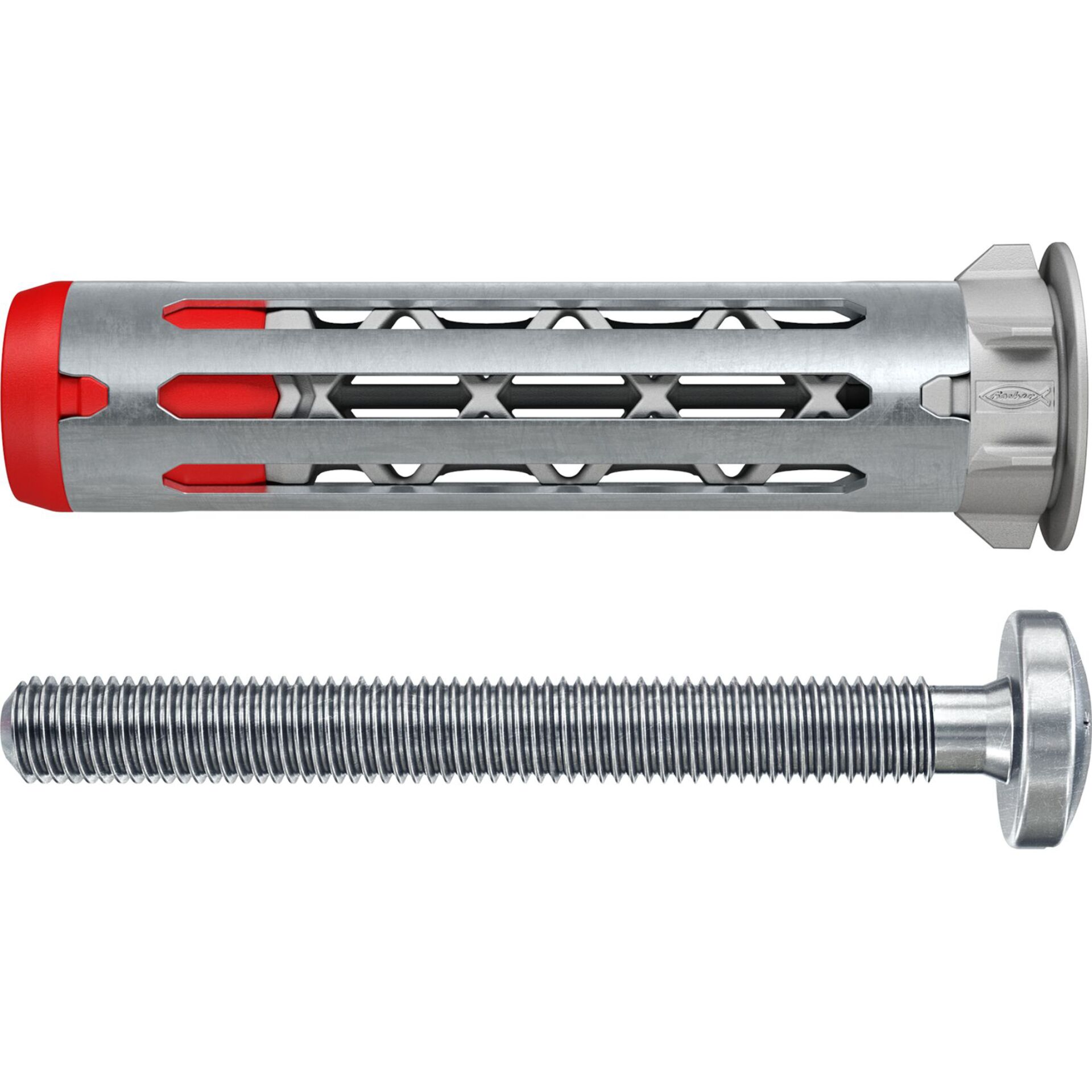

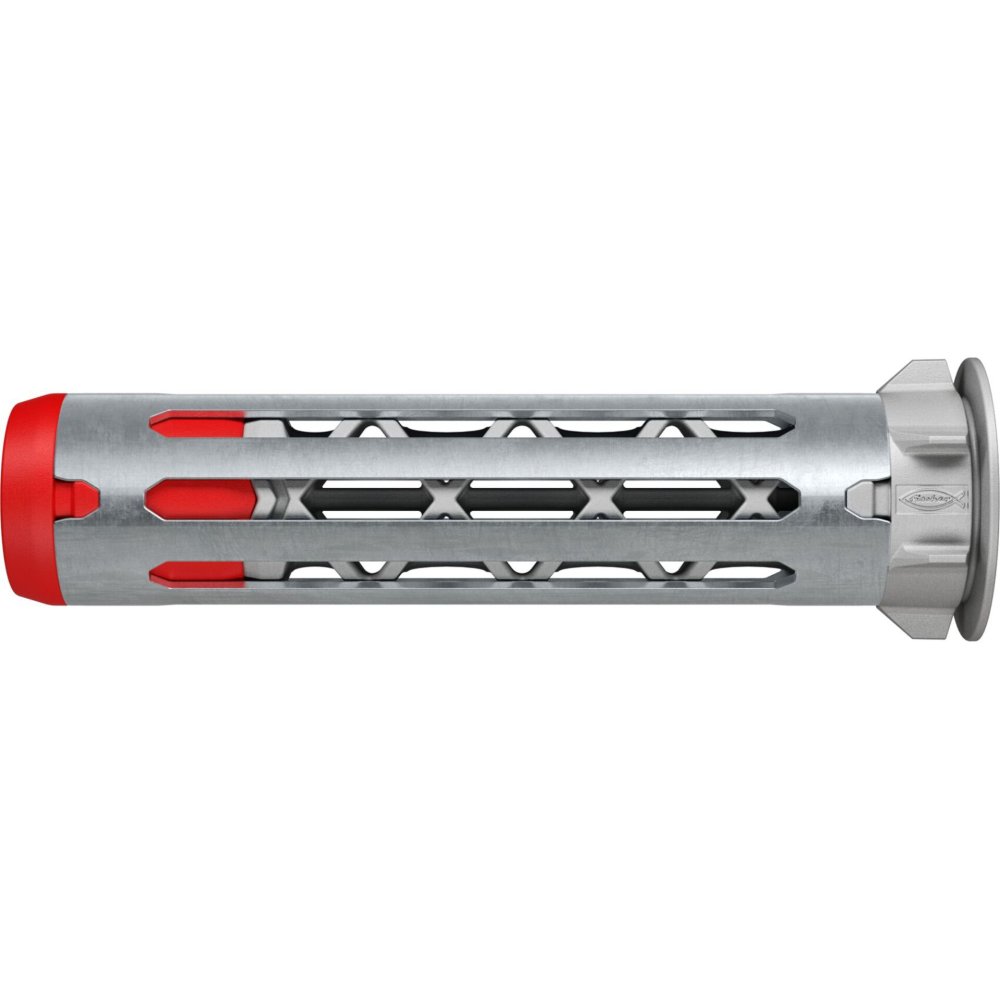

The Fischer DuoHM 5x55 S TX is a set of steel cavity plugs with matching screws, engineered for secure fixings in sheet materials and hollow bases.
Key Features
- Suitable for panel thicknesses from 9.5 to 30 mm

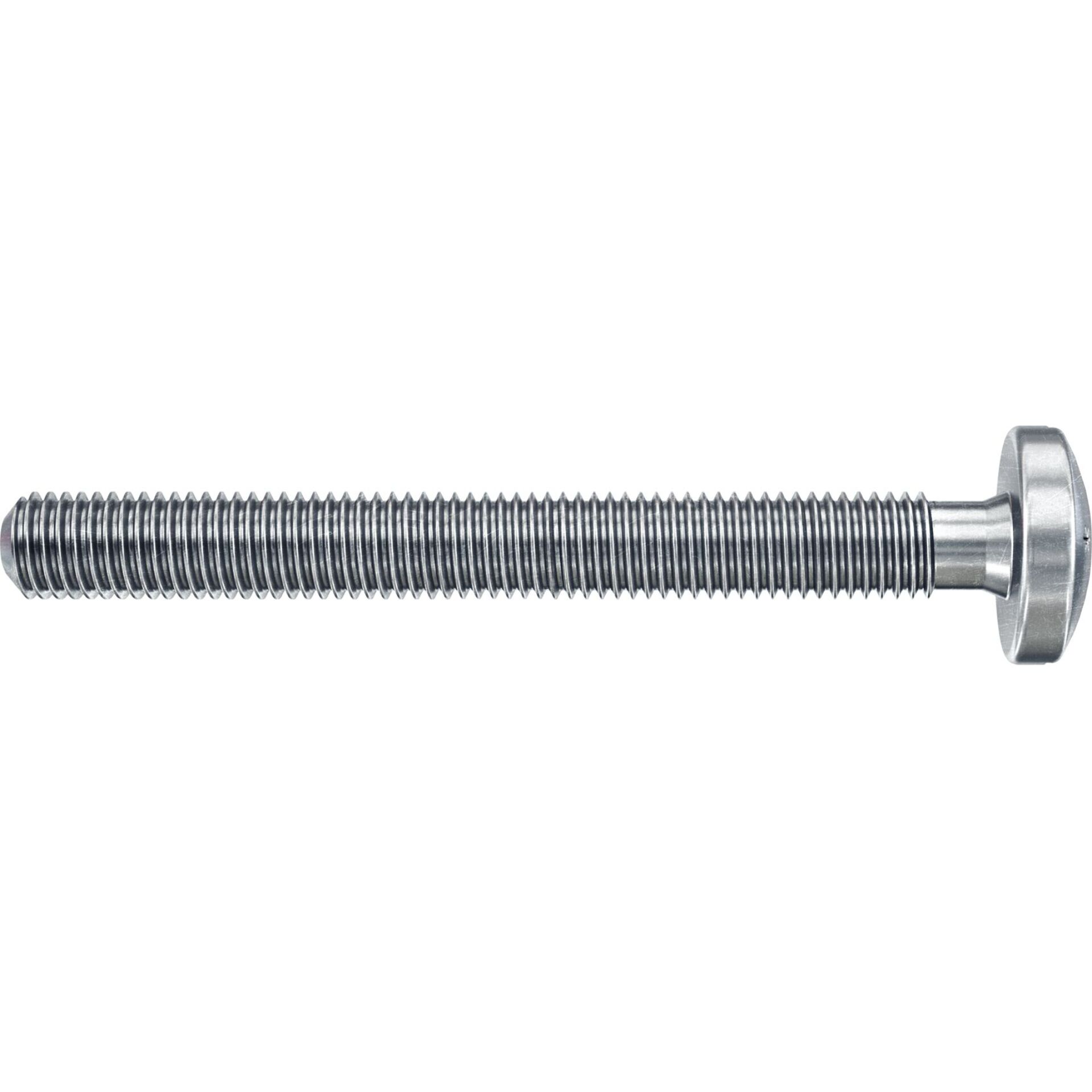

- Includes 5.0 x 55 mm screws with a TX25 drive
- Requires a 10 mm drill hole diameter
- Applicable in plasterboard, gypsum fiberboard, hollow ceilings, chipboard, and plywood
- Durable steel construction in a silver finish
| Drill core diameter (d0) | 10 mm |
|---|---|
| Min. drill hole depth (h1) | 55 mm |
| Dowel length (l) | 55 mm |
| Screw dimension (ds x ls) | 5.0 x 55 mm |
| Panel thickness (dp) | 9.5 - 30 mm |
| Drive | TX25 |
| Max. thickness of the attachment part (t fix) | 10 mm |
| Min. cavity depth (a) | 45 mm |
| Material | Steel |
| Colour | Silver |
| Quantity | 25 pcs. |
What drill hole diameter is required for installation?
The installation requires a 10 mm drill core diameter.
What panel thickness range does this plug support?
It is suitable for panel thicknesses ranging from 9.5 mm to 30 mm.
What drive size is required for the screws?
The included screws use a TX25 drive.
